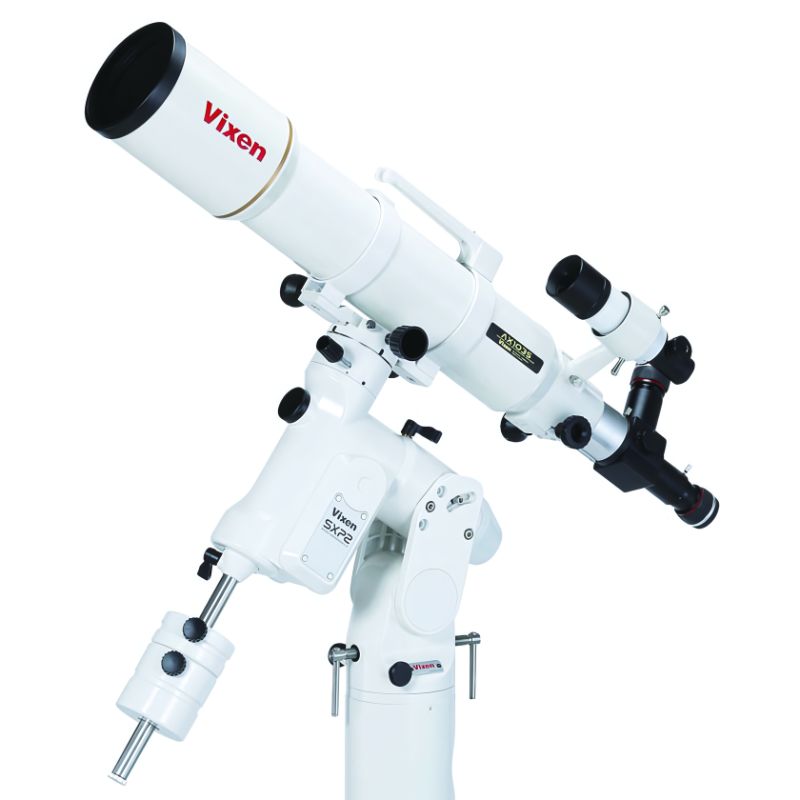

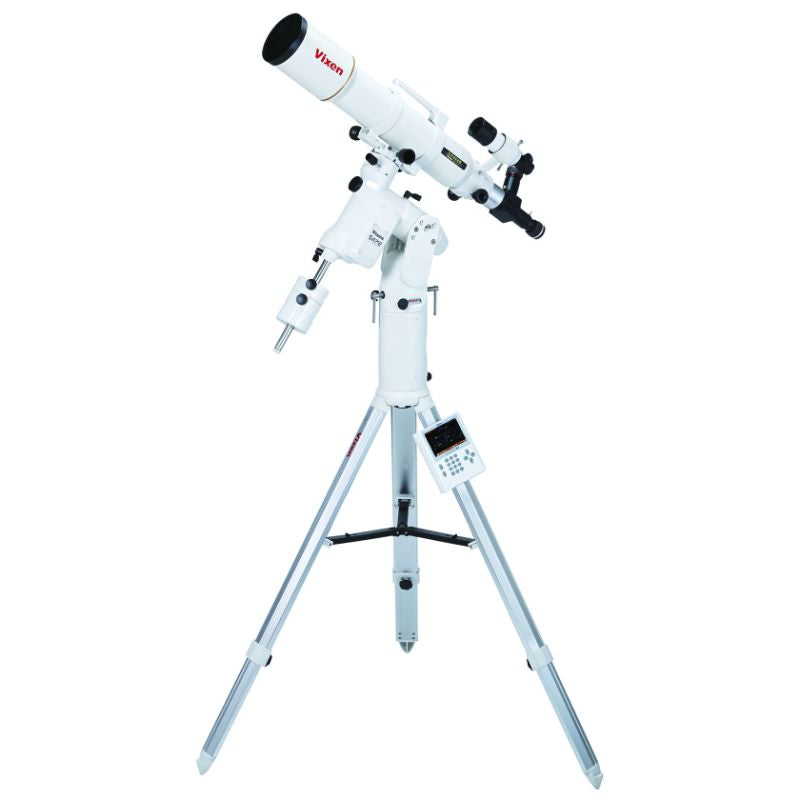

SXP2 equatorial mount package in combination with AX103S optical tube asembly and SXHAL130 tripod.
This package combines the AX103S optical tube—known for its excellent visual and photographic performance—with the robust SXP2 equatorial mount, which delivers smooth and precise movement thanks to strategically placed high-quality bearings.
The AX103S optical tube features Vixen’s original 3-element objective lens design, including an SD apochromatic element that minimizes optical aberrations to the greatest extent. The result is exceptionally sharp and clear images with minimal distortion—perfect for both astrophotography and visual observation.
Also included is the SXG-HAL130 tripod, a stable and lightweight option ideal for stargazing trips.
-
AX103S optical tube assembly
The advanced optical design delivers crystal-clear, sharp, and high-contrast images with no visible false color. Star images remain as small as 20 microns even at the edge of the imaging field. Each lens surface is treated with premium AS coatings, enhancing visible light transmission to 99.5% per surface (400nm–700nm), ensuring exceptionally high overall light transmission.
-
SXP2 equatorial mount
By adopting pulse motors and a belt drive system, using a generous number of bearings, incorporating the P-PEC function, enabling meridian crossing with reverse motion lock, and many other features, the equatorial mount’s accuracy and performance have been pushed to the highest level.
-
STAR BOOK TEN
With observatory-quality controls and versatile features, the STAR BOOK TEN instantly brings your target object into view on its high-definition screen and through your telescope. This revolutionary advanced star chart Go-To navigation controller is the perfect companion for your observing sessions.
-
SXG-HAL130 Aluminum tripod
A highly portable SXG-HAL130 tripod with retractable aluminum legs is suitable to a star gazer who goes out for a remote site.
Optical Tube Specifications (AX103S)
| Specification | Details |
|---|---|
| Objective Lens / Aperture | 103mm triplet SD apochromatic, multi-coated |
| Focal Length (Focal Ratio) | 825mm (f/8.0) |
| Resolving Power | 1.13 arc seconds |
| Limiting Magnitude | 11.8 |
| Light Gathering Power | 217× (compared to unaided eye) |
| Size | 115mm diameter × 762mm length (retractable to 670mm) |
| Weight | 6.4 kg (Net 4.6 kg) |
| Finder Scope | 7×50mm with illuminated reticle, 7° field of view |
| Specification | Details |
|---|---|
| Adapter Threads / Visual Back | 60mm and 42mm for T-ring / 50.8mm and 31.7mm push fit (with flip mirror) |
| Eyepieces | SLV 20mm (41×, 73' field of view), SLV 5mm (165×, 18' field of view) |
Tripod Specifications
| Specification | Details |
|---|---|
| Leg Type / Material | Large hex-shaped adjustable 2-section aluminum tripod |
| Size / Weight | Length adjustable from 807mm to 1299mm, height adjustable from 730mm to 1156mm, setup radius from 460mm to 760mm / Weight: 5.5 kg |
Others
| Feature | Details |
|---|---|
| Photography | Usable with Prime focus, Eyepiece projection, and Afocal imaging |
| Solar Observation | Available with Sun Projection Screen Set B |
Accessories
- SXG half pillar
- Counterweight 1.9 kg X 1
- Counterweight 3.7 kg X 1
- Dovetail-plate mounting block
- Parts case
- Guide book (Japanese language only)
Configuration
- SXP2 equatorial mount
- AX103S optical tube assembly
- Dovetail-plate mounting block
- SXH half pillar
- SXG-HAL130 aluminum tripod
- Eyepieces
