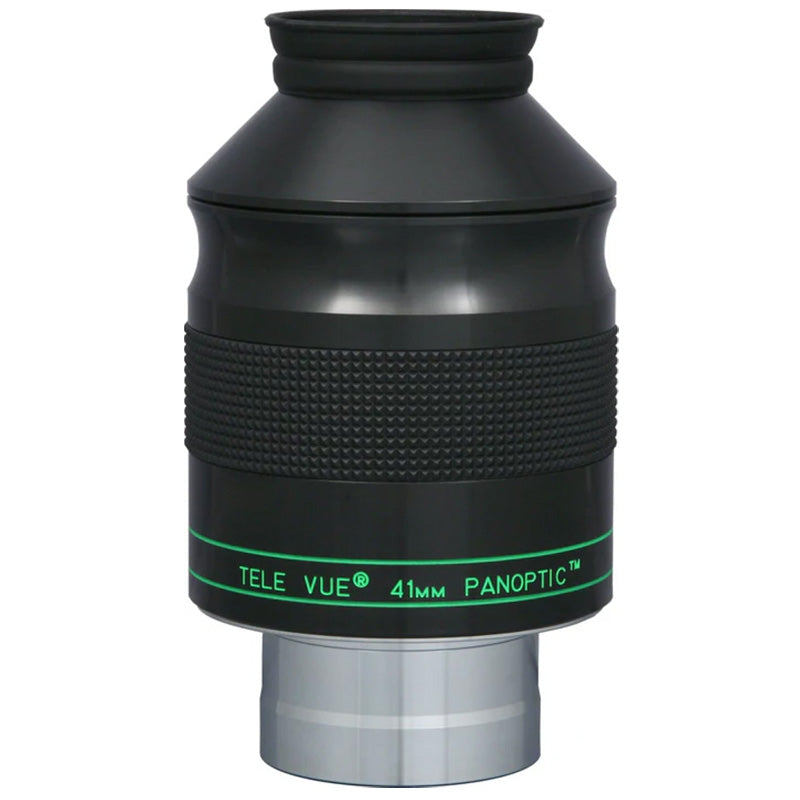

Tele Vue Panoptic 41mm Eyepiece

SKU: EPO-410
Barcode: 759270083441

$1,320.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Panoptic 41mm Eyepiece

$1,320.00

$1,320.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

A 46 mm field stop at the 2-inch field limit

41 mmFocal length

Take in the widest fields at low power

The Tele Vue Panoptic 41mm gives about 29× in a 1,200 mm telescope. Use it for large open clusters and broad sweeps through star fields.

68°Apparent field

About 2.20° of sky at 1,200 mm

Its 46 mm field stop covers the same approximate patch of sky as the 55mm Plössl in the same telescope. The 41mm gives more power and a 68° apparent field.

27 mmEye relief

Set the eyeguard to your eye position

Use the adjustable eyeguard to hold your eye at the distance where the entire field comes into view.

4.1 mm
Exit pupil at f/10

What the 41mm does at f/10

At f/5, the same eyepiece gives an 8.2 mm exit pupil. If the beam is wider than your dark-adapted pupil, your eye receives only part of it.

Compare three low-power 2-inch options

35mm Panoptic
  • Apparent field68°
  • Field stop38.7 mm
  • Eye relief24 mm
41mm Panoptic Selected model
  • Apparent field68°
  • Field stop46 mm
  • Eye relief27 mm
55mm Plössl
  • Apparent field50°
  • Field stop46 mm
  • Eye relief38 mm

Good to know

Set the eyeguard height

Turn the upper housing to find your preferred height. Bring the concealed lock ring up to that position and screw the housing down onto it.

Make room for glasses

Tele Vue says you can unscrew the eyeguard housing completely to access the maximum eye relief.

Check telescope balance

At about 953 g, the 41mm can shift the balance when you swap from a lighter eyepiece.

What it fits

Eyepiece holder
Seat it directly in a 2-inch focuser or diagonal.
Filters
2-inch eyepiece filters
Optional DIOPTRX
Fits directly (optional accessory).
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.

Specifications

Optics

Focal length
41 mm
Apparent field of view
68°
Eye relief
27 mm
Field stop diameter
46 mm
Optical elements / groups
6 / 4
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
2-inch eyepiece filters
Tele Vue DIOPTRX
Fits directly (optional accessory)

Fit and dimensions

Barrel diameter
2 inches
Eyepiece weight
Approx. 953 g
Height above seating shoulder
3.8 in
2-inch barrel length
1.1 in
Black body diameter
3 in
Field stop position
Approx. 0.27 in below seating shoulder
Parfocal group
A
Manufacturer model code
EPO-41.0
