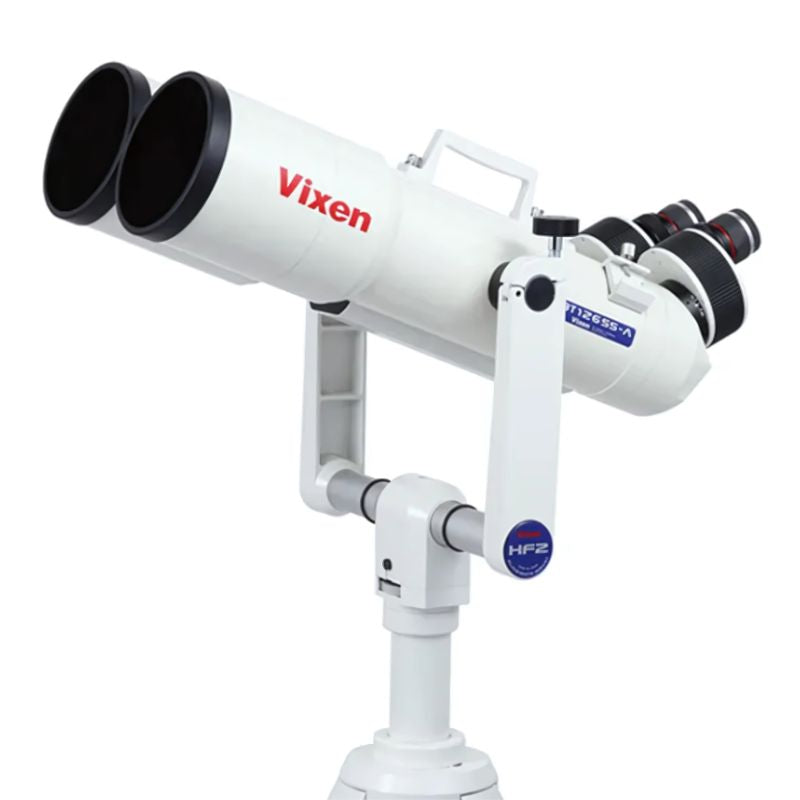

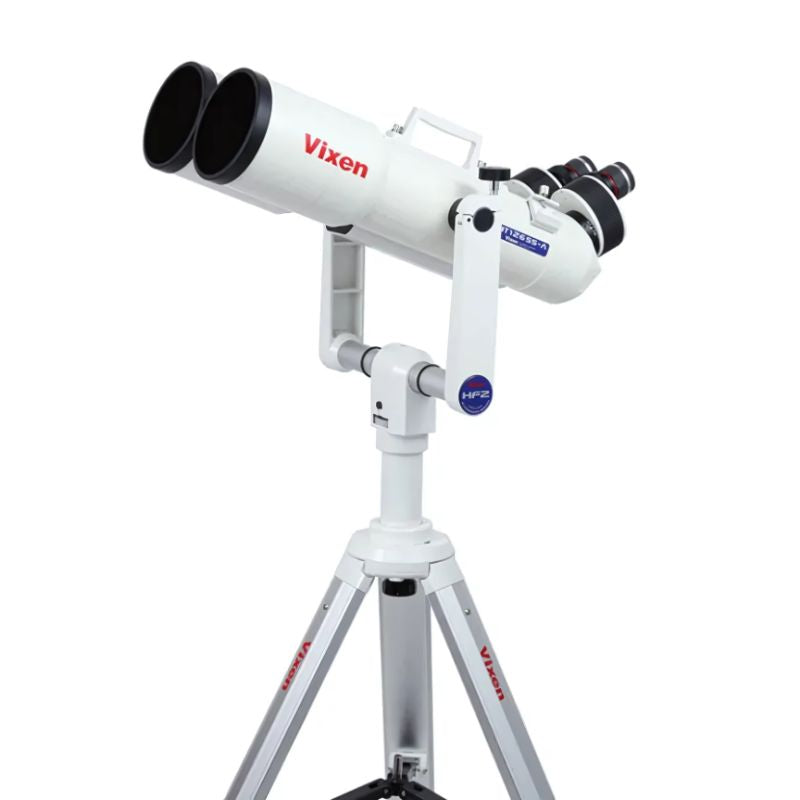

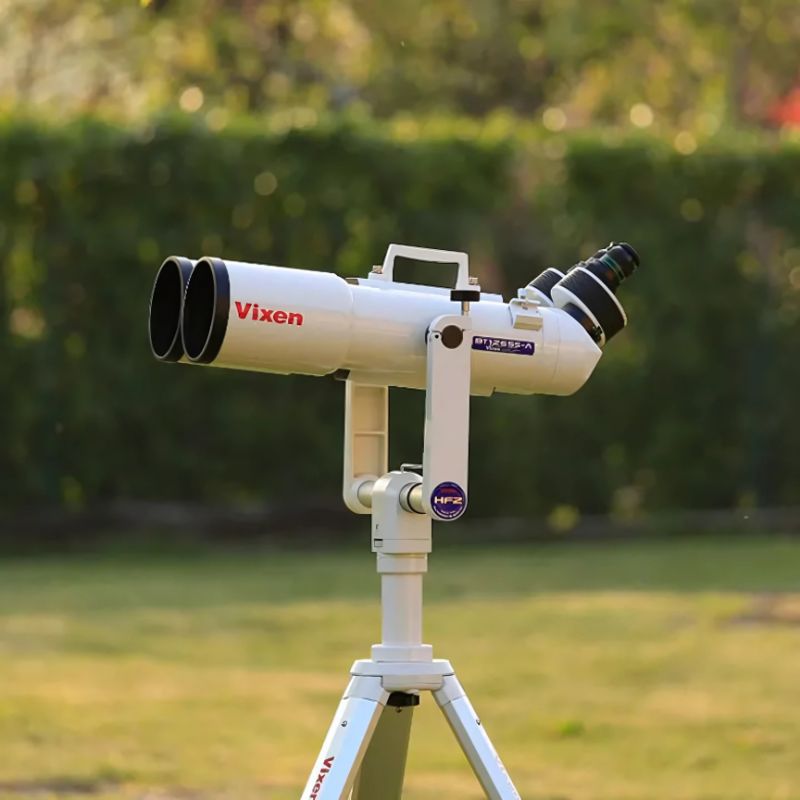

A package of large aperture 126mm binocular telescope with friction-stop HF2 altazimuth fork mount on a sturdy SXG-HAL130 tripod. Newly designed achromatic lens delivers very sharp image not only in the centre but also to the surrounding of field of view. 45-degree inclined drawtube assures comfortable gazing of stars even at the zenith. Moreover the eyepiece can be simply installed through push-fit while eliminating a need for fixing screws.
Since optical axis may not be on the centre if extremely high magnification eyepieces are used, eyepieces with focal length of 10mm or over is suggested.
HF2 altazimuth fork mount
The altazimuth fork mount to mount large binoculars for astronomical observation, compatible with the sturdy aluminium tripod for SX-series equatorial mounts.
Changeable magnifications
The BT-126SS-A is designed to interexchange the eyepiece to select arbitrarily a magnification for use. *Note there will be eyepieces which are not compatible.
Comfortable gazing at all angles
When gazing stars with binoculars with a straight view type, it is difficult to view comfortably as of need to looking up. However, the binocular telescope permits gazing at 45-degree angle comfortably.
Eyepieces are included.
The standard high grade SLV20mm eyepieces using multi-coated lens are supplied with this package.
Optical Tube
| Objective lens | D=126mm, achromatic, multi-coated |
| Focal length | 625mm (f/12.3) |
| Resolution / Limiting magnitude | 0.92 arc sec. / 12.3 |
| Light gathering power | 324x unaided eyes |
| Dimensions / Weight | 630mm(L)x360(W)x200(H)mm, 10.5.0kg |
| Finder scope | Dovetail type finder bracket shoe supplied |
Draw Tube
| Accessory attachment size | 31.7mm push-fit |
| Eyepiece | SLV20mm x 2 pcs (31x, 97 deg. Actual field of view). LV8-24mm eyepiece, NPL-series are not usable. |
| Interpupillary distance | 58-102mm |
Mount
| Mount type | HF2 Altazimuth fork mount |
| Lateral and vertical motion | Friction-stop in vertical and horizontal, with friction adjustment |
| Weight | Approx. 3.4kg |
| Dimensions | L:807mmโ1,299mm, H: 730โ1,156mm, Radius: 460โ706mm |
Others
| Photography | Not possible |
| Solar observation | Not possible |
| Total weight | 19.4kg without eyepieces |
ย
In The Box
- Optical tube assembly
- HF2 Fork Mount
- SXG-HAL130 Tripod
- Swing bracket (Binocular cradle)
- Eyepieces
