Images are breathtakingly sharp and clear with perfect color correction.

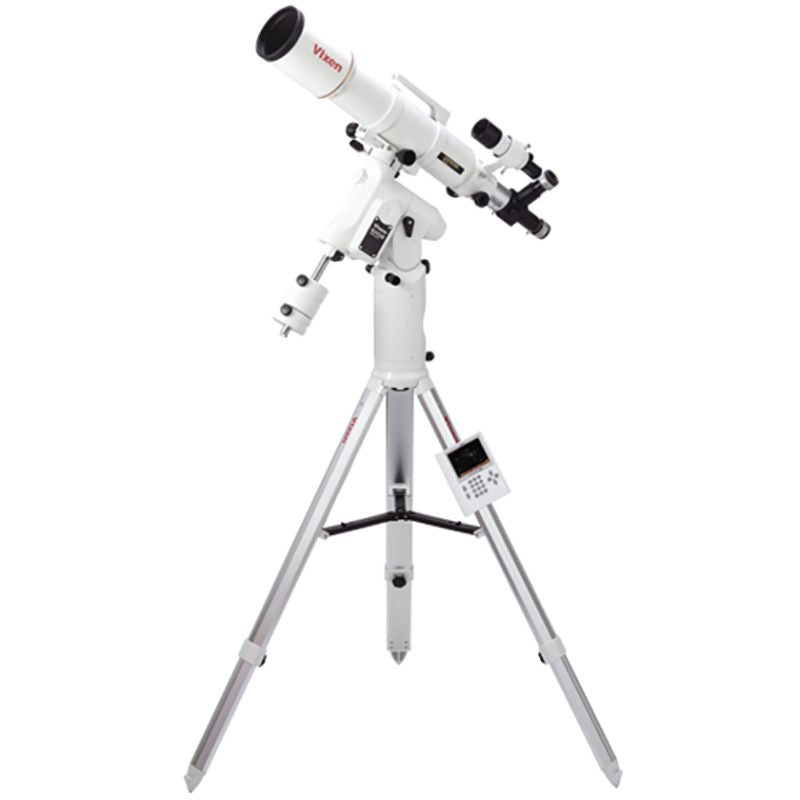

The AX103S features a three element objective lens, incorporating an SD lens in its center, and the fourth lens inside of the focuser drawtube. The SXD2 mount is a sturdy, high precision mount that offers smooth motion with micro-step motion control system. The package comes as standard with the high definition "Go-to" navigation STAR BOOK TEN controller with buit in star chart.
-

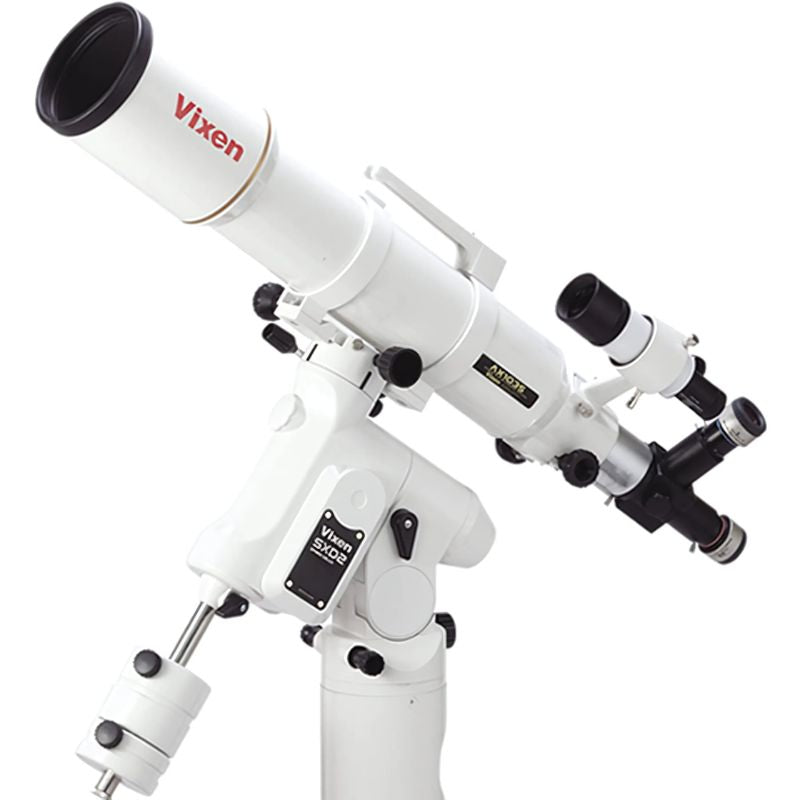

AX103S optical tube assembly.
The advanced optical design delivers crystal-clear, sharp, and high-contrast images with no visible chromatic aberration (false color). Star images remain exceptionally small—down to 20 microns—even at the edge of the imaging field. Premium AS (Advanced Super) coatings are applied to each lens surface, enhancing visible light transmission to 99.5% per surface (within the 400nm–700nm wavelength range), ensuring exceptionally high overall light transmission.
-
SXD2 equatorial mount PFL.
The sturdy SXD2 mount features precision pulse motors, solid mechanices designed for long observing session and astrophotography.
-
STAR BOOK TEN star chart go-to navigation controller.
The STAR BOOK TEN features intuitive 'Star-Chart Go-To' system with high definition color LCD display. The position of the telescope, the target and other useful information are displayed on the screen in detail. The night vision feature illuminates the whole screen in red, if applied, and will limit the brightness to the observer's eyes.
-
SXG-HAL130 Aluminum tripod.
With high solidness and stability it is highly suitable for observing sessions in a remote place.
Optical Tube
| Objective lens, effective aperture | 103mm, triplet SD apochromatic, multicoated |
| Focal length (Focal ratio) | 825mm (F8.0) |
| Resolving power / Limiting magnitude | 1.13 arc seconds / 11.8 |
| Light gathering power | 217×unaided eye |
| Dimensions / Weight | 115mm dia×762mm long (Retractable to 670mm long), 6.4kg (Net 4.6kg) |
| Finder scope | 7X 50mm with illuminated reticle (7 degrees field of view) |
Focuser
| Adapter threads / Visual back | 60mm, 42mm for T-ring / 50.8mm and 31.7mm push fit (with Flip mirror) |
| Eyepieces | SLV20mm (41X, 73' field of view), SLV5mm (165X, 18' field of view) |
Mount
| Type of mount | SXD2 equatorial mount PFL. |
Tripod
| Leg type, material | Large hex-shaped adjustable 2-section aluminum legs |
| Size / Weight | Adjustable from 807mm to 1299mm in length, from 730mm to 1156mm in height, setup radius from 460mm to 706mm / 5.5 kg |
Others
| Accessories | SXG half pillar, Parts case, Counterweight (1.9 kg x 1, 3.7kg× 1) |
| Photography | Usable with Prime focus, Eyepiece projection and Aforcal imaging |
| Solar observation | Available with sun projection screen set B |
| Total weight | 28.9kg (without battries and without eyepieces) |
Configuration
- Optical tube assembly
- SXD2-PFL equatorial mount
- SXG-HAL130 tripod
