Atik Imaging Filters

Looking for Atik Imaging Filters? We stock a great range to buy online and ship from Sydney to anywhere in Australia or New Zealand.

5 products

Filter

5 products

Range min Range max

$ Input price min

$ Input price max

0 selected

Atik (5)

Apply (0)

{"id":42045265412165,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ATK0205","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"ATIK 2\" Narrowband filter Set","public_title":null,"options":["Default Title"],"price":149900,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"0799787276400","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

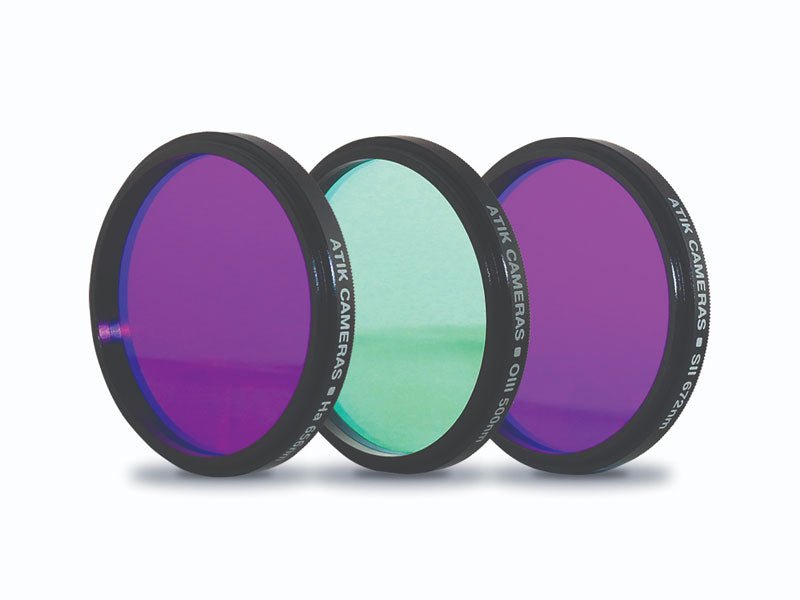

ATIK 2" Narrowband filter Set

(0)

$1,499.00

Unit price

The Atik 2" narrowband filter set are designed with a band pass of 7 nm to aid in capturing all a nebula’s photons while the vast majority of the broad band light pollution is stopped. The result is a much higher signal to noise revealing faint details in nebulas. The Narrow band filter set comprises of Hydrogen-Alpha (Ha), Sulphur (SII) and Oxygen (OIII). Take advantage of our special offer. Get 50% off any filter set (or both filter sets), when you buy any Atik mono camera (with the exception of the Atik GP).

The ATIK 2" narrowband filter set is compatible with our filter wheels and allows astrophotographers to capture deep-sky objects in spectacular narrow band. This filter set is commonly used to image objects in the Hubble pallet.

Bandwidth:

SII 7nm
Ha 7nm
OIII 7nm

Peak Transmission: minimum 80%

CWL (centre of wavelength):

Ha 656.3nm
SII 671.6nm
OIII 500.7nm

Size: 2” mounted
Transmitted Wavefront RMS: λ/4
Parallelism(arcsec): 30s

Filter	Peak Transmission	Half Width	Transmission in Band	Transmission out of Band
Hydrogen Alpha	656.3nm	7nm	>80%	Maximum＜0.3% Average 0.1%
Oxygen III	500.7nm	7nm	>80%	Maximum＜0.3% Average 0.1%
Sulphur II	671.6nm	7nm	>80%	Maximum＜0.3% Average 0.1%

SKU: ATK0205

Out of stock

Available for pickup at

Out of stock at

{"id":42045267247173,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ATK0204","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Atik 36mm Narrowband Filter Set","public_title":null,"options":["Default Title"],"price":116000,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"0799787266913","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Atik 36mm Narrowband Filter Set

(0)

$1,160.00

Unit price

ATIK 36mm Narrowband Filter Set

The Atik 36mm Narrowband filter set is designed with a band pass of 7 nm to aid in capturing all a nebula’s photons while the vast majority of the broad band light pollution is stopped. The result is a much higher signal to noise revealing faint details in nebulas. The Narrow band filter set comprises of Hydrogen-Alpha (Ha), Sulphur (SII) and Oxygen (OIII). Take advantage of our special offer. Get 50% off any filter set (or both filter sets), when you buy any Atik mono camera (with the exception of the Atik GP).

The Atik Narrowband 36mm filter set is compatible with our filter wheels and allows astrophotographers to capture deep-sky objects in spectacular narrow band. This filter set is commonly used to image objects in the Hubble pallet.

Atik Narrowband 36mm Filter Set Specifications:

Bandwidth:

SII 7nm
Ha 7nm
OIII 7nm

Peak Transmission: minimum 80%

CWL (centre of wavelength):

Ha 656.3nm
SII 671.6nm
OIII 500.7nm

Size: 36mm unmounted
Transmitted Wavefront RMS: λ/4
Parallelism(arcsec): 30s

Filter	Peak Transmission	Half Width	Transmission in Band	Transmission out of Band
Hydrogen Alpha	656.3nm	7nm	>80%	Maximum＜0.3% Average 0.1%
Oxygen III	500.7nm	7nm	>80%	Maximum＜0.3% Average 0.1%
Sulphur II	671.6nm	7nm	>80%	Maximum＜0.3% Average 0.1%

SKU: ATK0204

Out of stock

Available for pickup at

Out of stock at

{"id":42045267443781,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ATK0164","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Atik LRGB 2\" Filter Kit","public_title":null,"options":["Default Title"],"price":71900,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"0799787266722","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Atik LRGB 2" Filter Kit

(0)

$719.00

Unit price

The ATIK LRGB 2" filter set consists of Luminance, Red, Green and blue filters, that have been designed for CCD cameras to image deep sky objects, galaxies and stars in their natural colour. Take advantage of our special offer. Get 50% off any filter set (or both filter sets), when you buy any Atik mono camera (with the exception of the Atik GP).

If a natural colour representation is what you want from you deep-sky imaging, an LRGB filter set should be your first choice. With OIII emission overlapping on the blue and green filters to allow high efficiency and natural colour imaging of all deep-sky objects. The gap between green and red filters serves to block out the light pollution line at 589nm and improves the colour of your images.

ATIK LRGB 2" Specifications

Transmission: Average 95%
Size: 2”
Coating Wavelength: 300-1050nm
Transmitted Wavefront RMS: λ/4
Parallelism (arcsec): 30s

Filter	Transmission range	Transmission in Band	Transmission out of band
Luminance	410-680nm	Average >95%, Minimum >90%	Maximum <1% Average <0.5%
Red	600-680nm	Average >95%, Minimum >90%	Maximum <1% Average <0.5%
Green	500-550nm	Average >95%, Minimum >90%	Maximum <1% Average <0.5%
Blue	410-500nm	Average >95%, Minimum >90%	Maximum <1% Average <0.5%

SKU: ATK-0164

Out of stock

Available for pickup at

Out of stock at

{"id":42045267509317,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ATK0203","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Atik Narrowband 1.25\" Filter Kit","public_title":null,"options":["Default Title"],"price":106900,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Atik Narrowband 1.25" Filter Kit

(0)

$1,069.00

Unit price

The ATIK Narrowband 1.25" filters are designed with a band pass of 7 nm to aid in capturing all a nebula’s photons while the vast majority of the broad band light pollution is stopped. The result is a much higher signal to noise revealing faint details in nebulas. The Narrow band filter set comprises of Hydrogen-Alpha (Ha), Sulphur (SII) and Oxygen (OIII). Take advantage of our special offer. Get 50% off any filter set (or both filter sets), when you buy any Atik mono camera (with the exception of the Atik GP).

The ATIK Narrowband 1.25" filter set is compatible with our filter wheels and allows astrophotographers to capture deep-sky objects in spectacular narrow band. This filter set is commonly used to image objects in the Hubble pallet.

ATIK Narrowband 1.25" Specifications

Bandwidth:

SII 7nm
Ha 7nm
OIII 7nm

Peak Transmission: minimum 80%

CWL (centre of wavelength):

Ha 656.3nm
SII 671.6nm
OIII 500.7nm

Size: 1.25” mounted, 36mm unmounted or 2” mounted
Transmitted Wavefront RMS: λ/4
Parallelism(arcsec): 30s

Filter	Peak Transmission	Half Width	Transmission in Band	Transmission out of Band
Hydrogen Alpha	656.3nm	7nm	>80%	Maximum＜0.3% Average 0.1%
Oxygen III	500.7nm	7nm	>80%	Maximum＜0.3% Average 0.1%
Sulphur II	671.6nm	7nm	>80%	Maximum＜0.3% Average 0.1%

SKU: ATK0203

Out of stock

Available for pickup at

Out of stock at

{"id":42045266985029,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ATK0163","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Atik LRGB 36mm Filter Set","public_title":null,"options":["Default Title"],"price":54900,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"0799787276530","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

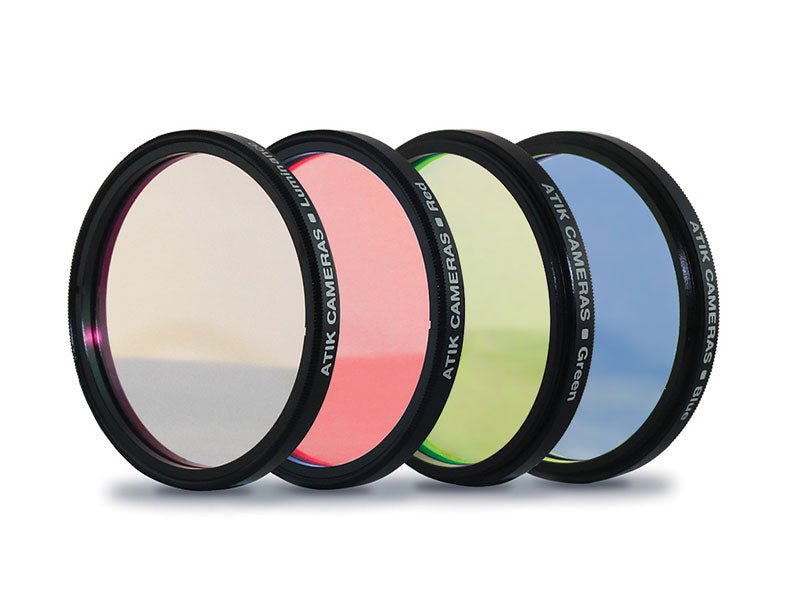

Atik LRGB 36mm Filter Set

(0)

$549.00

Unit price

The ATIK LRGB 36mm set consists of Luminance, Red, Green and blue filters, that have been designed for CCD cameras to image deep sky objects, galaxies and stars in their natural colour. Take advantage of our special offer. Get 50% off any filter set (or both filter sets), when you buy any Atik mono camera (with the exception of the Atik GP).

ATIK LRGB 36mm Set Specifications

Transmission: Average 95%
Size: 36mm
Coating Wavelength: 300-1050nm
Transmitted Wavefront RMS: λ/4
Parallelism (arcsec): 30s

Filter	Transmission range	Transmission in Band	Transmission out of band
Luminance	410-680nm	Average >95%, Minimum >90%	Maximum <1% Average <0.5%
Red	600-680nm	Average >95%, Minimum >90%	Maximum <1% Average <0.5%
Green	500-550nm	Average >95%, Minimum >90%	Maximum <1% Average <0.5%
Blue	410-500nm	Average >95%, Minimum >90%	Maximum <1% Average <0.5%
