Introducing the Star Adventurer Pro Kit 2I, the most advanced star tracker in its class. The Star Adventurer now
includes built-in WIFI, this now aligns with its little brother SAM (Star Adventurer MINI), but that’s not all. The new 2i version now
includes the advanced firmware dial and features.

The Star Adventurer Pro Kit 2I is known as the ‘‘Gateway into Astrophotography’, with the upgrade feature only making it a
more powerful and enjoyable tool in your kit.

Smartphone Controlled

With the free app available for Apple and Android, you will have full control of your settings. Using the
optional auxiliary shutter release cable specific to your camera, will replace the need for an intervalometer.
Allowing for long exposure astrophotography in Sidereal, Lunar and Solar tracking. Advanced features
include Astro, long exposure and regular time lapse.

Feature List for the Star Adventurer Pro Kit 2I

• High Precision, Portable and stable celestial tracking system
• Built-in WI-FI with free App support for IOS and Android platforms
• Multi-language support
• Solar, lunar, sidereal and customized tracking speeds for astrophotography
• Supports unguided dithering option for easily removing hot/cold pixels
• Maximum payload up to 5kg (11lbs)
• Supports star scape photography
• Support standard shot exposure time-lapse photography
• User-friendly mode dial with pre-programmed functions
• Built-in polar scope for precise polar alignment
• Provides DSLR shutter control for multiple brands
• Lifetime free firmware upgrade
• Supports single axis auto-guiding
• Uses AA x 4 batteries
• Supports external usb power
• Low power consumption
• Fits standard 3/8th and 1/4 inch tripod / quick release brackets
• Expandable with a range of optional accessories

Please note - due to Australian govt restrictions on the sale of products which includes button batteries, the polarscope illuminator is not included in this package.

Supplied with;

• EQ6-R Pro mount
• Tripod with 2" stainless steel legs
• Dual-Fit 45mm/75mm dovetail saddle
• SynScan hand controller / cable
• Counterweight Rod: 18mm diameter, length 240mm + 180mm
• 2 x5 kg counterweights
• Polar alignment scope
• Autoguiding connection
• Printed Instruction Manual

SPECIFICATIONS

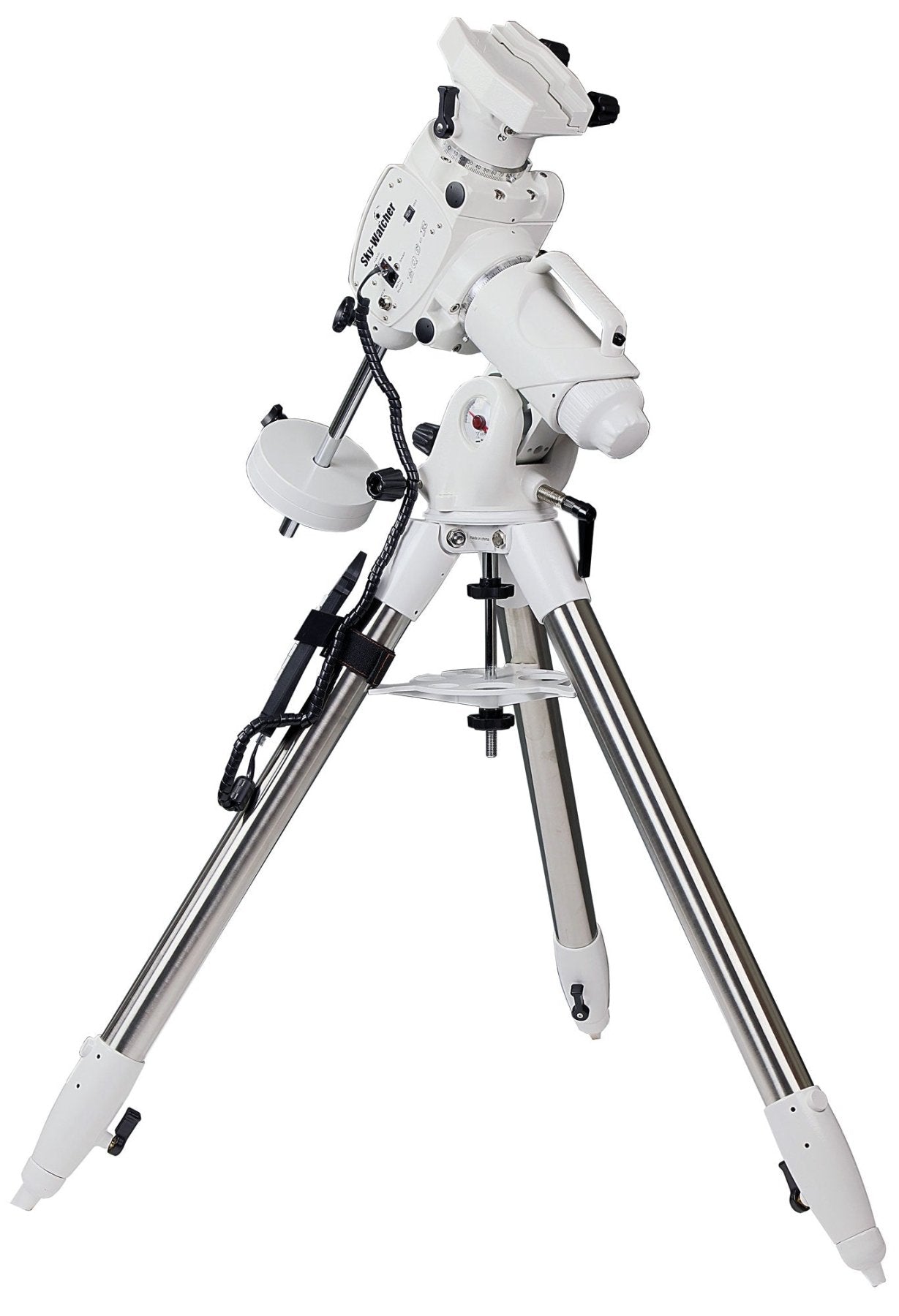

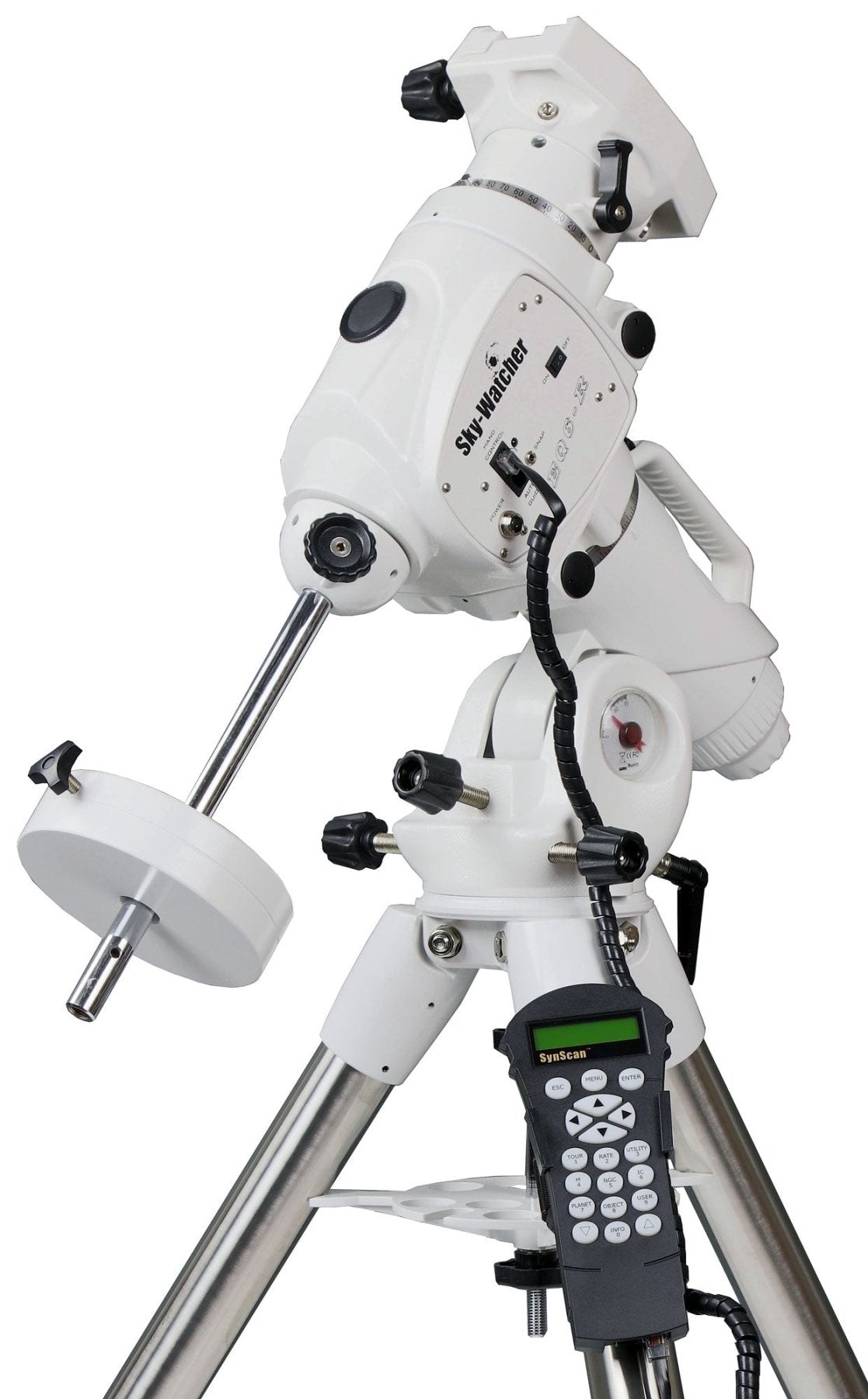

• Product Name: EQ6-R PRO Synscan
• Mount Type: German Equatorial
• Maximum Payload (Counterweights excluded): 20kg (for Astro-Photography)
• Latitude Adjustment Range: 5º to 65º
• Azimuth Adjustment Range: About ±9 º
• Mount Weight (Tripod excluded): 17.3 kg
• Counterweights Supplied: 2 x 5kg
• Tripod Supplied: 2-inch stainless steel, 7.5kg Weight
• Counterweight Rod: 18mm Diameter, Length 240mm + 180mm
• Power Requirement: DC11~16V 4A
• Motors: 1.8 º Hybrid Stepper Motors
• Transmission: 180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
• Gear Ratio: 720
• Resolution: 9216000 Counts/Rev., approx. 0.14 arc-second
• Maximum Slewing Speed: 4.2 degrees/second
• Tracking Rate: Sidereal rate, solar rate, lunar rate
• Tracking Mode: Equatorial mode
• Auto-guiding Speed: 0.125X, 0.25X, 0.5X, 0.75X, 1X
• PEC: 100 Segments Permanent PEC (PPEC)
• Hand Controller: SynScan™
• Database: 42000+ Objects
• Celestial Object Catalogue: Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
• Pointing Accuracy: Up to 5 arc-minutes (RMS)
• Integral SNAP camera control port
• Dual-Fit 45mm/75mm Dovetail Saddle
• Polar Alignment Scope

Latest Instruction Manual Latest USB Model

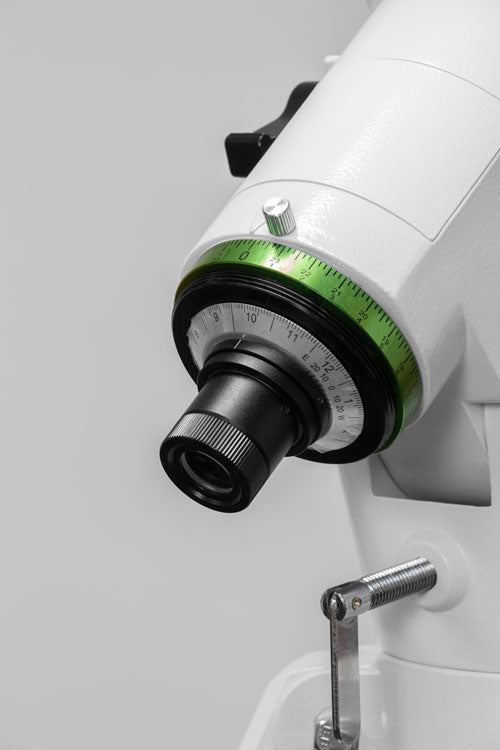

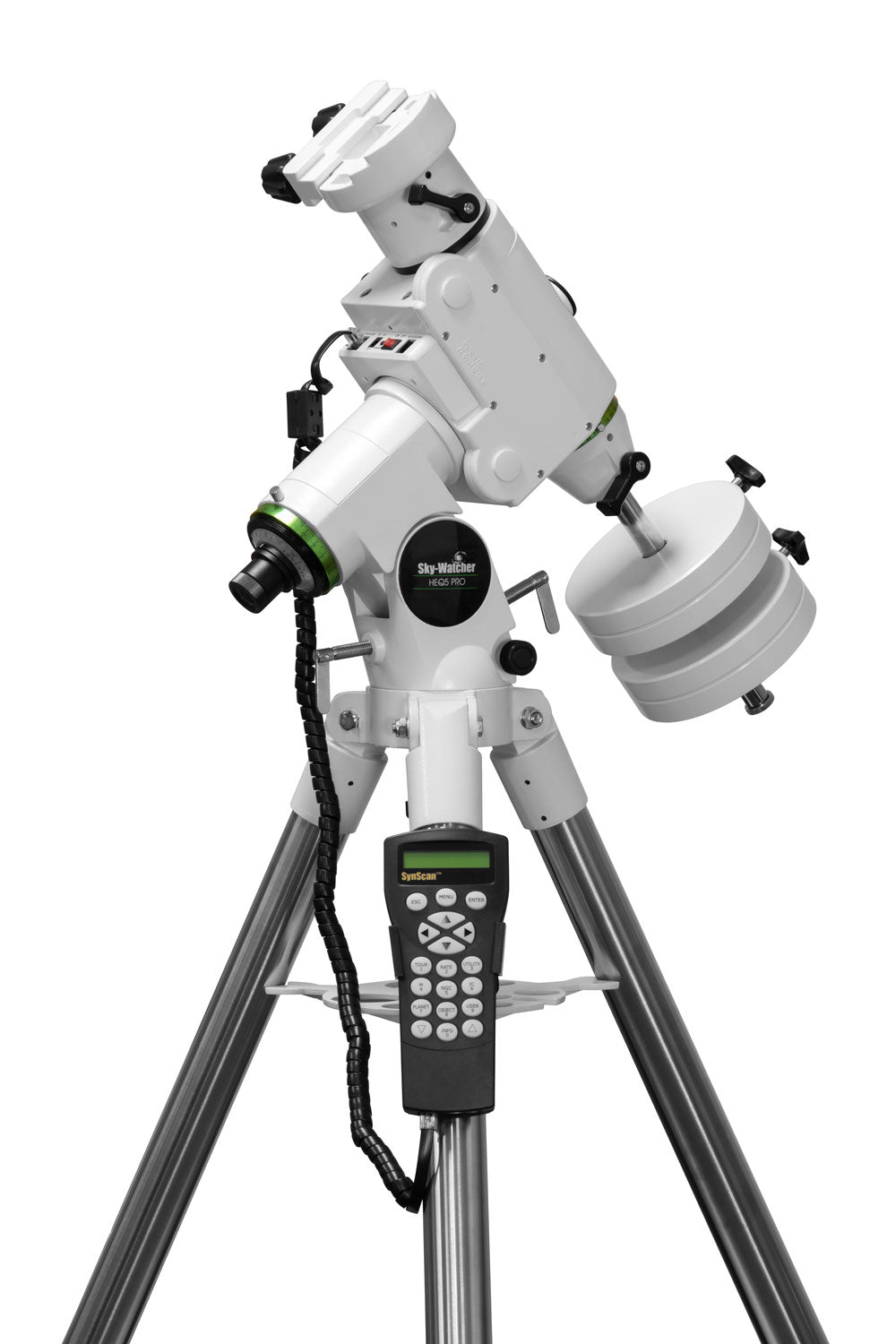

The SkyWatcher HEQ5 PRO Dual Saddle Go-To Mount represents the ultimate evolution of the EQ5 mount. With a mount head weight of 10 kg this professional mount is ideal to be carried anywhere in search of dark skies and solar eclipses. The integrated bubble level and the adjustable tripod legs make the levelling easy, the azimuth and altitude axis can be fine adjusted for a precise polar alignment. On top of that, the included polar scope included allows an extremely precise polar alignment that helps to drastically improve the quality of tracking, especially for astrophotography.

The exceptional SynScan Go-To system allows full control of both R.A. and Dec. axes with 9 slew speeds and 5 arcminute pointing precision, allowing you to quickly and accurately locate objects across the night sky. The Go-To system can automatically slew the telescope on command toward planets, stars, nebulae, galaxies, clusters and much more. The SynScan has 42,900 memorised celestial objects for an amazing journey in the night sky. The Deep Sky Tour function suggests a list of the most interesting deep sky objects currently visible, so even the novice astronomer can easily observe faint objects at the touch of a button.
The HEQ5 Pro is designed for astrophotography featuring an auto-guide port and compatibility with computer control software. The 10kg payload capacity will handle telescopes of medium dimension such as 200mm reflectors or 150mm refractors.

SkyWatcher HEQ5 PRO Dual Features

• Easy-to-control heavy-duty mount

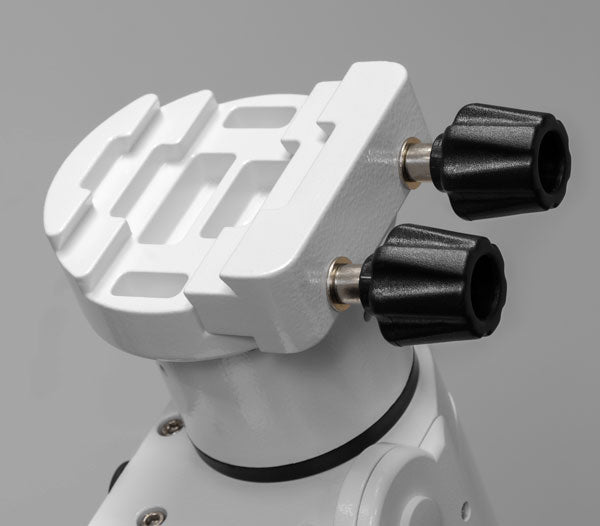

• Now with Dual Saddle
• Go-To German Equatorial Mount with SynScan
• Ideal for astrophotography
• Adjustable steel tripod with an accessory tray
• Fine adjustments of latitude and azimuth for precise polar alignment
• Bubble level for perfect levelling
• Aluminium setting circle dials allow for quick target acquisition via celestial coordinates
• Worm gear tracking controls provide full 360° manipulation of the RA and DEC axis
• V style telescope connection
• Minimal vibrations
• 5 Years Sky-Watcher Limited Warranty

SynScan Features:

• Database with 42,900+ objects
• Messier, Caldwell, NGC, IC & SAO catalogues, Named Stars, Double Stars, Variable Stars, Named Stars
• One, Two and Three Stars or Brightest Star Alignment
• Autoguiding feature for astrophotography
• Pointing Accuracy Enhancement feature (PAE)
• Permanent Periodic Error Correction (PPEC)
• Unknown Object Identification feature
• Pointing accuracy up to 5 arc min
• Tracking rates: Sidereal, Lunar, Solar
• Slewing speeds: 1x, 2x, 16x, 32x, 64x, 128x, 400x, 500x, 600x, 800x (3.4°/sec)
• Motor type: DC Servo Motors

In The Box:

• Sky-Watcher HEQ5 PRO Dual Mount
• Dual Telescope Saddle
• Steel Tripod
• Accessory Tray
• Integrated Counterweight Bar
• Polar scope (South and North Hemispheres)
• SynScan Hand Controller and Cable
• Counterweights
• Power Supply Cord (Lighter Plug)
• User Manual

Specifications

Description

• Three-in-one GoTo mount can operate in GoTo Equatorial mode holding one telescope, or in GoTo Altazimuth mode holding one or two different telescopes
• Capable of holding a 20kg telescope payload -- ideal for any observational or astrophotographic pursuits
• Accurate belt-driven stepper motor drive system minimises backlash. Movements in any direction are immediate greatly assisting autoguiding accuracy. The responsive GoTo system can locate any of over 42,000 celestial objects with a pointing accuracy of 5 arc-minutes
• Features dual encoders on motors and each axis to maintain alignment. The mount can be de-clutched and moved after alignment and still maintain alignment.
• Dual dovetail saddle for use with Vixen Style narrow or Losmandy "D" style wide dovetail plates, 25.4mm diameter retractable counterweight shaft, new threaded power input jack and threaded DC cable, built-in autoguider port, PPEC capability, 9 slew speeds, and North/South hemisphere polar alignment scope

Skywatcher's new AZ-EQ6 mount is capable of carrying a heavy payload for your visual and astrophotography requirements. It is a very efficient transportable mount weighing only 15 kg, for a load capacity of 20 kg (counterweight excluded).

An excellent feature of the AZ-EQ6 SynScan is the patented dual-encoder technology. This technology allows the telescope to be moved manually in either axis without the mount losing its positional information which gives enormous freedom and convenience for users.

New Features :

• German Equatorial / Alt-Az dual mode
• Permanent periodic error correction(PPEC). PPEC can be trained with Autoguider or PC.
• Belt drive - Super smooth PE curve. Low backlash, silent slewing.
• Shutter release control for batch exposures of astrophotography.
• New motor controller with higher torque and accuracy.
• Include two dual-fit (45mm/75mm) saddle for mounting two telescopes.
• Improved reliable power supply outlet.
• Polar-alignment with polar-scope or SynScan HC's polar-alignment routine.
• Primary axis encoder tracks the mount's position. Users can push the mount at any time without worrying about losing the mount's alignment.

The Skywatcher NEQ6 Equatorial Mount has a well earned reputation as an affordable and capable GoTo mount for both visual and photographic use. Now Skywatcher has developed the enhanced, more versatile AZ-EQ6 GoTo Mount. This new mount promises to become a favourite among intermediate to experienced observers and astrophotographers. This three-in-one smart mount not only operates in equatorial GoTo mode holding one telescope, but also in Altazimuth GoTo & Tracking mode while holding one or even two different telescopes. Control the Skywatcher AZ-EQ6 via the included SynScan hand controller, or robotically with your PC/laptop, or even wirelessly from your iOS mobile device with Orion's StarSeek software and Wi-Fi module (sold separately).

In addition to the dual Altaz and EQ modes, the AZ-EQ6 boasts some other key enhancements, including a smooth and robust latitude adjustment for accurate polar alignment.

New RA and Dec clutches afford positive locking for heavy loads plus a thicker retractable counterweight shaft - 1" in diameter - and a thread-on shaft extension carry multiple counterweights with no chance of flexure.

The newly engineered equatorial head is lighter than the NEQ6, but will carry a 20kg telescope payload with ease. In Altazimuth GoTo & Tracking mode with two different telescopes, each side can hold up to a 9kg telescope. The mount comes standard with an upgraded belt-driven stepper motor drive system that can locate over 42,000 celestial objects of interest with pointing accuracy of 5 arc-minutes and tracking precision of 0.1436 arc-second steps.

The drive has closed-loop electronics, with two sets of encoders per axis, meaning that once it is aligned you can manually move the attached telescope to a new target (or accidentally bump into the telescope) and the mount will still know where it's pointing in the sky! What's more, after an inadvertent or intentional nudge, this smart mount can return to its last target or pinpoint any new target you select without requiring realignment.
This is a highly transportable, yet seriously heavy-duty mount; the mount and tripod weigh in at 23kg. (without counterweights) and the mount can be uncoupled from the tripod with a single hand knob. Loaded with great features, the Skywatcher AZ-EQ6 GoTo Mount has a secure, threaded power input jack; a built-in autoguider port for accurate astrophotographic use; and offers 9 different slew speeds (up to 4.2° per second). This performance-packed mount also features Permanent Periodic Error Correction (PPEC).

The Skywatcher AZ-EQ6's dual-width dovetail saddle accommodates both narrow (Vixen-style) and wide (Losmandy-style) dovetail attachment plates. Along with its sturdy steel-legged tripod, the mount also includes a second dovetail saddle for dual-telescope Altazimuth operations, illuminated polar axis scope with adjustable brightness, two 5.1kg counterweights, RS-232 communication cable, and 12-volt DC power cable with a secure threaded connector.
Whether you're seeking a reliable mount for astrophotography or just looking for an amazingly accurate GoTo platform for visual pursuits, let Skywatchers AZ-EQ6 shoulder the weighty responsibility for smooth, stable, and smart performance!

Two Dual-fit Saddles
Two 5kg counterweights

A wide Losmandy D-style dovetail bar in the popular Skywatcher Green colour. Made to suit an Esprit 120.

The Star Adventurer Mount is an ultra portable equatorial mount kit ideal for small telescopes or for astrophotography with camera lenses up to 200-300mm in focal length. It fits on most astronomical, photo, or video tripods via its 1/4″ and 3/8″ adaptor. The mount satisfies all the needs of the astrophotographer; with a simple turn of the dial select lunar, solar, or star tracking modes, or four speeds from 0.5x to 12x to create interesting time-lapse videos with your DSLR. Moreover, it contains pre-programmed parameters assisting your DSLR via the optional shutter release cable. The Star Adventurer mount features a V-style dovetail saddle for compatible accessories and optical tube assemblies. The mount can be supplied with 4 AA batteries or via mini USB port.

To fit a camera to the Star Adventurer, either a tripod Ball Head is required (not supplied) or the Dovetail L-Bracket. The Dovetail L-Bracket, used in conjunction with the optional counterweight shaft/counterweight also allows small telescopes (e.g. Maksutov 90mm), with a 1/4″-20 tripod fitting, to be used with the Star Adventurer. A small telescope and camera (using a ball head, not supplied) can be mounted simultaneously on the Dovetail L-bracket. Using just the dovetail bar from the Dovetail L-Bracket, two cameras can be mounted at the same time using two tripod ball heads (not supplied).

In the Box:

• Star Adventurer 2i Mount Head – White
• Built-In Wifi
• Advanced Firmware features
• Adjustable dovetail L-Bracket with declination fine adjustment
• Polar scope

NOT INCLUDED:

• Counterweight Kit
• EQ Wedge
• 3/8" Ball Head Adapter

Please note - due to Australian govt restrictions on the sale of products which include button batteries, the polarscope illuminator is not included in this package.

SPECIFICATIONS

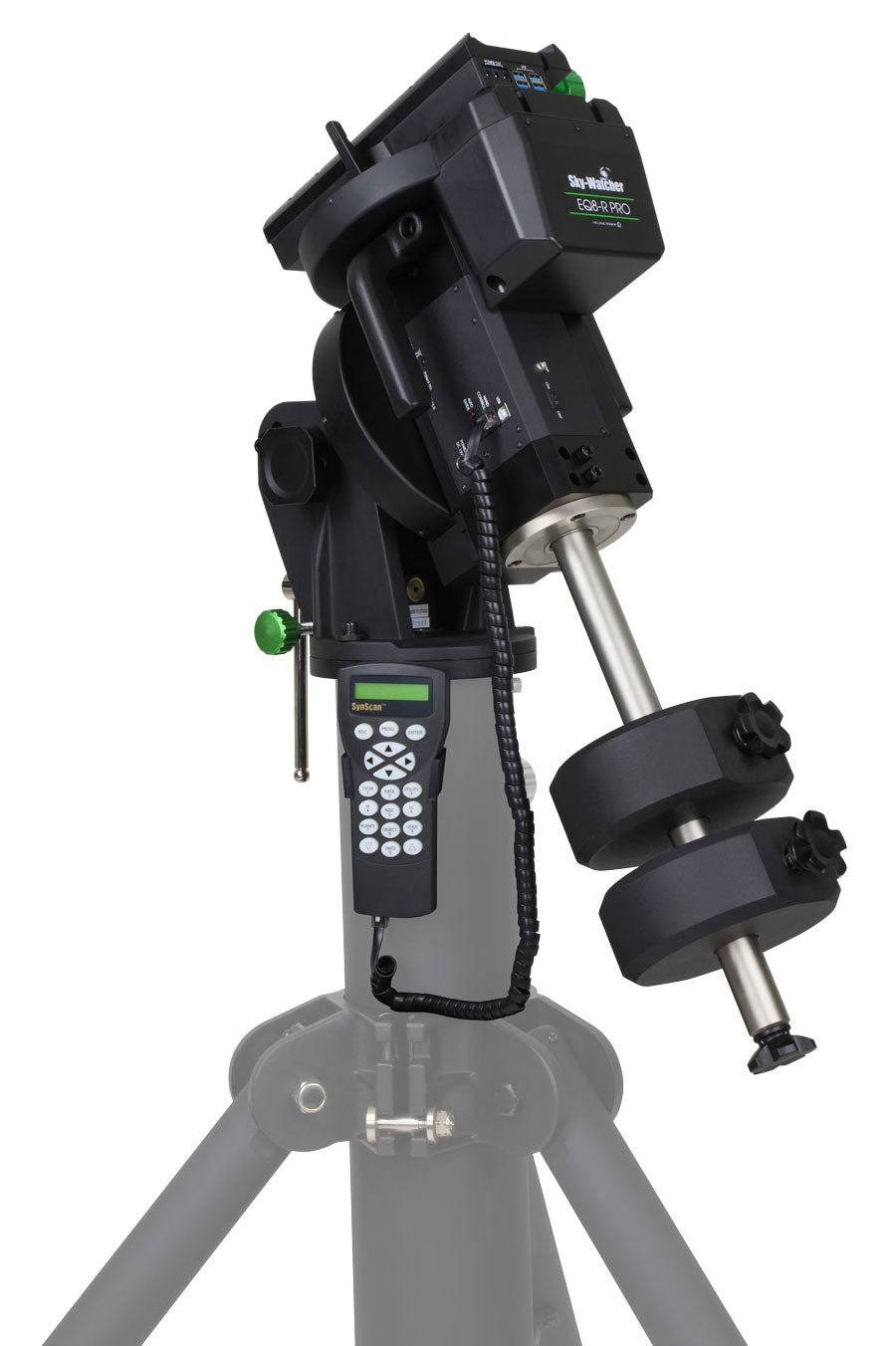

New Sky-Watcher EQ8 Pro Mount

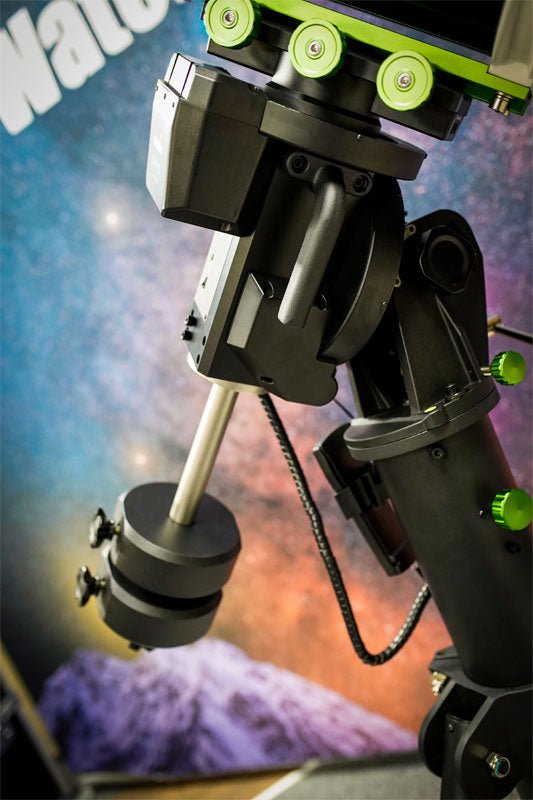

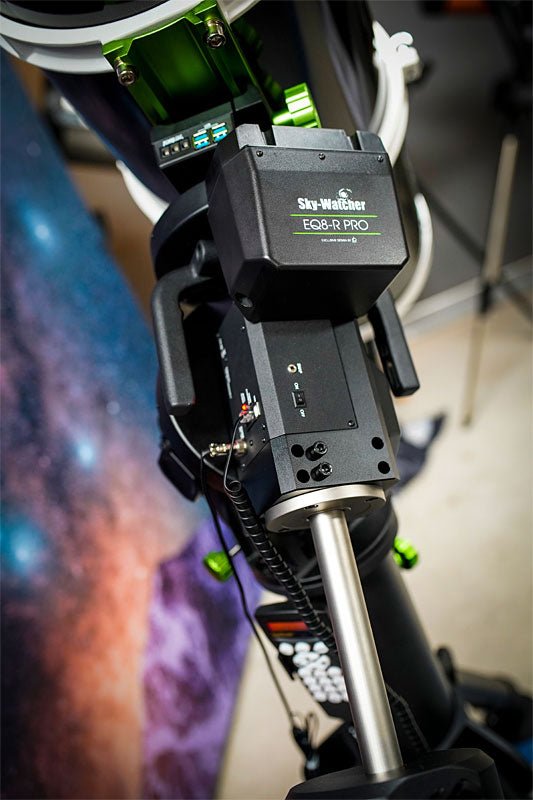

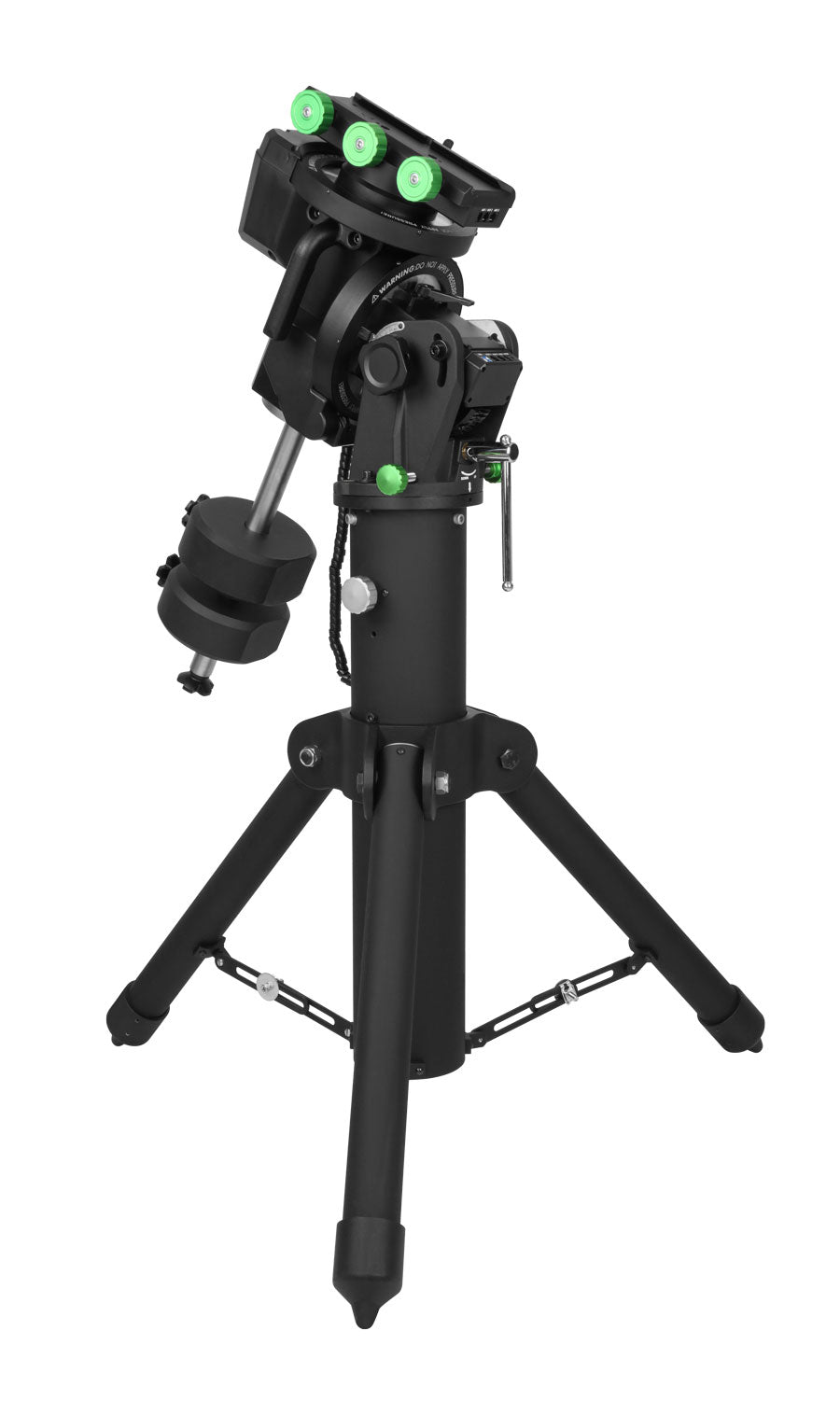

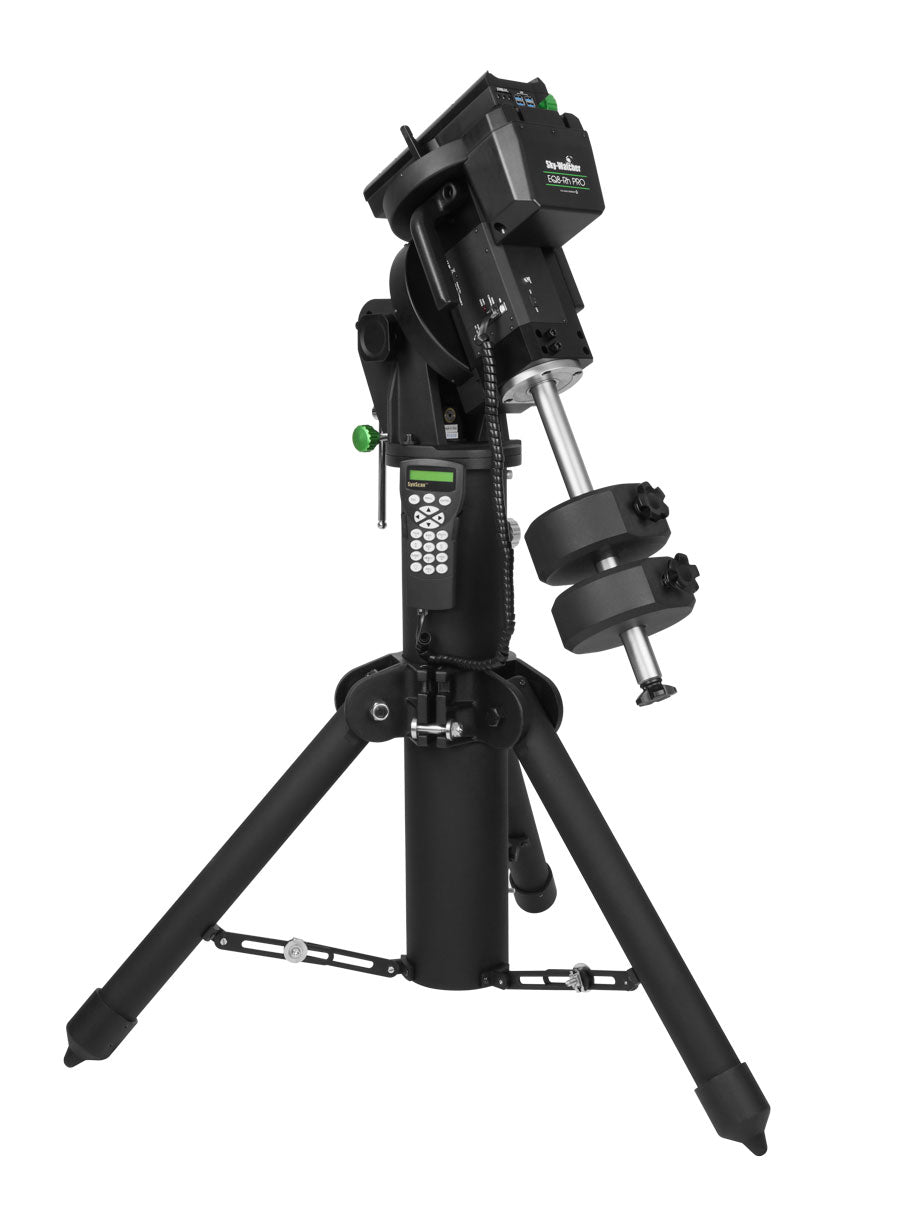

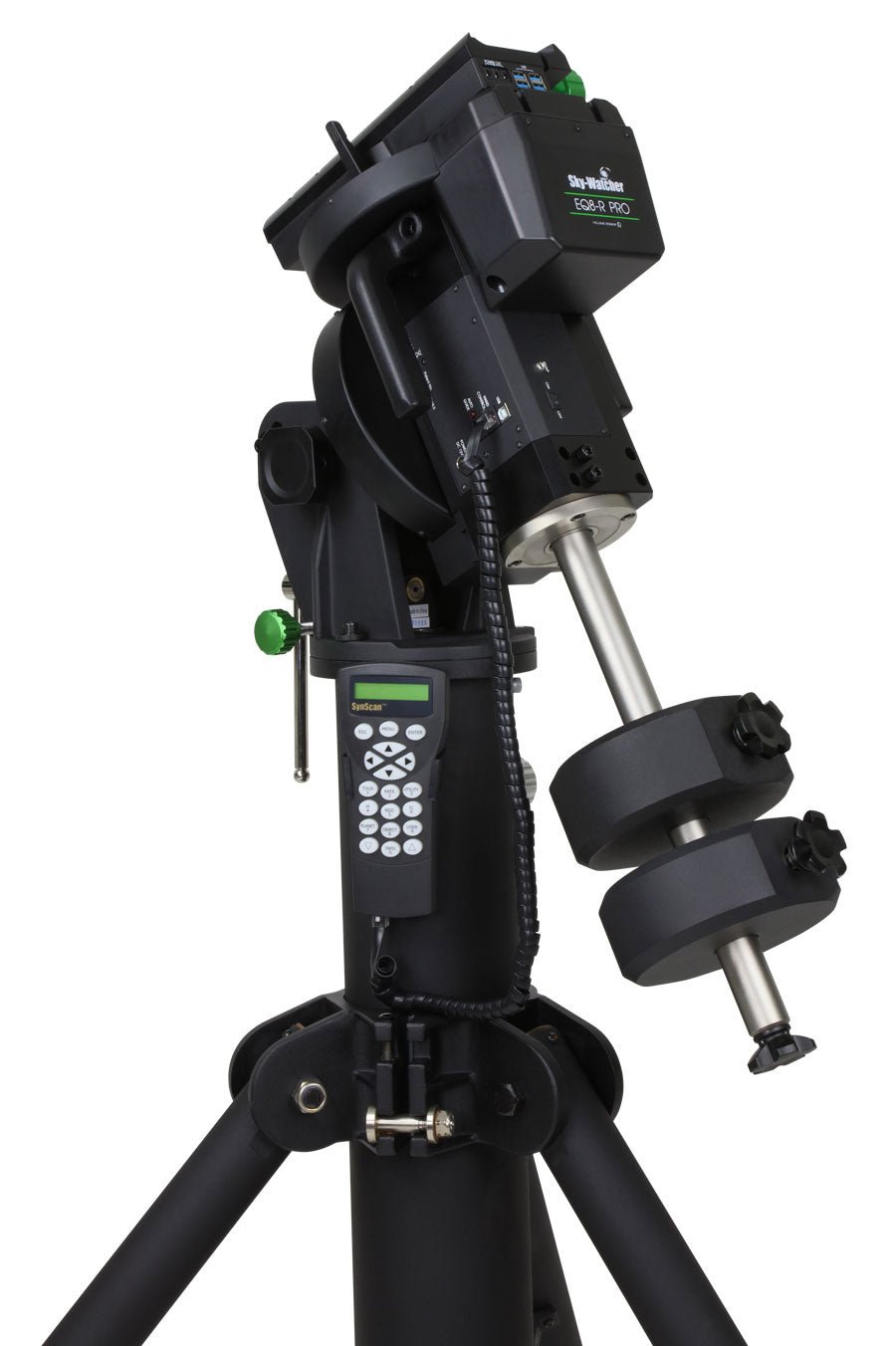

The New Sky-Watcher EQ8-R with pier provides the next generation of Sky-Watcher’s popular high-capacity mount, the EQ8.

The R models offer a refined design to allow for better balance and more modern features to cater to today’s high-end imagers.

• • USB 3.0 USB hub (4 ports)
  • 2.1mm Power port (3 ports)
  • 3 serial ports on the back of the saddle
  • The EQ8-R features built-in cable management. This removes cable drag from hanging cables and reduces the risk of cables getting caught during imaging session. This capability also improves the mounts capabilities for remote use.

DESCRIPTION

The EQ8-R provides the next generation of Sky-Watcher’s popular high-capacity mount, the EQ8.

The R models offer a refined design to allow for better balance and more modern features to cater to today’s high-end imagers.

Built-in cable management

• • • USB 3.0 USB hub (4 ports)
    • 2.1mm Power port (3 ports)
    • 3 serial ports on the back of the saddle
    • The EQ8-R features built-in cable management. This removes cable drag from hanging cables and reduces the risk of cables getting caught during imaging session. This capability also improves the mounts capabilities for remote use.

The built-in USB 3.0 hub allows you to simply plug in your camera, guider, filter wheel and other USB accessories into the hub below the saddle plate and connect them using a single USB cable plugged into the rear of the mount. No more tangled mess of cabled hanging or need for multiple cables running around the mount.

Another addition to the cable management system is the three built-in 2.1mm ports situated next to the USB hub. This allows your accessories to also be powered through the mount. This reduces the need for multiple power adapters and other accessories. The ports can be run off of a single power source providing a cleaner set up and less cables.

On the gear of the saddle are three serial ports for various accessories such as ST4 guide cables and other serial-based accessories. Like the rest of the cable management this reduces the hanging cables and provide a neat connection to the mount.

Motor Positioning

EQ8-R feature improved balance from their predecessor with redeposited motor housings. This improves the mount’s balance overall.

Belt Drive

Both mounts feature belt drive on both the RA and Dec axis. This allows for smoother guiding and reduced backlash.

Auto-Home

EQ8-R feature built-in homing sensors. This allows the mount to know its positioning more accurately from its start positioning.

Improved Clutches

The EQ8-R models feature improved clutches allowing for sturdier lock under heavy loads. Simply use the large levers to engage or disengage the axis of choice. The clutch lever are larger than the original EQ8 making it easier to adjust with gloves.

PC Direct Connect

EQ8-R also feature the new PC direct connect feature. Now you can easily connect your mount to your computer without the need of a hand controller. When paired with the SynScan Pro app. for Windows the mount can be aligned and controlled direct from a PC. This makes imaging refined and easier, especially for those with permanent set ups.

EQ8-R Mount with Pier Specifications

• Equatorial and Alt-Azimuth Hybrid Mount
• Adjustable tripod
• Fine adjustments of latitude and azimuth for precise polar alignment
• Bubble level for levelling
• Metal setting circle dials allow for quick target acquisition via celestial coordinates
• Worm gear tracking controls provide full 360° manipulation of the RA and DEC axis
• V or Vixen style telescope connection
• Belt driven transmission for limiting backlash
• Freedom Find™ encoders allow free movement of the mount after alignment
• Permanent Periodic Error Correction (PPEC)
• Capable of mounting two OTAs at the same time
• Optional polar scope
• 5 Years Limited Warranty

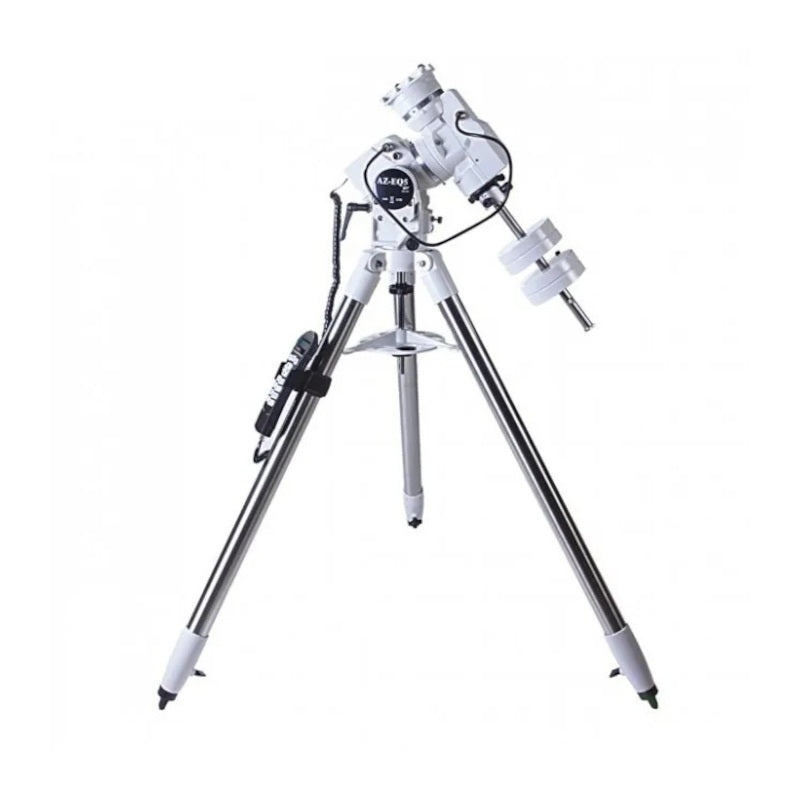

The Sky-Watcher GT Series AZ-EQ5 Go-To Mount combines the advantages of the equatorial mount with the simplicity of the alt-azimuth system. In fact, the AZ-EQ5 is a hybrid mount usable in both these configurations. The equatorial mode is ideal for astrophotography while the alt-azimuth configuration is more practical for observation as polar alignment is not required. Moreover, two telescopes can be simultaneously mounted in alt-azimuth configuration.

The popular SynScan Go-To system allows full control of both R.A. and Dec. axes with 9 slew speeds and 5 arcminute pointing precision, allowing you to quickly and accurately locate objects across the night sky.

The Go-To system can automatically slew the telescope on command toward planets, stars, nebulae, galaxies, clusters and much more. The Sky-Watcher SynScan system has 42,900 memorised celestial objects for an amazing journey in the night sky. The Deep Sky Tour function suggests a list of the most interesting deep sky objects currently visible, so even the novice astronomer can easily observe faint objects at the touch of a button. Once achieving alignment, the patented Freedom Find™ dual encoders will then keep track of your position to within 4.2 arcminutes. The mount will retain alignment even after releasing the clutches and manually pointing the scope to a new part of the sky.

The AZ-EQ5 is equipped with two SNAP ports for dual control of camera shutter release. Working with the SynScan hand control’s “Camera Control” function, a user can take batch exposures in up to 8 groups of “Exposure-time & Frames”. An indexer on the R.A. worm gear keeps track of its current position, so that the Periodic Error inherent to all worm gear driven mounts can be learned and permanently corrected for. These features make the Sky-Watcher AZ-EQ5 a fantastic partner to high focal length telescopes and astrophotographers alike.

SynScan Features:

• Usable in both Alt-Azimuth and Equatorial mode
• Database with 42,900+ objects
• Messier, Caldwell, NGC, IC & SAO catalogues, Named Stars, Double Stars, Variable Stars, Named Stars
• One, Two and Three Stars or Brightest Star Alignment
• Autoguiding feature for astrophotography
• Pointing Accuracy Enhancement feature (PAE)
• Permanent Periodic Error Correction (PPEC)
• Unknown Object Identification feature
• Pointing accuracy up to 5 arc min
• Tracking rates: Sidereal, Lunar, Solar
• Slewing speeds: 1x, 2x, 16x, 32x, 64x, 128x, 400x, 500x, 600x, 800x (3.4°/sec)
• Motor type: DC hybrid stepper motors

In The Box:

• Hybrid German Equatorial Mount AZ-EQ5
• Steel Tripod
• Integrated Counterweight Bar
• Counterweight Extension Bar
• Plate Saddle for Counterweight Shaft
• Counterweights (2x 3.5kg)
• Polar Scope (South and North Hemispheres)
• SynScan Hand Controller and Cable
• Hand Controller Holder
• Motor Cable (for Connecting the Mounts Motors)
• Power Supply Cord (Lighter Plug)
• User Manual

SPECIFICATIONS

• Positioning Accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation
• Stepper motors with 1.8° step angle and 32 micro steps driven
• Slewing speed up to 3.4°/sec (800X)
• Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X
• Object database containing complete Messier, NGC, and IC catalogues
• Periodic Error Correction
• PC compatibility
• 5 Years Sky-Watcher Limited Warranty

Sky-Watcher EQ5 Pro GOTO Mount

The Sky-Watcher EQ5 Pro GOTO Mount is an EQ5 mount equipped with GoTo capabilities. It has the same type of computerized features found on the heavier HEQ5 and EQ6 Pro mounts. It includes the proprietary SynScan GoTo system; the massive database of celestial object locations and automated alignment functions.

Accurate Automated Slewing
Software and hardware work together to produce the most precise movements possible. Precision crafted gears and motor drive are controlled by the software functions on board the hand controller. The software has built-in error correction to compensate for gears wearing out and other internal factors that affect accuracy.

Enhanced Stargazing Experience
Once the mount is assembled, you only need to complete the alignment process to start viewing. Automatically point your telescope to the different celestial objects stored in the database at the touch of a button. The user-friendly menu allows even the novice users to access the different features of the system. The upgrades lets you spend more time viewing and less time searching for your chosen celestial objects.

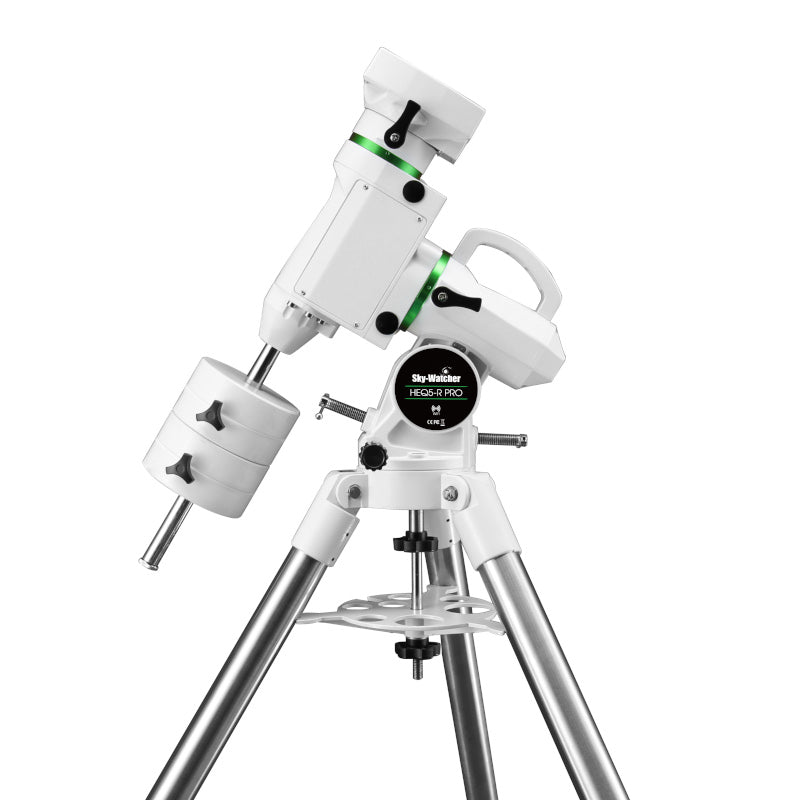

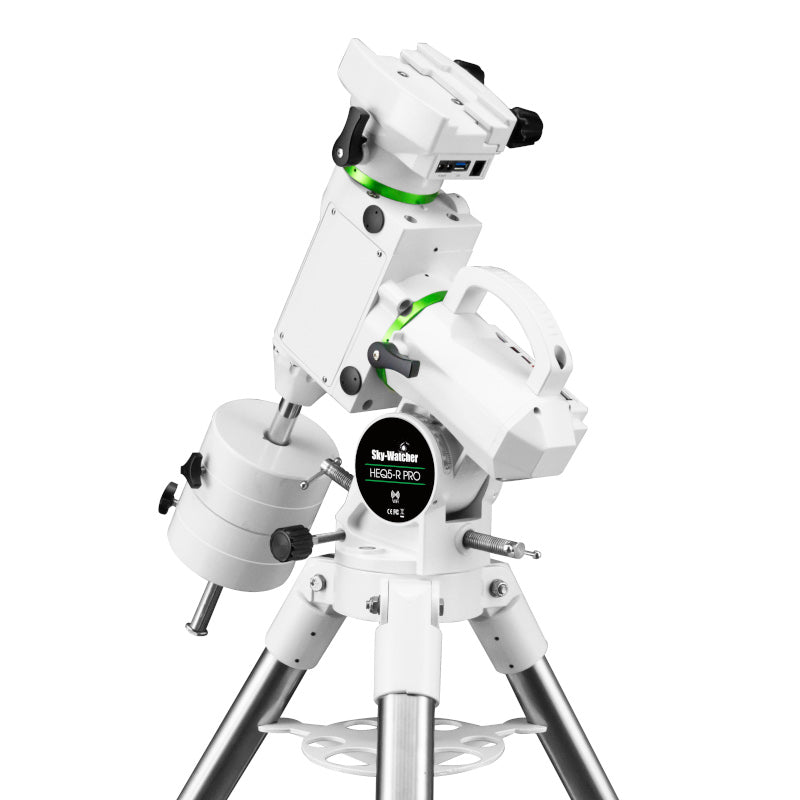

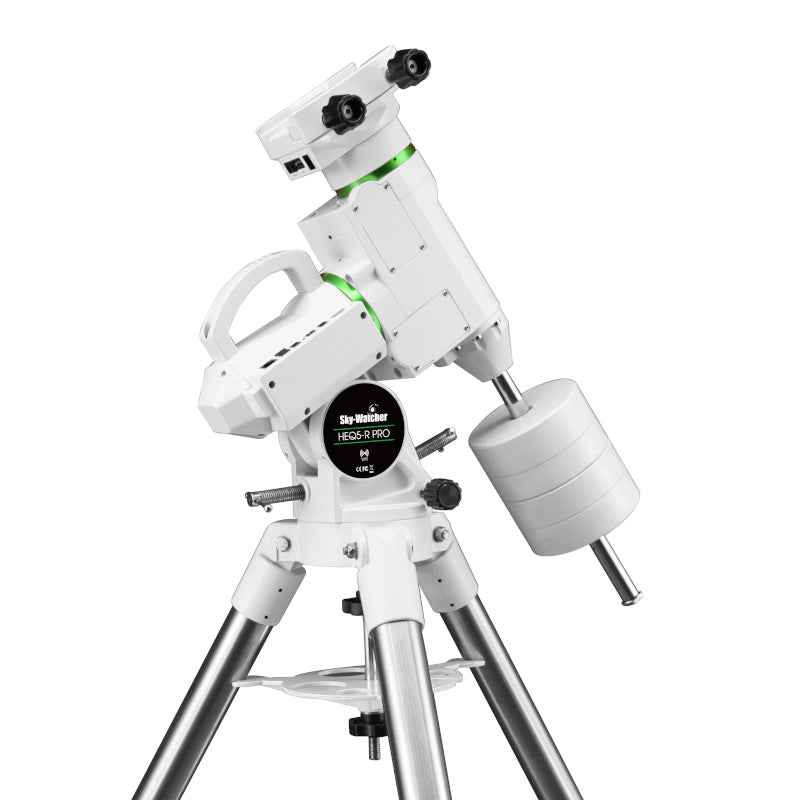

New version of a proven, robust telescope mount, the Sky-Watcher HEQ-5, offers smoother movement and tracking, along with updated connectivity and power management

The Sky-Watcher HEQ5-R PRO brings serious design improvements to one of the world’s most popular equatorial mounts. Built for serious observers and astrophotographers, the HEQ5-R PRO combines superior mechanics, smart connectivity, and smooth, quiet tracking to deliver an exceptional observing and imaging experience.

A new belt-driven system ensures ultra-smooth slewing and significantly reduced backlash, improving guiding accuracy for long-exposure astrophotography. The upgraded worm wheels—with 160 teeth on the RA axis and 144 on DEC—enhance tracking precision and allow for a higher payload.

The mount also introduces a built-in USB hub and external power ports, simplifying cable management and providing direct connections for cameras, guide scopes, and accessories. The refined exterior design, robust construction, and stainless-steel tripod deliver stability and performance that astrophotographers can rely on.

Upgrade Highlights include:

• Precision Belt Drive System – Reduced backlash and smoother motion for more accurate guiding.
• Upgraded Worm Gear Assembly – Increased tooth count for enhanced tracking performance.
• Integrated USB Hub and Power Ports – Makes for easier connection and power for imaging accessories.
• Higher Payload Capacity – Now supports up to 15 kg, ideal for the larger optical setups favoured by astrophotographers.
• Quiet, Smooth Slewing – Hybrid stepper motors with micro-step drive control.
• Streamlined  Design – Durable, ergonomic structure with compact counterweights and improved cable routing.

Sky-Watcher-R EQ8 Pro Mount

The EQ8-R Mount provides the next generation of Sky-Watcher’s popular high capacity mount, the EQ8.

The EQ8-R Mount offers a refined design to allow for better balance and more modern features to cater to today’s high end imagers.

PLEASE NOTE - this model does not include a Sky-Watcher pier. This will need to be purchased separately or the mount installed on a permanent pier mount.

• • USB 3.0 USB hub (4 ports)
  • 2.1mm Power port (3 ports)
  • 3 serial ports on the back of the saddle
  • The EQ8-R features built-in cable management. This removes cable drag from hanging cables and reduces the risk of cables getting caught during imaging session. This capability also improves the mounts capabilities for remote use.

Built-in cable management

• • • USB 3.0 USB hub (4 ports)
    • 2.1mm Power port (3 ports)
    • 3 serial ports on the back of the saddle
    • The EQ8-R features built-in cable management. This removes cable drag from hanging cables and reduces the risk of cables getting caught during imaging session. This capability also improves the mounts capabilities for remote use.

The built-in USB 3.0 hub allows you to simply plug in your camera, guider, filter wheel and other USB accessories into the hub below the saddle plate and connect them using a single USB cable plugged into the rear of the mount. No more tangled mess of cabled hanging or need for multiple cables running around the mount.

Another addition to the cable management system is the three built-in 2.1mm ports situated next to the USB hub. This allows your accessories to also be powered through the mount. This reduces the need for multiple power adapters and other accessories. The ports can be run off of a single power source providing a cleaner set up and less cables.

On the gear of the saddle are three serial ports for various accessories such as ST4 guide cables and other serial based accessories. Like the rest of the cable management this reduces the hanging cables and provide a neat connection to the mount.

Motor Positioning

EQ8-R feature improved balance from their predecessor with redeposited motor housings. This improve the mount’s balance over all.

Belt Drive

Both mounts feature belt drive on both the RA and Dec axis. This allows for smoother guiding and reduced backlash.

Auto-Home

EQ8-R feature built-in homing sensors. This allows the mount to know its positioning more accurately from its start positioning.

Improved Clutches

The EQ8-R models feature improved clutches allowing for sturdier lock under heavy loads. Simply use the large levers to engage or disengage the axis of choice. The clutch lever are larger than the original EQ8 making it easier to adjust with gloves

PC Direct Connect

EQ8-R also feature the new PC direct connect feature. Now you can easily connect your mount to your computer without the need of a hand controller. When paired with the SynScan Pro app. for Windows the mount can be aligned and controlled direct from a PC. This makes imaging refined and easier, especially for those with permanent set ups.

EQ8-R Specifications
