ZWO Guiding Cameras
5 products
5 products
Sort by:
- Featured
- Most relevant
- Best selling
- Alphabetically, A-Z
- Alphabetically, Z-A
- Price, low to high
- Price, high to low
- Date, old to new
- Date, new to old
Camera Sensor

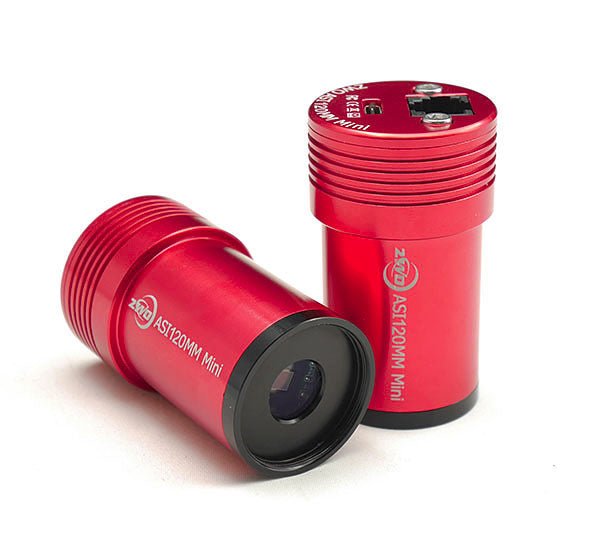

The ASI120MM Mini camera integrates the AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). It is a new model in the “mini”-series of cameras from ZWO. This camera has 1280 x 960 pixels with a pixel size of 3.75 μm x 3.75 μm. It provides 12-bit ADC and the QE peak is almost 80%.
Astrophotography Performance
The ASI120 mini-camera offers you very good performance for planetary imaging as well as for guiding. Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that set it apart from the competition.
Astrophotography Performance
ASI120 mini camera offers you very good performance for planetary imaging and guiding. Low read noise, high dynamic range, AR protective window and much more.
High QE
Absolute QE Curve, we estimate the Peak Value is almost 80%.
120Mini VS 120MM-S
Compared with ASI120MM-S camera, 120mini have smaller outlook, lighter weight, and it can reach focus at same position with eyepiece.
USB2.0Port & ST4 Port
USB 2.0 Port: Mini camera has one USB2.0 type C port. Type C port is very popular in mobile phones, it will not care about positive side and negetive side of the adapter.
ST4 Port: Can connect mini camera direct connect to auto guide port of mount.
The back of ASI mini camera is like a smiling face, its mouth is Type C USB port, which is widely used in mobile phones. And its nose is the ST4 port, for guiding. Every time, you use mini camera, there always will be a smiley face stay with you in the dark nights.
ASI mini camera can focus at same position as eyepiece. You can focus with a eyepiece, and put ASI mini camera into 1.25″ holder.
Mini camera is very suitable for OAG, it has much bigger focus range than normal ASI cameras. Never to worry about that guide camera can not focus with main camera at same time.
What is in the box?
ASI mini camera box includes all necessary cables, adapters, and manuals.
$99.00
NEW from ZWO
Do you want precise, accurate focusing of your Off Axis Guide camera, with the NEW ZWO 1.25" Helical Focuser you can achieve perfect focus with finger tip ease.
Manufactured from Aerospace Aluminium Alloy Material
Precision CNC Machining Technology
Frosted and Anodised Housing
Anti - Skid Brass Screw
Perfect fits in with ZWO OAG and Mini Series Guide cameras
Can also be used in other situations where precise focus is required
ZWO 1.25" Helical Focuser Specifications:
Inner Diameter: 1.25inch (31.7mm)
Stroke: 6mm
Top Male Thread: M42 x 0.75 (T-Thread)
Bottom Female Thread: M42 x 0.75 (T-Thread)
Minimum Height: 48.5mm
ASI174MM Mini camera integrates Sony IMX174LLJ / IMX174LQJ 1/1.2″ sensor (11.3 mm x 7.1 mm). It is the first model in the “mini”-series of cameras from ZWO. This camera has 1936 x 1216 pixels with a pixel size of 5.86 μm x 5.86 μm. It camera provides 12-bit ADC and its QE peak is 77%.
Astrophotography Performance
ASI174MM mini camera offers you very good performance for planetary imaging as well as for guiding. Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that set it apart from the competition.
USB2.0Port & ST4 Port
USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn’t matter which way you connect it (unlike for example type-A or type-B)
#USB-C to USB-A cable is required.
ST4 Port: The camera can be connected directly to the auto-guider port of the mount.
High Sensitivity
Sensitivity is the first thing we considered. This is of course a crucial ability when looking for a star to guide on. So, from the beginning, we were set on using monochrome sensors to design our guide cameras. Because monochrome sensors have much higher sensitivity than their colour counterpart. Luckily the ASI120MM Mini, ASI290MM Mini and ASI174MM Mini all have very high QE peak value – about 80%, which can detect more stars in view and shorten the exposure time in guiding.
Each of the cameras have their own strength and depending on what you value in a guide camera, one might be better for you than the others.
| Sensor | IMX174 |
| Diagonal | 13.34mm |
| Resolution | 1936 x 1216 |
| Pixel Size | 5.58μm |
| Sensor size | 11.3mm x 7.1 |
| Readout Noise | 4.0e |
| QE Peak | 77 |
| ADC | 12-bit |
ZWO ASI220MM Mini New Generation Guide Camera ZWO ASI220MM Mini camera integrates a 1/1.8" SC2210 sensor (7.68mm x 4.32mm). It is a mono guide camera with excellent near-infrared sensitivity. This camera has 4um x 4um pixels with an array of 1920 x 1080 and a full well capacity of 8780e. The protective window is AR coated. SKU: ASI220MINI
$20.00

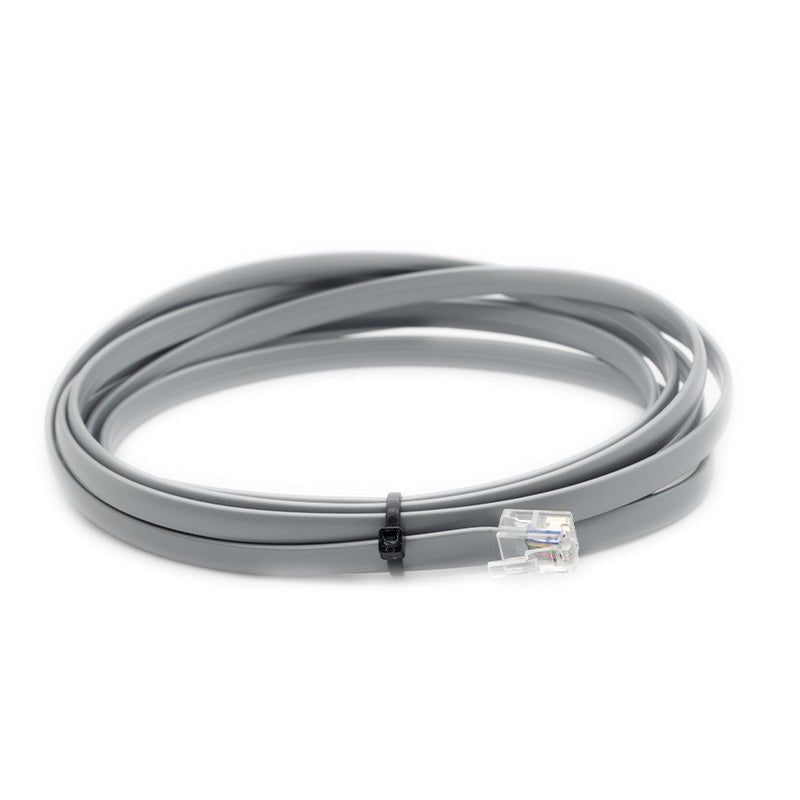

Shoestring Guide Port Cable 7ft
Replacement Guide Cable
ST4 Compliant
Runs with most guide cameras (not SBIG)
SKU: GPFC-7
