ALP-T Dual Band 5nm Filter is best suited for optics f-ratios slower than f/3.6, the standard Antlia ALP-T Dual Band filter is highly recommended. Meanwhile, if you seek the best possible performance with any optics faster than f/2.2, the highspeed version is the best choice.

The Antlia ALP-T dual band 5nm series filter is a dual line-pass filter that was designed to be used primarily with one-shot color (OSC) cameras such as DSLR's and astronomical OSC cameras. It can also be used as a narrowband filter for monochrome cameras to save imaging time. The advanced multi-coatings on our ALP-T ultra dual-band filter effectively isolate the red Ha and the blue-green OIII lines light from emission nebulae, with almost total suppression of optical density (OD) 4.5 on unwanted wavelengths from light pollution, moonlight, and airglow. The result is that our ALP-T dual band 5nm filter creates a superior signal-to-noise ratio and better contrast in your images.

The Antlia ALP-T Dual Band filter enables the capture of the two main emission nebulae bands at the same time, whilst suppressing unwanted light pollution. It enables you to capture cleaner data and reduces the post-processing efforts to isolate faint details from the background light pollution.

Application and Performance:

Designed especially for optics, slower than f/3.6

Engineered specifically for use with DSLR, CMOS, and CCD color cameras

Suppression of optical density (OD) 4.5 on unwanted wavelengths adds signal-to-noise

Extremely steep bandpass edges minimize internal reflections

Ideal flat-top and moderate bandpass reducing spectrum downshifts

Ion Gun Assisted Deposition coating technology on the double-sided polished substrate making it the most consistent and accurate light pollution suppression filter

Designed to suppress artificial lighting from Bortle scale 1 to Bortle scale 8

Near IR (NIR) is blocked up to 1050nm

Technical Specifications:

Filter Ring:

2'' (M48*0.75)

Ultra-thin filter cell to minimize vignetting by maximize possible clear aperture

Black Anodized Finish

Laser Engraving No Fading

Spectrum Curve:

Not Recommended:

Solar imaging

Night visual observation

Not Permitted:

DO NOT LOOK AT THE SUN WITH THIS FILTER

Serious eye damage will result if you fail to observe the warning

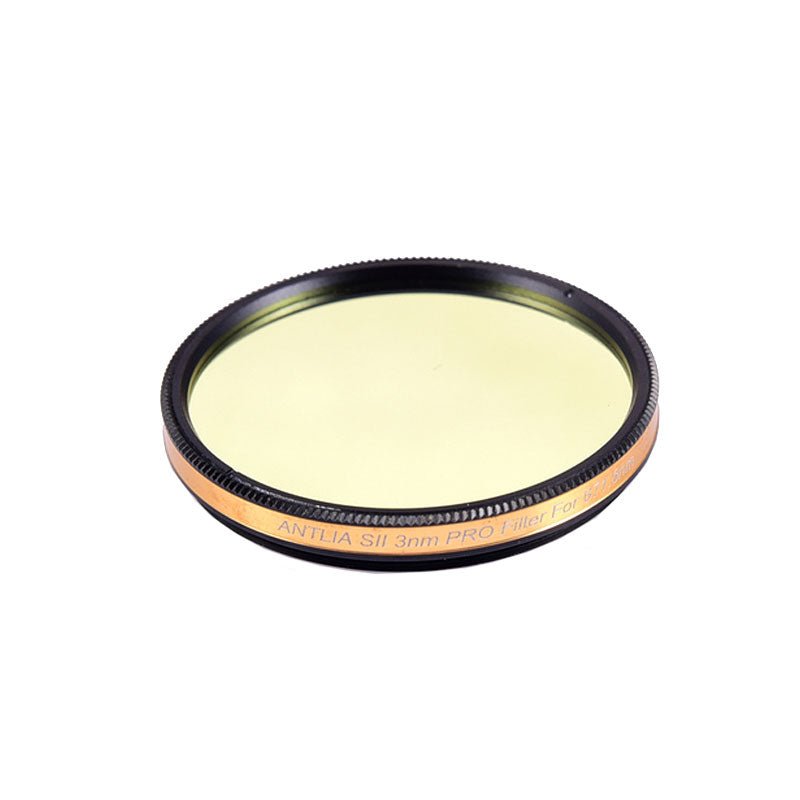

Antlia SII 3nm Pro narrowband filter optimizes the FWHM (full-width half maximum) to 3nm bandpass. As the bandwidth becomes narrower, the 3nm Pro narrowband filters enhance the contrast of emission targets by lowering the unwanted background signal. Antlia SII 3nm Pro filter is designed to deliver 88% transmission at the 671.6nm line which provides you with the maximum signal and well-defined nebulae structures.

Conventional broader narrowband filters cause a heavy loss in transmission due to the strong (Center Wavelength (CWL)-shift. We guarantee T>88% within 1nm range of the center bandwidth, which means that the 3nm Pro narrowband filter can guarantee high transmittance for working with both long focal ratios and fast optical systems. Blue-shift data show that Antlia SII 3nm Pro filters can be used with nearly all systems as fast as f/3 with minimal loss in emission signal and meet the requirements of fast optics like Hyperstar and RASA.

The out-of-band blocking specification is rated OD5 (0.001%) which delivers an excellent SNR(signal-to-noise ratio) and effective cut-off rate to minimize interference from other wavelengths. Improved sharp cut-off astrophotography 3nm Pro filters are designed to minimize halos around bright stars.

Application and Performance:

High transmittance and smallest bandwidth to maximize contrast

A steep spectral profile minimizes halos around bright stars

A single substrate to eliminate internal reflections

Narrowband Objects: SII Emission Nebulae, Planetary, Wolf-Rayet Nebulae and Supernova Remnants

Use in light-polluted areas and dark sites

Extend imaging time when the moon is up

All Antlia narrowband Pro filters can be used down to F/3 with a slight loss of signal

All Antlia Narrowband filters are edge-blackened to eliminate internal reflections from stray light

Superior optical reliability reduces post-image processing

This filter is not suited to deep-sky objects that do not contain SII emissions.

Technical Specifications:

Basic Substrate: Schott optical substrate

Filter Thickness：2mm+/-0.05mm for 2'' mounted

FWHM (Full width at half maximum): 3nm

CWL (Central Wavelength): 671.6nm

Peak Transmission: ＞88%

Blocking: > 5 OD(0.001% out of band blocking) @ 300-1000nm

Surface Quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830)

Transmitted Wavefront: Lambda/4 or better.

Parallelism: less than 30 arcsec

Single / Non-glued substrate

Warranty: 3 years against delamination

SKU: ANTLIASii3nm2

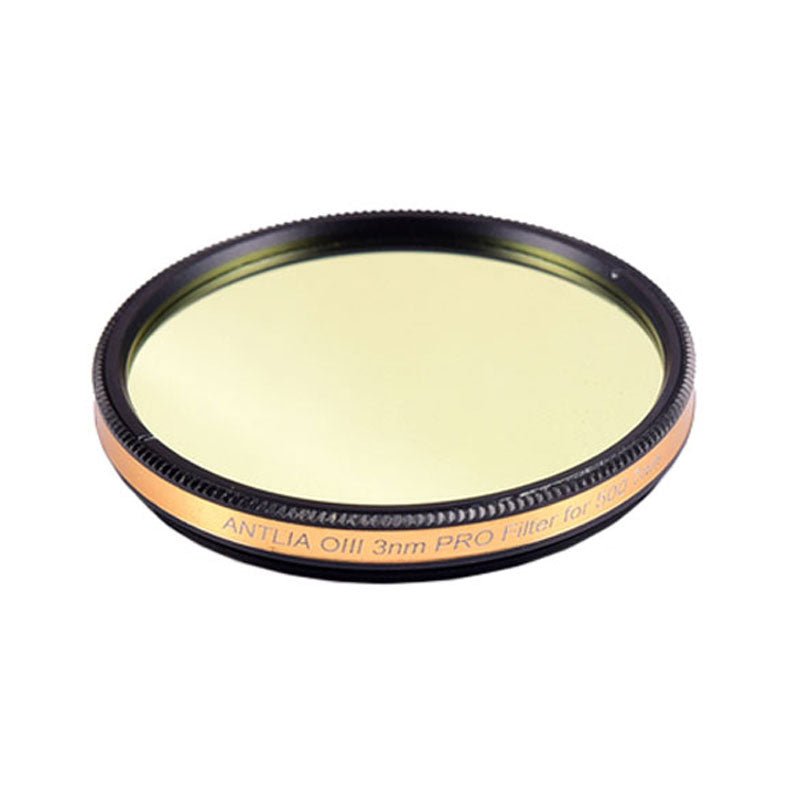

Antlia OIII 3nm Pro narrowband filter optimizes the FWHM (full width half maximum) to 3nm bandpass. As the bandwidth becomes narrower, the 3nm Pro narrowband filters enhance the contrast of emission targets by lowering the unwanted background signal. Antlia OIII 3nm Pro filters are designed to deliver 85% transmission at the 500.7nm line which provides you with the maximum signal and well-defined nebulae structures.

Conventional broader narrowband filters cause a heavy loss in transmission due to the strong Center Wavelength (CWL) shift. We guarantee T>85% within 1nm range of the center bandwidth, which means that the 3nm Pro narrowband filter can guarantee high transmittance for working with both long focal ratios and fast optical systems. Blueshift data shows that Antlia 3nm Pro filters can be used with nearly all systems as fast as f/3 with minimal loss in emission signal and meet the requirements of fast optics like Hyperstar and RASA.

The out-of-band blocking specification is rated OD5 (0.001%) which delivers an excellent SNR(signal-to-noise ratio) and effective cut-off rate to minimize interference from other wavelengths. Improved sharp cut-off astrophotography 3nm Pro filters are designed to minimize halos around bright stars.

Application and Performance:

High transmittance and smallest bandwidth to maximize contrast

Steep spectral profile minimizes halos around bright stars

A single substrate to eliminate internal reflections

Narrowband Objects: OIII Emission Nebulae, Planetary, Wolf Rayet Nebulae and Supernova Remnants

Use in light polluted areas and dark sites

Extends imaging time when the moon is up

Antlia narrowband Pro filters can be used down to F/3 systems with slight loss of signal

All Antlia Narrowband filters are edge blackened to eliminate internal reflections from stray light

Superior optical reliability reduces post image processing

This filter is not suited to deep sky objects that do not contain OIII emissions.

Technical Specifications:

Basic Substrate: optical substrate

Filter Thickness: 2mm+/-0.05mm for 2'' mounted

FWHM (Full width at half maximum): 3nm

CWL (Central Wavelength): 500.7nm

Peak Transmission: ＞85%

Blocking: > 5 OD(0.001% out of band blocking) @ 300-1000nm

Surface Quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830)

Transmitted Wavefront: Lambda/4 or better.

Parallelism: less than 30 arcsec

Single / Non-glued substrate

Warranty: 3-years against delamination

DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS.

When we design filters for astronomy imaging systems, we look at how they will work together with optical systems, carefully designing the blocking and bandpass parameters to achieve an optimum result. The out-of-band blocking rate is a very important performance index since it is designed to sharply attenuate off-band wavelengths. The result is that the Antlia OIII 3nm Pro filter delivers excellent contrast with extremely dark backgrounds whilst delivering a high transmission of the OIII signal. Such filters are more difficult to produce to a consistently high standard.

Each filter is individually tested and scanned to ensure that the quality meets the high-performance parameters. The end result is a filter that achieves excellent contrast but with a higher production cost. We believe the price-to-performance ratio compares more favorably than similar premium filters in the market.

SKU: ANTLIAOIII3nm2

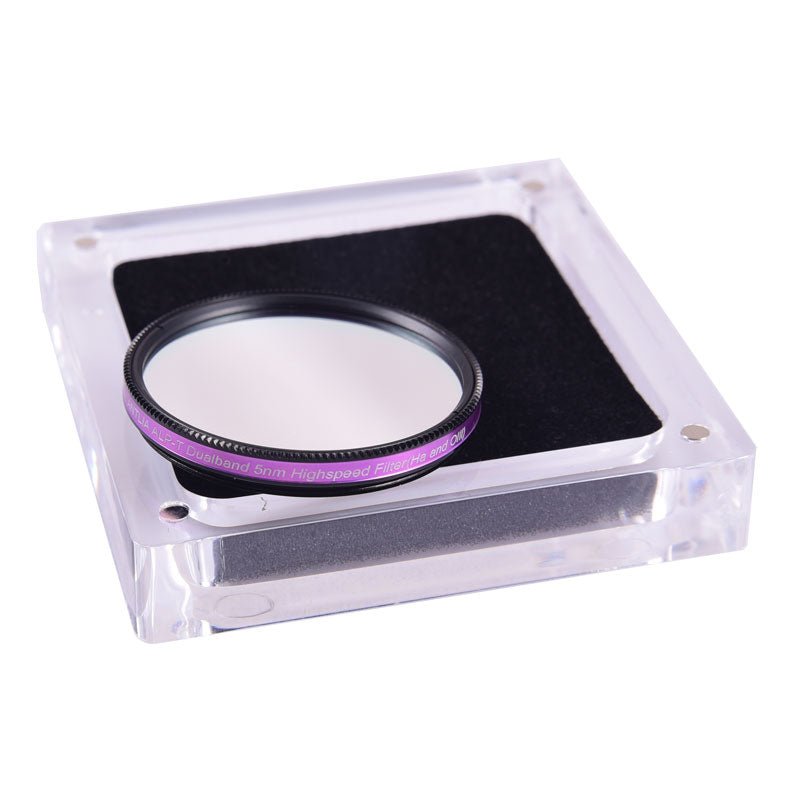

Antlia ALP-T Dual Band 5nm Highspeed Filters are optimized to work with high-speed imaging systems by shifting slightly the passband and center wavelength. Using these highspeed filters between optics f/2.2 and f/3.6 shows much stronger and more contrasted in nebulae imaging compared to the standard version, if you seek the best possible performance with any optics faster than f/2.2, the highspeed version is the best choice.

But keep in mind, the blue shift data by the computer simulation indicates narrowband filter shifts its bandwidth to shorter wavelengths with faster optics than f/2, transmission at the emission wavelength may decrease perhaps 15%-20%. Although the Antlia ALP-T highspeed filter has similar transmission rates reduction in the H-a and OIII when the filter is used on fast optics, based on current standard version users’ data, it is evident that the filter still has the high performance of increase in emission nebula contrast and minimized halo.

The highspeed version price is the same as the standard filters and double benefits for the high-speed optics users. Worth mentioning is that Antlia inspected and measured products piece by piece with one of Agilent Cary’s professional spectrophotometer, resolution/slit width is up to 0.2nm, which make us provide highly reliable and consistent products to you.

The Antlia ALP-T dual band 5nm series filter is a dual line-pass filter that was designed to be used primarily with one-shot color (OSC) cameras such as DSLR's and astronomical OSC cameras. It can also be used as a narrowband filter for monochrome cameras to save imaging time. The advanced multi-coatings on our ALP-T ultra dual band filter effectively isolate the red Ha and the blue-green OIII lines light from emission nebulae, with almost total suppression of optical density (OD)4.5 on unwanted wavelengths from light pollution, moonlight, and airglow. The result is that our ALP-T dual band 5nm filter creates a superior signal-to-noise ratio and better contrast in your images.

The filter enables the capture of the two main emission nebulae bands at the same time, whilst suppressing unwanted light pollution. It enables you to capture cleaner data and reduces the post-processing efforts to isolate faint details from the background light pollution.

Application and Performance:

Designed especially for fast astronomy optics, in particular f-ratios f/2.2 to f/3.6

Engineered specifically for use with DSLR, CMOS, and CCD color cameras

Suppression of optical density (OD)4.5 on unwanted wavelengths adds signal-to-noise

Extremely steep bandpass edges minimize internal reflections

Ideal flat-top and moderate bandpass reducing spectrum down shifts

Ion Gun Assisted Deposition coating technology on the double-sided polished substrate making it the most consistent and accurate light pollution suppression filter

Designed to suppress artificial lighting from Bortle scale 1 to Bortle scale 8

Near IR (NIR) is blocked up to 1050nm

Technical Specifications:

Filter Ring:

2'' (M48*0.75)

Ultra-thin filter cell to minimize vignetting by maximize possible clear aperture

Black Anodized Finish

Laser Engraving No Fading

Spectrum Curve:

Not Recommended:

Solar imaging

Night visual observation

Not Permitted:

DO NOT LOOK AT THE SUN WITH THIS FILTER

Serious eye damage will result if you fail to observe the warning
