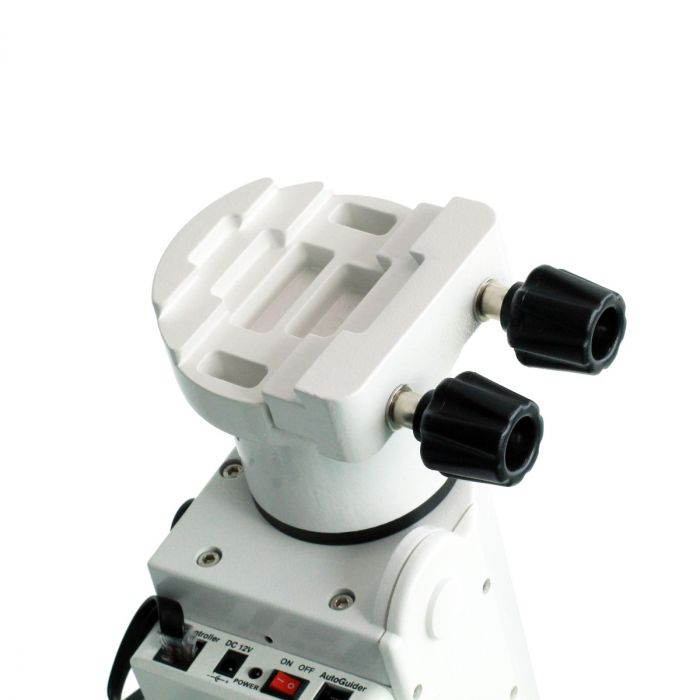

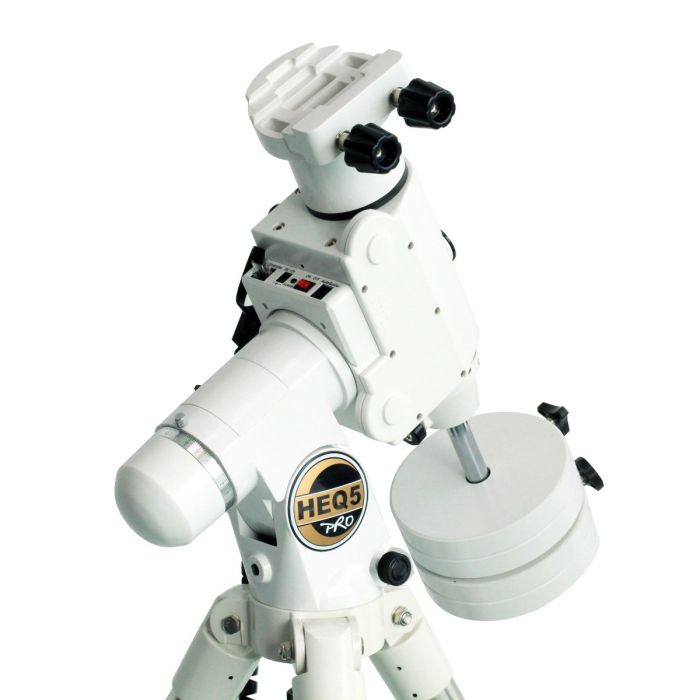

The saxon HEQ5 Pro Mount with Steel Tripod provides the precision and stability needed for serious observing.

This HEQ5 Pro Mount includes a built-in illuminated polar scope for both Southern and Northern Hemispheres, a latitude adjuster with micrometer scale, an azimuth polar-alignment adjuster, aluminium setting circles, large manual slow-motion tracking controls, bubble level and steel tubular tripod legs.

The saxon HEQ5 Pro Mount with Steel Tripod features and includes the following:

• A user friendly Synscan hand controller
• 2x 5.1Kg counter weight
• Wall-to-wall large accessory tray
• 1.75" stainless steel tripod legs
• Retractable counterweight shaft
• 1.8 degree step angle and 64 micro steps driven
• Motor resolution at 0.144arc sec (or 9.024,000 steps/rev.)
• Slew speeds from 2x, 8x, 18x, 32x, 64x, 400x, 500x, 600x, and up to 3.4°/sec (800X)
• Sidereal, Solar and Lunar tracking rates
• One, Two and Three star alignment options
• Auto guider interface for astrophotography
• Guiding speed from 0.25x, 0.50x, 0.75x, or 1x
• Minimal vibration for steady long-exposure astrophotography
• Payload Capacity 13.7Kg
• Containing over 42,900 objects with complete Messier, NGC and IC Catalogues.
• Positioning accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation
• Periodic error correction
• Firmware upgradeable via internet download
• PC Compatibility
• Car power supply adapter included
• More Information

  Warranty Information	3-Years Limited Warranty

Suggest Accessories:

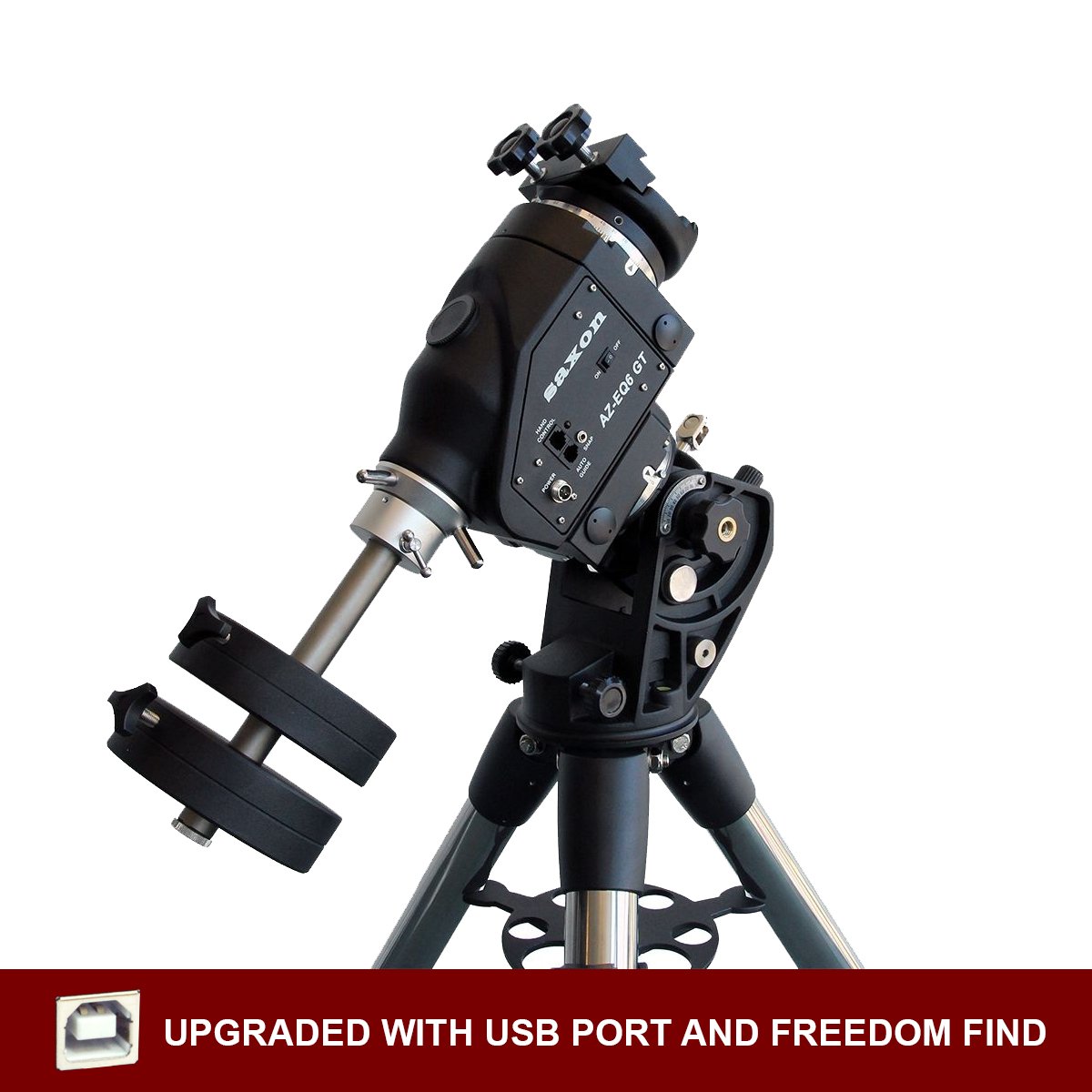

The Saxon AZEQ6 GT Pro Mount provides the precision and stability needed for serious observing and astro imaging

This AZEQ6 GT Pro mount includes a built-in illuminated polar scope for both Southern and Northern Hemisphere, a latitude adjuster with micrometer scale, an azimuth polar-alignment adjuster, aluminium setting circles, large manual slow-motion tracking controls, bubble level and steel tubular tripod legs

The Saxon AZEQ6 GT Pro Mount features and includes the following:

• A user friendly Synscan hand controller
• 2x 5.1Kg counter weight
• Wall-to-wall large accessory tray
• An extension 150mm counterweight shaft
• 2" stainless steel tripod legs
• Retractable counterweight shaft
• Accept narrow (V-style) or wider (D-style) dovetail mounting plates
• Smooth and quiet belt driven
• Motor resolution at 0.14arc sec (or 9.216,000 steps/rev.)
• Slew speeds from 1.25x, 1.75x, 2x, 8x, 16x, 32x, 64x, 400x, 500x, 600x, and up to 3.4°/sec (800X)
• Sidereal, Solar and Lunar tracking rates
• One, Two and Three star alignment options
• Auto guider interface for astrophotography
• Guiding speed from 0.125x, 0.25x, 0.50x, 0.75x, or 1x
• Minimal vibration for steady long-exposure astrophotography
• Payload Capacity 20Kg
• Containing over 42,900 objects with complete Messier, NGC and IC Catalogues.
• Positioning accuracy up to 5 arc minute.
• Permanent Periodic error correction (PPEC)
• Firmware upgradeable via internet download
• PC Compatibility
• Car power supply adapter included
• Requires 11 to 15V DC 2A power supply (not included).
• More Information

  Warranty Information	3-Years Limited Warranty

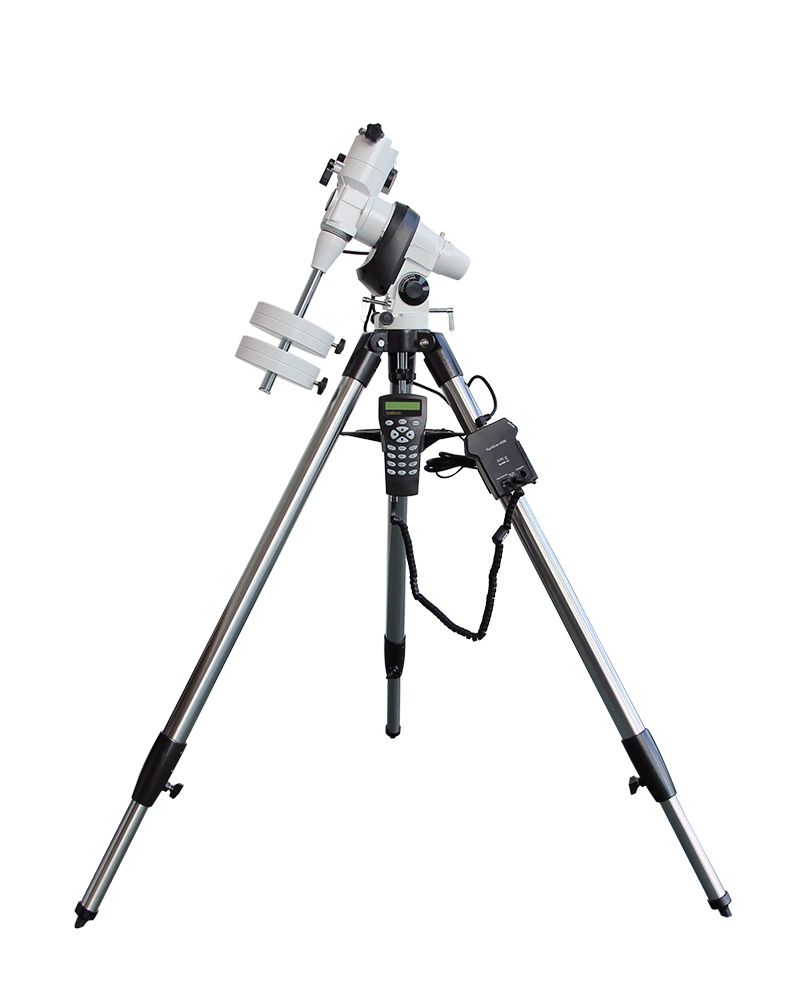

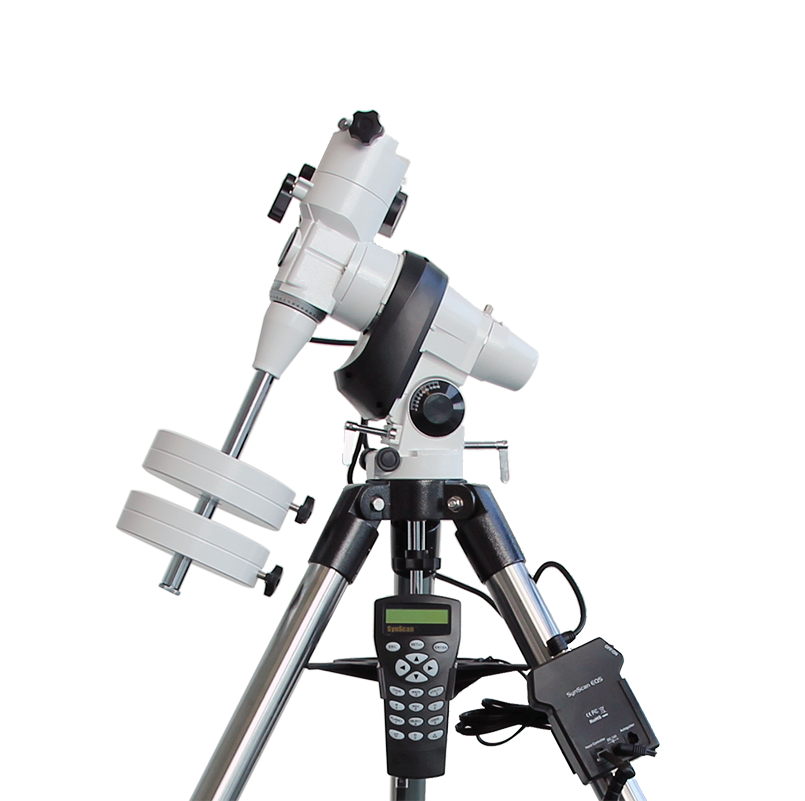

The saxon GoTo EQ5 Mount with Steel Tripod provides the precision and stability needed for serious observing.

This GoTo EQ5 mount includes a built-in polar scope, a latitude adjuster with micrometer scale, an azimuth polar-alignment adjuster, aluminium setting circles, large manual slow-motion tracking controls, bubble level and steel tubular tripod legs

The saxon GoTo EQ5 Mount with Steel Tripod features and includes the following:

• A user friendly Synscan hand controller
• 2x 5.1Kg counter weight
• Wall-to-wall large accessory tray
• 1.75" stainless steel tripod legs
• 1.8 degree step angle and 32 micro steps driven
• Motor resolution at 0.288arc sec
• Slew speeds up to 3.4°/sec (800X)
• Sidereal, Solar and Lunar tracking rates
• One, Two and Three star alignment options
• Auto guider interface for astrophotography
• Guiding speed from 0.25x, 0.50x, 0.75x, or 1x
• Payload Capacity 9.1Kg
• Containing over 42,900 objects with complete Messier, NGC and IC Catalogues.
• Positioning accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation
• Periodic error correction
• Firmware upgradeable via internet download
• PC Compatibility
• Car power supply adapter included
• Requires 12V DC 2A power supply (not included).

The saxon AZ5 mount with Steel Tripod is a light but heavy duty alt-azimuth mount. It is designed to carry small and medium sized telescopes and spotting scopes up to 8kgs. This portable mount is made of powder-coated aluminium and with smooth worm gears on both altitude and azimuth axes.

The adjustable arm can be tilted to multiple angles (45°, 90° & 135°), allowing you to use your telescope in different ways (e.g. observing at the zenith). Slow-motion controls come in both axes, which assist in fine tuning and keeping track of targeted objects.

An allen key is provided and stored behind the fork arm with a magnet. Adjustments to the mount are easy and hassle-free as the allen key is easily accessible and safely stored with the mount.

The adjustable steel tripod legs can be adjusted from 70cm to 130cm (excluding the height of the mount). The provided accessory tray not only keeps your eyepiece(s) in place but also secures the tripod legs to enhance the stability of the mount and minimise the impact of surrounding vibrations.

The hollow section of the arm allows for easy carrying and, weighing just 7kgs, makes for an incredibly portable mount.
