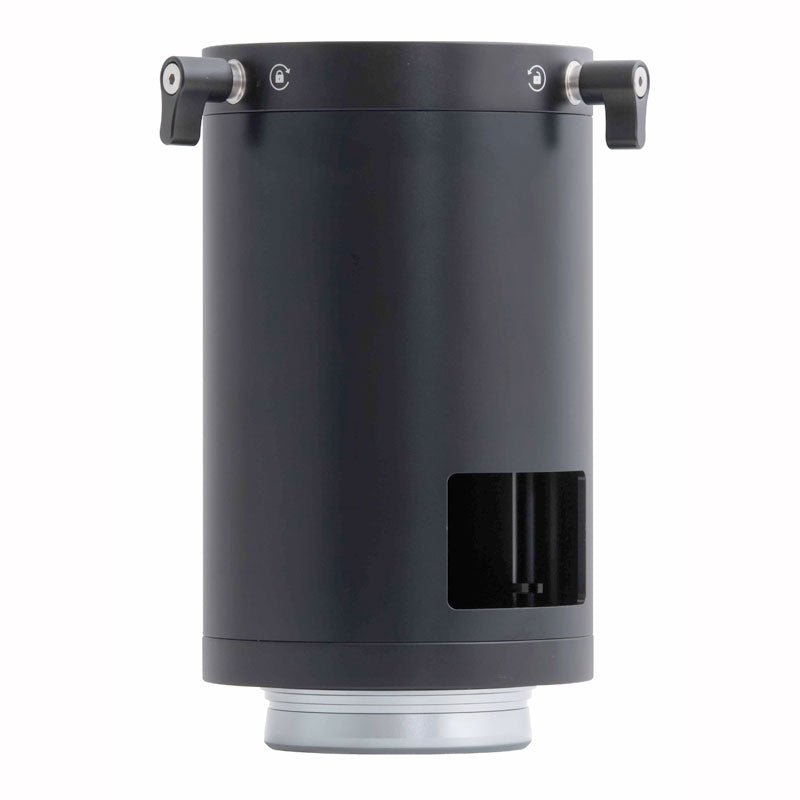

ZWO Pier 200 Pier Extension for the AM5 Mount

The NEW ZWO Pier 200 is a multi-functioning easy-to-install extension with a large load capacity.

Made of Aircraft grade Aluminium it has high-temperature resistance and is highly durable for years of trouble-free service. The weight is only 1.6kg yet it has up to 50kg load rating.

Simple Installation

Out of the box, functionality simplifies the whole installation process to just one step. Just tighten the locking knobs.

Artistic Appearance

The matte surface brings a classic colour contrast when used with the Red ZWO AM5 mount.

Wide Range of Compatibility

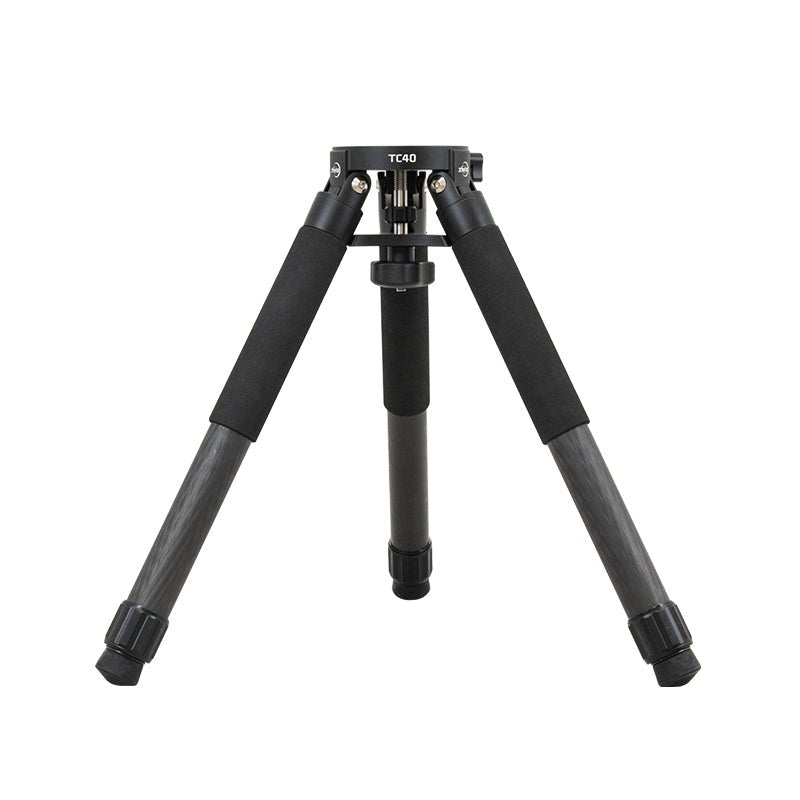

The ZWO Pier 200 works with other tripods. It is not only suitable for the ZWO Carbon Fibre tripod, but it can also be used with the 1.75-inch steel tripods from iOptron and Skywatcher, and with the 2-inch tripod for the Celestron Advanced VX Mount.

ZWO provides 3 optional thin pillars. You can take off the tube and install the pillars to get a more portable PE 160, which will reduce the weight of transporting your mount.

SKU: ZWO-PE200

Load Capacity

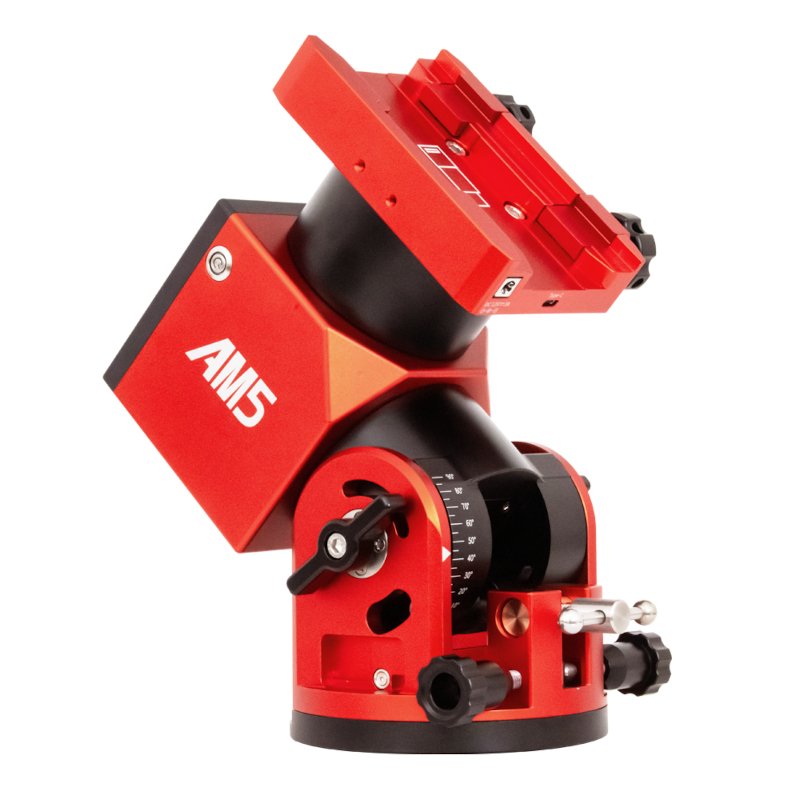

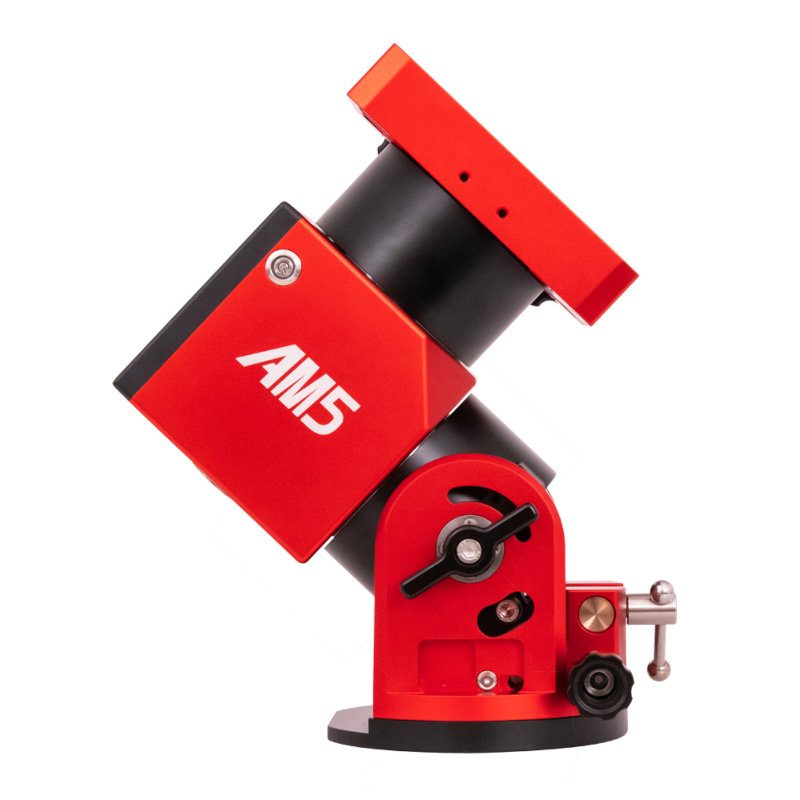

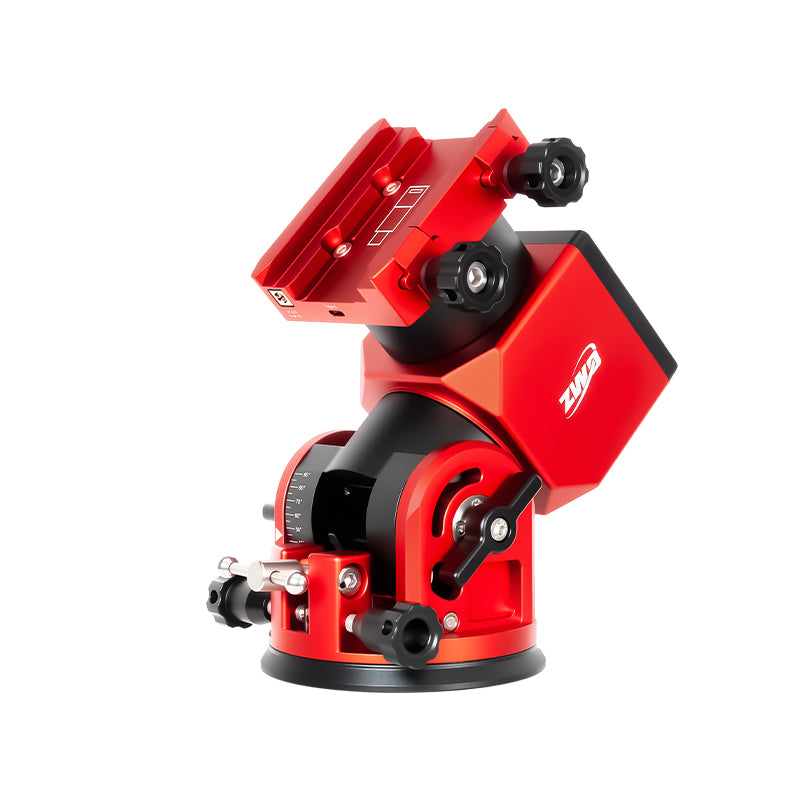

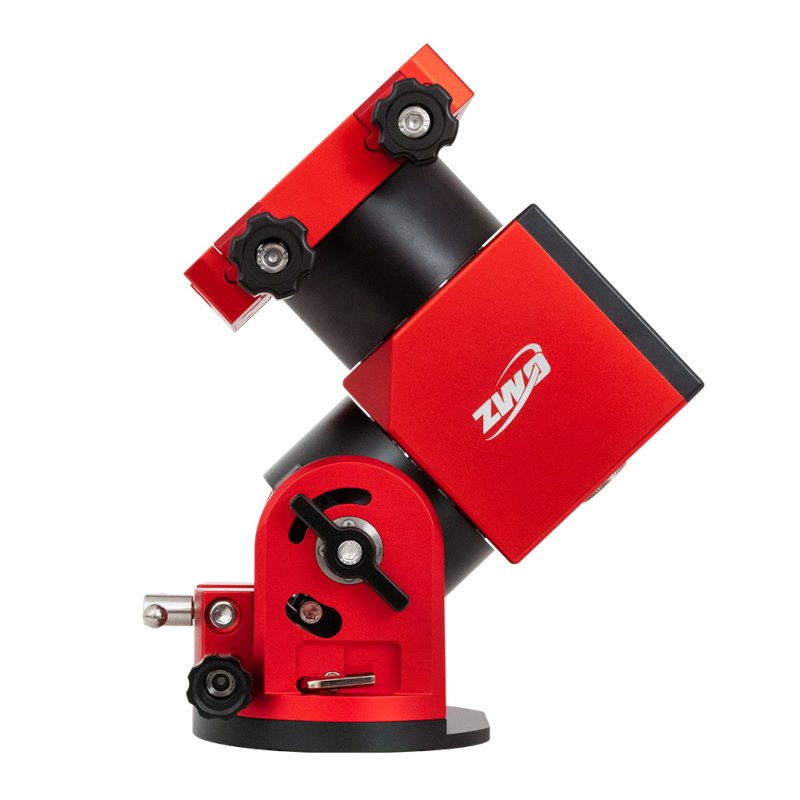

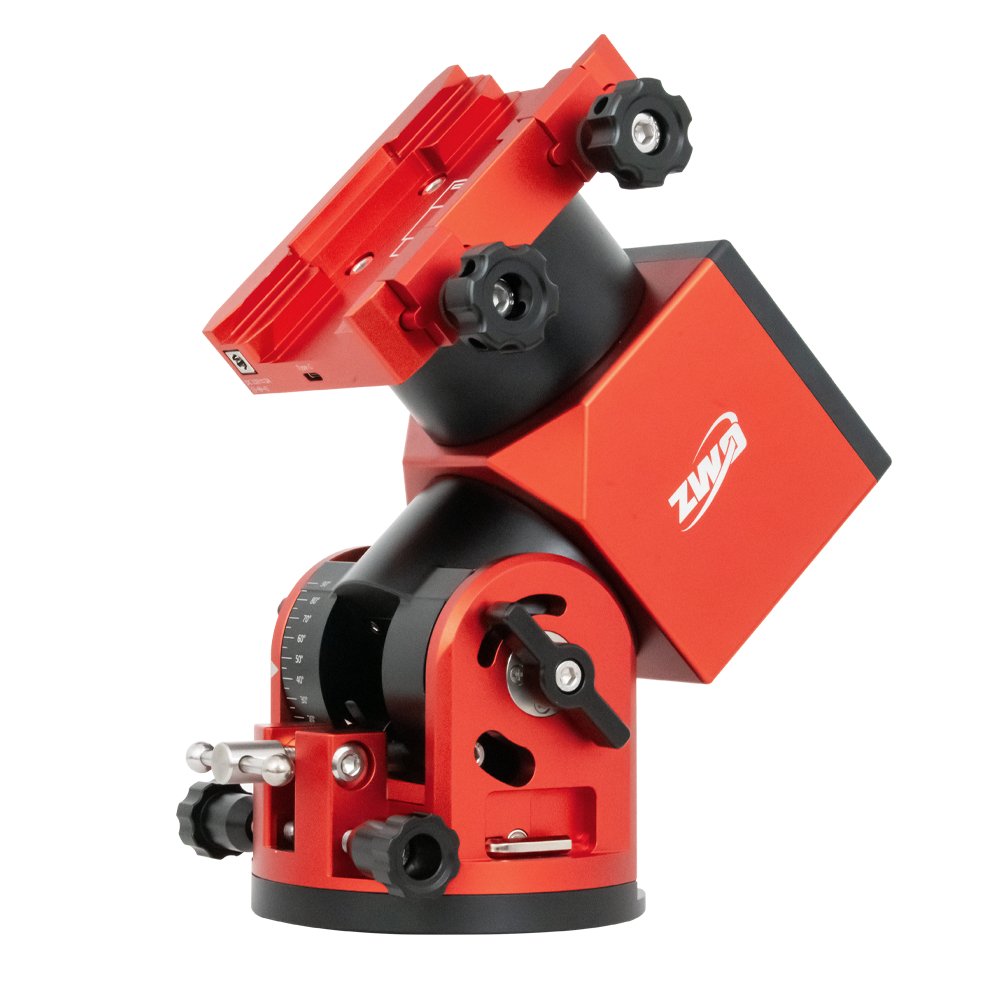

Without counterweights, the ZWO AM5N can handle 15kg of astro gear

Lightweight and easy to setup

Ideal for transporting to dark sky site or setting up in your backyard

Improved tracking

For even sharper images

Cable Management Features

DC output and USB Type-C ports now standard

New Bluetooth Connectivity

For better mount control

EQ and Alt-AZ Modes

For both astrophotography and visual observing

It is recommended to use a counterweight of ≤5 kg. When using a 5 kg counterweight, the lever arm should be installed within the range of 20 cm to 30 cm.
For counterweights of other masses, the installation position can be calculated as follows:

Assume the counterweight mass is m kg. The allowable lever arm length L is defined by:
10 N·m ≤ m × g × L ≤ 15 N·m where g = 9.8 m/s2,
which can be approximated as 10 m/s2.

For example, if a 2 kg counterweight is used, the allowable range of L is from
10 N·m / (2 × 10 m/s2) = 0.5 m to
15 N·m / (2 × 10 m/s2) = 0.75 m.

Specifications

Included in the Box

ZWO Counterweight Bar is designed for when using more than 13kg on the AM5 mount.

Machined from 304 Stainless Steel 230mm in length, 20mm in diameter with an M12 1.75 thread. It will match many other mounts.

SKU: ZWO-BC230

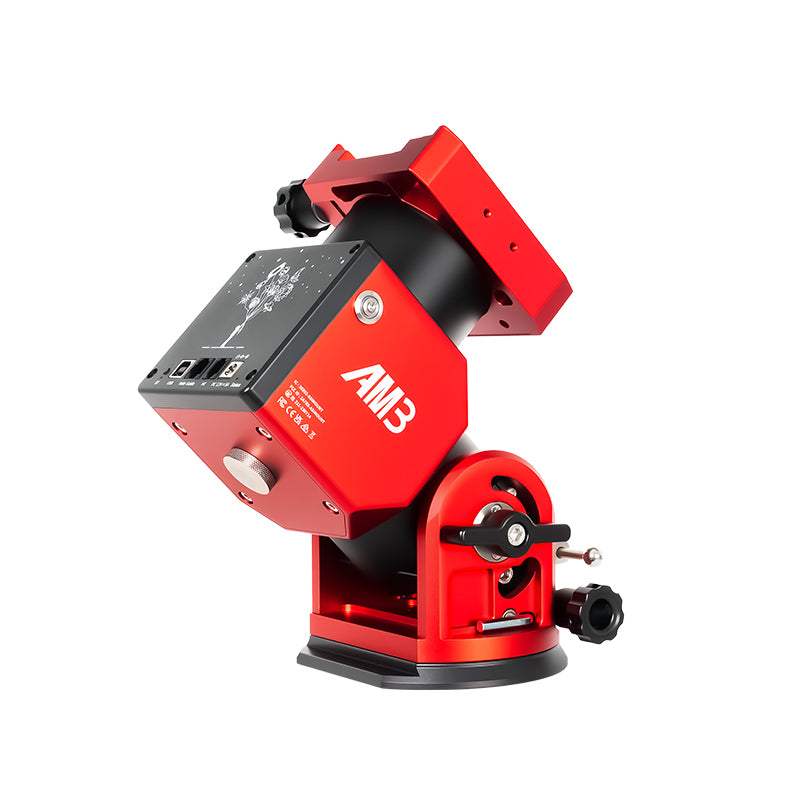

Introducing the new ZWO AM3N Mount

What's been upgraded?

The ZWO AM3N solves a range of  astrophotography hassles

Streamlined Setup, Enhanced Mount Efficiency

Strain Wave Gear for Precision Control

Integrated Type-C and DC Power Ports

Based on ZWO's internal testing:

It is recommended to use a counterweight of ≤5 kg. When using a 5 kg counterweight, the lever arm should be installed within the range of 20 cm to 30 cm.
For counterweights of other masses, the installation position can be calculated as follows:
Assume the counterweight mass is m kg. The allowable lever arm length L is defined by:
10 N·m ≤ m × g × L ≤ 15 N·m where g = 9.8 m/s2,
which can be approximated as 10 m/s2.
For example, if a 2 kg counterweight is used, the allowable range of L is from
10 N·m / (2 × 10 m/s2) = 0.5 m to
15 N·m / (2 × 10 m/s2) = 0.75 m.

Equatorial Mode / Altazimuth Mode

Status Light Indicator

All-round 0°-90° Altitude Scale

Wi-Fi & Bluetooth Connectivity

The AM3N supports Bluetooth control, allowing you to operate the mount directly from your smartphone — no Hand Controller required.  Ideal for travel and field use, just bring your phone and you're ready to observe or image.

Easily Controlled with Mobile Apps

App offers an onscreen joystick, including Tonight’s Target, GOTO, Live Preview and so many great functions can all be achieved with your phones. There is no need to connect to a computer—the mount and Hand Controller connect via Wi-Fi.

The mount is compatible with ASCOM, INDI, ASIAIR, and other platforms.

Seamless ASIAIR Integration

ASIAIR can connect to the AM3N wirelessly or via cable, offering full control at your fingertips. Enjoy the ultimate astrophotography experience with the ZWO Ecosystem, where all your gear works together, flawlessly.

The new heavy duty telescope mount from ZWO that grows with you, with the precision to keep you exploring.

Why Choose the AM7 Harmonic Equatorial Mount？

1. High capacity, two ways
   Carries up to 20 kg with no counterweight. Up to 30 kg with a counterweight.

2. Precision you can verify
   Periodic error is controlled within plus or minus 10 arcseconds, and every mount includes its own measured PE test report.

3. Cleaner setup, less mess
   Built in USB C and DC power ports on the dovetail saddle help keep cables organized.

4. Two modes, one mount
   Equatorial mode for tracking and imaging. Alt-azimuth mode for visual observing.

5. Works anywhere on Earth
   Zero to 90 degrees altitude range means it can be used at any latitude worldwide.
6. Control the way you like
   Bluetooth, Wi Fi, or the included hand controller.
7. Ready for cold nights
   Rated down to minus 20 C.
8. A control system built for reliability
   ZWO’s in house control system is designed for stable, dependable operation.
9. Portable by design
   Despite its capacity, the mount weighs about 6.5 kg.
10. Backed by support and a global community
    ZWO mounts are widely used by astrophotographers worldwide, with a strong user community and support network.

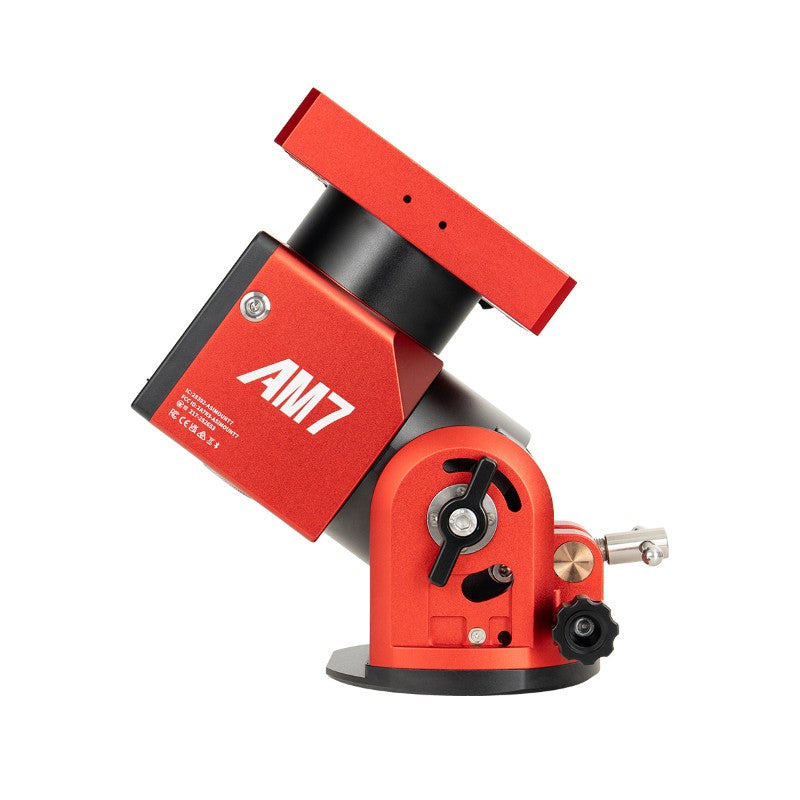

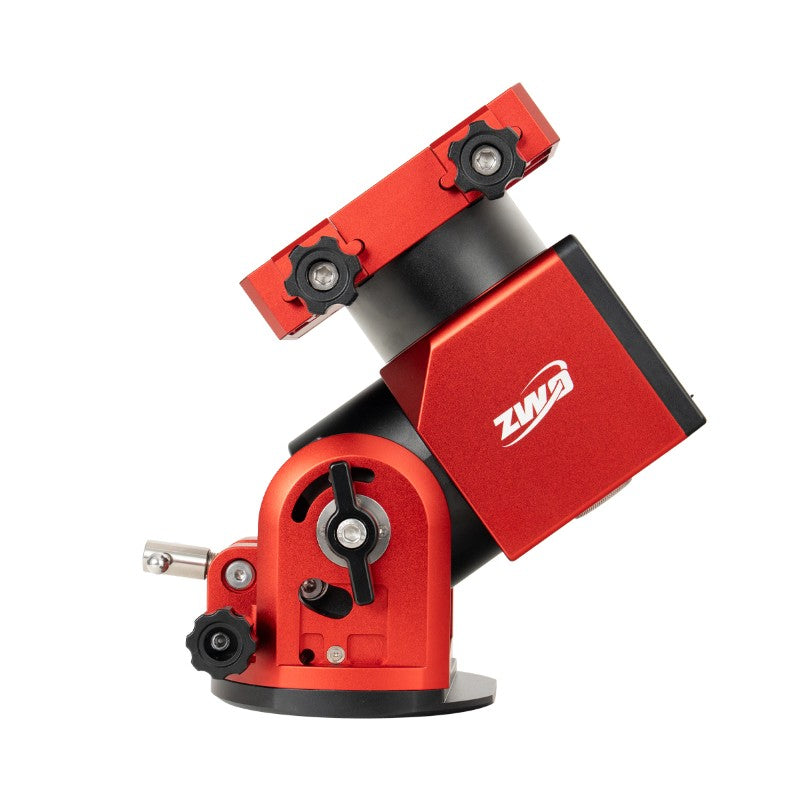

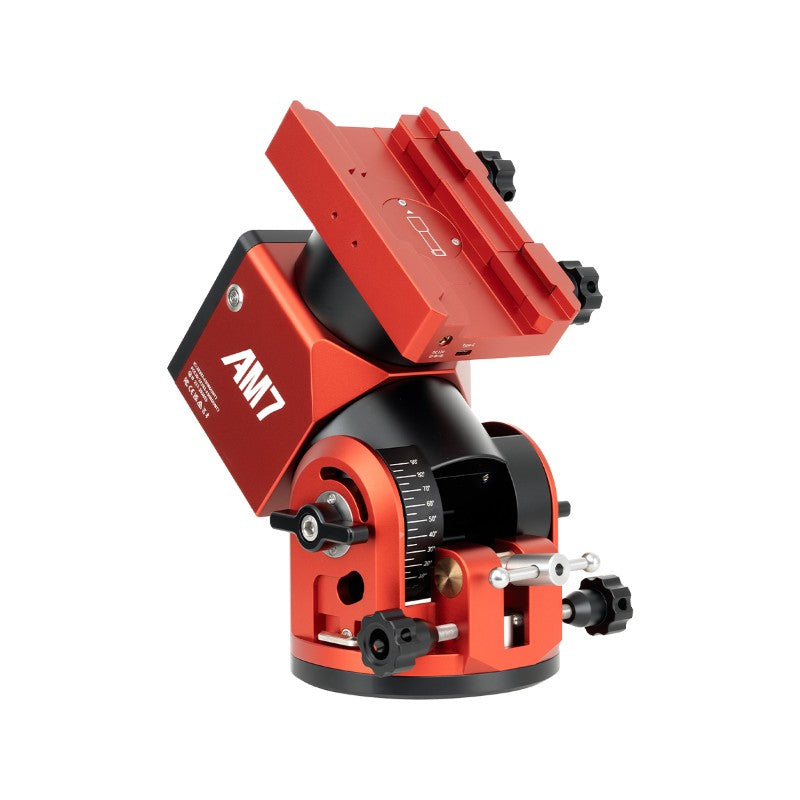

ZWO AM7, More Capacity. More Precision.

The ZWO AM7 is ZWO's highest-capacity harmonic drive telescope mount. It is built with heavier imaging rigs in mind, such as telescopes with long focal lengths, where tracking accuracy matters most.

Load Capacity

The ZWO AM7 supports up to 20 kg without counterweights, and up to 30 kg with counterweights installed. That gives you room to run a serious setup now and still scale up later.

Tracking and GoTo

The goal is simple. Solid tracking and reliable GoTo under real payload, so you spend less time managing limits and more time imaging and exploring the night sky.

A Mount for the Long Haul

The ZWO AM7 handles both small and heavy setups, so you can grow into bigger telescopes without outgrowing your mount.

*Weights are manually measured and may vary slightly.

Professional Grade Precision With a Custom Harmonic Drive Mount

Built out of years of ZWO development and tuned for astrophotography, the ZWO AM7's custom harmonic drive is designed for smooth, stable tracking with strong torque and consistent performance.

Every ZWO AM7 is individually tested at the factory before it ships. You get a unique periodic error curve report for your mount, so you can see the measured tracking performance of the exact unit you own.

Key specs and testing:

• Custom harmonic drive system
• Total harmonic gear reduction ratio 300 to 1
• Individual periodic error test report included
• Periodic error controlled within plus or minus 10 arcseconds for dependable high precision tracking. (That's the thickness of a human hair viewed from about 20 meters away).


Clean Cables. Less Mess. Fast Setup.

A lot of telescope setups end up as a tangle of wires and extra adapters. The ZWO AM7 is built to keep things cleaner and simpler.

With built in USB-C and power ports on the mount, you can run power and data where you need it without cables hanging everywhere. Even if you have a custom rig with a camera, focuser, guide gear, and other accessories, the AM7 helps reduce clutter so you can set up faster and spend more time imaging the night sky.

Cable Management Made Simple

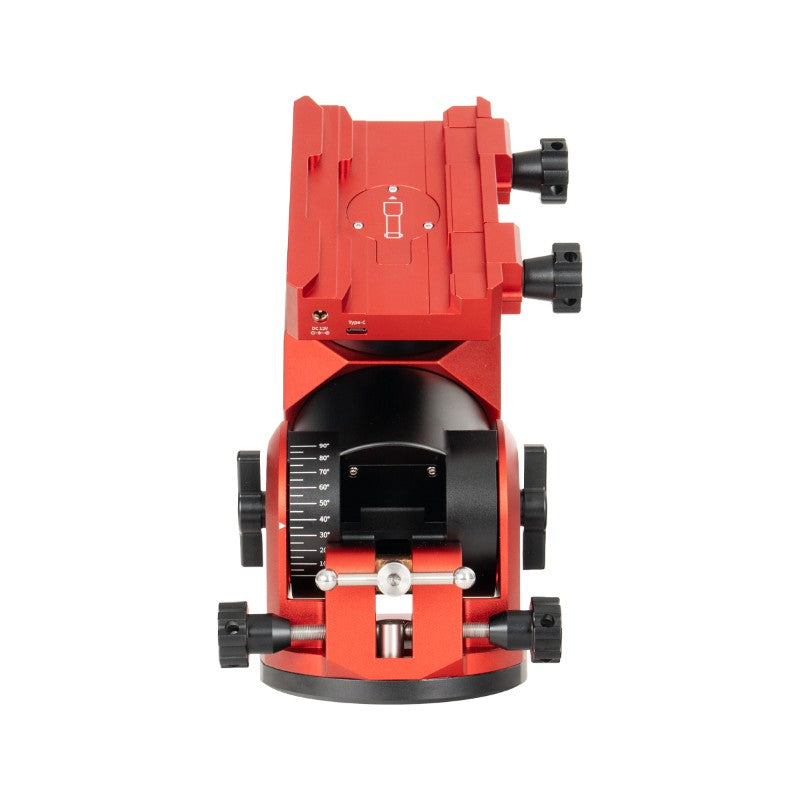

Integrated USB C and DC Power Ports
At only 6.75 kg, the ZWO AM7 is designed to be easy to carry and quick to set up. The built in dovetail plate includes a USB C port and DC power outlets, so you can route power and data through the mount instead of running a mess of cables around it. The result is cleaner cable routing and far less of the usual cable spider web.

For mount adjustments when needed, the ZWO AM7 also includes a magnetic hex wrench that stores directly on the mount body, so it stays close at hand and does not get lost in the dark.

Dual Mode Operation

One Mount for Viewing and Imaging

The ZWO AM7 supports two modes so you can use the same mount for casual observing or serious imaging. Switching modes is done with a quick hardware change to the mount's position, then you select the mode on the hand controller.

Equatorial Mode
Best for accurate sky tracking for imaging and longer sessions.

Alt Azimuth Mode
Best for visual observing with quick setup and simple pointing.

Mode Indicator Lights

Red means Equatorial Mode
Green means Alt Azimuth Mode

The ZWO AM7 supports a full 0 to 90 degree altitude adjustment range, so it can be aligned and used almost anywhere on Earth, from the equator to the poles. That makes it a practical choice for travel or a permanent setup, no matter where you observe.

How the two stage adjustment works

Stage one adjustment range
Use the altitude adjustment knob for 0 to 60 degrees.

Stage two adjustment range
Move the hex screw to the second position to enable 30 to 90 degrees.

User-friendly Design
Portable Control, Refined

Wi-Fi and Bluetooth Connectivity

The ZWO AM7 gives you two simple ways to connect, Wi-Fi and Bluetooth, so control is always straightforward.

Bluetooth makes quick sessions easier. Open your phone, connect directly, and control the mount without a hand controller. No need to switch your device over to the mount’s Wi Fi network just to get running.

What is new in the latest version

Bluetooth control

You can turn Bluetooth on or off by holding the BT button for 10 seconds. The setting is saved, even after power off.

A cleaner indicator light

A new light guide column softens the LEDs, so the status lights are easier on your eyes at night and won't interfere with your camera's either.

AM7 Smart Hand Controller

More Than a Controller

The ZWO AM7 includes a joystick style hand controller designed for comfortable, and intuitive control. It is also a built in connection hub for the mount. With its integrated Wi-Fi hotspot, you can control the mount wirelessly, manage settings through a simple web interface, and perform firmware updates for both the hand controller and the mount. This is the main path for keeping the system current.

• Bluetooth When You Want It
• Off When You Need It

Bluetooth control is a convenient option for direct smartphone control in the field. But some environments need tighter wireless control, like remote observatories or permanent installations where interference or policy requirements matter. For those cases, AM7 lets you easily disable Bluetooth when needed, then enable it again when it makes sense.

Hollow-knob ergonomic design

The dovetail plate tension knob and azimuth fine-tuning knob feature a hollow structure. When manual rotation is limited, you can insert a hex wrench to gain extra leverage, making adjustments easier and more reliable with less effort.

Smart Control, Easy Operation

Sky Atlas Mobile App for iOS and Android

The ZWO AM7 can be controlled wirelessly using the Sky Atlas app on iOS and Android. You get a live star map, simple object search, and quick tools like Tonight’s Best, target GoTo, and precise pointing to the objects you want to observe or image.

Works Smoothly With ASIAIR in Station Mode
The ZWO AM7 also supports station mode, which makes it easy to integrate with a controller like ASIAIR. With the hand controller providing Wi-Fi, ASIAIR can connect to the mount over the network, so you can run a clean setup without a direct control cable between the AIR and the mount.

Seamless Integration With ASIAIR

ASIAIR can connect to and control the ZWO AM7 using either wireless or wired connections, so it fits cleanly into a wide range of setups.

Because the ZWO AM7 and ZWO ASIAIR are part of the same ecosystem, it takes the guesswork out of driver support and compatibility. You are not stitching together software from different vendors and hoping everything plays nicely. And as ASIAIR software continues to evolve with new features, you can count on AM7 support to keep pace, with new mount capabilities integrated directly within the same system.

Specifications

The payload capacity of the ZWO AM7 equatorial mount is derived from the simulation calculations as shown in the figure above:

1. Maximum payload without counterweight: 20 kg (corresponding to a maximum output torque of 40 N·m).

2. It is recommended to use a counterweight ≤ 10 kg. When using a 10 kg counterweight, please install it with a moment arm between 20 cm and 30 cm.
For other counterweight masses, the allowable installation position can be calculated as follows:

Assuming the counterweight mass is m kg, the allowable moment arm length L must satisfy:
20 N·m ≤ m * g * L ≤ 30 N·m

Where g = 9.8 m/s² (can be approximated as 10 m/s² for calculation).
For example, with a 5 kg counterweight: L ranges from 20 N·m / (5 × 10 m/s²) = 0.4 m to 30 N·m / (5 × 10 m/s²) = 0.6 m.
