Exquisite viewing and imaging performance with flat, distortion-free images from edge to edge.

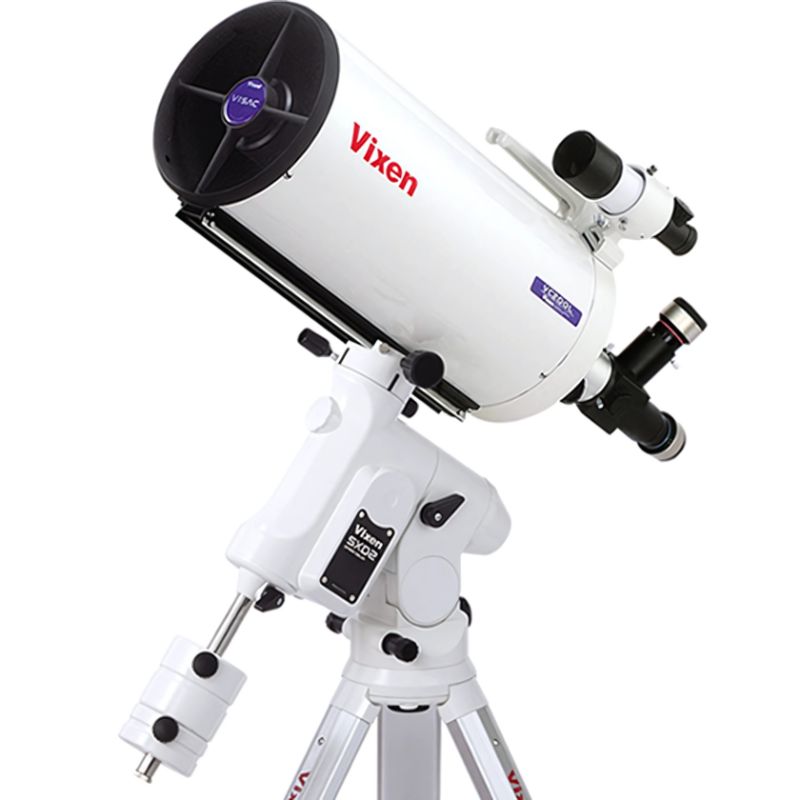

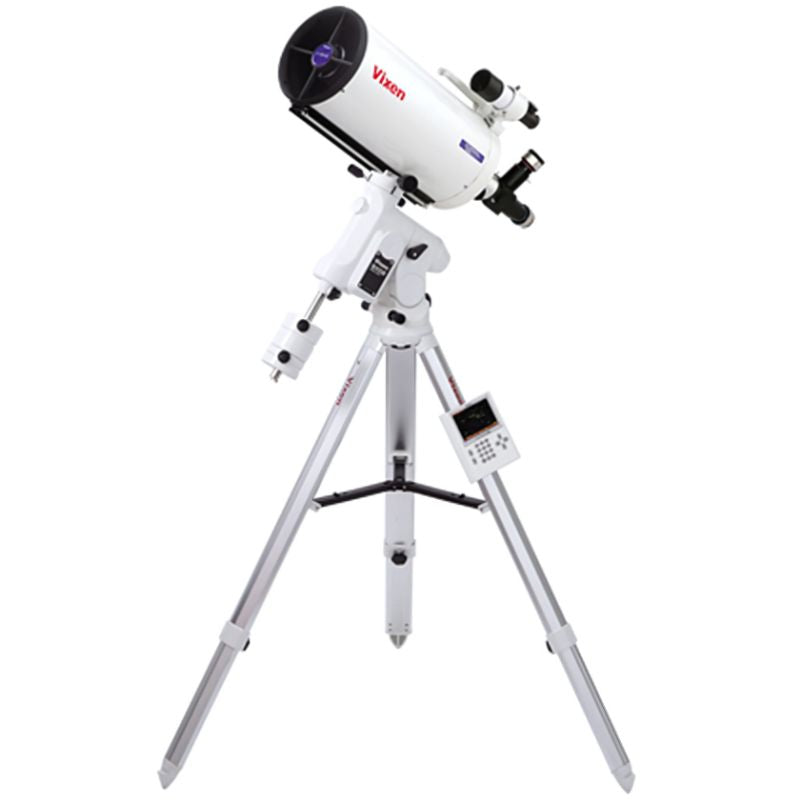

The VC200L provides high definition star images to the edge of a wide imaging field and flat images without distortion. The package includes the VC200L optical tube, which has outstanding performance for the prime focus astrophotography, the STAR BOOK TEN with built in star chart and sturdy SXD2 equatorial mount PFL.
VC200 optical tube assembly.
Vixen's original high precision sixth-order aspherical Cassegrain (VISAC) optics produces outstanding pinpoint images without coma and without field curvature. It is highly recommended for serious astrophotography.
SXD2 equatorial mount PFL.
The sturdy SXD2 mount features precision pulse motors, solid mechanics designed for long observing session and astrophotography.
STAR BOOK TEN star chart go-to navigation controller.
The STAR BOOK TEN features intuitive 'Star-Chart Go-To' system with high definition colour LCD display. The position of the telescope, the target and other useful information are displayed on the screen in detail. The night vision feature illuminates the whole screen in red, if applied, and will limit the brightness to the observer's eyes.
SXG-HAL130 Aluminium tripod.
With high solidness and stability it is highly suitable for observing sessions in a remote place.
Optical Tubes
| Specification | Details |
|---|---|
| Primary Mirror | D=200mm VISAC mirror, multicoated |
| Focal Length (Focal Ratio) | F=1800mm (f/9) |
| Resolving Power / Limiting Magnitude | 0.58 arc seconds / 13.3 |
| Light Gathering Power | 816Ć (compared to unaided eye) |
| Dimensions / Weight | 600mm diameter Ć 232mm length / 6.9 kg (Net 6.0 kg) |
| Finder Scope | 7Ć50mm with illuminated reticle (7Ā° field of view) |
Focuser
| Specification | Details |
|---|---|
| Adapter Threads / Visual Back | 60mm and 42mm for T-ring / 50.8mm push-fit |
| Eyepieces | SLV 20mm (90Ć, 33ā² field of view) SLV 9mm (200Ć, 15ā² field of view) |
Mount
| Specification | Details |
|---|---|
| Type of Mount | SXD2 equatorial mount PFL |
Tripod
| Specification | Details |
|---|---|
| Leg Type / Material | Large hex-shaped, adjustable 2-section aluminum legs |
| Size / Weight | Length: 807mm ā 1299mm Height: 730mm ā 1156mm Setup radius: 460mm ā 706mm / 5.5 kg |
Others
| Specification | Details |
|---|---|
| Accessories | Parts case, Counterweights (1.9 kg Ć 1, 3.7 kg Ć 1) |
| Photography | Usable with prime focus, eyepiece projection, and afocal imaging |
| Solar Observation | Not available |
| Total Weight | 27.6 kg (without batteries and without eyepieces) |
Ā
Configuration
- Optical tube assembly
- SXD2-PFL equatorial mount
- SXG-HAL130 tripod
