Specifications
| Sensor Type: | CCD - Sony ICX814 |
| Horizontal Resolution: | 3380 pixels |
| Vertical Resolution: | 2704 pixels |
| Pixel Size: | 3.69 µM x 3.69 µM |
| ADC: | 16 bit |
| Readout Noise: | 5e- typical value |
| Interface: | Mini-USB 2.0 High Speed |
| Power: | 12v DC 1A |
| Maximum Exposure Length: | Unlimited |
| Minimum Exposure Length: | 1/1000 s |
| Cooling: | Thermoelectric set point with max ΔT=-25°C |
| Weight: | approx. 400 grams |
| Backfocus: | 13mm |

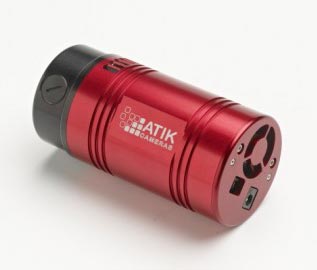

The Atik 490EX fully supports 1.25" filters down to f/2, so you won't need to replace any of your current investment in wheel or filters. This is an added advantage when looking to invest in a CCD camera that may go through multiple telescopes.
The Atik-4 Series cameras are a development of the renowned 3-Series cameras, featuring better cooling and narrower body. They benefit from setpoint cooling to make taking matching dark frames a snap, and simple 12V power requirement to facilitate field operation. The impressive sensitivity, great cooling and narrow profile, make the Atik Series 4 outstanding CCD cameras to use on modern telescopes, including Hyperstar/Fastar systems.
