The 24mm is designed to produce the largest true field possible in a 1-1/4" eyepiece.

Its 27mm field stop is the same as the 32mm Tele Vue Plössl.
The higher power darkens the sky background while the greater magnification yields more details on extended objects. Further, its light weight, comfortable 16mm eye relief, and tapered top instantly make the 24mm Panoptic the ideal eyepiece for getting the maximum field for binocular viewers.

Review

This Sky & Telescope “Hot Product for 2003” is designed to produce the largest true field possible in a 1-1/4" eyepiece. (Its 27mm field stop is the same as the 32mm Tele Vue Plössl).

The higher power darkens the sky background while the greater magnification yields more details on extended objects. Further, its light weight (1/2 lb.), comfortable 15mm eye relief, and tapered top instantly make the 24mm Panoptic the ideal eyepiece for getting the maximum field for binocular viewers.

Great for emission and reflection nebulae, Supernova Remnants and large open star clusters.

Check out the rest of the Panoptic range.

Specifications

TheTele Vue Plossl 32mm has been around for decades and is still one of the best eyepieces on the market.

With 22mm of eye relief it suits every observer, even with eye glasses the full field of view the Tele Vue Plossl 32mm offers is superb.

Great eyepiece for larger clusters and nebulae.

Crisp and sharp from edge to edge with the same true field of view as the 40mm Plossl but with higher magnification.

Edge blackend lenses and thread barrel to take standard 1.25" filters.

Everyone should own a Tele Vue Plossl 32mm at some stage in their astronomy life.

Televue's 32mm Plossl is a favourite for those wanting to upgrade to a quality low power eyepiece. Certainly one of the best simple eyepieces ever made.

Specifications

Focal length: 32mm
Barrel Diameter: 31.7mm (1.25")
Apparent Field: 50°
Eye relief: 22mm
Field Stop Diameter: 27mm
Weight: 180g

Review

This is a very good low power/wide field eyepiece for ideal or large open clusters, emission and reflection nebulae, or large extended objects that require a big field of view, perfect for scanning the Milky Way star clouds in Scorpius- Sagittarius from a dark sky site

The rubber grip gives sure grip and makes it comfortable to use in cold weather. As with all TeleVue eyepieces all edges are edge blackened.

This one of the Classic eyepieces to own offering improved edge-to-edge sharpness, and a wider and brighter field of view to the standard 25mm eyepiece that comes with most telescopes.. The 22mm of eye relief offers unvignetted viewing for eyeglass wearers.

It is parfocal with the shorter focal length Plossls.

The 32mm Plossl, with its larger 50 degree apparent field, will deliver the same true field as the 40mm but with higher magnification. Filter threads to fit your filters.

Specifications

Nagler Type 5

With the 31mm, the unique 6-element design using four exotic glasses, maintains the contrast advancement of the Type 4s while achieving a true field area 82% larger than the 22mm Type 4!

Owners of fast Dobsonian/Newtonians can enjoy a larger true field, free of secondary shadowing, than ever before. For example, a 12.5", f/4.5 scope with a Paracorr will deliver a 1.5 degree field (3 Moon diameters), at 53x with a 6mm exit pupil.

Why Are There 4 Types of Naglers?

To achieve various features requires different design tradeoffs and thus the different types of Nagler eyepieces. The largest possible true fields of view for an 82°' apparent field of view in both 2" and 1¼" formats are achieved with the Nagler Type 5 series, with focal lengths of 31 and 16 mm

Compact size in medium to short focal lengths is achieved with the Nagler Type 6, available in focal lengths of 13, 11, 9, 7, 5, and 3.5 mm.

To achieve eyeglass friendly eye relief without excessively large and heavy designs requires the other two Nagler types. The 22mm Type 4 and 19, 14, 9, 5.5 mm Type 7 with their long eye relief feature adjustable height eyeguards and are best for eyeglass wearers or Dioptrx™ users.

Specifications

Tele Vue Ethos 21mm Specifications

Introduced at the 2007 Northeast Astronomy Forum, Tele Vue once again broadened the amateur astronomer's perspective on the universe with: 100° of pure Tele Vue quality. The field area of this new eyepiece is more than 50% larger than an 82° field. The Tele Vue Ethos is essentially multiple eyepieces, delivering the true field size of a longer focal length, narrower apparent field eyepiece with the benefits of higher power and darker sky background.

Review

An excellent premium quality low power eyepiece. It is ideal for observing large emission and reflection nebulae, Supernova Remnants and large open star clusters.

It is very well suited to large f/4.5 Dobsonians giving 6mm exit pupil. Is a great low power eyepiece in short focal length refractors, for example, with the TV 102, it gives 31x and a true field over 130 arc minutes.

It has 16mm of eye relief and can be used by eyeglass wearers with no vignetting of the field. Images are sharp right to the edge of the field.

This is a lot of eyepiece so its heavy weight may cause some minor concern in Dobsonians. One of the favourite eyepieces of Bintel's Technicians.

Check out the rest of the Panoptic range.

Specifications

Review

This is a very good low power/wide field eyepiece. With 43 degree apparent field it provides the widest field possible from a 1.25” eyepiece. It's ideal for large open clusters, emission and reflection nebulae, large and faint nebula remnants such as the Vela Supernova Remnant and galaxy clusters.

The rubber grip gives sure grip and makes it comfortable to use in cold weather.. Better suited to the longer focal ratios of refractors, Schmidt-Cassegrains, and Maksutov-Cassegrains than it is to reflectors with focal ratios shorter than f/6.

In scopes that are longer than f/6, it will give you the widest and brightest field possible from a 1.25” focuser telescope.

The 28mm of eye relief makes it a good choice for eyeglasses wearers. It' s parfocal with the shorter focal length Plossls. Filter threads to fit your filters and blackened lens edges.

Specifications

Tele Vue's Delos 14mm is a medium focal length eyepiece that creates an “immersive viewing experience”. With its generous 20mm eye-relief and wide 72° apparent field of view you will be hard pressed to find another eyepiece that is such a pleasure to look through. Amazing wide fields of view in well corrected refractors with short to medium focal lengths (over 1° FOV up to 1000mm focal length). While some of the shorter focal length Delos eyepieces may provide too much power in long focal length Cassegrains, the Delos 14mm is suitable for any focal length telescope.

There is a good chance the TeleVue Delos will be seen as the ultimate combination of performance, viewing comfort and price. If you've been keeping a spot in your case for an affordable, premium eyepiece, you should consider a Delos - you won't be disappointed! Lessons learned from the tremendously successful Ethos series were applied to develop this long eye-relief, 72° apparent field of view eyepiece line.

The Delos 14mm has standard a 1.25" barrel making it suitable for almost any telescope or even bino-viewers!

Tele Vue Delos 14mm - Specifications

• Model # EDL-14.0
• Focal Length 14mm
• Barrel Size 1.25"
• Apparent Field of View 72°
• Eye Relief 20mm
• Weight 408g
• Field Stop 17.3mm

Background:

In 2011 Tele Vue introduced the Delos, mid-to-short focal length line of 20mm eye-relief, 72° apparent field of view eyepieces. Every optical, mechanical, and ergonomic aspect was rethought to achieve reference-standard performance for any visual application.

The Delos was conceived as a narrower field Ethos. Reducing the field to 72° allowed freedom to increase eye-relief, while controlling pupil aberrations, all without making the eyepiece too large. With Ethos performance standards as benchmarks, the Delos design achieves full field sharpness, virtually perfect f θ (theta) distortion mapping, and color neutrality. Image fidelity is maximized utilizing glass matched multicoatings and anti-reflection surfaces throughout the eyepiece.

Contrast is further enhanced with a new, continuously adjustable height eyeguard system that can be locked in any position. Since the Delos eye-lens measures a quite large 35mm in diameter, preventing stray light from reflecting off the first surface and extraneous light from entering your eye pays off in a nice increase in perceived contrast. The eyeguard's sliding action allows for positioning the soft rubber eyeguard at the ideal height to suit the observer's preference. Indicator marks on the eyepiece body are handy reference guides for setting your perfect position. The eye-guard can also rotate for Dioptrx users.

Awards - Delos 6mm and 10mm

Reviews

Sky & Telescope Hot New Product for 2012 Award

Review of the 6mm & 10mm Delos from Astronomy Magazine, December 2011

Excerpts from Sky & Telescope, June 2011, review of Delos eyepieces:

WHAT WE LIKE:

Essentially perfect optics
"Immersive" observation experience

WHAT WE DON'T LIKE:

I spent several nights viewing the Moon, Saturn, stars and nebulae with a variety of telescopes … .

The Delos eyepieces are "easy to look through … . They have flat fields, delivering absolute pinpoint stars from edge to edge with no hint of color aberration. The view, especially during the daytime, is very pure with no noticeable color tint. And there wasn't a hint of ghosts or reflections, even with the brightest stars".

"What caught me a bit off guard, however, was something that's best described as the observing experience. It was distinctly pleasurable."

"I have the sensation of looking out of a circular window rather than into an eyepiece."

— di Cicco, Dennis. "Tele Vue's New Delos Eyepieces". Sky & Telescope (June 2011). p. 58, 59.

Introduced at the 2007 Northeast Astronomy Forum, Tele Vue once again broadened the amateur astronomer's perspective on the universe with: 100° of pure Tele Vue quality. The field area of this new eyepiece is more than 50% larger than an 82° field. The Tele Vue Ethos 17mm is essentially multiple eyepieces, delivering the true field size of a longer focal length, narrower apparent field eyepiece with the benefits of higher power and darker sky background.

We invited NEAF attendees to take a look and see the universe the way we think it was meant to be experienced, with a field of view incredibly wide and sharp! We were very pleased indeed by the response and validation of our design goals.

The Tele Vue ETHOS 17mm is an ideal complement to the 31mm Nagler Type-5. They are parfocal (both have focus locations about 10mm above shoulder) and the 31mm Nagler Type-5 has exactly twice the true field area.

Tele Vue Ethos 17mm Specifications

Related Links

•Eyepiece Distortion
Technical reference on rectilinear and angular magnification distortion.

•Majesty Factor
Compare eyepieces by quantifying contrast, power, and apparent field.

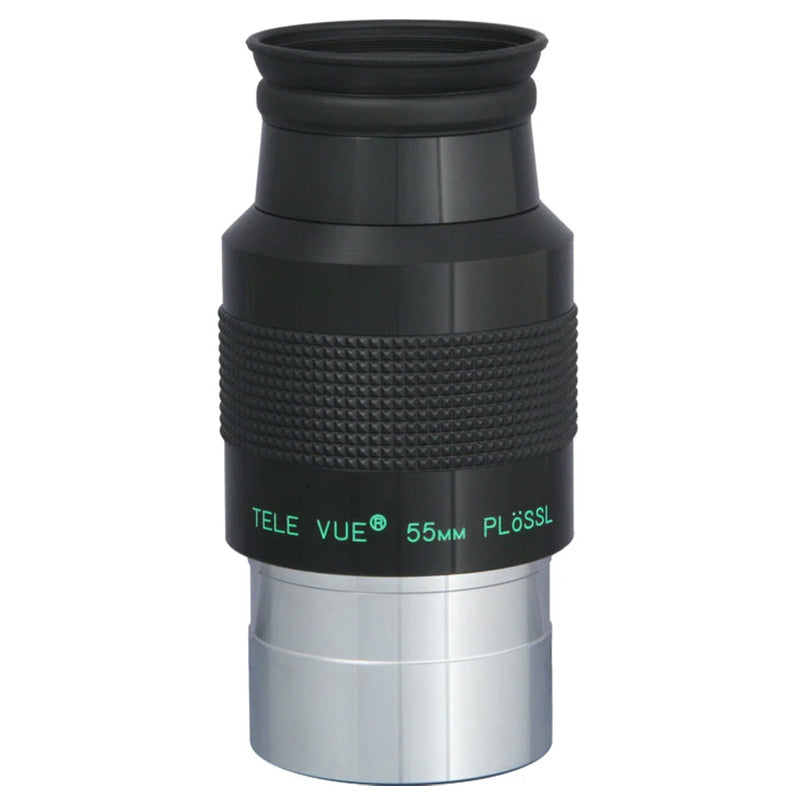

The 55mm focal length has the largest true field possible for 2" eyepiece holders -3 times the true field area of any 1¼" eyepiece. The focal plane is placed at the end of the barrel to minimize vignetting. Performance with Schmidt-Cassegrains is remarkable since it avoids the image degradation and severe vignetting which occurs when using telecompressors. Long eye-relief and unique adjustable eyeguard for eyeglass wearers.

Review

A must for deep sky fans. This good low power/wide field eyepiece has the largest true field and largest exit pupil possible for 2" eyepiece holders-3 times the field area of any 1 l/4" eyepiece.

Performance with Schmidt Cassegrains is remarkable since it avoids the image degradations and severe vignetting which occurs when using tele compressors.

The long eye relief and unique adjustable eye guard allows eyeglass wearers to see the full field of view even with their glasses on.

The rubber grip gives sure grip and makes it comfortable to use in cold weather.

Specifications

Tele Vue's Delos 17.3mm is the longest focal length in the Delos series. Still with a generous 20mm eye-relief and wide 72° apparent field of view you will enjoy an emmersive viewing experience that is hard to match. The optimized combination of field size and eye-relief makes Delos an eyeglass wearers dream!

There is a good chance the TeleVue Delos will be seen as the ultimate combination of performance, viewing comfort and price. If you've been keeping a spot in your case for an affordable, premium eyepiece, you should consider a Delos 17.3mm - it won't disappoint! Lessons learned from the tremendously successful Ethos series were applied to develop this long eye-relief, 72° apparent field of view eyepiece line.

The Delos 17.3mm has a standard 1.25" barrel making it suitable for almost any telescope. An excellent choice for low power viewing in bino-viewers!

Tele Vue Delos 17.3mm - Specifications

• Model # EDL-17.3
• Focal Length 17.3mm
• Barrel Size 1.25"
• Apparent Field of View 72°
• Eye Relief 20mm
• Weight 408g
• Field Stop 21.2mm

Background

Tele Vue introduced the Delos In 2011. The series includes mid-to-short focal lengths with all providing 20mm eye-relief and 72° apparent field of view. Tele Vue designer Paul Dellechiaie rethought every optical, mechanical, and ergonomic aspect to achieve reference-standard performance for any visual application.

The Delos was conceived as a narrower field Ethos. Eye-relief was increased while still controlling pupil aberrations by reducing the field to 72°. This was achieved without making the eyepiece too large. With Ethos performance standards as benchmarks, the Delos design achieves full field sharpness, virtually perfect f θ (theta) distortion mapping, and colour neutrality. Image fidelity is maximized utilizing glass matched multicoatings and anti-reflection surfaces throughout the eyepiece.

Contrast is further enhanced with a new, continuously adjustable height eyeguard system that can be locked in any position. Since the Delos eye-lens measures a quite large 35mm in diameter, preventing stray light from reflecting off the first surface and extraneous light from entering your eye pays off in a nice increase in perceived contrast. The eyeguard's sliding action allows for positioning the soft rubber eyeguard at the ideal height to suit the observer's preference. Indicator marks on the eyepiece body are handy reference guides for setting your perfect position. The eye-guard can also rotate for Dioptrx users.

Awards

Delos 6- & 10-mm

Delos Eyepieces Reviews

Quotes from review of 10mm, 4.5mm, & 14mm Delos on Alpha Lyrae website.

• The stunningly flat field and lack of optical aberrations really allow clusters to shine and galaxies and nebulae are resplendent.
• It is rare I use any other eyepiece for deep sky observing anymore.

• Quite simply, the planetary performance matches the very best dedicated planetary eyepieces I have ever used such as the TMB Super Monocentric.
• There is also an indescribable quality which makes them a very easy and relaxing eyepiece to use.

— Hodgson, Matthew. "Televue Delos Eyepiece Review". Alpha Lyrae (05 May 2014). Full Review.

Excerpt from Delos 17.3mm review in Astronomy Now magazine.

Examining the stars of the Pleiades served up by the 17.3mm Delos, I was immediately struck by the pinpoint star images right to the edge of the field-of-view. Contrast was superb. Nor could I detect any signs of off-axis distortions.

— Neil English. "Tele Vue Delos". Astronomy Now (April 2013). Read Full Review (Delos 6-,10- & 17.3-mm) now.

Sky & Telescope Hot New Product for 2012 Award

More Than Expected (Delos 6- and 10-mm)

And while the 20 mm of eye relief make them attractive for those who observe wearing eyeglasses, it was the "distinctly pleasurable" observing experience that most impressed our reviewer. When it comes to eyepiece design, The Delos seems to have hit all the sweet spots.

— Editors. "Hot New Products for 2012". Sky & Telescope (January 2012). p.39.

Excerpt from ATT review of Delos 6- & 10-mm eyepieces:

Wide-Field Eyepieces That Pack a Planetary Punch

With the Delos, the eyepiece simply "disappears" and allows the observer to observe. I could find nothing whatsoever to complain about; the "twist and tighten" eye relief adjustment feature is the best I've ever seen in any eyepiece, and the optics are essentially perfect. Tele Vue somehow always finds a way to continuously improve upon their eyepieces and the Delos is certainly no exception. Bottomline: If you're in the market for a planetary eyepiece, you owe it to yourself to consider the Tele Vue Delos.

— Erik Wilcox. "Tele Vue Delos". Astronomy Technology Today (Nov-Dec 2011). Full Review.

Review of the 6mm & 10mm Delos Eyepieces from Astronomy Magazine, December 2011

• Contrast was excellent - right up there with some of the best planetary eyepieces I've ever used.
• I searched but saw no internal reflections or scattering in either eyepiece.
• The flat field the Delos eyepieces produce really made star fields pop. Open clusters epitomized the old standard "diamonds on velvet". Stars on and off axis showed no sign of astigmatism.
• Tele Vue has constructed an eyepiece that stands with the best deep-sky and planetary eyepieces on the market.

— Trusock, Tom. "Astronomy tests Tele Vue's new eyepiece line". Astronomy Magazine (December 2011). Full Review.

Excerpts from Sky & Telescope, June 2011, review of Delos eyepieces:

WHAT WE LIKE:

Essentially perfect optics
"Immersive" observation experience

WHAT WE DON'T LIKE:

Trying to nail down why the observing experience is so pleasurable.

I spent several nights viewing the Moon, Saturn, stars and nebulae with a variety of telescopes … .

The Delos eyepieces are "easy to look through … . They have flat fields, delivering absolute pinpoint stars from edge to edge with no hint of color aberration. The view, especially during the daytime, is very pure with no noticeable color tint. And there wasn't a hint of ghosts or reflections, even with the brightest stars".

"What caught me a bit off guard, however, was something that's best described as the observing experience. It was distinctly pleasurable."

"I have the sensation of looking out of a circular window rather than into an eyepiece."

— di Cicco, Dennis. "Tele Vue's New Delos Eyepieces". Sky & Telescope (June 2011). p. 58, 59.

An excellent premium quality low power wide field eyepiece. It is ideal for observing large emission and reflection nebulae, Supernova Remnants and large open star clusters.

It is well-suited for any telescope with a focal ratio of f/5 or longer offering 7mm exit pupil at f/5. Works wonderfully in SCT's for large field of view.

It has a huge 28mm of eye relief and can be used by eyeglass wearers with no vignetting of the field. This is a lot of eyepiece so its heavy weight may cause some minor concern in Dobsonians.

Check out the rest of the Panoptic range.

Specifications

The Nagler eyepiece was revolutionary as the first eyepiece to deliver breath taking wide fields of view while still providing sharp images from edge to edge.

The eyepiece is an extremely important, but often over looked element in the image your telescope delivers.

In contrast to the objective of your telescope which rarely covers an image angle of more than 2°, the eyepiece has to remain sharp over an angle of more than 50°...or a staggering 82° in the case of the Nagler. For this reason extreme care must be taken to correct for aberrations - especially away from the optical axis.

Astigmatism and field curvature are 2 factors that most influence the off axis sharpness especially in "fast" objectives (below f/6). Eyepiece designers had tried for many years to eliminate these aberrations but it was not until the 1980s that a breakthrough occurred - the Nagler eyepiece.

Since then Al Nagler has refined this series of eyepieces taking advantage of different exotic glasses and improved coatings to deliver quite simply the best performance you can get out of an eyepiece. While other manufacturers may boast impressive field sizes, Televue's philosophy of "showing no field unless it is fine" stresses full field image quality as the ingredient for impressive views.

Tele Vue Nagler 22 Specifications

Review

The TeleVue 22mm Nagler Type 4 is another of the newer improved Naglers.

The 19mm of eye relief as well as TeleVue's "Instadjust" click-stop adjustable-height eyeguard with a soft fold-down rubber eyecup allows for eyeglass wearers to experience a full 82° apparent field of view when fully retracted. The click stop increments of "Instadjust" allows non eyeglass wearer to find the exact height for full field of view images. A small plastic insert that fits in the eyeguard allows non eyeglass wearers to find the correct position of the exit pupil.

In big, fast Dobs this is an amazing medium-low power eyepiece great for open clusters, galaxy clusters and emission nebulae. Eta Carinae is totally awesome in this eyepiece.

In SCT's it offers 2.2mm exit pupil making images very bright and this is ideal for open and globular clusters. Have a look at the Tarantula Nebulae to be convinced how good this eyepiece is.

Review

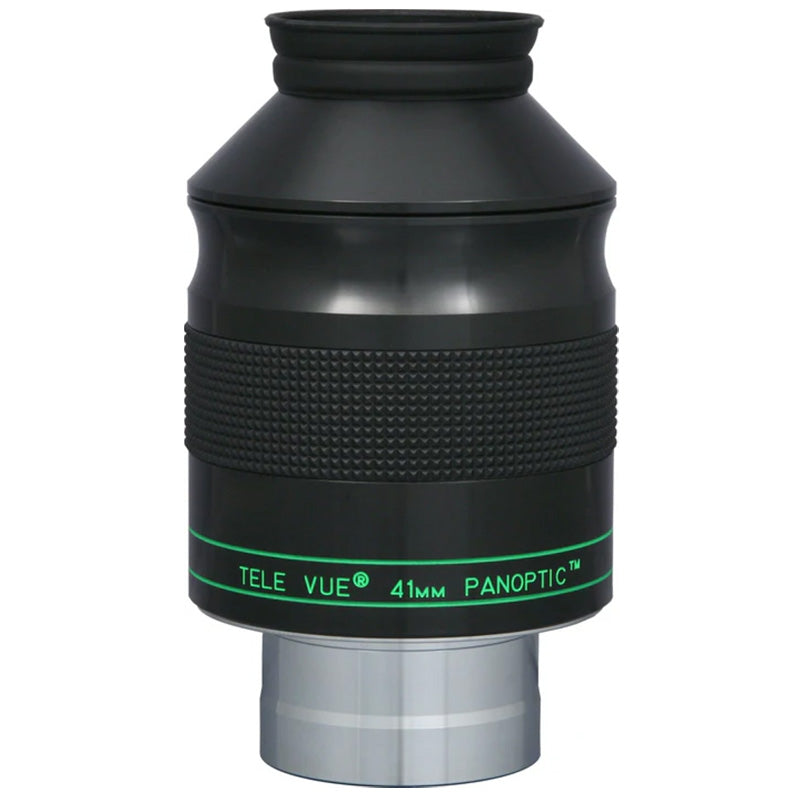

Listed as a Sky and Telescope "Hot Product" when released, the 41mm Panoptic eyepiece is the big brother to the 24mm Panoptic (largest 1.25" field).

With its 46mm field stop, the 41mm Panoptic delivers the largest 2" field possible.

Because of its long focal length, it is brilliant in SCTs. It is ideal for observing large emission and reflection nebulae and Supernova remnants. The 19mm of eye relief means that eyeglass wearers can see the whole field of view with no vignetting. An adjustable and removable screw-type top allows quick, comfortable eye positioning. The scalloped shape gives a positive grip. It has a soft rubber eyecup for comfort which can be rolled down or left up.

Check out the rest of the Panoptic range.

Specifications

Review

An excellent premium-quality medium power wide field eyepiece. It is an excellent eyepiece for resolving globular clusters, planetary nebulae and very good for galaxies.

The 19mm Panoptic would be a welcome addition to any serious deep space observer’s eyepiece collection.

It only has 10mm of eye relief so eyeglass wearers may consider the 18mm TeleVue Radian with it's 20mm eye relief. However the Panoptic provides a 30% larger field of view than 18mm Radians.

Check out the rest of the Panoptic range.

Specifications

The Luminos series eyepieces offer a wide 82º field of view in both high power and low power models, allowing you to make the most of your telescope, whether you own a short, fast refractor or a Celestron EdgeHD telescope. The optical set consists of six or seven elements (depending on the model) and is fully multi-coated for crisp, sharp views. All six Luminos eyepieces are parfocal, which means you can switch out eyepieces during observing sessions with little or no additional focusing required.

The Luminos eyepiece body is made of polished and anodized aluminum. A rubber grip runs around the equator of the eyepiece, giving you a secure grip and an easy method for raising and lowering the retractable eyecup. Simply twist the rubber grip to adjust the height of the eyecup. The insert barrel is threaded to accept filters.

The Luminos series eyepieces offer a wide 82º field of view in both high power and low power models, allowing you to make the most of your telescope, whether you own a short, fast refractor or a Celestron EdgeHD telescope. The optical set consists of six or seven elements (depending on the model) and is fully multi-coated for crisp, sharp views. All six Luminos eyepieces are parfocal, which means you can switch out eyepieces during observing sessions with little or no additional focusing required.

The Luminos eyepiece body is made of polished and anodized aluminum. A rubber grip runs around the equator of the eyepiece, giving you a secure grip and an easy method for raising and lowering the retractable eyecup. Simply twist the rubber grip to adjust the height of the eyecup. The insert barrel is threaded to accept filters.

Overview

These eyepieces are specially designed to offer an excellent field of view while the fully multi-coated lenses increase light transmission and color quality. The XW30-R and the XW-40R are the perfect eyepieces for viewing the nebula, planets and exploring the night sky.

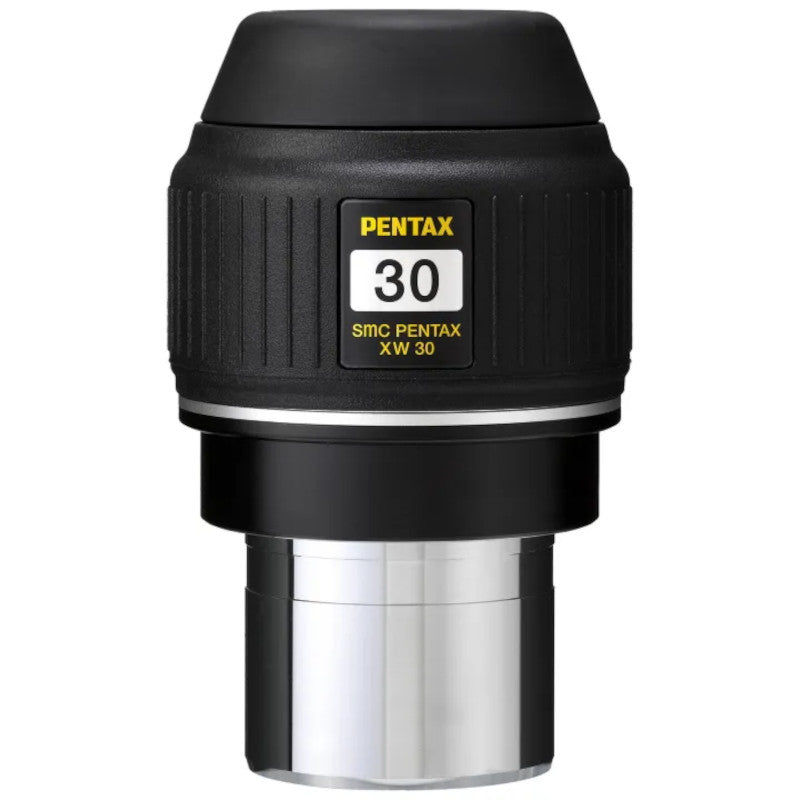

At a glance

• 30mm Focal Length
• Wide 70° Field of View
• Extra-Low-Dispersion Lanthanum Glass
• Large 2" Diameter Nosepiece
• Exceptional 20mm Eye Relief
• Fully Multi-Coated & Phase Coated
• Slip-Resistant Textured Surface
• Twist-Up Rubber Eyecup

Specifications

In The Box

• Pentax XW30-R 30mm Wide-Angle Eyepiece (2")
• Plastic Case
• 2 x Caps

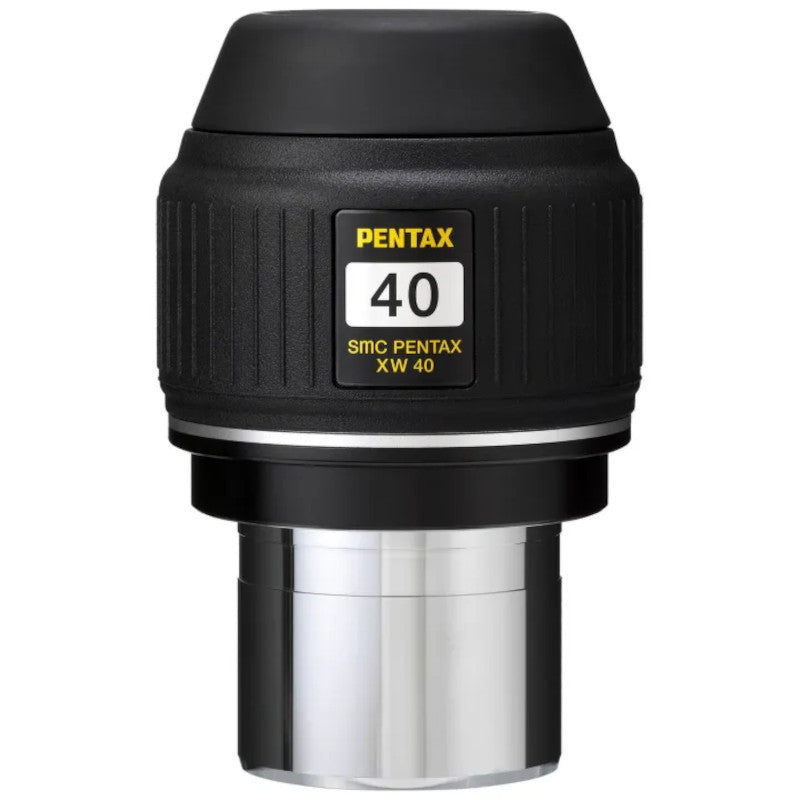

At a glance

• 40mm Focal Length
• Wide 70° Field of View
• Extra-Low-Dispersion Lanthanum Glass
• Large 2" Diameter Nosepiece
• Exceptional 20mm Eye Relief
• Fully Multi-Coated & Phase Coated
• Slip-Resistant Textured Surface
• Twist-Up Rubber Eyecup

Specifications

In The Box

• Pentax XW40-R 40mm Wide-Angle Eyepiece (2")
• Plastic Case
• 2 x Caps
