MINI AZ-GT GTi Mount Features:

• Wi-Fi GOTO
• Sky-Watcher Freedom Find endcoders
• DC12V Voltage.
• 5kg Load Capacity.
• 1.3kg Mount Weight.
• DC Motor.
• Dimensions: 14cm x 9cm x 14cm.

Please note this is the GTi version of the mount that includes encoders on both the ALT And AZ. After initial alignment you can move the mount by hand without needing to re-align)

Load Capacity

Without counterweights, the ZWO AM5N can handle 15kg of astro gear

Lightweight and easy to setup

Ideal for transporting to dark sky site or setting up in your backyard

Improved tracking

For even sharper images

Cable Management Features

DC output and USB Type-C ports now standard

New Bluetooth Connectivity

For better mount control

EQ and Alt-AZ Modes

For both astrophotography and visual observing

It is recommended to use a counterweight of ≤5 kg. When using a 5 kg counterweight, the lever arm should be installed within the range of 20 cm to 30 cm.
For counterweights of other masses, the installation position can be calculated as follows:

Assume the counterweight mass is m kg. The allowable lever arm length L is defined by:
10 N·m ≤ m × g × L ≤ 15 N·m where g = 9.8 m/s2,
which can be approximated as 10 m/s2.

For example, if a 2 kg counterweight is used, the allowable range of L is from
10 N·m / (2 × 10 m/s2) = 0.5 m to
15 N·m / (2 × 10 m/s2) = 0.75 m.

Specifications

Included in the Box

Description

• Three-in-one GoTo mount can operate in GoTo Equatorial mode holding one telescope, or in GoTo Altazimuth mode holding one or two different telescopes
• Capable of holding a 20kg telescope payload -- ideal for any observational or astrophotographic pursuits
• Accurate belt-driven stepper motor drive system minimises backlash. Movements in any direction are immediate greatly assisting autoguiding accuracy. The responsive GoTo system can locate any of over 42,000 celestial objects with a pointing accuracy of 5 arc-minutes
• Features dual encoders on motors and each axis to maintain alignment. The mount can be de-clutched and moved after alignment and still maintain alignment.
• Dual dovetail saddle for use with Vixen Style narrow or Losmandy "D" style wide dovetail plates, 25.4mm diameter retractable counterweight shaft, new threaded power input jack and threaded DC cable, built-in autoguider port, PPEC capability, 9 slew speeds, and North/South hemisphere polar alignment scope

Skywatcher's new AZ-EQ6 mount is capable of carrying a heavy payload for your visual and astrophotography requirements. It is a very efficient transportable mount weighing only 15 kg, for a load capacity of 20 kg (counterweight excluded).

An excellent feature of the AZ-EQ6 SynScan is the patented dual-encoder technology. This technology allows the telescope to be moved manually in either axis without the mount losing its positional information which gives enormous freedom and convenience for users.

New Features :

• German Equatorial / Alt-Az dual mode
• Permanent periodic error correction(PPEC). PPEC can be trained with Autoguider or PC.
• Belt drive - Super smooth PE curve. Low backlash, silent slewing.
• Shutter release control for batch exposures of astrophotography.
• New motor controller with higher torque and accuracy.
• Include two dual-fit (45mm/75mm) saddle for mounting two telescopes.
• Improved reliable power supply outlet.
• Polar-alignment with polar-scope or SynScan HC's polar-alignment routine.
• Primary axis encoder tracks the mount's position. Users can push the mount at any time without worrying about losing the mount's alignment.

The Skywatcher NEQ6 Equatorial Mount has a well earned reputation as an affordable and capable GoTo mount for both visual and photographic use. Now Skywatcher has developed the enhanced, more versatile AZ-EQ6 GoTo Mount. This new mount promises to become a favourite among intermediate to experienced observers and astrophotographers. This three-in-one smart mount not only operates in equatorial GoTo mode holding one telescope, but also in Altazimuth GoTo & Tracking mode while holding one or even two different telescopes. Control the Skywatcher AZ-EQ6 via the included SynScan hand controller, or robotically with your PC/laptop, or even wirelessly from your iOS mobile device with Orion's StarSeek software and Wi-Fi module (sold separately).

In addition to the dual Altaz and EQ modes, the AZ-EQ6 boasts some other key enhancements, including a smooth and robust latitude adjustment for accurate polar alignment.

New RA and Dec clutches afford positive locking for heavy loads plus a thicker retractable counterweight shaft - 1" in diameter - and a thread-on shaft extension carry multiple counterweights with no chance of flexure.

The newly engineered equatorial head is lighter than the NEQ6, but will carry a 20kg telescope payload with ease. In Altazimuth GoTo & Tracking mode with two different telescopes, each side can hold up to a 9kg telescope. The mount comes standard with an upgraded belt-driven stepper motor drive system that can locate over 42,000 celestial objects of interest with pointing accuracy of 5 arc-minutes and tracking precision of 0.1436 arc-second steps.

The drive has closed-loop electronics, with two sets of encoders per axis, meaning that once it is aligned you can manually move the attached telescope to a new target (or accidentally bump into the telescope) and the mount will still know where it's pointing in the sky! What's more, after an inadvertent or intentional nudge, this smart mount can return to its last target or pinpoint any new target you select without requiring realignment.
This is a highly transportable, yet seriously heavy-duty mount; the mount and tripod weigh in at 23kg. (without counterweights) and the mount can be uncoupled from the tripod with a single hand knob. Loaded with great features, the Skywatcher AZ-EQ6 GoTo Mount has a secure, threaded power input jack; a built-in autoguider port for accurate astrophotographic use; and offers 9 different slew speeds (up to 4.2° per second). This performance-packed mount also features Permanent Periodic Error Correction (PPEC).

The Skywatcher AZ-EQ6's dual-width dovetail saddle accommodates both narrow (Vixen-style) and wide (Losmandy-style) dovetail attachment plates. Along with its sturdy steel-legged tripod, the mount also includes a second dovetail saddle for dual-telescope Altazimuth operations, illuminated polar axis scope with adjustable brightness, two 5.1kg counterweights, RS-232 communication cable, and 12-volt DC power cable with a secure threaded connector.
Whether you're seeking a reliable mount for astrophotography or just looking for an amazingly accurate GoTo platform for visual pursuits, let Skywatchers AZ-EQ6 shoulder the weighty responsibility for smooth, stable, and smart performance!

Two Dual-fit Saddles
Two 5kg counterweights

Optron's ultra compact EQ/AZ GoTo mount -- introducing The SkyHunter Portable EQ/AZ

Fifteen years after releasing the innovational Cube AZ/EQ GoTo mount, the SkyHunter takes the next step toward perfection. It is the lightest and most compact full function portable goto mount in iOptron's exceptional history.

Weighing in at only 1.3kg (including internal rechargeable battery), the SkyHunter is capable of supporting an 5kg payload in both equatorial and alt-azimuth modes. The SkyHunter mount features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. The SkyHunter mount can be controlled by an iOS or Android SmartPhone/tablet, an optional 8410 hand controller, or a computer via ASCOM, INDI or embedded drive.

(PLEASE NOTE - telescopes shown are *not* included.)

MAIN FEATURES

• Specialized Grab N’ Go GOTO EQ/AZ mount
• Mount weighs 1.3kg
• Payload 5kg (balanced, exclude CW)
• Dual-axis servomotors with optical encoders
• Tracking speed: solar, lunar, 1X, 1/2X, S/N
• Operation in both northern and southern hemisphere
• Vixen dovetail saddle
• Built-in rechargeable battery for up to 10 hours of operation (20°C)
• Built-in WIFI adapter for full ASCOM, iOptron Commander and Sky Safari control
• USB port for firmware upgrade and computer control
• Optional Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology
• iPolar electronic polar scope
• Counterweight Shaft: Φ20X200mm with 3/8” thread, stainless steel
• Counterweight: 3 lbs (1.35kg)
• Attaches to a camera tripod with 3/8” or 1/4” threads
• 1.25" Stainless steel tripod (#3221)
• Optional carbon fiber tripod
• Pier-extension (#8041)
• One year limited warranty on mount, 90 day for battery

PACKAGE CONTENTS

• SkyHunter Portable EQ/AZ mount
• EQ base
• Stainless steel counterweight shaft
• 3 lbs counterweight
• iPolar electronic polar scope
• MiniUSB charging cable
• #3221 Tripod
• #8041 Pier extension
• One Year Limited Warranty (90 day on battery)

SPECIFICATIONS

Introducing the new ZWO AM3N Mount

What's been upgraded?

The ZWO AM3N solves a range of  astrophotography hassles

Streamlined Setup, Enhanced Mount Efficiency

Strain Wave Gear for Precision Control

Integrated Type-C and DC Power Ports

Based on ZWO's internal testing:

It is recommended to use a counterweight of ≤5 kg. When using a 5 kg counterweight, the lever arm should be installed within the range of 20 cm to 30 cm.
For counterweights of other masses, the installation position can be calculated as follows:
Assume the counterweight mass is m kg. The allowable lever arm length L is defined by:
10 N·m ≤ m × g × L ≤ 15 N·m where g = 9.8 m/s2,
which can be approximated as 10 m/s2.
For example, if a 2 kg counterweight is used, the allowable range of L is from
10 N·m / (2 × 10 m/s2) = 0.5 m to
15 N·m / (2 × 10 m/s2) = 0.75 m.

Equatorial Mode / Altazimuth Mode

Status Light Indicator

All-round 0°-90° Altitude Scale

Wi-Fi & Bluetooth Connectivity

The AM3N supports Bluetooth control, allowing you to operate the mount directly from your smartphone — no Hand Controller required.  Ideal for travel and field use, just bring your phone and you're ready to observe or image.

Easily Controlled with Mobile Apps

App offers an onscreen joystick, including Tonight’s Target, GOTO, Live Preview and so many great functions can all be achieved with your phones. There is no need to connect to a computer—the mount and Hand Controller connect via Wi-Fi.

The mount is compatible with ASCOM, INDI, ASIAIR, and other platforms.

Seamless ASIAIR Integration

ASIAIR can connect to the AM3N wirelessly or via cable, offering full control at your fingertips. Enjoy the ultimate astrophotography experience with the ZWO Ecosystem, where all your gear works together, flawlessly.

Optron's ultra compact EQ/AZ GoTo mount -- introducing The SkyHunter Portable EQ/AZ

Fifteen years after releasing the innovational Cube AZ/EQ GoTo mount, the SkyHunter takes the next step toward perfection. It is the lightest and most compact full function portable goto mount in iOptron's exceptional history.

Weighing in at only 1.3kg (including internal rechargeable battery), the SkyHunter Portable EQ/AZ is capable of supporting an 5kg payload in both equatorial and alt-azimuth modes. The SkyHunter mount features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. The SkyHunter mount can be controlled by an iOS or Android SmartPhone/tablet, an optional 8410 hand controller, or a computer via ASCOM, INDI or embedded drive.

(PLEASE NOTE - telescopes shown are *not* included.)

MAIN FEATURES

• Specialized Grab N’ Go GOTO EQ/AZ mount
• Mount weighs 1.3kg
• Payload 5kg (balanced, exclude CW)
• Dual-axis servomotors with optical encoders
• Tracking speed: solar, lunar, 1X, 1/2X, S/N
• Operation in both northern and southern hemisphere
• Vixen dovetail saddle
• Built-in rechargeable battery for up to 10 hours of operation (20°C)
• Built-in WIFI adapter for full ASCOM, iOptron Commander and Sky Safari control
• USB port for firmware upgrade and computer control
• Optional Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology
• Counterweight Shaft: Φ20X200mm with 3/8” thread, stainless steel
• Counterweight: 3 lbs (1.35kg)
• Attaches to a camera tripod with 3/8” or 1/4” threads
• 1.25" Stainless steel tripod (#3221)
• Optional carbon fiber tripod
• Pier-extension (#8041)
• One year limited warranty on mount, 90 day for battery

PACKAGE CONTENTS

• SkyHunter GOTO EQ/AZ mount
• EQ base
• Stainless steel counterweight shaft
• 3 lbs counterweight
• MiniUSB charging cable
• #3221 Tripod
• #8041 Pier extension
• One Year Limited Warranty (90 day on battery)

SPECIFICATIONS

PlaneWave L350 Direct Drive Mount

The L-Series combines versatility, simplicity and affordability by combining all the technology of our Observatory class telescopes into a compact stand-alone mount. In its Alt/Az configuration it is considerably more compact than its equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure. Unlike German Equatorial mounts, there are no meridian flips to deal with, and no large protruding counterweights to create a dangerous hazard in a public observatory. Alt/Az is more intuitive to use and no polar alignment is needed. Besides, it is the way the pros do it!

L-Series Mounts Features:

• Direct-drive motors on each axis for smooth, fast, and virtually silent movement of the telescope
• Slew speeds up to 50 degrees per second
• High resolution encoders on each axis for precise positioning
• Zero backlash
• Zero periodic error
• PointXP mount modeling software
• Enclosed electronics
• Through the mount cabling

FEATURES:

MOUNT SYSTEM

CONTROL SYSTEM

MOTION CONTROL

SYSTEM PERFORMANCE

Price is ex Store

Check the PlaneWave website for Instructions and Schematics.

This lightweight, compact, medium-payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 9 kg with a payload capability of 31 kg, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE69 makes this vision possible.

Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69 delivers unparalleled weight-to-payload efficiency. Its black anodized, all-metal CNC machined body is not only appealing to the eye but provides a rugged platform that will perform at the highest level for many years to come. A unique electronic friction brake allows the mount to stop safely during a planned or unplanned power interruption.

The HAE69C dual SWG Alt-az/Eq mount now includes an internal main board and no longer requires a handset. The mount has USB ports on both the base and the saddle that connect directly to the main board for mount control and firmware upgrades. It also features built-in Wi-Fi for easy connection. The optional 8411 Go2Nova® handset with OLED display provides an improved user experience, especially at extreme temperatures.

Features

• Advanced strain wave gear system technology
• Payload capacity of 31 kg (69 lbs) with a mount weight of 8.6 kg (19 lbs, including dovetail saddle)
• Periodic Error < ±15 arcsec
• CNC machined construction
• Unique friction brake to safely stop movement during planned or unplanned power interruptions
• 270-second gear period
• Go2Nova® handset with OLED display for improved user experience, especially in extreme temperatures (optional)
• iPolar electronic polar scope for easy and accurate polar alignment (optional)
• Dual saddle (Vixen and Losmandy-D styles)
• Built-in zero position search and locator
• Integrated ST-4 autoguiding port
• USB ports (on both mount base and dovetail saddle) for firmware upgrades and computer control
• No cable drag
• Built-in Wi-Fi for mount control
• Aluminum carrying case
• Two-year warranty

Optron's new ultra compact EQ/AZ GoTo mount -- introducing The SkyHunter Portable AZ

Fifteen years after releasing the innovational Cube AZ/EQ GoTo mount, the SkyHunter Portable AZ takes the next step toward perfection. It is the lightest and most compact full function portable goto mount in iOptron's exceptional history.

Weighing in at only 1.3kg (including internal rechargeable battery), the SkyHunter is capable of supporting an 5kg payload in both equatorial and alt-azimuth modes. The SkyHunter mount features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. The SkyHunter mount can be controlled by an iOS or Android SmartPhone/tablet, an optional 8410 hand controller, or a computer via ASCOM, INDI or embedded drive.

This version includes the iOptron counterweight, but not the EQ wedge

(PLEASE NOTE - telescopes shown are *not* included.)

MAIN FEATURES

• Specialized Grab N’ Go GOTO EQ/AZ mount
• Mount weighs 1.3kg
• Payload 5kg (balanced, exclude CW)
• Dual-axis servomotors with optical encoders
• Tracking speed: solar, lunar, 1X, 1/2X, S/N
• Operation in both northern and southern hemisphere
• Vixen dovetail saddle
• Built-in rechargeable battery for up to 10 hours of operation (20°C)
• Built-in WIFI adapter for full ASCOM, iOptron Commander and Sky Safari control
• USB port for firmware upgrade and computer control
• Optional Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology
• Counterweight Shaft: Φ20X200mm with 3/8” thread, stainless steel
• Counterweight: 3 lbs (1.35kg)
• Attaches to a camera tripod with 3/8” or 1/4” threads
• 1.25" Stainless steel tripod (#3221)
• Optional carbon fiber tripod
• One year limited warranty on mount, 90 day for battery

PACKAGE CONTENTS

• SkyHunter GOTO EQ/AZ mount
• EQ base
• Stainless steel counterweight shaft
• 3 lbs counterweight
• MiniUSB charging cable
• #3221 Tripod
• One Year Limited Warranty (90 day on battery)

SPECIFICATIONS

The AZ-GTiX is a versatile multi-purpose mount featuring Freedom Find™ dual encoder technology for precise alignment and tracking. Its dual saddle design allows mounting two telescopes simultaneously, supporting a single side payload of 6 kg and a total payload of 10 kg. Weighing only 2 kg, it offers exceptional portability without compromising performance. Included WiFi adaptor enables remote operation through the free Sky-Watcher app, providing expert users with convenient control and flexibility for advanced observational and imaging setups.

The PlaneWave L600 Direct Drive Mount is ideal for the CDK24 and capable of holding up to 136kgs (300 lbs). Slewing at up to 50 degrees per second with pointing accuracy <10 arc seconds with Point XP and tracking accuracy of <.3 arc seconds over 5 minutes. This precision mount is a work of art.

The L-Series combines versatility, simplicity and affordability by combining all the technology of our Observatory class telescopes into a compact stand-alone mount. In its Alt/Az configuration it is considerably more compact than its equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure. Unlike German Equatorial mounts, there are no meridian flips to deal with, and no large protruding counterweights to create a dangerous hazard in a public observatory. Alt/Az is more intuitive to use and no polar alignment is needed. Besides, it is the way the pros do it!

PlaneWave L600 Direct Drive Mount Features:

• Direct-drive motors on each axis for smooth, fast, and virtually silent movement of the telescope
• Slew speeds up to 50 degrees per second<
• High resolution encoders on each axis for precise positioning
• Zero backlash
• Zero periodic error
• Payload Capacity up to 136kg
• PointXP mount modeling software
• Enclosed electronics
• Weight is 153kg.

FEATURES:

MOUNT SYSTEM

CONTROL SYSTEM

MOTION CONTROL

SYSTEM PERFORMANCE

PlaneWave L600 Direct Drive Schematics

NOTE: This product has a lengthy leadtime for more information email: education@bintel.com.au

Alt-azimuth mount for large binoculars for astronomical observation.

The alt-azimuth mount is compatible with the sturdy tripod SXG-HAL130, SXG-AL130 for SX-series mount and APP-TL130 tripod for AP-series mount. To mount large binoculars for astronomical observation, the optional swing bracket is required.

HF2 alt-azimuth fork mount

POLARIE polar scope PF-L

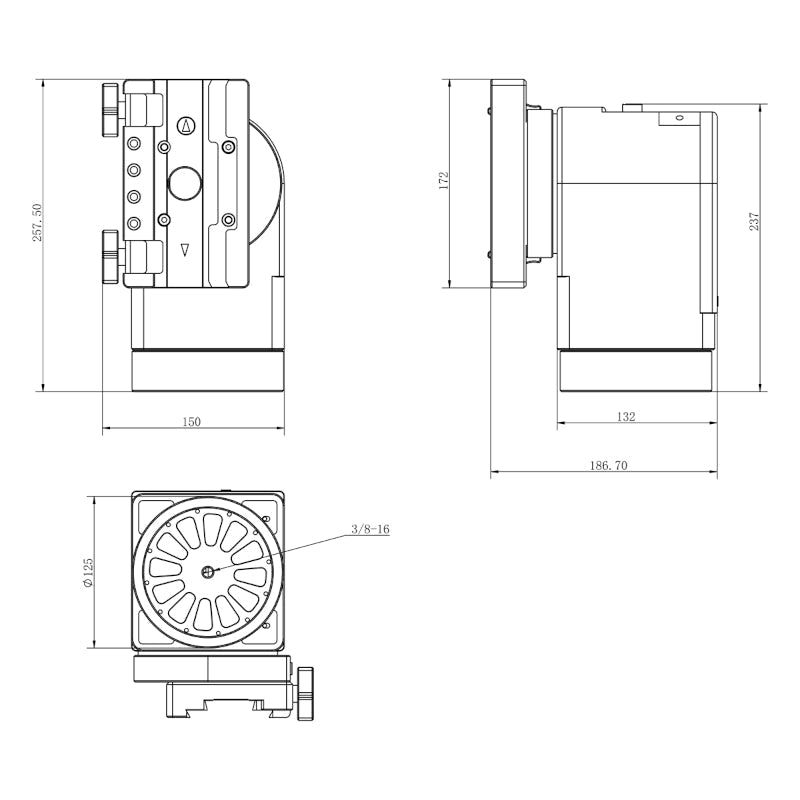

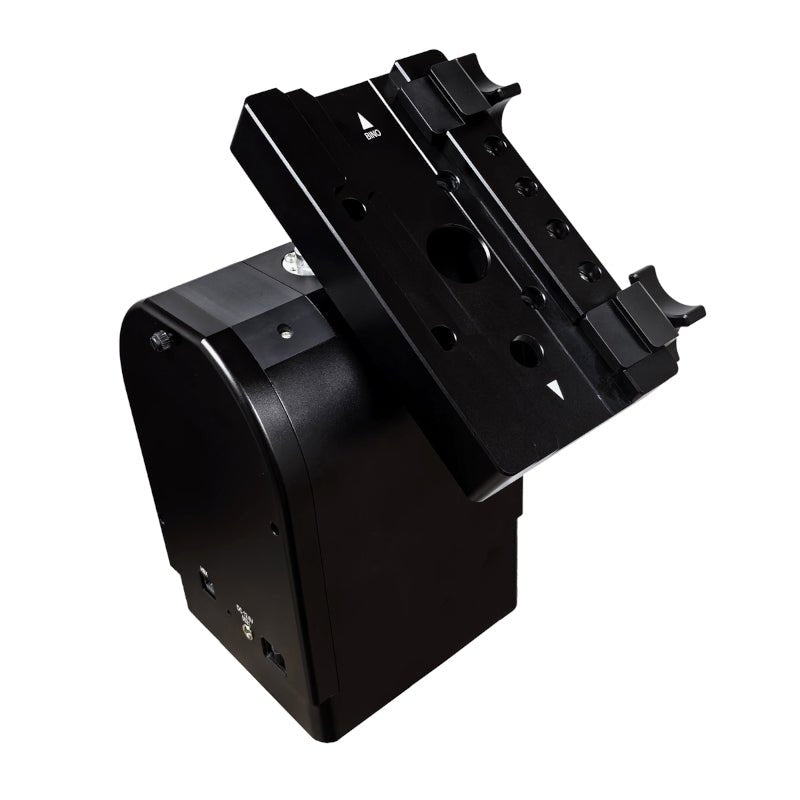

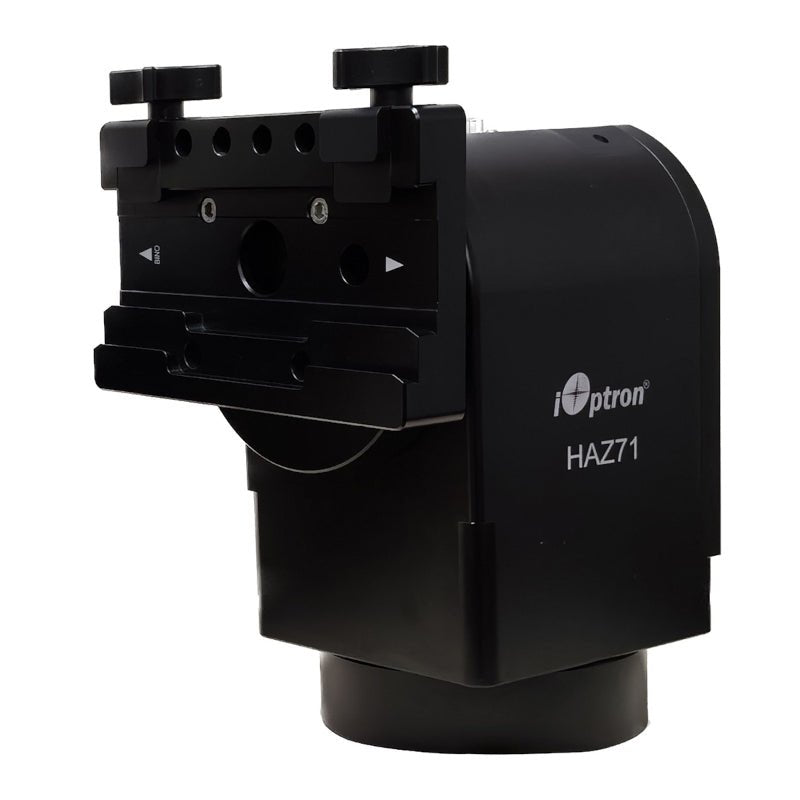

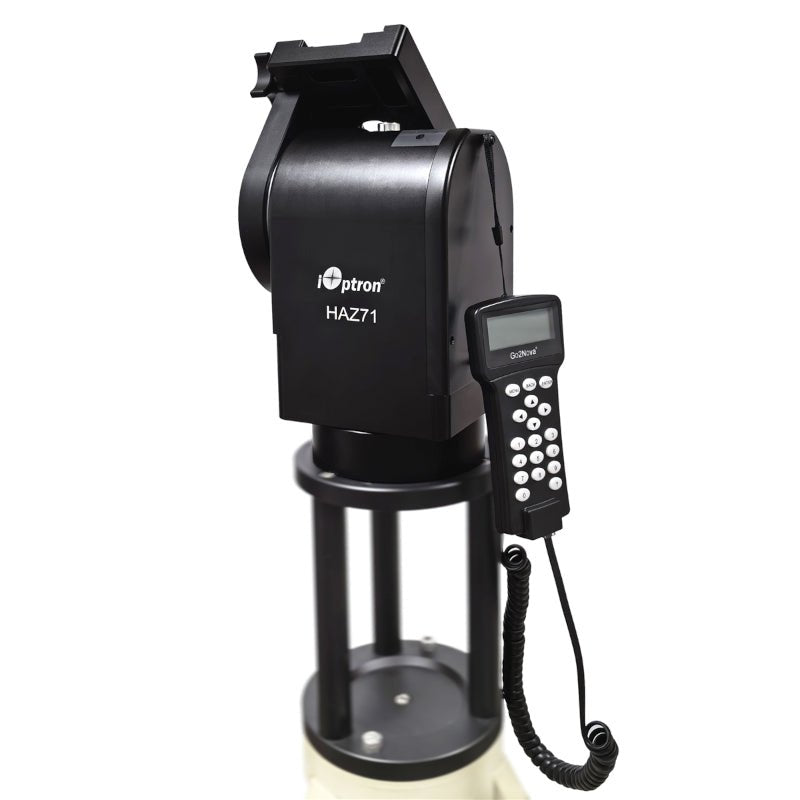

The HAZ 712 Alt-Az strain wave gear joins the iOptron SWG mount family!

This relatively compact heavier payload mount will deliver an astronomy experience like never before. The mount easily accommodates both a binocular and a telescope through its multiposition saddle that can be located on a "top" or a "side" configuration to best suited for the instrument selected. Set-up is so easy, just turn the mount on and it will calibrate itself and go to the first target utilizing our time-tested "Lever and Go" routine.

Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAZ 712 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, but it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake on both AZI and ALT allow the mount to safely stop.

The HAZ 712 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third-party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or an iOptron iMate Astronomy Control Box and other Pi device via INDI driver.

Features:

• Unique friction brake on both AZI and ALT to safely stop movement during a planned or unplanned power interruption
• Go2Nova® 8409 V2 hand controller with ~212,000 object database
• Built-in GPS
• Dual saddle (Vixen and Losmandy-D styles)
• Level & Go
• Large binocular mounting
• Satellite tracking ready (with third-party software)
• Built-in zero position search and locator
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Internal Li-ion rechargeable battery
• Carrying case

Technical Specifications

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE43 and HAE43EC! These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 13lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE43s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE43 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

The HAE43EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Features

• Advanced strain wave gear system technology
• Payload capacity of 20 kg (44 lbs) with the mount weight of 5.8 kg (12.8 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 270 second gear period
• Go2Nova® hand controller with ~212,000 object database
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Aluminum carrying case
• Two year warranty

Specifications

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 and HAE29EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

The HAE29EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• High precision encoder with realtime PEC (RPEC)
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Carrying case
• Two year warranty

Specifications

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 and HAE29EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Go2Nova® hand controller with ~212,000 object database
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Carrying case
• Two year warranty

Specifications

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 and HAE29EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Carrying case
• Two year warranty

Specifications

Introducing the Fusion series, Sky-Watcher’s latest innovation in astronomy, designed to revolutionize your stargazing experience. The Fusion series combines advanced features with user-friendly design, offering unparalleled performance and ease of use.

Fusion 120i Key Features:

• Lightweight and Durable: The Fusion 120i mount weighs only 8kg, making it portable yet sturdy, with a payload capacity of 12kg.
• Compact Dimensions: Measuring 335mm x 214mm x 467mm, this mount is ideal for both home observatories and field astronomy.
• Precision Engineering: Equipped with a worm wheel and worm gear transmission mechanism, the Fusion 120i ensures precise movement. The Altitude and Azimuth axes each have 180 teeth, providing smooth and accurate tracking.
• GOTO Functionality: Revolutionize your navigation of the stars with the GOTO function, making it easier than ever to locate celestial objects.
• Wi-Fi Enabled: Control your telescope wirelessly via the SynScan Pro APP and SynScan APP, available on both smartphones and tablets.
• Dual Axis Clutch Locking: Features clutch locking for both Altitude and Azimuth axes, offering greater control and stability during observation sessions.
• Versatile Power Supply: Choose between the built-in rechargeable lithium battery (9.6V 4.5Ah) and an external DC12V-15V 3A power supply for extended use.
• Compatibility: Compatible with OTAs featuring Losmandy style dovetails and Vixen style dovetails, ensuring a wide range of usability.

Seamless Integration and Control:

The Fusion 120i’s Wi-Fi functionality allows for seamless control via the SynScan Pro APP and SynScan APP, making it a breeze to adjust settings and track objects from your smartphone or tablet. The mount’s intuitive interface, combined with advanced GOTO capabilities, transforms your stargazing experience into an effortless adventure.

Whether you’re a seasoned astronomer or a passionate beginner, the Fusion series provides the perfect balance of technology and convenience to revolutionize your astronomical pursuit

EQ Wedge

There's also the Sky-Watcher Fusion Wedge to convert your Fusion mount into an EQ (Equatorial) platform.

The PlaneWave L500 combines versatility, simplicity and affordability by combining all the technology of our Observatory class telescopes into a compact stand-alone mount. In its Alt/Az configuration it is considerably more compact than its equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure. The mass it takes to make a rigid alt/az mount is substantially less, leading to cost savings. Unlike German Equatorial mounts, there are no meridian flips to deal with, and no large protruding counterweights to create a dangerous hazard in a public observatory. Alt/Az is more intuitive to use and no polar alignment is needed. Besides, it is the way the pros do it!

Planewave L500 Mount Features:

• Direct-drive motors on each axis for smooth, fast, and virtually silent movement of the telescope
• Slew speeds up to 50 degrees per second
• High resolution encoders on each axis for precise positioning
• Zero backlash
• Zero periodic error
• PointXP mount modeling software
• Enclosed electronics
• Through the mount cabling

FEATURES:

MOUNT SYSTEM

CONTROL SYSTEM

MOTION CONTROL

SYSTEM PERFORMANCE

Check the PlaneWave website for Instructions and Schematics.
