Remove the lens from your camera and attach the T-ring in its place. Since the T-ring is camera-brand specific, it will snap right on just like a lens. Next, remove the diagonal and visual back from the rear cell of your telescope. Screw the Celestron T-Adapter onto the rear cell threads until secure. Now, thread the T-ring & camera onto the T-Adapter. That’s all there is to it. The camera is now using your telescope as a giant telephoto lens. The magnification will depend on the telescope’s focal length. For instance, a 300 mm camera lens is considered to be pretty powerful, right? Well, if you are using an 8” SCT at prime focus, you’ve got yourself a 2000 mm lens with a lot of light-gathering capability!

Prime focus photography is popular for short exposure images of terrestrial objects as well as celestial objects like the Moon. If you want to do longer exposures of deep sky objects with this method, we suggest using a separate guidescope or off-axis guider and an equatorial mount.

Bintel T-Thread Spacer Ring Set allows you to adjust the spacing between standard M42 equipped accessories and CCD / DSLR cameras.

The Bintel T-Thread Spacer Ring Set includes 4 parts:

• 5mm spacer
• 10mm spacer
• 20mm spacer
• 30mm spacer
• Variable t-thread spacer and locking ring

Be sure to get exact spacing correct with the Bintel T-Thread SpacerSet

Made from black anodized aluminium and top quality machining on the threads.

Each adapter has male T2 thread to female T2 thread as used by most popular imaging accessories such as filter wheels, off axis guiders, focal reducers, field flatteners and so on.

M42 x 0.75 pitch

Bintel Camera Adapter 48-42T

Step down ring allows you to couple standard M42 T-rings to accessories with the larger M48 thread.

Examples include Baader Coma Corrector, Bintel 2" Coma Corrector and 0.75X RC reducer, Skywatcher 0.85x reducer etc.

Precision machined, black anodised aluminium construction

Celestron T-adapter EdgeHD 800

Celestron T-Adapter EdgeHD 800 threads onto the rear cell of the EDGE HD800 Scope

This gives 80mm worth of back spacing.

This T-Adapter allows you to attach your 35mm DSLR camera to the prime focus of your EdgeHD telescope. This arrangement is used for terrestrial photography and short exposure lunar and planetary photography. It can also be used for long exposure deep-sky photography when using a separate guidescope.

Both a T-Adapter and T-Ring are required to mount a DSLR camera to your instrument.

This new ZWO New EOS-T2 II adapter has two parts (EOS-T2 adapter and 5mm length T2-extender), suitable for all ASI cameras

This new type is unadjustable. EOS-T2 support Canon EF lens only.

EOS-T2 adapter without T2-extender is suitable for 17.5mm backfocus distance ASI cameras such like Cooled cameras and ASI174, ASI294, ASI183, ASI1600, ASI533 and ASI2600

EOS-T2 adapter with the 5mm T2-extender, suitable for all 12.5mm backfocus ASI cameras such like ASI120 ASI224 ASI290 ASI178 ASI385.

Celestron T-adapter 48mm (Edge HD 925, 1100, 1400)

The Celestron T-adapter 48mm is the accessory of choice if you’d like to attach your full frame DSLR or astronomical camera to a Celestron EdgeHD optical tube. With DSLR CCD chips getting larger, Celestron created the 48mm T-Adapter to reduce vignetting and provide a larger light path to your camera’s sensor, producing exceptional astrophotos.

Bintel Camera Adapter 40mm 2 Inch

Spacer and camera adapter in one package.

Precision machine, Black anodised aluminium construction

T-threaded will fit all T2 threads

The New T Tilter-II adds multiple screw holes to help connect to ZWO EFW (compatible to 2” EFW filter wheel).

Replaces original T-Tilter.

The new model offers more mounting options for you ZWO camera.

Dimensions

Main body：Diameter 78mm，11mm without the T2-T2 adapter

T2-T2 adapter：Thickness 2mm

Interface: T2 (M42*0.75 thread) each side

Main Uses

Mainly used to reduce newton ring when imaging ha-solar；

Also used to adjust the camera imaging plane by rotating the six nuts in the main body when the sensor plane is uneven

Suits all ASI cameras except ASI071, ASI2600 and ASI6200, which require the 68mm Tilter.

Connecting to Camera

Cooled camera: ASI294/ASI1600/ASI183/ASI533

Non-cooled camera:

ASI294/ASI1600/ASI183/ASI174

These cameras do not need to connect to the T2-T2 adapter

ASI178/ASI290/ASI224/ASI120

These cameras need to connect to the T2-T2 adapter first.

Mechanical Drawings

In the Box

T2 tilter x 1

T2-T2 adapter x 1

Hexagon wrench x 1

A T-ring is used to connect your DSLR camera to a telescope.

Select the T-Ring which matches your camera type in much the same way you need to get the correct lens to attach to it. (Nikon, Canon EOS, Sony etc)

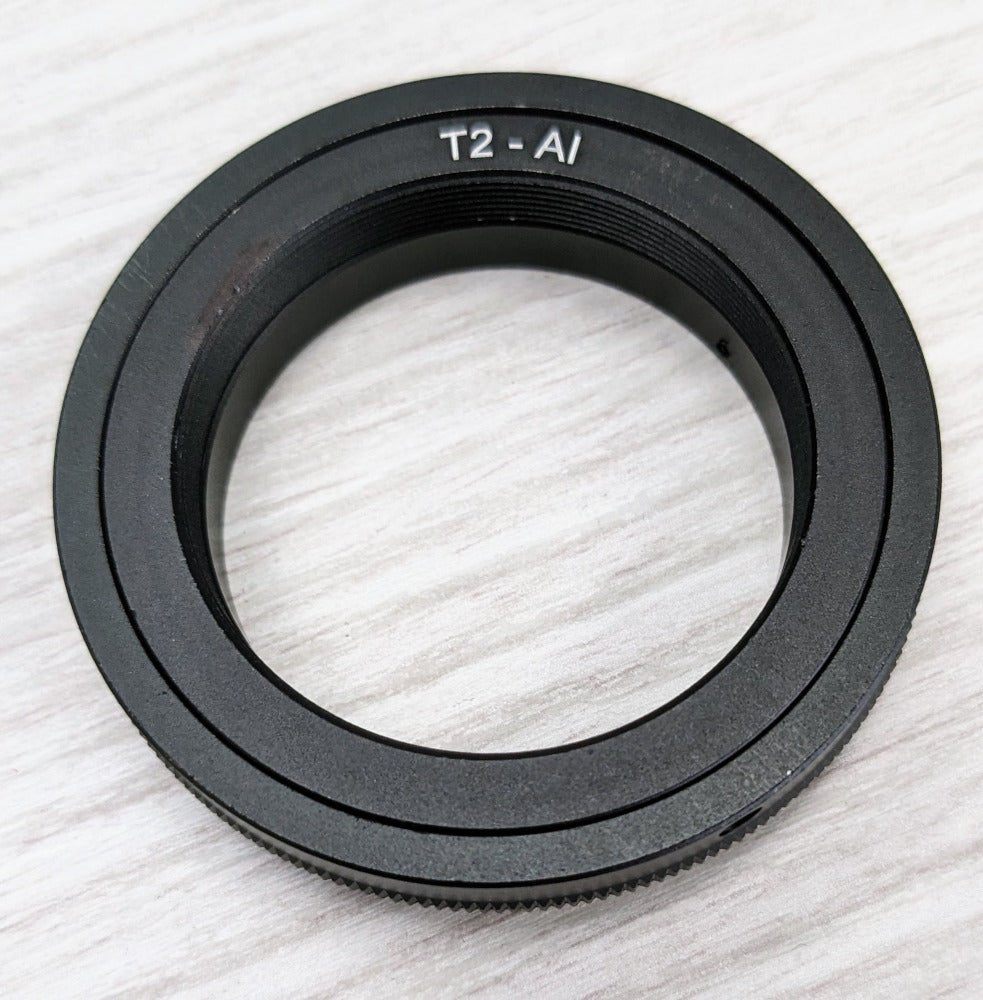

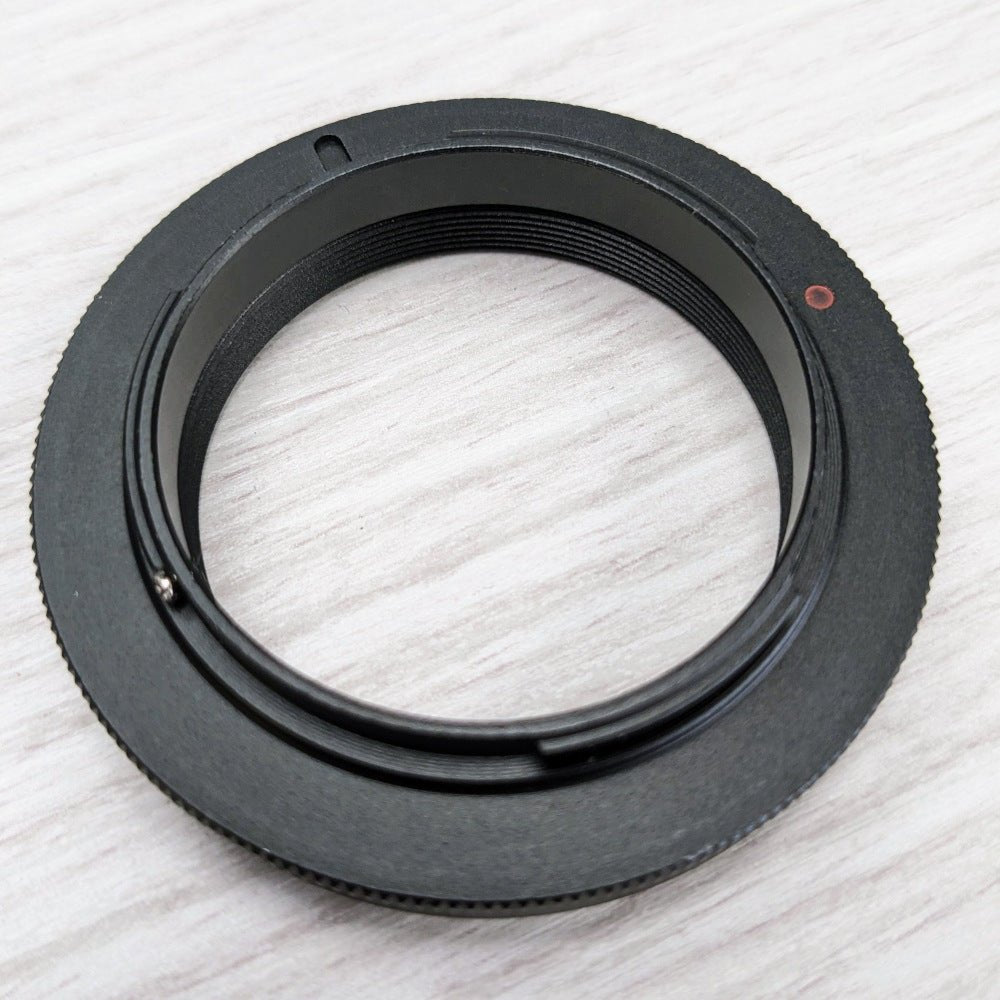

This BINTEL T-Ring is for Nikon DSLR camera bodies.

One end of the T-Ring connects to your camera body in place of the lens and the other end connects to the telescope. Some telescopes may already have a "T-thread" connector while others may require a camera connector.

BINTEL can help with the best way to attach a camera to your telescope.

Bintel M57- M42 T-Adapter

Step down ring allows you to couple a Bintel 2" Superview Projection eyepiece with any standard T-Ring

Precision machined, black anodised aluminium construction

Compatible with all ASI cameras and all C and CS lenses

Back focus of C lenses is 17.5mm

Back focus of CS lenses is 12.5mm

Black anodised finish, aluminium construction

The Bintel SCT Diagonal Adapter can be used to change a Bintel 2 inch Diagonal from Slip fit to SCT Thread fit.

Made up of three component parts, it can also be used as a short SCT Prime Focus adapter by removing the ring at the top which is T Threaded.

SKU: FF228, FF230, FF232

To achieve the best astroimages, it is important to attain the proper back-focus distance for your camera relative to the telescope it is being used with. If the back-focus distance your camera consumes is not exact, the performance at the corners of full frame imaging sensors will suffer—stars will appear elongated and not as pinpoints.
Example: RASA 8 with a ZWO ASI 183 MC PRO camera

• Required back-focus distance for RASA 8 with included M42 camera adapter: 25mm
• Back-focus consumed by ZWO ASI 183 MC PRO camera: 17.5mm
• To achieve equal back-focus distance, a 7.5mm M42 spacer ring is required

Celestron’s M42 Spacer Ring kit includes three different length spacer rings to achieve the proper back-focus distance with our popular Celestron optical tubes and T-thread camera adapters.

How to Use
Depending your method of astrophotography (DSLR or CCD/CMOS), there are two ways to use the M42 Spacer Ring. If you are using a DSLR, place the desired M42 Spacer Ring between your T-Ring and your T-Adapter for your optical tube. If you are using a CCD or CMOS camera, place the desired M42 Spacer Ring between the camera and the T-Adapter for your optical tube.

Below is a quick guide to help you determine which spacer ring to use for our EdgeHD, Schmidt-Cassegrain, and RASA 8 optical tubes:

This T-Ring fits EOS M-mount mirrorless cameras only. It will not work with other Canon camera bodies like the EOS RF-mount or EOS EF-mount model cameras without adding a Canon adapter to convert those cameras to M-mount.

A T-Ring is one of the first accessories you will need to take pictures through a telescope or spotting scope. If you have a Canon EOS mirrorless camera body, the Celestron EOS M-Mount T-Ring is the one for you.

How to Use
To use this T-Ring, place the M-Mount T-Ring on your Canon mirrorless camera. Just like changing a lens, line up the T-Ring to your camera’s lens mount. Push it in and turn until you hear a click. The T-Ring has a sturdy bayonet flange that locks for a secure fit. Once you attach the T-Ring to your camera, you’re ready to connect your telescope. The telescope side of the T-Ring has threads that accept a variety of camera adapters, including the Celestron T-Adapter. The adapter you choose depends on the type of photography you wish to do.

Body
The Canon M-Mount 42mm T-ring is machined aluminum black anodized. The internal surfaces are blackened and glare-threaded to provide the highest contrast. The T-Ring has a ribbed surface for a secure grip while threading/unthreading. The Canon M-Mount 42mm T-Ring is compatible with M42 x 0.75 (T-Thread) camera adapters.

The ZWO new Nikon-T2-Ⅱ adapter is independently developed by ZWO. It’s composed of a 29mm new Nikon-T2 adapter and a 5mm T2 extender, and suitable for all ASI cameras except full frame cameras like ASI6200 and ASI2400.

You can use 2″ IR-CUT filter with the adapter.

Connection method:

1. With ASI cooled cameras (ASI533/183/294/1600/071/2600)

2. With ASI non-cooled cameras

• ASI1600/294/183/174 (17.5mm back focus length)

• ASI178/385/462/290/224/120 (12.5mm back focus length)

What’s in the box?

Normally available for pickup or shipping approx. 2-3 business days from your order

Side dovetail bar (trapezoid shaped)
Length of dovetail bar: 108mm
Width of wider part of the trapezoid base: 43mm
Thickness: 14mm

Base (bottom part with the photo threaded bolt)
Length 125mm (together with the thickness of the dovetail bar on the side it’s 135mm)
Width 44mm
Thickness: 12mm
Length of recess: 70mm

Continuing with adapters that allow you to use your existing camera lenses with ZWO cameras, comes this EOS lens adapter that is specially designed to connect EOS lens with ZWO 2” EFW.

Get the benefit of the wide angled lenses from your EOS camera and LRGB filters and even Narrowband filters. A whole new world of imaging opens up to you.

The thread of the interface is M54*0.75, so it is not suitable for 1.25”/31mm/36mm EFW.

Note: The sensor tilt adapter needs to be removed before you mount the camera with the 2” EFW.

New from ZWO. The ZWO SONY NEX adapter can be used to connect Sony NEX lens and ASI cameras with small sensor formats, such as ASI1600, ASI294, ASI183, ASI174, ASI432 and ASI585.

Only support manual lenses supported, not compatible with automatic lenses.

Suits cooled and uncooled ZWO cameras.

Connecting ZWO SONY NEX to your ZWO Uncooled Camera

Connecting ZWO SONY NEX to your ZWO Cooled Camera

ZWO SONY NEX Schematic Drawing

SKU: ZWO-SONY-NEX

Mirrorless cameras are spreading like wildfire in the astroimaging community—and for good reason. When paired with Celestron’s groundbreaking 8” Rowe-Ackermann Schmidt Astrograph (RASA), you can achieve spectacular deep-sky astronomical images.

So what makes a mirrorless camera the perfect match for RASA? First, the compact camera body provides minimal obstruction when placed on the front of the RASA optical tube. Second, the sensitive imaging chip helps capture every bit of stunning detail that the RASA optical brings in.

If you’d like to use your SONY mirrorless camera with the 8” RASA, this adapter is a must-have accessory. Using the camera’s integrated bayonet mount, it attaches securely to the front of RASA. What’s more, this adapter places the camera’s sensor at the precise backfocus distance for optimal image sharpness.

NB: ONLY SUITABLE FOR RASA 8

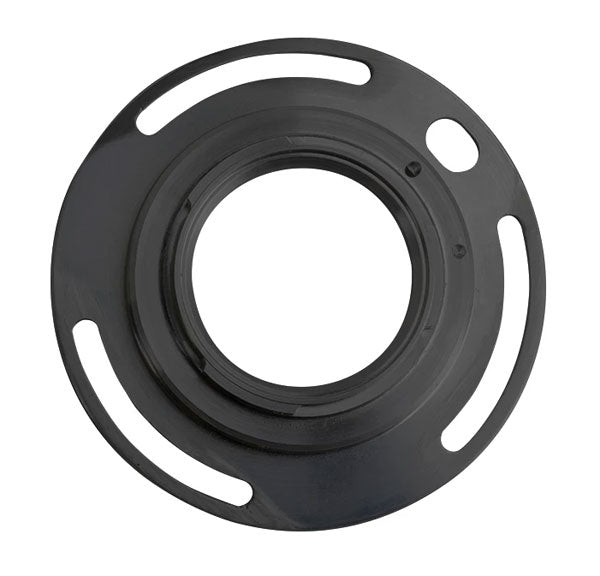

RASA Canon Mirrorless Camera Adapter

Mirrorless cameras are spreading like wildfire in the astroimaging community—and for good reason. When paired with Celestron’s groundbreaking 8” Rowe-Ackermann Schmidt Astrograph (RASA), you can achieve spectacular deep-sky astronomical images.

So what makes a mirrorless camera the perfect match for RASA? First, the compact camera body provides minimal obstruction when placed on the front of the RASA optical tube. Second, the sensitive imaging chip helps capture every bit of stunning detail that the RASA optical brings in.

If you’d like to use your Canon mirrorless camera with the 8” RASA, this adapter is a must-have accessory. Using the camera’s integrated bayonet mount, it attaches securely to the front of RASA. What’s more, this adapter places the camera’s sensor at the precise backfocus distance for optimal image sharpness.

NB: ONLY SUITABLE FOR RASA 8

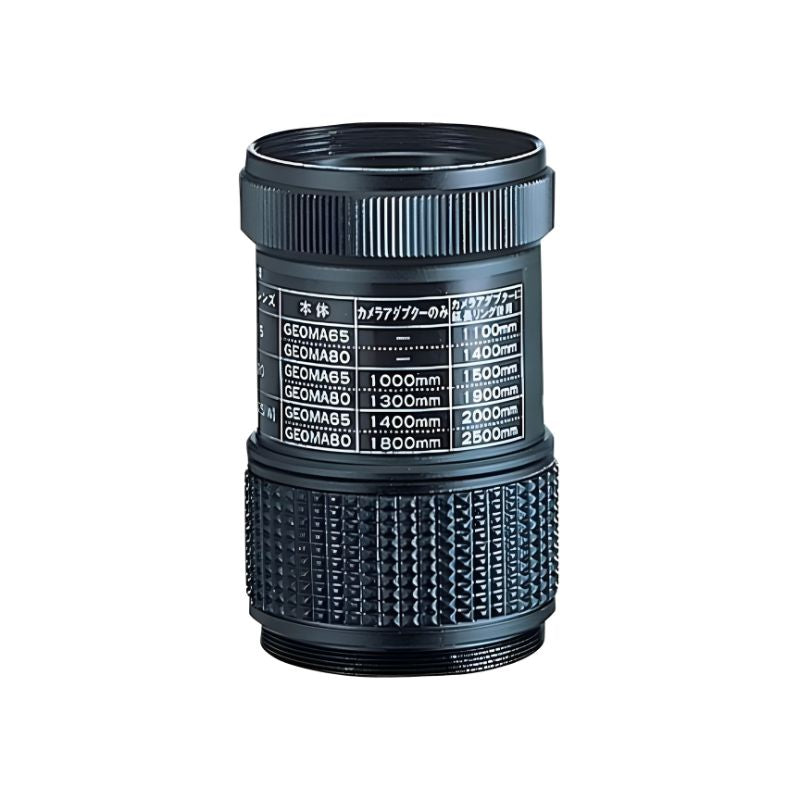

Ultra-telephoto photography is easily achieved with your Geoma spotting scope when using the Vixen SLR Camera Adapter G. It allows you to shoot through the scope's eyepiece, instead of using the scope without an eyepiece as a prime focus lens. There is a built-in 2" extension ring which can lengthen the effective focal length of your scope/eyepiece combination to capture sharp and crisp images. The adapter can be used with Vixen's GL15, GL20, and GL25 eyepieces, and requires a camera-specific T-mount and ring for proper mounting to your DSLR.

At a Glance

• Use Spotting Scope as Telephoto Lens
• For Vixen Geoma Scope
• Integrated 2" Extension Ring
• Fits GL15, GL20, GL25 Eyepieces
• Camera-Specific T-Mount/Ring Required

Visual Use

For dual-purpose photo/visual scopes, a "VISA" adapter (Visual / Imaging System Adapter) accepts the tunable top from the standard Tele Vue 2" Paracorr Type-2. The 2" format is fine visually since secondary mirror size limits maximum exit pupil diameter to around 7mm. The widest true field eyepiece choice with an f/3 (f/3.45 when used with Paracorr) is, therefore, Tele Vue's own 21mm Ethos which delivers a 6.1mm exit pupil at f/3.45.

Imaging with DSLR or CCD Cameras

If you have a 35mm format DLSR or CCD camera, the "VISA" adapter accepts Tele Vue Imaging System accessories.

Tele Vue Piggy-Cam

Secure your camera to Piggy-Cam for greatest flexibility in piggy-back photography. Piggy-Cam's 3/8" thick tilting base plate can be locked at virtually any angle allowing you the most pleasing photo composition.

The captive ¼"-20 lock screw rides in a slot making it easy to mount any 35mm camera. Though designed for Tele Vue telescopes, Piggy-cam's U-shaped mounting bracket is easily adaptable to most any scope

Concept: Piggy-Cam provides a solid, adjustable platform for piggy-backing your camera on a variety of telescopes. — Al Nagler
