Metal block adapter allows finderscopes with dovetail to be mounted to Meade or Celestron SCT scopes. Accepts all Bintel models, GSO, some Orion, Skywatcher and other finderscopes.

Mounting holes are slotted to allow fitting to existing holes at the front or rear of Meade and Celestron SCT telescopes.

The Losmandy DVA dovetail plate adapter is the most universal adapter available. With it you can mount camera adapter, rings, counterweights and a myriad of other accessories to either a Losmandy D style or Vixen V style dovetail plate.

Tool free fitting by use of spring loaded locking knobs on the side of the clamps means you can load and unload your accessory onto the dovetail plate in a moment and in the dark. Move your guide scope or DVWS counterweight forward or back to achieve perfect balance with ease.

There are 6 countersunk holes on the underside for sockethead machine screws to fix your accessories.

Made from precision machined aluminium, anodised black. large easy to handle knobs.

Replacement Celestron dovetail bar for the CG-5 bar.

Used if mounting your scope to a Losmandy type saddle as opposed to Vixen type.

Please note : This requires fitting so you should feel comfortable in attempting this.

Also note that this product will not work with CPC 800 GPS or CPC Deluxe 800 HD telescopes without completely removing the finder scope bracket.

Losmandy DM8 Dovetail Plate

The Dovetail Plates are the heart of the Losmandy Secondary System. 0.5" x 4.0" x length of the tube assembly.

Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Meade dovetail plate for 8", bolts to existing holes.

Includes curved blocks for precision fit to the tube assembly.

Weight: 2 lbs.
Length: 13.5"
Hole Separation: 12.325/12.70,
Height: top of tube to top of dovetail plate 1.00"
Thickness: .5"

Part #: DM8

Losmandy DM10 Dovetail Plate

The Dovetail Plates are the heart of the Losmandy Secondary System. 0.5" x 4.0" x length of the tube assembly.

Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Meade dovetail plate for 10", bolts to existing holes.

Includes curved blocks for precision fit to the tube assembly.

Weight:. 2.5 lbs.
Length: 17.25"
Hole Separation: 16.0"/16.50"
Height:. top of tube to top of dovetail plate 1.00"
Thickness: .6"

Part # DM10

This dovetail bar is easily mounted to the top of the Rowe-Ackermann Schmidt Astrograph 8 with the included hardware. Once installed it will allow you to attach any astronomy accessories that use CGE or Losmandy D-series dovetail plates.

Installation Guide

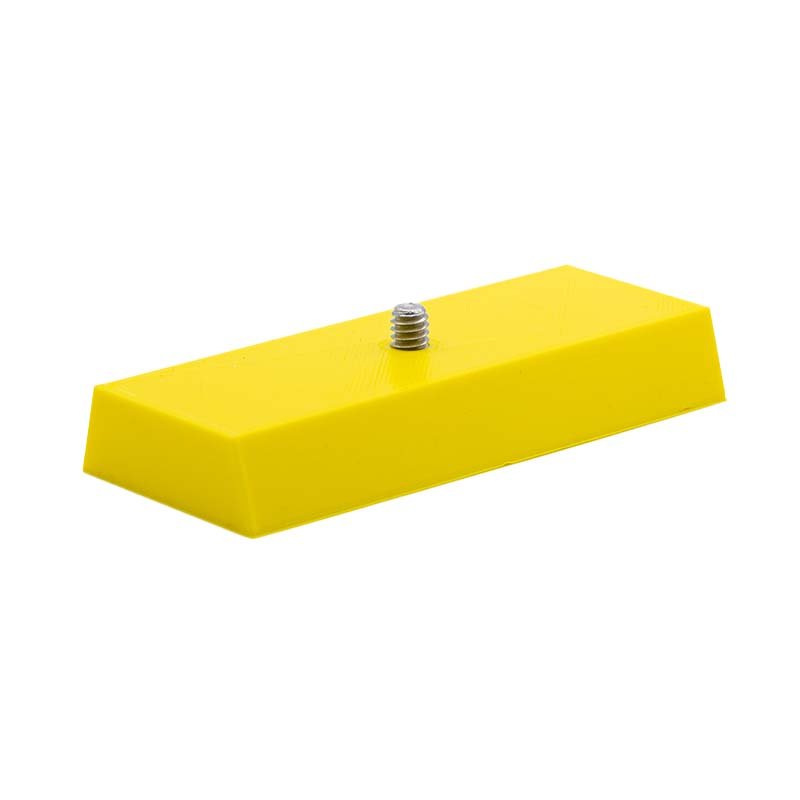

This V-Style Dove tail bar is designed for DSLR camera attachment.

Attach the yellow dovetail bar to the DSLR camera body using the supplied ¼” inch screw.

Like all tripods or camera mounting systems, do not over-tighten the ¼” inch screw to avoid possible damage to the camera body.

Loosen the side clamps on the Sky-Watcher Star Adventurer GTI mount head and slide the yellow bar with the camera body into the mount head. Tighten both mount clamps to secure the camera.

Again, please don’t over-tighten the mount clamps.

Able to support 3kg total weight.

Tools you’ll need:

A 4mm or 3/16^th Inch Allen Key

Universal Dovetail Plate

Hole Separation of 60mm, 2.00 inch, 35mm, 1.5 inch, 1.25 inch.

Fits Astro Physics, Astro-Tech, Borg, Celestron, Explore Scientific, Meade, Orion, Parallax, Questar, Stellarvue, Takahashi, TeleVue, Vixen, William Optics

Wt. 2.4 lbs., Length 14", thickness 0.7"

Includes 1 safety stop screw

DUP Pattern here

Losmandy DC11 Dovetail Plate - Celestron 11 Inch

The Dovetail Plates are the heart of the Losmandy Secondary System. 0.5" x 4.0" x length of the tube assembly. Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Celestron dovetail plate for 11", bolts to existing holes. Includes curved blocks for precision fit to the tube assembly. Stainless Steel hardware included.

Weight:. 2.25 lbs.
Length: 17.25"
Hole Sparation: 16.0/16.50
Height: top of tube to top of dovetail plate 1.00"
Thickness .6"

Part #: DC11

Celestron Dovetail Bar (CGE) 11 Inch

11-inch Dovetail bar (CGE)

Note: No Hardware screws included

Losmandy DC8 Dovetail Plate Celestron 8 Inch

The Dovetail Plates are the heart of the Losmandy Secondary System.

The D series bar is 12.7mm thick x 102mm wide x length of the tube assembly.
Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment such as counterweights or secondary/guidescopes.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Comes complete with Radius mounting plates and Stainless Steel hardware.

9.25-inch Dovetail bar (CGE)

Losmandy DM12 Dovetail Plate - Meade 12 Inch

The Dovetail Plates are the heart of the Losmandy Secondary System. 12mm thick x 102mmwide x 480mm length

Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Meade dovetail plate for 12", bolts to existing holes using supplied Radius Blocks and stainless hardware
Weight: 3.5 lbs.

Length: 18.925"

Hole Separation 18.175,

Ht. top of tube to top of dovetail bar 1.20"

Thickness .7"

Part#:- DM12

The Bintel 13 Bar is a universal Wide Style Dovetail bar, Designed with all refractors and reflectors in mind. Please look at the dimensions below to see if this dovetail is suitable for your telescope.

No Hardware is included with this dovetail

The Bintel 7.9 Bar is a universal Wide Style Dovetail bar, Designed all all refractors and reflectors in mind. Please look at the dimensions below to see if this dovetail is suitable for your telescope.

No Hardware is included with this dovetail

The Celestron CGE Universal Mounting Plate is a basic accessory that allows you to attach a wide range of telescope accessories to the mounting platform of a CGE, CGE Pro, CGEM or CGEM-DX mount. It will accept standard mounting rings, spotting scopes, and cameras. The mounting plate is drilled with several of the most common hole types and patterns, including 3/8”-16, 5/16”-18, and 1/4”-20.

Note: No Hardware screws are included.

Universal Dovetail Plate Short

Hole Separation of 60mm, 2.00 inch, 35mm, 1.5 inch, 1.25 inch.

Fits Astro Physics, Astro-Tech, Borg, Celestron, Explore Scientific, Meade, Orion, Parallax, Questar, Stellarvue, Takahashi, TeleVue, Vixen, William Optics

Wt. 1.2 lbs., Length 7", thickness 0.7"

Losmandy DVSBS Side-by-Side Dovetail Plate

This Dovetail Plate allows you to mount two optical systems side by side. The main connecting Dovetail Bar is 380mm long, with two large 177mm long D/V Saddles that each have spring loaded locking clamps to hold you scope securely. With 254mm between centres of the saddles will suit most applications.

Precision machine black anodised aluminium for durability, includes stainless hardware

Weight is 3.2kgs

14-inch Dovetail bar (CGE)

Note: No hardware screws included

Losmandy DC14 Dovetail Plate - Celestron 14 Inch

The Dovetail Plates are the heart of the Losmandy Secondary System. 0.5" x 4.0" x length of the tube assembly. Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Celestron dovetail plate for 14", bolts to existing holes. Includes curved blocks for precision fit to the tube assembly.

Normally available for pickup or shipping approx. 2-3 business days from your order

This dovetail bar kit allows you to replace the wider CGE dovetail bar found on most Celestron 8" Schmidt-Cassegrain and 8" EdgeHD optical tubes with a narrow dovetail, allowing them to be used on mounts that require the narrower CG-5 dovetail bars, such as the Advanced VX mount.

• Fits pre-drilled holes in the front and rear cells of current 8" Schmidt-Cassegrain and 8" EdgeHD Optical tubes
• Aluminum bar with orange anodizing provides a sturdy mounting platform.
• Easy to install and comes complete with all necessary hardware

Universal Dovetail Plate 24 inch

Hole separations of:3.5",60mm, 2", 1.5", 35mm,1.25".

Fits Astro Physics, Astro-Tech, Borg, Celestron, Explore Scientific, Meade, Orion, Parallax, Questar, Stellarvue, Takahashi, TeleVue, Vixen, William Optics

Wt. 4.2 lbs., Length 24", thickness 0.7"

Includes 1 safety stop screw

Losmandy DM14 Dovetail Plate

The Dovetail Plates are the heart of the Losmandy Secondary System. 0.5" x 4.0" x length of the tube assembly.

Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Meade dovetail plate for 14", bolts to existing holes.

Includes curved blocks for precision fit to the tube assembly. Stainless steel hardware included.

• Attach a variety of accessories to your Advanced CG-5 or Advanced VX mount with this Universal Mounting Plate
• Several different mounting holes to choose from to mount rings, spotting scopes, cameras, etc
• Approximately 250mm long

Note: No Hardware screws included

Orion narrow dovetail plate (Vixen Style) is made of extruded, black anodized aluminum. With several holes and two long slots, this versatile plate is ideal for mounting telescope and guide scope tube rings, cameras, finder scopes, and other accessories.

Near the center of the plate are two counterbored through holes and two M6x1 threaded holes. Two long slots are also counterbored underneath so that the heads of standard socket head cap screws are recessed under the bottom surface of the plate.

Both the through holes and slots can accommodate 1/4"-20 socket head cap screws and some smaller sizes. The slots make it easy to accommodate the needed spacing between two tube rings for different telescope and guide scope configurations.

Two holes on each end of the plate have M6x1 threads also.

With the Orion narrow dovetail plate, you'll have a secure connection and perfect placement ? no matter what tube you're using to explore the universe!

Losmandy Dovetail Bar to suit Celeston 9.25 Standard and Edge Version.

Comes with mounting brackets.

Losmandy DMM14 Dovetail Plate (formally know as Losmandy DMM)

Losmandy DMM Dovetails allow you to mount secondary accessories to you mount. Originally are designed for use with the DSBS (now DVSBS) so you could mount accessories on one side whilst having a scope on the other side.

Precision machined D Style dovetails on either side it can fit into any mount that has a D style saddle.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Weight: 2.6 lbs.
Length: 14"
Thickness: 0.75"

Part #: DMM14

This V-Style Dove tail bar is designed for DSLR cameras to  attach your DSLR to a dedicated telescope mount.

Attach the dovetail bar to the DSLR camera body using the supplied 1/4” or 3/8" inch screws.

Like all tripods or camera mounting systems, do not over-tighten the screw to avoid possible damage to the camera body.

Losmandy DMM7 Dovetail Plate - Male to Male 7 inch

Losmandy DMM7 Dovetail Plate (formally known as the DMMS)

This dovetail plate allows you to mount secondary equipment (like a guidescope ) when used on the Losmandy DVSBS

Will fit all D style saddles

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface. Male to male dovetail plate.

For use of secondary equipment on equatorial mount and DSBS.

Weight: 370 grams

Length: 178mm

Width: 102mm

Thickness: 19mm

Part #: DMM7
