New Version : THE ZWO ASIAIR Plus 256G

The new ZWO ASIAIR Plus has 256Gb of memory and replaces previous the ZWO ASIAIR Plus with 32Gb of memory which has been discontinued. ZWO now have two versions of the ZWO ASIAIR - this one and the ZWO ASIAIR Mini.

With its new sleeker body it is 24% thinner and 13% lighter than the Original ASIAIR Plus. It features 4 DC 12V outputs, A DSLR Camera shutter release port, RJ45 Ethernet port, 2 USB 3.0 ports, 2 USB 2.0 ports, a newly added USB Type-C port, and an expansion card slot. All packed into a 100mm x 70mm x 26.5mm CNC-machined Aluminium case and of course it is ZWO Red in colour.

The New ZWO ASIAIR PLus 256 G is integrated with 256Gb eMMC Storage that offers faster data transmission speed .

Imaging efficiency at short exposures improves by 26%

FPS on video mode improves by 30%

Enhance Antenna provides stronger WiFi signal and faster communications.

Dual Band WiFi network with a working range of up to 20m. 5Ghz WiFi is faster than 2.4Ghz WiFi, but the range is shorter. The 20M working range is the average of multiple tests in open space at 2.4Ghz. When assembling the ASIAIR Plus, keep the USB 3.0 cable away from the WiFi antenna.

Easy to use Interfaces gives you full control of your gear. 2 x USB 3.0, 2 USB 2.0ports an ethernet port 4 x 12v DC power outlets to connect your cooled camera, dew heater, EAF focuser etc. The newly added USB type C port for exporting your files to your laptop or PC.

Upgradable Storage Capacity: supports external TF cards and USB Drives.

PWR - Input power status display

WIFI - Wireless Network status display

SYS - System I/O status display

12vDC output Power Indicators

Realtime monitoring - 12vDC outputs control switch in App. Along with monitoring unit for ASIAIR Plus's working status.

The whole ASIAIR experience - Astrophotography has never been easier.

System requirements:

In the Box: ASIAIR256 G Controller, ASIAIR Plus Quick Star Guide, ASIAIR Plus Activation Guide, DC 1.5M male - female extension cable (5.5 x 2.1mm standard) USB 3.0 Type B data cable

New ZWO ASIAIR Mini features eMMC Storage, Dual band antenna, Stacking on phone, Power monitoring, DSO imaging, Planetary imaging, independent guiding, Automated imaging

The new ZWO ASIAIR Mini is more portable than ever, with a size no larger than half a hand, ASIAIR Mini is the most vest pocket sized member of the ASI AIR Series. It’s also the most cost effective one, yet the performance is hardly weakened compared to its predecessors, allowing you to capture the night sky with ease and fun.

Attach the ZWO ASIAIR Mini to your imaging setup, then you’re free to control your DSLR or ASI cameras with your phone or tablet via a wireless connection. Stay in the comfort of your tent, home, car, and other places to avoid hot summer or cold winter nights. No more problems with mosquitos.

One station design

ZWO ASIAIR Mini streamlines the start-to-finish process for you, including focusing, polar alignment, changing filters, auto guiding, autorun, and more. Even novice Astro images can begin their Astrophotography journey with this device. The multi-target feature is great for widefield photography.

ASIAIR Plus and ASIAIR Mini Comparison

Construction

The ZWO ASIAIR Mini is made with precision CNC machining from Aluminium which effectively prevents it from dust, dew. A truly durable device. The case has the constellations of Casseopia, Ursa Major and Ursa Minor laser etched on it.

ASIAIR is able to run on iOS ad Android devices. In order to get the best usage experience, we recommend you confirm whether your phones or tablets meet the requirements below or not first before you purchase the ASIAIR MINI

SKU: ZWO-ASIAIR-Mini

NEW Smart Deep-sky imaging colour camera from ZWO with Guiding, Imaging and Smart Control of mounts and accessories.

The ASI585MC Air is ZWO’s newly released ultra-sensitive wireless smart deep-sky camera, it integrates a deep-space sensor, a guiding sensor and a smart astrophotography controller. With this all-in-one design, capturing stunning astrophotography has never been easier!

10 Key highlights
1.3 in 1 Camera: Imaging, Guiding, Control System
2.256G eMMC Storage
3.STARVIS 2 Technology
4.4K Resolution
5.Multiple Interface (Type-C x1 USB 2.0 x4 DC 12V 10A x2）
6.5G/2.4G Dual-band Wi-Fi / Bluetooth
7. Intelligent Live Stacking
8. High Signal-to-Noise Ratio, High Sensitivity
9. Voice Broadcast
10.Get Fully Control of Your Entire Rig at Your Fingertips

Start Your Astrophotography Journey without the dramas

Featuring ZWO's self-developed "Dual Sensor + ASIAir" integration technology. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

Smarts developed in-house by ZWO

Easily Connect to Multiple Devices

4x USB 2.0, 2x DC12V 3A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount; DC 12V 3A input/output ports for reliable power; USB Type-C port for fast file transfers—you can focus on capturing stunning images without worrying about connectivity issues.

256G eMMC Storage： Ample Storage and Stability

With 256GB eMMC storage, the ASI585MC Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs.

Starvis 2 4k Sensor

Image Sensor Technology Beyond the Human Eye's Sensitivity
Equipped with the upgraded STARVIS 2 image sensor, supporting a higher dynamic range.
With this technology, the sensitivity and signal-to-noise ratio of the ASI585MC Air are greatly enhanced, delivering exceptional image quality.

Complete Control of Your Entire Rig at Your Fingertips

The ASI585MC Air incorporates multiple ZWO patented technologies and allows you to shoot simply by connecting your phone. It supports App OTA updates, continuously improving the product features, making astrophotography easy and fun, while enriching the user experience

Instant Post-Processing and Sharing

Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.

Low Read Noise, High Dynamic Range

The camera has a built-in HCG mode, which can effectively reduce readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. When the gain is 252, the HCG mode is automatically turned on and the Dynamic range reaches a level close to 12bit.The readout noise is as low as 0.7e.

QE

Based on ZWO Laboratory calculations, the peak quantum efficiency of ASI585MC Air is 91%

Data source: This data is from ZWO Laboratory. The actual quantum efficiency peak value is subject to real-world data.

Cooling System

Thanks to the two-stage TEC cooling, ASI585MC Air can lower the CMOS sensor temperature to 30-35 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during extended exposure times.

Power Consumption

IR-Cut coating for OSC camera

Frame Rate

Product Specifications

Camera Specifications

Camera Details

Telescope Connections

Mechanical Diagram

What's in the Box

• Camera body
• T2 extender(21mm)
• T2-M48 extender
• M42-M48 tilter
• USB2.0 cable
• DC 1m cable
• DC 1.5m male-female extension cable
• External antenna
• 2mm M2.5 hex wrench
• Quick guide
• 1m hook&loop tape


Feature List

• 4 x 12V DC Power outlets for your equipment (A single channel to switch all four outputs ON/OFF via software)
• 12 Amps of total distributed current
• Adjustable Output (3, 5, 7, 8, 9, 12Volt) / 3Amps (Can be switched ON/OFF) Power your DSLR / Mirrorless camera
• Embedded Powered USB3 Hub – 2 x USB2 Ports & 2 x USB3 Ports Available (USB3 ports are backwards compatible with USB2 devices)
• 1 x Power USB Port (up to 3Amps) – Suitable for Raspberry PI 3/4 power
• EXT Port (RJ12) for external accessories (E.g External Focus Controller)
• 2 Channels PWM Dew Heaters – RCA Outputs (Adjust power levels via software)
• Humidity and Temperature Sensor (included)
• Auto Tune Dew Heater Channels
• Reverse Polarity Protection
• USB / PC Controlled or Standalone Operation out of the box
• Lightweight and extremely compact aluminium enclosure

Built in Amp-Meter

An Amp-meter placed after the DC input reports the total electric current.

There are also three additional amp-meters: One for the 12V outputs and two for the Dew Heater Channels. This allows you to easily monitor the detailed and overall power consumption of your equipment.

More than 12A of total electric current

The powerbox has been designed to output up to 12 Amps of electric current. Please note that a usual backyard astrophotographic setup requires 5-7 Amps

Embedded USB3 Hub

A powered USB3 Hub at the back of the device provides:

• 2 x USB3 SuperSpeed Ports
• 2 x USB2 High-Speed Ports.

The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.|

USB Port Configuration under PPBADV Gen2

• USB Port1 supports USB2 devices
• USB Port2 supports USB2 devices
• USB Port3 supports USB2 & USB3 devices
• USB Port4 supports USB2 & USB3 devices

* Older product revision (Gen1) had only 3 out of 4 USB Ports that were compatible to USB2 devices. For detailed information please check the product manual.

USB High Power Output

USB Port 1 provides up to 3Amps of current. You can connect any device that requires 5V. E.g a Raspberry PI 3/4 or Intel Compute Stick M3/M5 can receive power from this specific port.

Expansion Port (EXT)

EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox Advance standalone software or dedicated ASCOM driver.

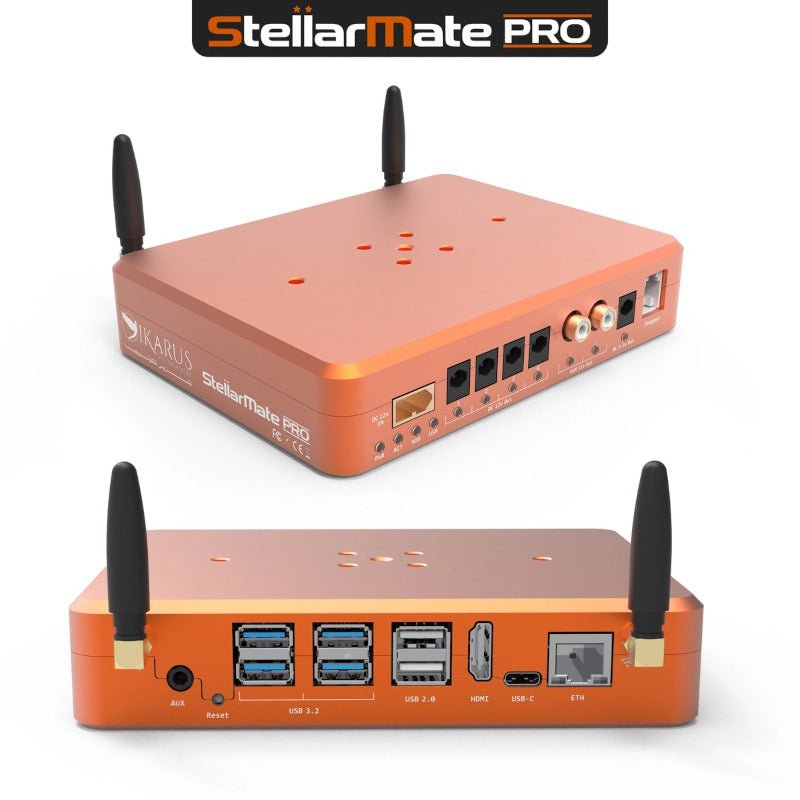

StellarMate Pro is an advanced observatory-class astrophotography controller. It is a powerful command centre that is compatible with a wide selection of astronomy equipment across different manufacturers.

Powered by Open Source technology, it provides a complete astrophotography solution and comes preloaded with all the necessary software and drivers required to operate astronomical equipment, no additional 3rd party software is required.

In addition to its role as a dedicated astronomical equipment controller, StellarMate Pro offers comprehensive power distribution capabilities. It can power up to four 12V DC devices, two 12V Dew Heaters, and one adjustable voltage output ranging from 3-9V. To power all connected devices, a 12V @ 10A DC regulated power supply (Not included) is required. The unit ships with a robust high-density XT-60 connector, engineered to withstand currents of up to 60A.

StellarMate Pro is equipped with a built-in GPS/GLONASS receiver that provides highly accurate location and time services necessary for accurate and reliable operations of your equipment whether you are on the field or in a stationary observatory. Passive GPS and Wi-Fi antennas are optimized to provide high gain even in noisy environments. Reliable communication between StellarMate Proa and your controller (Mobile, Tablet, or PC/Mac) is critical for the operation of the unit.

A multi-purpose AUX port is built to support environmental sensors and future accessories including observatory relay controls. With a dedicated stepper controller capable of commanding up to NMEA 17 stepper motors, you can directly control many focuser stepper motors directly with StellarMate Pro.

StellarMate Pro provides unparalleled freedom in selecting your favourite platform to control your equipment:

• Standalone: Since StellarMate Pro is a mini Computer, you can connect it to an external monitor via HDMI cable and connect a mouse/keyboard to use StellarMate OS directly. However, since StellarMate Pro is usually mounted on the telescope, this control method is not recommended.
• Mobile: Operate StellarMate Pro remotely via Wi-Fi using StellarMate App for Android/iOS. It is highly recommended to run StellarMate App on modern Tablets/iPad with screen sizes 10” or more to get the best experience. While phones are supported, the StellarMate Pro App is optimized to run on tablets.
• Windows/Mac/Linux: Use Ekos astrophotography tool on Windows, MacOS, or Linux. Remotely control StellarMate via Wi-Fi, Local Area Network (LAN) or Wide Area Network (WAN). Ekos supports advanced functionality including mosaic planner and scheduler.

Using StellarMate Pro is simple. To get started right away:

1. Connect your equipment (Mount, Camera, DSLR, Focuser, Filter Wheel, etc) to StellarMate Pro via USB or Wi-Fi.
2. Power your equipment via connecting them to StellarMate Pro power ports.
3. Connect to StellarMate Pro from either your Mobile, Tablet, or Laptop/Desktop Computer.
4. Start controlling your setup and image from any major platform.

Product Specifications

• 4x 12VDC output.
• 2x dew heaters.
• 1x 3-9VDC variable voltage output.
• External GPS and Wi-Fi antennas
• 4x USB 3.0 & 2x USB 2.0 ports
• Auxiliary port for sensors and accessories.
• Stepper Controller.
• Anodized CNC aluminium case with M6 threads.
• Weight: 600g Net, 1200g Gross
• Dimensions: 165mm x 125mm x 35mm
• Accessories: XT-60 to DC Adapter, 50 & 100 cm 5.5x2.1 DC cable.

Flexible Control

StellarMate Pro Mounting

The feature rich companion StellarMate App provides many functionalities:

Highly accurate Polar Alignment for both GOTO and non-GOTO mounts. Achieve the perfect polar alignment!

Framing Assistant to automatically centre and rotate your field of view to match your desired orientation. What you see in the App is what you get in your camera.

Live stacking to get spectacular images. See the fine details pop out as you receive more frames and increase the signal-to-noise ratio.

Get pin-point stars with tried-and-tested focusing algorithms suited to both fast and slow focal ratios.

Explore a tailored list of targets suited for your current time and location. One-click goto to centre the target in your camera with sub-arcsecond accuracy.

Gallery viewer with rich metadata support. Find and sort your images or export to your mobile device and computer.

Get up-to-date weather and sky quality data including 3-hour cloud coverage.

Control your dome, dust cap, flat-field light sources, and many more auxiliary equipment with our extensive equipment support!

Lack of a trusty USB3.1 Hub in astrophotography market, triggered us to develop the Pegasus Astro USB Control Hub which will be also able to switch ON/OFF each USB port.

We proudly present the Pegasus Astro USB Control Hub (in short UCH):

A SuperSpeed (SS), low power, switchable USB3.1 Gen1 hub and fully compliant with USB-IF’s USB 3.1 Gen1 specification . The Hub supports Hi-Speed (HS), Full Speed (FS) and Low Speed (LS). The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.

6 x USB3.1 Active Ports

USB Control Hub uch_3-2
The device has 6 x USB 3.1 Ports. All ports are backward compatible with USB 1.0 and USB 2.0 devices.

Each port can deliver up to 2.5Amps of current. There is a smart current limit sensor in every port which automatically limits or cuts power in case of a short-wire or power consumption that is above 2.5Amps.

Each port is monitored by the USB Controller and in case of a current limit, it triggers a warning pop up in the operating system.

Industrial grade temperature support

Most USB Hubs in the market (well…nearly all of them) operate under room temperatures as they were design to work inside your cosy warm room. This is one of the reasons why you experience USB disconnects and instability during a cold night.

Our product is certified to work flawlessly from −40°C to +85°C. All USB Hub electronics has been selected to support Industrial grade temperature ranges.

Aluminium Enclosure

A high quality robust, blue anodised aluminium enclosure houses the electronics of the USB Hub. The metal enclosure designed and tested to survive ±5kV ESD strikes

Switchable USB Ports

Each USB port can be controlled and switched ON/OFF by our standalone software. (power + data). You are going to love this feature. No more pull out and re-plug USB cables of your equipment.

12V DC Operation

The 12V DC operation was our first design requirement. As most of your astro-equipment requires 12V DC why to use something different? Hub accepts 12-14V of operation. This means that you can plug unregulated 12V power from a battery.

Expansion Port (EXT)

A RJ12 external ports allows future device expansion

Features

• 4 x 12V DC Power outlets for your equipment (A single channel to switch all four outputs ON/OFF via software)
• 12 Amps of total distributed current
• Adjustable Output (3, 5, 7, 8, 9, 12Volt) / 3Amps (Can be switched ON/OFF) Power your DSLR / Mirrorless camera
• Embedded Powered USB3 Hub – 2 x USB2 Ports & 2 x USB3 Ports Available (USB3 ports are backwards compatible with USB2 devices)
• 1 x Power USB Port (up to 3Amps) – Suitable for Raspberry PI 3/4 power
• EXT Port (RJ12) for external accessories (E.g External Focus Controller)
• 2 Channels PWM Dew Heaters – RCA Outputs (Adjust power levels via software)
• Humidity and Temperature Sensor (included)
• Auto Tune Dew Heater Channels
• Reverse Polarity Protection
• USB / PC Controlled or Standalone Operation out of the box
• Lightweight and extremely compact aluminium enclosure

Built in Amp-meter

An Amp-meter which is installed right after the DC input, reports the total electric current.

Moreover, there are three additional amp-meters: One for the 12V quad outputs and two for the Dew Heater Channels. This allows you to easily monitor the detailed and overall power consumption of your equipment.

Other Key Features

Standalone Operation
“out of the box”

Pocket Powerbox Micro can work “out of the box” as a standalone device. Just plug the cables, setup the “autodew” functionality and every time you boot the device, it will retrieve your settings. So, If you don’t like to connect to a PC every time, you don’t have to. Simple as that!

Two channel duty cycle
PWM outputs

Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote-controlled from your laptop using the supplied software.

Auto Adjustment of
PWM (Dew Outputs)

The controller can auto adjust the heater power levels by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox Micro to decide if it is time to turn on and precise tune the level of your dew heaters.

More than 10A of
total power

The powerbox has been designed to support up to 10 Amps of total current.

Led Indications for power and failure states

Led can blink in patterns to warn you about important power issues (e.g over or under voltage). Also, light can be turned off by using the software. Our LED is very dim but in case you don’t like it on you can switch it off

Reverse Polarity Protection

Pocket Powerbox Micro has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!

A hardware
watchdog

A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.

Upgradable
Firmware

Device is firmware upgradable to support future features and bug fixes.

Quick Glance

• Up to 12V / 20Amps of provided electric current (240W).
• 6 x 12V smart and individual switcable outputs. Each output can be configured as constant 12V or pulse width modulated driven).
• Wi-Fi or USB Controllable Operation.
• 2 x 12V / Always ON Outputs.
• 3 x Dew Heaters Outputs.
• (Automatic Adjustable with AutoDew feature)
• 1 x Adjustable Power Output 3-12V -Regulated Output of 3Amps
• 1 x Adjustable Power Output 12-24V – Regulated Output of 4 Amps
• 1 x Power Relay switch 250V/10A
• 6 x USB3.1 (backwards compatible with USB2) and 2 x USB2 available ports (8 USB ports in total). Individual switchable via software.
• Stepper Motor Controller (Silend and low vibrating stepper controller. Can drive nearly any stepper motor in the astro -market up to 2Amps per coil).
• Physical push-button to control one function (e.g turn ON / OFF outputs). Functionality is configurable in software.
• Built-in ambient temperature and humidity sensor.
• Power readings (Input Voltage, Current, Current per port).
• Vesa compatible size enclosure.

In total 8 USB ports powered – USB 3.1 SuperSpeed Hub

• 6 x USB 3.1 Super-Speed ports
• 2 x USB 2 High-Speed ports

6 x 12V DC Power outlets for your equipment

Built-in Power Sensors

Individual Current Meter per 12V smart outputs.

Additional Power Outputs and Sensors

• 2 x Always ON 12V outputs increase the total 12V outputs to 10. In combination with the 2 x adjustable outputs (if configured to 12V) the total 12V outputs can be summed to 10 Outlets.
• 1 x Adjustable Voltage Step Down output can be regulated from 3V ro 12V of and provide up to 3 Amps.
• 1 x Adjustable Voltage Step Up output can be regulated from 12V to 24V and provide up to 4 Amps.
• 1 x Switch Relay can pass 250V / 10A and used to switch ON/OFF any 3rd party equipment.
• A built-in ambient temperature and relative humidity sensor provides frequently readouts of the environmental conditions and automatically adjusts the heat intensity of your Dew strips.

Embedded Stepper Motor Controller

Supported Stepper Motors

Vesa compatible enclosure

Main Sensor

The main sensor IMX571 features an APS-C format and 26MP total pixels. The size is 23.5mm in width x 15.7mm in height, and the diagonal is 28.3mm. The 3.76um x 3.76um small pixel size accommodates an impressive full depth of 50ke. With the new hardware technology, it is even extended to 73ke.

Guide Sensor

The SC2210 sensor taken from the ASI220MM Mini camera features very high sensitivity. The QE peak value reaches 92% at 500nm. The read noise is as low as 0.6e. As the new generation of guide sensor, it has achieved great results in guiding, proved by hundreds of astrophotographers.

Start Your Astrophotography Journey with Great Convenience

The ASI2600MC Air combines guiding, imaging, and smart control into one compact, lightweight device. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

Effortlessly Connect Multiple Devices

4x USB2.0, 3x DC12V 10A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount; DC 12V 10A input/output ports for reliable power; and USB Type-C port for fast file transfers—you can focus on capturing stunning images without worrying about connectivity issues.

Shoot with Confidence: Ample Storage and Stability

With a massive 256GB eMMC storage, the ASI2600MC Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs.

Cross-Platform Device Control

Except from ASIAIR App, ASI2600MC Air can also wirelessly connect to ZWO’s proprietary PC control software, ASIStudio, and also other 3rd-party PC software. 3rd-party software can be controlled through ASCOM extended protocol Alpaca (requires ASCOM Platform version V6.6 or higher).

Bluetooth Connection Supported

Nice and Neat Wiring with AM3/AM5

Frame Rate

Camera Specifications

The best solution of 55mm back focus length

Mechanical Diagram

Camera Details

What is in the box?

StellarMate Pro is an advanced observatory-class astrophotography controller. It is a powerful command centre that is compatible with a wide selection of astronomy equipment across different manufacturers.

Powered by Open Source technology, it provides a complete astrophotography solution and comes preloaded with all the necessary software and drivers required to operate astronomical equipment, no additional 3rd party software is required.

In addition to its role as a dedicated astronomical equipment controller, StellarMate Pro offers comprehensive power distribution capabilities. It can power up to four 12V DC devices, two 12V Dew Heaters, and one adjustable voltage output ranging from 3-9V. To power all connected devices, a 12V @ 10A DC regulated power supply (Not included) is required. The unit ships with a robust high-density XT-60 connector, engineered to withstand currents of up to 60A.

StellarMate Pro is equipped with a built-in GPS/GLONASS receiver that provides highly accurate location and time services necessary for accurate and reliable operations of your equipment whether you are on the field or in a stationary observatory. Passive GPS and Wi-Fi antennas are optimized to provide high gain even in noisy environments. Reliable communication between StellarMate Proa and your controller (Mobile, Tablet, or PC/Mac) is critical for the operation of the unit.

A multi-purpose AUX port is built to support environmental sensors and future accessories including observatory relay controls. With a dedicated stepper controller capable of commanding up to NMEA 17 stepper motors, you can directly control many focuser stepper motors directly with StellarMate Pro.

StellarMate Pro provides unparalleled freedom in selecting your favourite platform to control your equipment:

• Standalone: Since StellarMate Pro is a mini Computer, you can connect it to an external monitor via HDMI cable and connect a mouse/keyboard to use StellarMate OS directly. However, since StellarMate Pro is usually mounted on the telescope, this control method is not recommended.
• Mobile: Operate StellarMate Pro remotely via Wi-Fi using StellarMate App for Android/iOS. It is highly recommended to run StellarMate App on modern Tablets/iPad with screen sizes 10” or more to get the best experience. While phones are supported, the StellarMate Pro App is optimized to run on tablets.
• Windows/Mac/Linux: Use Ekos astrophotography tool on Windows, MacOS, or Linux. Remotely control StellarMate via Wi-Fi, Local Area Network (LAN) or Wide Area Network (WAN). Ekos supports advanced functionality including mosaic planner and scheduler.

Using StellarMate Pro is simple. To get started right away:

1. Connect your equipment (Mount, Camera, DSLR, Focuser, Filter Wheel, etc) to StellarMate Pro via USB or Wi-Fi.
2. Power your equipment via connecting them to StellarMate Pro power ports.
3. Connect to StellarMate Pro from either your Mobile, Tablet, or Laptop/Desktop Computer.
4. Start controlling your setup and image from any major platform.

Product Specifications

• 4x 12VDC output.
• 2x dew heaters.
• 1x 3-9VDC variable voltage output.
• External GPS and Wi-Fi antennas
• 4x USB 3.0 & 2x USB 2.0 ports
• Auxiliary port for sensors and accessories.
• Stepper Controller.
• Anodized CNC aluminium case with M6 threads.
• Weight: 600g Net, 1200g Gross
• Dimensions: 165mm x 125mm x 35mm
• Accessories: XT-60 to DC Adapter, 50 & 100 cm 5.5x2.1 DC cable.

Flexible Control

StellarMate Pro Mounting

The feature rich companion StellarMate App provides many functionalities:

Highly accurate Polar Alignment for both GOTO and non-GOTO mounts. Achieve the perfect polar alignment!

Framing Assistant to automatically centre and rotate your field of view to match your desired orientation. What you see in the App is what you get in your camera.

Live stacking to get spectacular images. See the fine details pop out as you receive more frames and increase the signal-to-noise ratio.

Get pin-point stars with tried-and-tested focusing algorithms suited to both fast and slow focal ratios.

Explore a tailored list of targets suited for your current time and location. One-click goto to centre the target in your camera with sub-arcsecond accuracy.

Gallery viewer with rich metadata support. Find and sort your images or export to your mobile device and computer.

Get up-to-date weather and sky quality data including 3-hour cloud coverage.

Control your dome, dust cap, flat-field light sources, and many more auxiliary equipment with our extensive equipment support!

NEW Smart Deep-sky imaging camera from ZWO with Guiding, Imaging and Smart Control of mounts and accessories.

Main Camera Sensor

The main camera sensor is the popular Sony IMX571 featuring an APS-C format and 26MP total pixels. The size is 23.5mm in width x 15.7mm in height, and the diagonal is 28.3mm. The 3.76um x 3.76um small pixel size accommodates an impressive full depth of 50ke. With the new hardware technology, it is even extended to 73ke

Guide Camera Sensor

The SC2210 sensor taken from the ASI220MM Mini camera features very high sensitivity. The QE peak value reaches 92% at 500nm. The read noise is as low as 0.6e. As the new generation of guide sensor, it has achieved great results in guiding, proved by hundreds of astrophotographers.

Enjoy the Beauty of the Night Sky Anywhere. In the city, suburbs or under dark Aussie skies

Take the hassles out of your your Astrophotography Journey

The ASI2600MC Air combines guiding, imaging, and smart control into one compact, lightweight device. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

Easily Connect Multiple Devices

4x USB2.0, 3x DC12V 10A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount; DC 12V 10A input/output ports for reliable power; and USB Type-C port for fast file transfers—you can focus on capturing stunning images without worrying about connectivity issues.

Shoot with Confidence: Ample Storage and Stability

With a massive 256GB eMMC storage, the ASI2600MC Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs.

Dive into the Rich Details of the Celestial Targets

In expanded mode, the full well capacity of this camera reaches 73Ke, which is 1.46 times of that of the IMX571 sensor (51ke), making long-exposure shots less prone to overexposure. The large full well capacity and high dynamic range make capturing both light and dark areas with stunning clarity and detail possible. Witness the miracle details and colours of targets like never before!

Dual-Band Wi-Fi for a stable, solid connection

Experience unparalleled connectivity with our enhanced external dual-band antenna, supporting both 2.4G and 5G frequencies and offering stable and smooth usage within 20 metres.

Cross-Platform Device Control

Apart from from the ASIAIR App, ASI2600MC Air can also wirelessly connect to ZWO’s proprietary PC control software, ASIStudio, and also other 3rd-party PC software. 3rd-party software can be controlled through ASCOM extended protocol Alpaca (requires ASCOM Platform version V6.6 or higher).

Bluetooth Connection Supported

Nice and Neat Wiring with ZWO AM3/AM5 mounts

Get Fully Control of Your Entire Rig at Your Fingertips

With the ASIAIR smart app, you can easily control guiding, imaging, your mount, and electronic focuser—all from your phone. It supports multiple imaging modes, making it easy for even beginners to quickly learn and capture professional-quality images.

Instant Post-Processing and Sharing

Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.

Go Further With ZWO’s Self-Developed System

Powered by ZWO’s patented technologies, our system ensures stable astrophotography performance. Continuous App OTA updates keep your device up-to-date with the latest features, enhancing your user experience and expanding your capabilities.

QE value
Main Sensor

Guide Sensor

Dark Current

Power Consumption


IR-Cut coating for OSC camera

Frame Rate

Camera Specifications

Camera details

The best solution to achieve 55mm back focus length

Mechanical Diagram

What is in the box?
