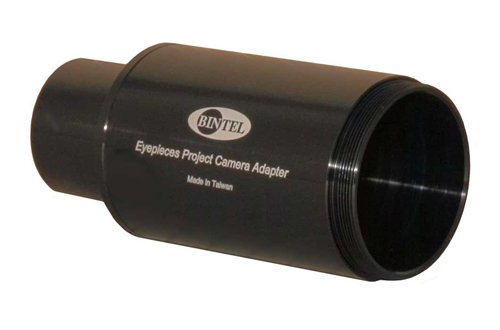

Bintel 1.25 Inch Eyepiece Projection Camera Adapter

Bintel Camera Adapter Features

The 1.25" Universal Camera Adapter allows you to attach a camera body to reflector and refractor telescopes for either prime-focus or eyepiece-projection photography.

This adapter is made up of two detachable parts:

• a prime-focus adapter (nose cone type t-adapter) for prime-focus photography
• a fixed-length extension tube for eyepiece-projection photography. A thumbscrew in the extension tube holds the telescope eyepiece in place.


Fits reflector and refractor telescopes with 1.25" telescope eyepiece holders.

The Bintel 1.25" Camera Adapter is precision made of black-anodized aluminum and is compatible with 1.25" telescope focusers and many 1.25" telescope eyepieces (some eyepieces have housing diameters that are too large to fit inside the adapter). The barrel of the adapter is threaded for filters.

With T-Threads on each end it can be used as a spacer on some scopes.

A T-ring for your specific camera model (sold separately) is required to couple your camera body to the universal adapter.
