This lightweight, compact, medium-payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 9 kg with a payload capability of 31 kg, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE69 makes this vision possible.
Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69 delivers unparalleled weight-to-payload efficiency. Its black anodized, all-metal CNC machined body is not only appealing to the eye but provides a rugged platform that will perform at the highest level for many years to come. A unique electronic friction brake allows the mount to stop safely during a planned or unplanned power interruption.
The HAE69C dual SWG Alt-az/Eq mount now includes an internal main board and no longer requires a handset. The mount has USB ports on both the base and the saddle that connect directly to the main board for mount control and firmware upgrades. It also features built-in Wi-Fi for easy connection. The optional 8411 Go2Nova® handset with OLED display provides an improved user experience, especially at extreme temperatures.
Features
- Advanced strain wave gear system technology
- Payload capacity of 31 kg (69 lbs) with a mount weight of 8.6 kg (19 lbs, including dovetail saddle)
- Periodic Error < ±15 arcsec
- CNC machined construction
- Unique friction brake to safely stop movement during planned or unplanned power interruptions
- 270-second gear period
- Go2Nova® handset with OLED display for improved user experience, especially in extreme temperatures (optional)
- iPolar electronic polar scope for easy and accurate polar alignment (optional)
- Dual saddle (Vixen and Losmandy-D styles)
- Built-in zero position search and locator
- Integrated ST-4 autoguiding port

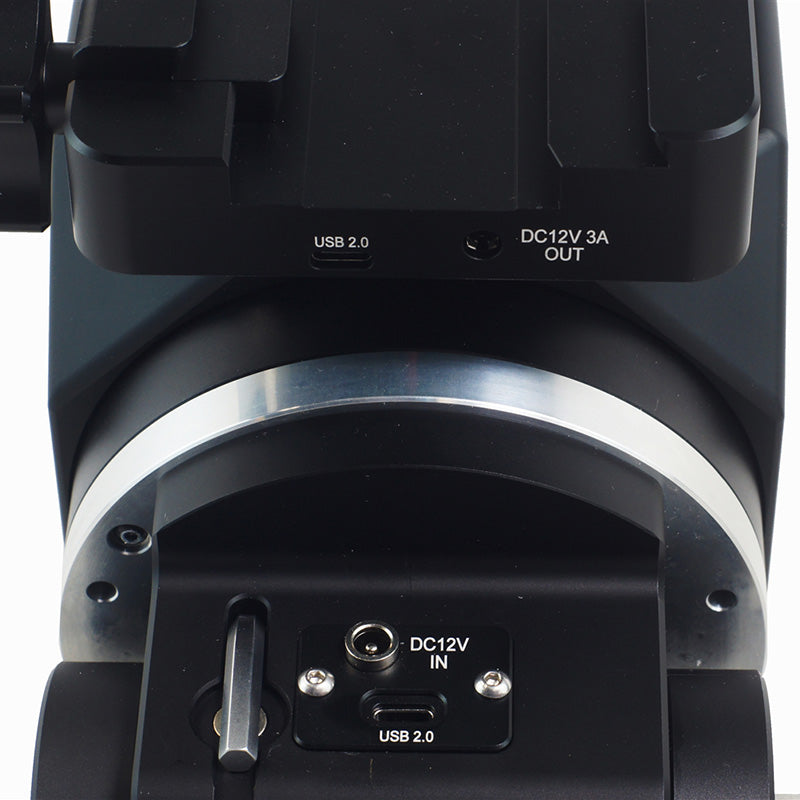

- USB ports (on both mount base and dovetail saddle) for firmware upgrades and computer control
- No cable drag
- Built-in Wi-Fi for mount control
- Aluminum carrying case
- Two-year warranty
