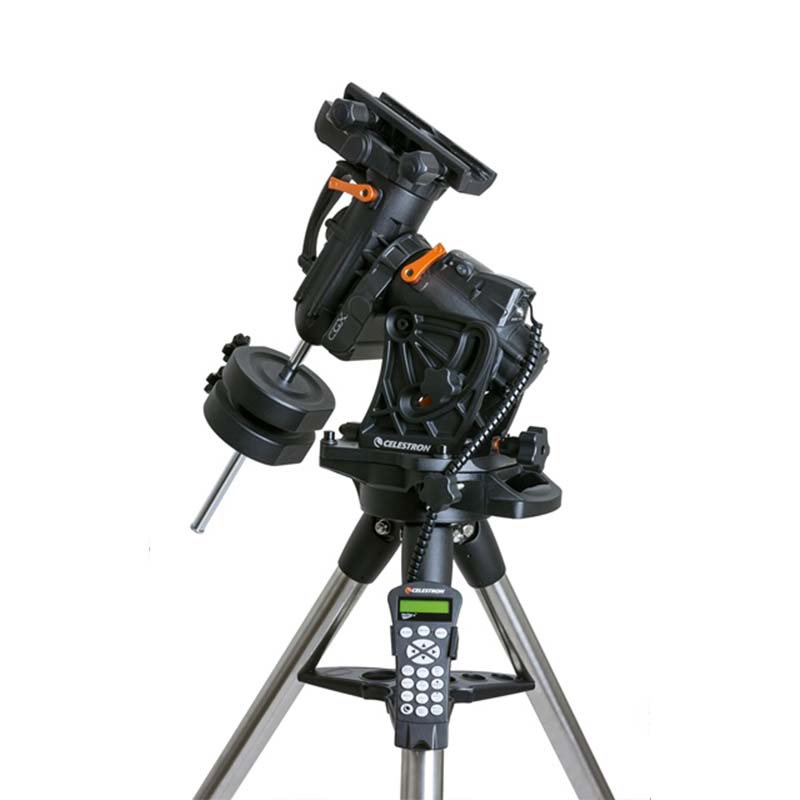

Celestron CGX German Equatorial Mount and Tripod
Introducing the Celestron CGX Mount. For eight years, Celestron’s workhorse CGEM mount lineup has been the German Equatorial backbone for telescopes ranging from 6 to 11 inches of aperture. Since that time, many more astro-imagers and planetarium controlled setups have emerged as backyard telescope technology has evolved. Celestron’s engineering team applied their years of experience designing German Equatorial mounts to the Celestron CGX EQ, a culmination of all the advancements made to our technologies, value, and ease-of-use.
The Celestron CGX was designed to better support your telescope for both visual and astro-imaging pursuits. Key design goals included a lower profile EQ head, which provides a more compact and therefore more stable setup; a better drive system; remote operation-friendly with home and limit optical sensors; easier polar alignment adjustments; and better cable management. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and transport. The CGX is Celestron's Equatorial backbone to support a wide range of telescopes.
Limited Giveaway Offer:
From the 20th of March 2023 until the 16th of April 2023, purchase this Celestron mount and receive a FREE Celestron StarSense Auto Align system with a suggested retail price of $1099
Click here for to claim your Celestron StarSense Auto Align system
Mount Features
The design has been developed to be sturdier and more rigid with quicker dampening time
Increased load capacity to 25kg (55lb)
Improved motors provide more torque, better slewing and tracking under heavy loads
Heavy Duty belt-drive system minimizes backlash while providing smooth motor operation under heavy loads
Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
Internal hard stops for both axes prevents cable tension and tripod strike
Internal optical sensors on both axes for simple and safe remote operation
Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
Control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging
Software includes multi-point mount modeling for extremely precise pointing accuracy and many more additional features for remote astroimaging
Wider tripod stance for improved stability
Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3º-65º latitude range
Dual-fit CG-5/Vixen and CGE/Losmandy dovetail saddle
Improved tripod includes:
2" steel legs with height index marks for quick leveling
"Jack of all trays" can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone, or other accessories
+20º of additional tracking past the meridian on either side
Tripod legs can be collapsed with accessory tray installed for faster setup and transport
Improved ergonomics:
Two handles for easy pickup and transport
Ergonomically designed dovetail clamping knobs
Innovative and improved polar alignment adjustment system
Ergonomic latitude adjuster for smooth and easy adjustment under full loads
Optional add-on polar axis finderscope - coming soon
Electronics
NexStar+ hand control with USB port
Two AUX accessory ports to support wireless/WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi Module accessories (sold separately)
USB 2.0 port, used to connect directly to PC with included software
Autoguider port
PPEC ready
Threaded 12VDC power input barrel connector
Internal Real Time Clock (keeps time and site information saved)
Celestron CGX German Equatorial Mount and Tripod Specifications
| Mount | German Equatorial |
|---|---|
| Instrument load capacity | 25kg (55lb) |
| Tripod height adjustment range | 120cm to 197cm including EQ head |
| Tripod leg diameter | 50mm (2") |
| Latitude adjustment range | 3º-65º |
| Tripod Weight | 8kg |
| EQ Head Weight | 20kg |
| Max Slew Speed | 5º/second (4º/second is default) |
| Tracking Rates | Sidereal, Solar and Lunar |
| Number of Auxiliary ports (for hand control and accessories) | 2 |
| Autoguide port | Yes |
| USB Port | Yes |
| Software | Telescope control PC software |
| Included Items | |
| CGX Equatorial Head | |
| CGX Tripod | |
| Accessory Tray | |
| 2 x 11 lbs counterweight | |
| NexStar+ Hand Control | |
| DC Power Cable (plugs into cigarette lighter socket) |
Download the Celestron PWI Software for PC control of the Celestron CGX Mount here
