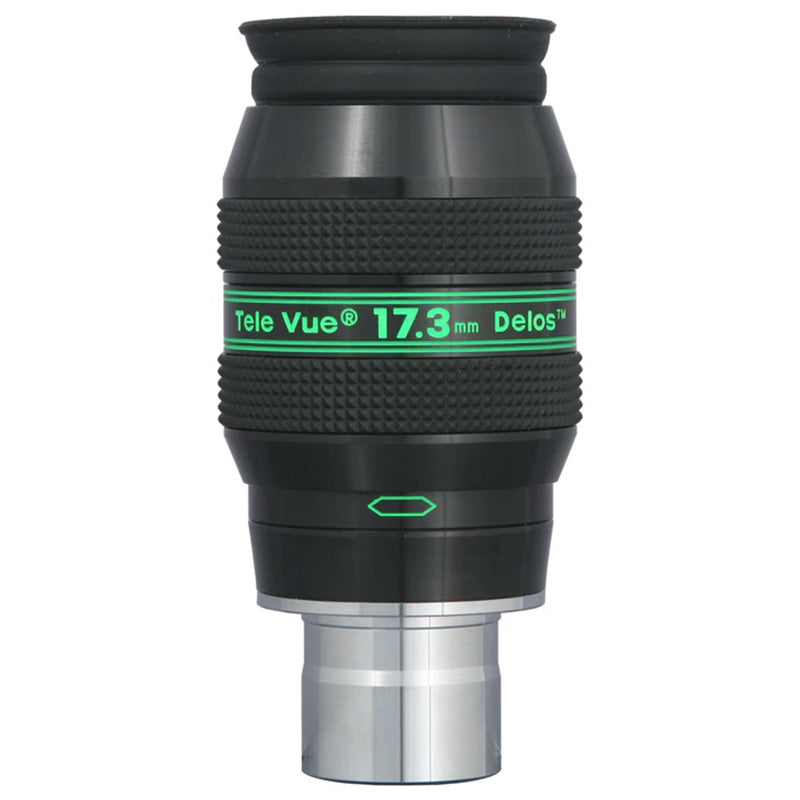

Tele Vue Delos 17.3mm Eyepiece

SKU: EDL-173
Barcode: 759270089054

$850.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Delos 17.3mm Eyepiece

$850.00

$850.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

A lower-power Delos with room to frame a cluster

17.3 mmFocal length

About 69× in a 1,200 mm telescope

The Tele Vue Delos 17.3mm gives a lower-power overview before you switch to the 14mm or 12mm for detail.

72°Apparent field

A 21.2 mm field stop

The 72° apparent field gives a wide view at the eye. In a 1,200 mm telescope, the field stop gives about 1.01° of sky.

20 mmEye relief

20 mm of eye relief

The eyeguard adjusts to your viewing position. Start with it lowered if you observe in glasses.

Compare the 17.3mm, 14mm and 12mm Delos

17.3mm Delos Selected model
  • Apparent field72°
  • Field stop21.2 mm
  • Eye relief20 mm
14mm Delos
  • Apparent field72°
  • Field stop17.3 mm
  • Eye relief20 mm
12mm Delos
  • Apparent field72°
  • Field stop15 mm
  • Eye relief20 mm

Set and lock the eyeguard height

Slide the housing to set your viewing distance. Use the green mark to find the same height again after lowering it for glasses.

Tele Vue eyeguard instructions (PDF)

Tele Vue Delos 17.3mm Eyepiece in profile showing the upper and lower eyeguard grips

What it fits

Eyepiece holder
Seat it directly in a 1.25-inch focuser or diagonal, or use a separate 2-to-1.25-inch reducer in a 2-inch holder.
Filters
1.25-inch eyepiece filters
Optional DIOPTRX
The Tele Vue DIOPTRX astigmatism corrector fits directly.
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.
Inward focus
This model needs more inward focus travel than shorter Delos eyepieces such as the 12mm. The optional AIT-2125 seats it lower in a 2-inch holder. For the documented Paracorr Type 2 setup, see the Tele Vue AIT-2125 setup instructions (PDF).

Specifications

Optics

Focal length
17.3 mm
Apparent field of view
72°
Eye relief
20 mm
Field stop diameter
21.2 mm
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
1.25-inch eyepiece filters
Tele Vue Bino Vue
Listed for matched-pair use
Tele Vue DIOPTRX
Fits directly (optional accessory)
Tele Vue FoneMate
Compatible (optional accessory)

Fit and dimensions

Barrel diameter
1.25 inches
Eyepiece weight
Approx. 408 g
Height above seating shoulder
3.1 in
1.25-inch barrel length
1.1 in
Black body diameter
2.2 in
Field stop position
Approx. 0.23 in above seating shoulder
Parfocal group
D
Manufacturer model code
EDL-17.3
