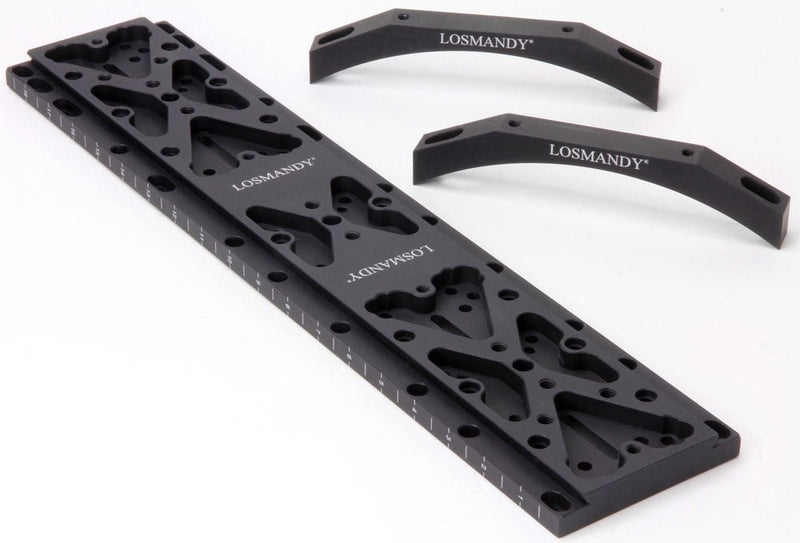

Losmandy DM12 Dovetail Plate - Meade 12 Inch
The Dovetail Plates are the heart of the Losmandy Secondary System. 12mm thick x 102mmwide x 480mm length
Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment.
The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.
Meade dovetail plate for 12", bolts to existing holes using supplied Radius Blocks and stainless hardware
Weight: 3.5 lbs.
Length: 18.925"
Hole Separation 18.175,
Ht. top of tube to top of dovetail bar 1.20"
Thickness .7"
Part#:- DM12
