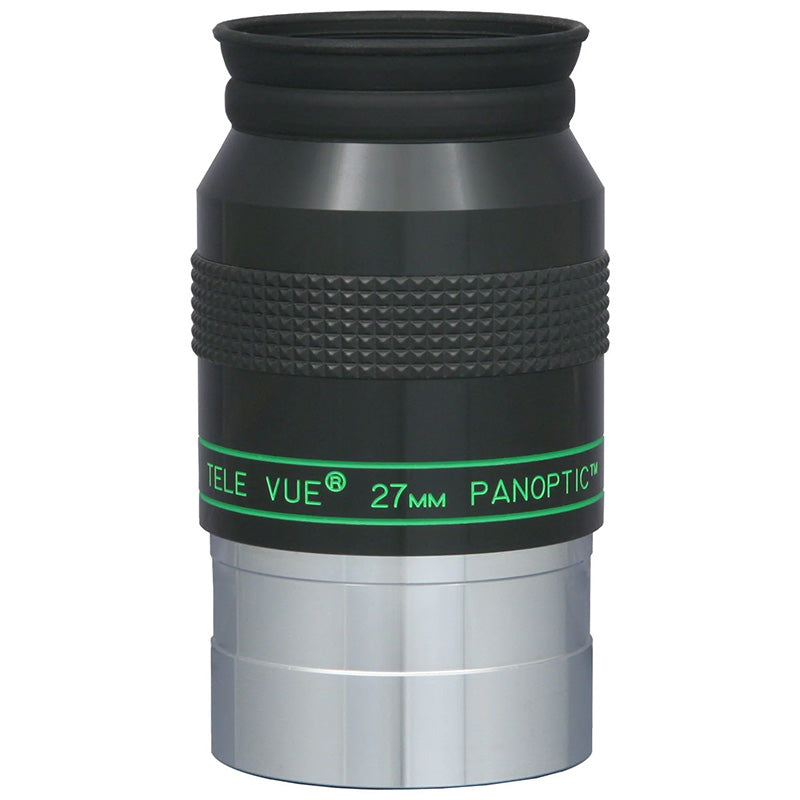

Tele Vue Panoptic 27mm Eyepiece

SKU: EPO-270
Barcode: 759270083380

$840.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Panoptic 27mm Eyepiece

$840.00

$840.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

A wide low-power view in a 2-inch barrel

27 mmFocal length

More power than the 35mm Panoptic

The Tele Vue 27mm Panoptic gives about 44× in a 1,200 mm telescope. It’s a low-power option for framing open clusters or finding a target before switching to a shorter eyepiece.

68°Apparent field

A 30.5 mm field stop

The 68° apparent field describes how wide the view looks. The 30.5 mm field stop covers about 1.46° of sky in a 1,200 mm telescope.

19 mmEye relief

19 mm of eye relief

That working distance gives you room to position your eye, including when observing with glasses.

Compare low-power Panoptic focal lengths

24mm Panoptic
  • Apparent field68°
  • Field stop27 mm
  • Eye relief15 mm
27mm Panoptic Selected model
  • Apparent field68°
  • Field stop30.5 mm
  • Eye relief19 mm
35mm Panoptic
  • Apparent field68°
  • Field stop38.7 mm
  • Eye relief24 mm

What it fits

Eyepiece holder
Seat it directly in a 2-inch focuser or diagonal. The 27mm is smaller and lighter than the 35mm Panoptic.
Filters
2-inch eyepiece filters
Optional DIOPTRX
The Tele Vue DIOPTRX astigmatism corrector fits directly.
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.

Specifications

Optics

Focal length
27 mm
Apparent field of view
68°
Eye relief
19 mm
Field stop diameter
30.5 mm
Optical elements / groups
6 / 4
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
2-inch eyepiece filters
Tele Vue DIOPTRX
Fits directly (optional accessory)

Fit and dimensions

Barrel diameter
2 inches
Eyepiece weight
Approx. 465 g
Height above seating shoulder
2.4 in
2-inch barrel length
1.2 in
Black body diameter
2.1 in
Field stop position
Approx. 0.29 in below seating shoulder
Parfocal group
A
Manufacturer model code
EPO-27.0
