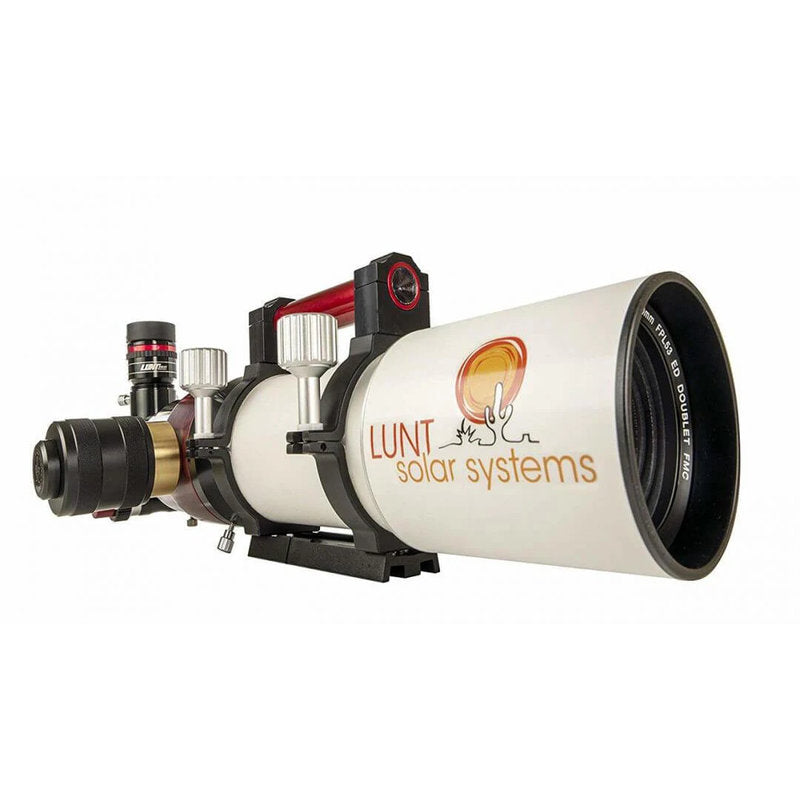

Lunt 80mm Universal Solar Telescope

The New Lunt 80 mm Universal Telescope is a powerhouse modular telescope, taking one of Lunt Solar Systems most popular sized telescopes and making it even more functional! At 80mm Aperture, with a FPL53 Doublet Lens, the 80 mm Universal Telescope is a precision aligned ED refractor that is made to impress whether you are chasing the Sun’s active regions or sifting through the stars of the milky way.

In Hydrogen Alpha configuration single stack mode, the 80 mm Universal Telescope provides excellent viewing prowess at <.65 Å bandpass with Lunt’s renowned Doppler True Tuning (pressure tuned) system. But don't sleep on its capabilities simply because the Sun goes down!

And after sunset, let the stars and planets shine! Conversion from hydrogen alpha mode has never been easier: Remove the hydrogen alpha module (and attached pressure tuner) from your telescope optical tube assembly (OTA), and replace with the focuser of your choice.

Note: No eyepiece included.

Blocking Filter Choice

You must select either a B1200 or B1800 Blocking Filter for your H‑α system:

• B1200 Filter: Normally sufficient for visual observing, giving excellent contrast and detail.

• B1800 Filter: Recommended for imaging or extreme wide-angle eyepieces, as the larger field of view helps avoid vignetting.

Specifications:

• Telescope Type: Universal Day and Night
• Aperture: 80 mm
• Objective Type: Professional Grade ED Doublet
• Objective Material: FLP53
• Objective Coating: Ion Assist Broadband AR
• Focal Ratio: F/7
• Focal Length: 560 mm
• Mounting: CNC Mounting Rings and Vixen Style Dovetail
• Storage: Aluminum Finished Hard Case with Fitted Foam
• H-alpha Etalon Type: Modular
• Etalon Wavelength: 656.28 nm
• Etalon Bandpass: <0.65 Å Single Stack, <0.45 Å Double Stack
• Etalon Material: UV Grade Fused Silica
• Telescope Weight: 4kg
• Etalon Tuning: Doppler True Barometric Pressure Tuning
• Doppler Shifting: Instant
• Blocking Filter Size: 12 mm, 18 mm, Diagonal and Straight Through
• Blocking Filter Bandpass: 6 Å
• Sun Finder: Red Dot Sun Finder Handle
• Filter Wavelength: 393.4 nm
• Filter Bandpass: 2.2 Å
• Filter Bandpass: Broadband White Light. AR/UV Blocking
• Lunar, Planetary, Deep Space, Terrestrial: Converts to a conventional professional grade APO for all your nighttime requirements. See optional equipment for additional specifications.
• Theoretical max magnification: 140 x
