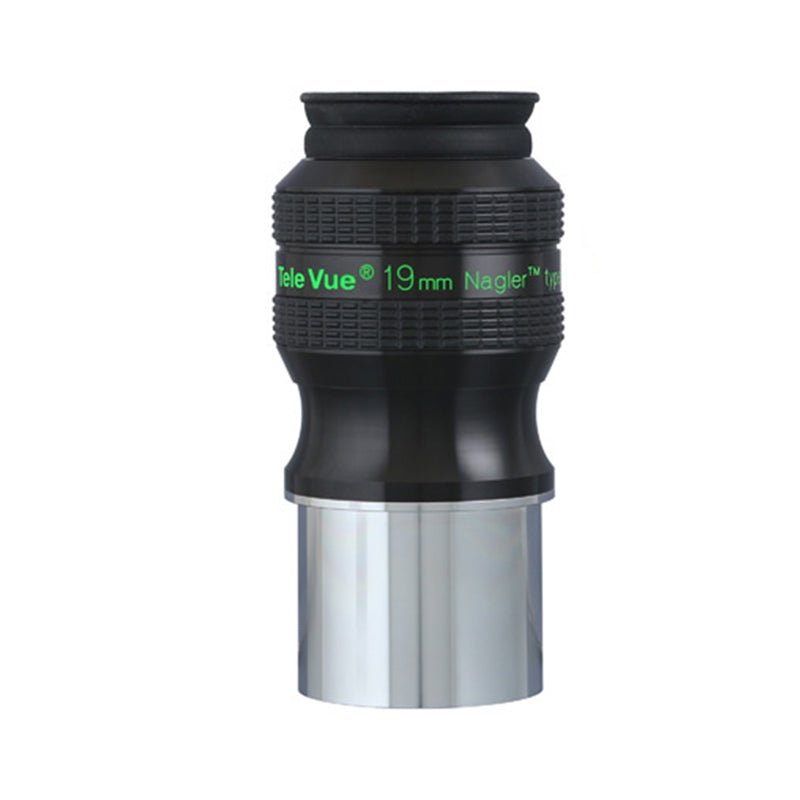

Tele Vue Nagler 19mm Type 7 Eyepiece

SKU: EN7-19.0
Barcode: 0799787268085

$1,310.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Nagler 19mm Type 7 Eyepiece

$1,310.00

$1,310.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

The widest true field in the Nagler Type 7 range

19 mmFocal length

Frame open clusters at about 63×

The Tele Vue Nagler 19mm Type 7 gives about 63× in a 1,200 mm telescope. Use it to see an open cluster and some of the surrounding star field.

82°Apparent field

About 1.29° of sky at 1,200 mm

The 27.1 mm field stop covers more sky than the 14mm Type 7 in the same telescope. The view looks 82° wide at the eye.

19 mmEye relief

Room for glasses

The 19 mm eye relief gives room for glasses. Set the locking eyeguard to suit your viewing position.

Compare the sky covered by the 9mm, 14mm and 19mm Type 7

In the same telescope, the wider field stop shows more sky around a target.

9mm Nagler Type 7
13 mm
14mm Nagler Type 7
20.5 mm
19mm Nagler Type 7
27.1 mm

Field stop diameter on a common 0–27.1 mm scale. True field depends on telescope focal length.

3.8 mm
Exit pupil at f/5

What the 19mm does at f/5

Divide the eyepiece focal length by the telescope’s focal ratio to find the width of the beam at your eye. With the same eyepiece in an f/10 telescope, the beam is 1.9 mm wide.

Good to know

Swap Type 7s in 2-inch mode

The Type 7 focal lengths are approximately parfocal in 2-inch mode, so swaps typically need little refocusing.

Match focus with a Hi-Hat adapter

Tele Vue specifies the optional ASF-8125 Hi-Hat when mixing 2-inch Type 7s with compatible 1.25-inch eyepieces. Seat each eyepiece fully.

Keep the fixed chrome barrel attached

Leave the fixed chrome barrel in place to keep dust and dirt out of the eyepiece.

What it fits

Eyepiece holder
Seat it directly in a 2-inch focuser or diagonal.
Filters
2-inch eyepiece filters
Optional DIOPTRX
Fits directly (optional accessory).
Eyeguard
Start with the housing lowered for glasses. Without glasses, slide it until you see the full field. Lock the housing with the lower grip ring and use the green marks to find that height again.
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.

Specifications

Optics

Focal length
19 mm
Apparent field of view
82°
Eye relief
19 mm
Field stop diameter
27.1 mm
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
2-inch eyepiece filters
Tele Vue DIOPTRX
Fits directly (optional accessory)
Tele Vue FoneMate
Compatible (optional accessory)

Fit and dimensions

Barrel diameter
2 inches
Eyepiece weight
Approx. 581 g
Height above seating shoulder
3 in
2-inch barrel length
1.6 in
Black body diameter
2.4 in
Field stop position
Approx. 0.41 in above seating shoulder
Parfocal group
B
Manufacturer model code
EN7-19.0
