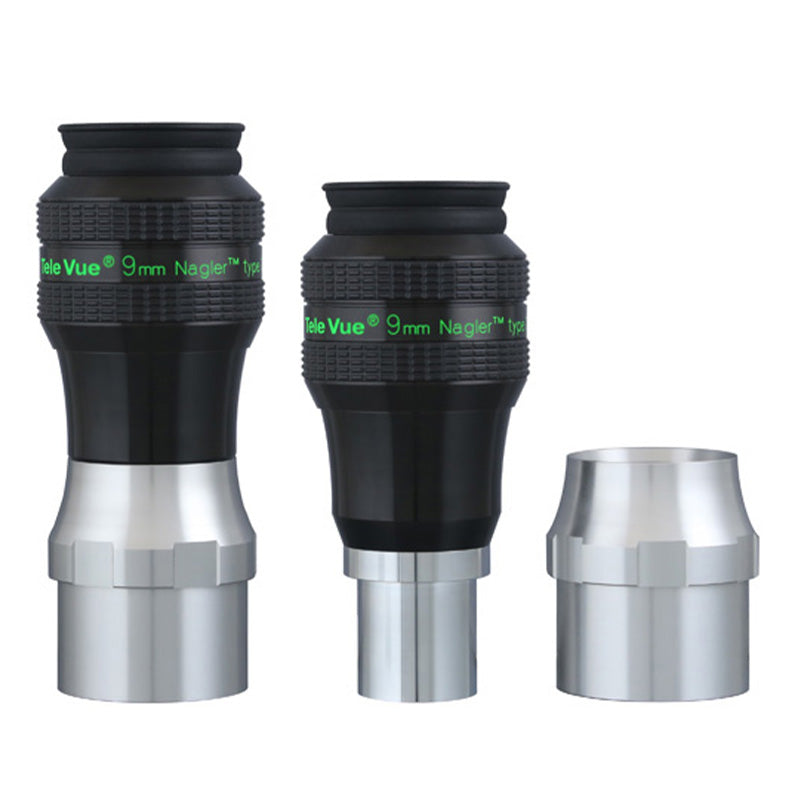

Tele Vue Nagler 9mm Type 7 Eyepiece

SKU: EN7-09.0
Barcode: 0799787267514

$1,310.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Nagler 9mm Type 7 Eyepiece

$1,310.00

$1,310.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

An 82° view with 19 mm eye relief and two mounting options

9 mmFocal length

About 133× in a 1,200 mm telescope

The Tele Vue Nagler 9mm Type 7 gives a closer look at lunar features or compact clusters than the 14mm in the same telescope.

82°Apparent field

About 0.62° of sky at 1,200 mm

The 13 mm field stop determines how much sky you see. The apparent field stays at 82° with either barrel configuration.

19 mmEye relief

Room to keep your glasses on

Use the adjustable eyeguard to set a comfortable eye position. The 19 mm eye relief gives room for glasses.

Compare the 14mm, 9mm and 5.5mm Type 7

14mm Nagler Type 7
  • Apparent field82°
  • Field stop20.5 mm
  • Eye relief19 mm
9mm Nagler Type 7 Selected model
  • Apparent field82°
  • Field stop13 mm
  • Eye relief19 mm
5.5mm Nagler Type 7
  • Apparent field82°
  • Field stop8.1 mm
  • Eye relief19 mm

Fit the removable 2-inch adapter

Thread the adapter on until it is snug. Overtightening can loosen the native 1.25-inch barrel.

Tele Vue Nagler 9mm Type 7 instructions (PDF)

Tele Vue Nagler 9mm Type 7 Eyepiece with the 2-inch adapter below the barrel and arrows showing how it threads on

Good to know

Swap Type 7s in 2-inch mode

The Type 7 focal lengths are approximately parfocal in 2-inch mode, so swaps typically need little refocusing.

Match focus with a Hi-Hat adapter

Tele Vue specifies the optional ASF-8125 Hi-Hat when mixing 2-inch Type 7s with compatible 1.25-inch eyepieces. Seat each eyepiece fully.

Keep the fixed chrome barrel attached

Leave the fixed chrome barrel in place to keep dust and dirt out of the eyepiece.

What it fits

Eyepiece holder
Use the native 1.25-inch barrel or the supplied removable adapter for a 2-inch holder. Both configurations give the same field of view.
Filters
1.25-inch on the native barrel. 2-inch (48 mm) on the removable adapter.
Optional DIOPTRX
Fits directly (optional accessory).
Eyeguard
Start with the housing lowered for glasses. Without glasses, slide it until you see the full field. Lock the housing with the lower grip ring and use the green marks to find that height again.
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.

Specifications

Optics

Focal length
9 mm
Apparent field of view
82°
Eye relief
19 mm
Field stop diameter
13 mm
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
1.25-inch on the native barrel. 2-inch (48 mm) on the removable adapter.
Tele Vue Bino Vue
Listed for matched-pair use
Tele Vue DIOPTRX
Fits directly (optional accessory)
Tele Vue FoneMate
Compatible (optional accessory)

Fit and dimensions

Barrel diameter
1.25 inches and 2 inches
Eyepiece weight
Approx. 547 g
Height above seating shoulder
3.8 in
1.25-inch barrel length
1.3 in
Black body diameter
2.4 in
Field stop position
Approx. 0.25 in below 2-inch shoulder
Manufacturer model code
EN7-09.0
