Pegasus Astro

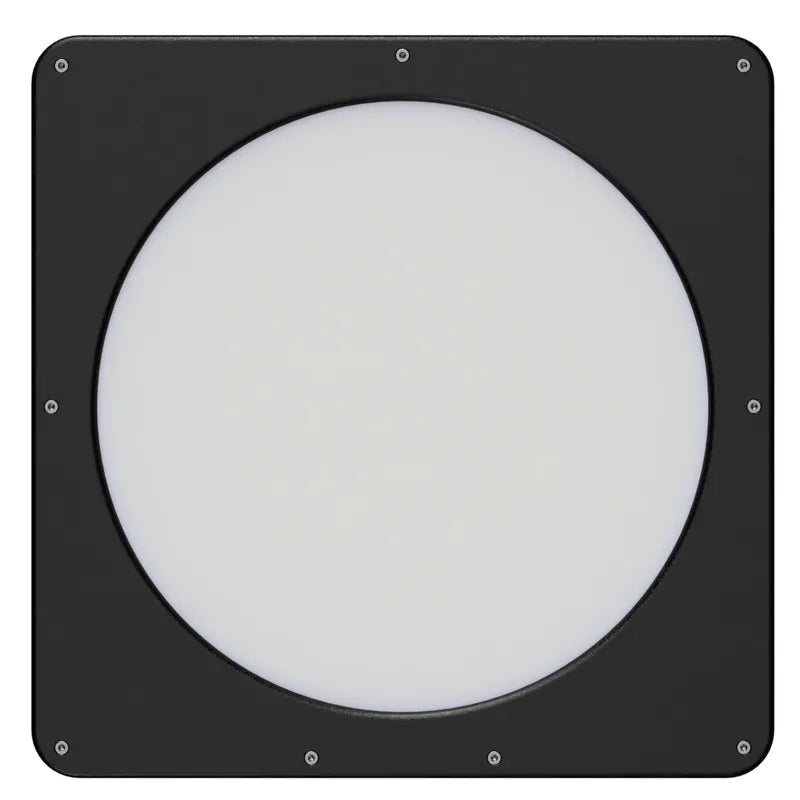

Pegasus Astro FlatMaster L Wi-Fi LED Flat-Field Panel
$506.00
What the numbers mean
Choose the lit area, then choose the brightness.
150 mm5.9-inch circle
For telescopes up to 6 inches.
The 150L's documented usable illuminated circle is 150 mm, not five inches.
250 mm10-inch circle
For telescopes up to 10 inches.
The larger panel keeps a full 250 mm usable illuminated circle.
0-100%dimming
Tune the panel to the optical train.
The full brightness range supports both low-output work on fast telescopes and brighter narrowband calibration.
1 cableUSB Type-B
Power and control share one lead.
Use USB for both, while 2.4 GHz Wi-Fi can provide browser control in access-point or client mode.
Choose a size
The same controls. Two illuminated diameters.
Specification
150 mm
250 mm
Telescope size
Up to 6 inches
Up to 10 inches
Usable illuminated circle
150 mm / 5.9 inch
250 mm / 10 inch
Net weight
350 g
840 g
Housing
Black ABS, 8 mm thick
Black ABS, 8 mm thick
Extra included hardware
Four stand-offs (one spare), carry bag
No stand-offs or carry bag listed
Both panel sizes
See the footprint before choosing.
Control it your way
USB and Wi-Fi can work together.
A single USB Type-B cable supplies power and control. The panel can remain connected over USB while the built-in dashboard is available through 2.4 GHz Wi-Fi.
- Browser dashboardPower and brightness
- AutomationASCOM Alpaca, classic ASCOM and INDI
The built-in web dashboard provides on/off and brightness control.
Choose by aperture and software.
150L
Telescopes up to 6 inches. Provides a 150 mm usable illuminated circle.
250L
Telescopes up to 10 inches. Provides a 250 mm usable illuminated circle.
Automation
ASCOM Alpaca, classic ASCOM and INDI. The supported protocols apply to both panel sizes.
Included by size
What is in the box.
150L: panel1
150L: 1.8 m USB cable, four stand-offs (one spare), carry bagincluded
250L: panel and 1.8 m USB cableincluded
Good to know.
Aim for flats of at least one second.
Pegasus warns that exposures shorter than about 0.5 seconds can create line banding. Follow the flat-frame setup guide.
The range covers fast optics and narrowband work.
Low output suits very fast telescopes, while Pegasus documents around 2-3 seconds at f/7 through 3 nm narrowband filters.
Manufacturer warranty
Two years through Pegasus Astro.
Covered issues are repaired during the documented warranty period, subject to the manufacturer's exclusions.
What is coveredFree repair for an issue covered by the manufacturer warranty during the two-year period.
Important exclusionsAbuse, misuse, accidental falls and other post-purchase incidents are excluded.
How to claim in AustraliaContact the original dealer or follow the Pegasus service process.
Technical
Specifications.
Panels
150L usable circle
150 mm / 5.9 inch; telescopes up to 6 inches
250L usable circle
250 mm / 10 inch; telescopes up to 10 inches
Net weight
150L: 350 g; 250L: 840 g
Housing
Black ABS, 8 mm thick
Control
Brightness
0-100%; five manual levels
Wired
USB Type-B for power and control
Wireless
2.4 GHz access-point or client mode
Protocols
ASCOM Alpaca, classic ASCOM and INDI
Power
Requirement
5 V DC over USB, 500 mA maximum
Store locator
