Pegasus Astro FocusCube Zero for Celestron SCT

Pegasus Astro FocusCube Zero for Celestron SCT

SKU: PEG-FCZERO-SCT68925
Barcode: 5213018050904

$657.00

Telescope: C6 / C8 / C9.25 / EdgeHD / RASA 8
  • C6 / C8 / C9.25 / EdgeHD / RASA 8
  • C11 / EdgeHD / RASA 11 v2
  • C14 / EdgeHD / RASA 14
Available to order
Delivery time: Contact us for estimated delivery time

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.
Pegasus Astro FocusCube Zero for Celestron SCT

$657.00

$657.00

Choose option
Telescope: C6 / C8 / C9.25 / EdgeHD / RASA 8
  • C6 / C8 / C9.25 / EdgeHD / RASA 8
  • C11 / EdgeHD / RASA 11 v2
  • C14 / EdgeHD / RASA 14
Image alt

Same day shipping

If you order before 2pm we will ship your items same day.
Image alt

Expert aftersales support

We fully support our products!
Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties
Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

Standalone SCT focusing

Motor and controller are already in the same enclosure.

Without

A manual focus knob stays at the telescope

  • Focus changes are made at the optical tube
  • No computer-controlled absolute position
  • Temperature changes are not available to focusing software
With

FocusCube Zero handles motor and control together

  • Embedded stepper motor
  • USB connection for computer control
  • Temperature sensor included by the manufacturer

FocusCube Zero is a standalone focuser. Do not connect it to another motor controller or a Powerbox RJ45 stepper output.

A compact controller built around the SCT focus shaft.

The motor, controller and telescope bracket form one 280 g assembly. Power is 12–13.8 V DC and computer control uses USB 2.0 Type-B.

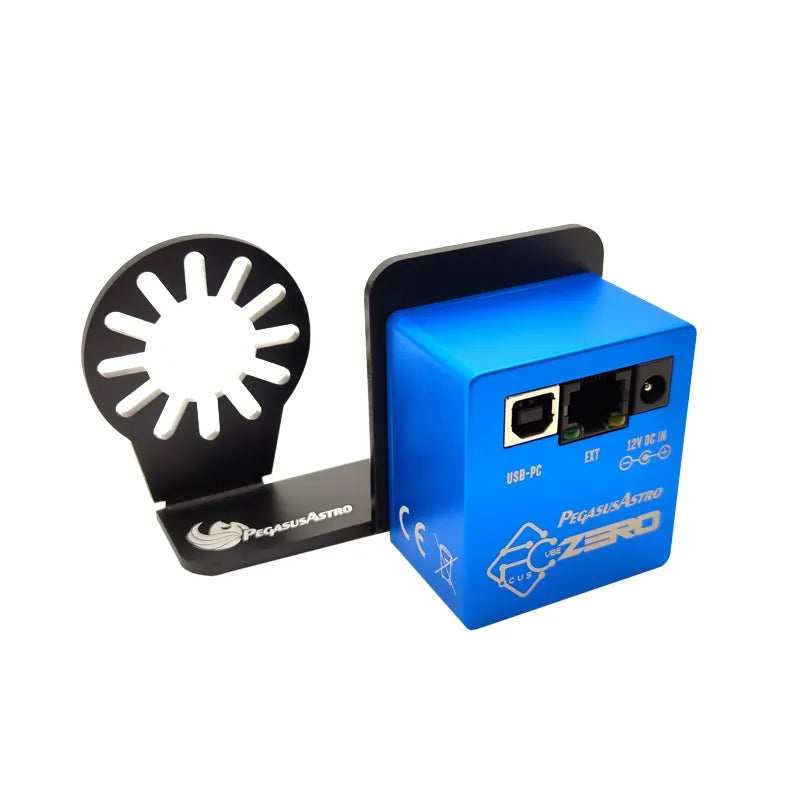

Pegasus Astro FocusCube Zero motor controller with SCT bracket and pulley

Choose by the telescope or motor you own.

C6 / C8 / C9.25 and RASA 8
Choose PEG-FCZERO-SCT68925. Classic and EdgeHD models are listed.
C11 and RASA 11 v2
Choose PEG-FCZERO-SCT11. RASA 11 v1 needs the Celestron retrofit kit.
C14 and RASA 14
Choose PEG-FCZERO-SCT14. Classic and EdgeHD models are listed.
Older SCT designs
Confirm the focuser bracket shape first. Pegasus Astro notes that some older series are not compatible.

Choose a version

The enclosure is shared. The pulley and hardware match the telescope.

Specification
6 / 8 / 9.25
11
14
SKU
PEG-FCZERO-SCT68925
PEG-FCZERO-SCT11
PEG-FCZERO-SCT14
RASA support
RASA 8
RASA 11 v2
RASA 14

Good to know.

01

Do not add another controller

The controller is already built in. Do not connect the RJ45 port to a Dual Motor Focus Controller or Powerbox stepper output.

02

Check older SCT focusers

Some older SCT series may not accept the bracket. Confirm the focus-knob arrangement before ordering.

Technical

Specifications.

Product
Controller
Embedded; standalone device
Telescope variants
C6/8/9.25 and RASA 8; C11 and RASA 11 v2; C14 and RASA 14
Enclosure / fitted weight
52 x 58 x 35 mm / 280 g including bracket
Power and USB
12–13.8 V DC; 2.1 mm centre-positive; USB 2.0 Type-B
