Put the target where you expect it.
The camera plate-solves near the selected object, then commands a fine correction to place it near the centre of the eyepiece or camera field.
Skeleton text
Skeleton text
Skeleton text
Skeleton text
Skeleton text
Skeleton text
Skeleton text
Celestron
Celestron StarSense AutoAlign V2
$1,099.00
Automatic telescope alignment
Less time aligning. More time observing.
StarSense AutoAlign V2 captures the sky, plate-solves each star field, and builds an alignment model for a compatible Celestron computerised telescope in minutes.
Onboard plate solving
Precise GoTo
NexStar+ and CPWI
USB-C
A connected system
Alignment is only the beginning.
The same camera and onboard computer can build the alignment model, refine a GoTo, and support the control method that suits the night.
Let the camera build the pointing model.
StarSense captures and plate-solves star fields, then uses those solved positions to align a compatible Celestron computerised telescope.
Hand control, PC, or supported mobile.
Operate through NexStar+, Celestron CPWI, or SkyPortal when the required compatible communication hardware is present.
See what the camera sees.
A direct PC connection supports CPWI, live camera view, diagnostics, log retrieval, and firmware updates. The USB cable is user supplied.
Physical setup
Two supplied mounting paths.
Choose the bracket that matches the telescope, then connect the supplied cable to a compatible AUX port on the mount.

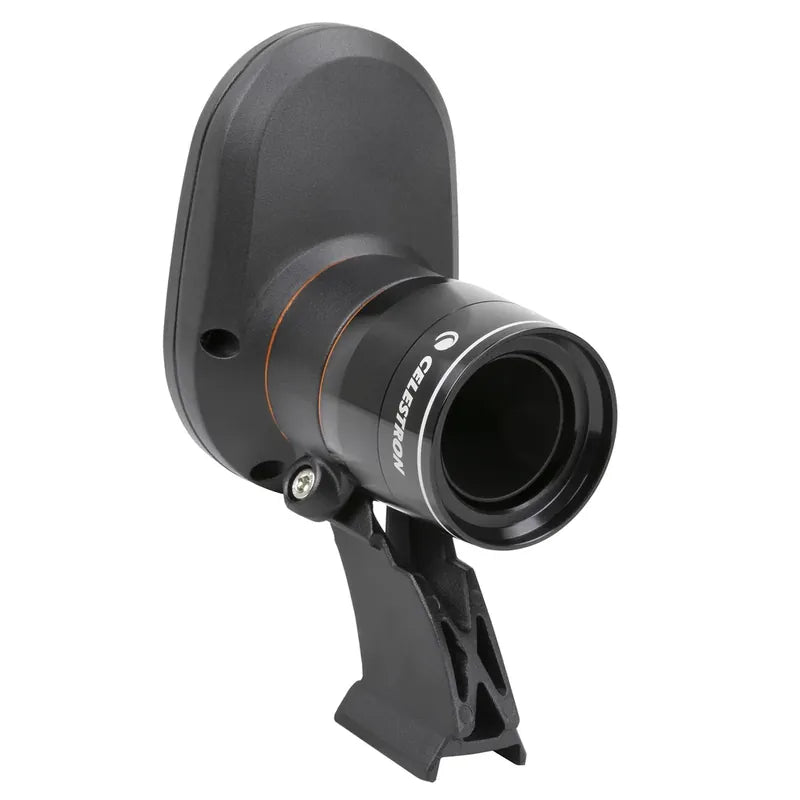

- The small bracket fits a standard finderscope base.

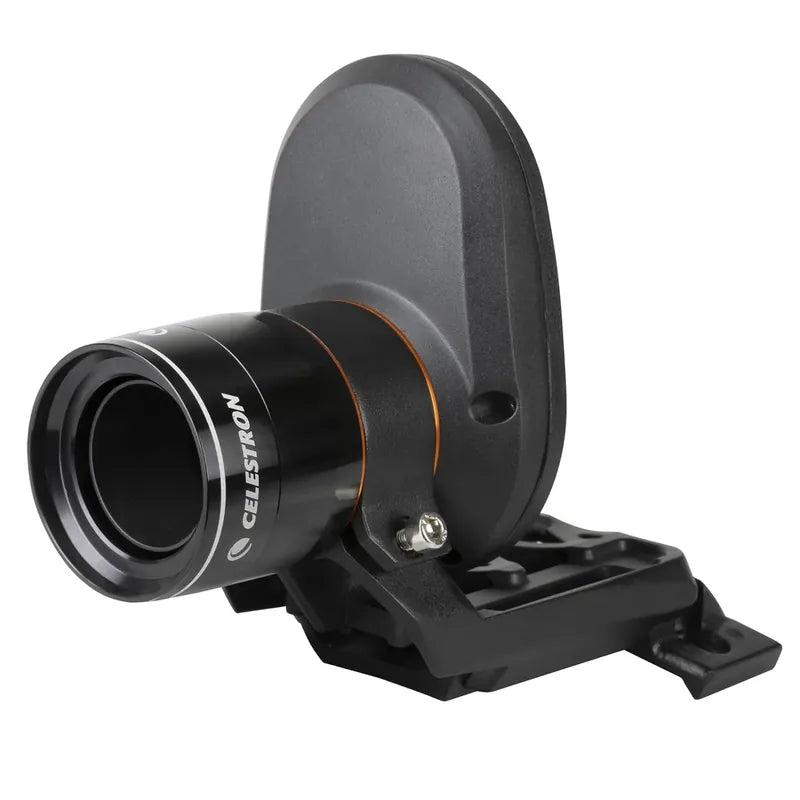

- The large bracket suits 5-inch and larger Schmidt-Cassegrain, EdgeHD, and RASA telescopes.
- Some smaller telescopes without a standard finderscope base need a third-party base.
- Use AUX, never an ST-4 autoguider port. Add a Celestron AUX Port Splitter if every compatible AUX socket is occupied.
Compatibility
Check your mount before you choose.
StarSense AutoAlign V2 is not a universal accessory. Use the exact mount list below before purchasing.
Compatible mounts
- Advanced VX
- CGX-L
- CPC and CPC DX
- NexStar Evolution
- NexStar 6SE and 8SE
- CGEM II
- CGX
- CGEM and CGEM DX
- CGE Pro
Not compatible
- NexStar SLT
- Astro Fi
- SkyProdigy
- LCM
- NexStar 4SE and 5SE
- Advanced CG-5 GT
Hand control note: first-generation StarSense hand controls are not compatible. Use a NexStar+ hand control.
Real observing workflows
Useful beyond the first alignment.
Visual observing
Automate the initial alignment, then use Precise GoTo when a faint or compact target needs a finer final correction.
Imaging setup
Use CPWI control and the live camera view over a user-supplied USB cable to inspect the camera field and diagnose alignment behaviour.
Flexible control
Choose NexStar+ at the telescope, CPWI at a computer, or SkyPortal when the required compatible communication hardware is present.

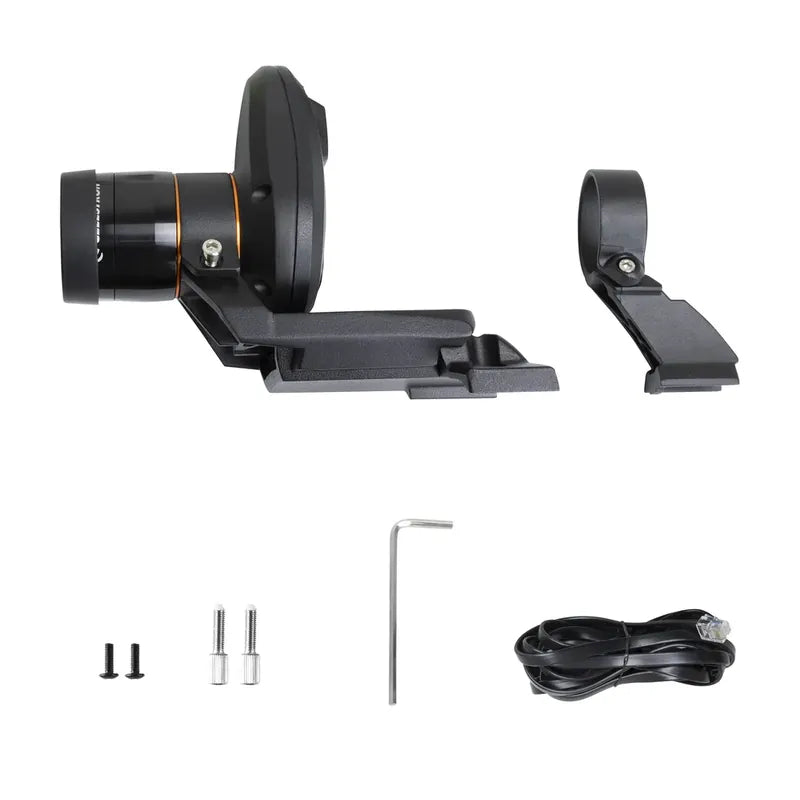

Verified package contents
What arrives in the box.
- StarSense AutoAlign V2 with cover cap
- Preinstalled large bracket
- Large bracket base
- Small bracket
- AUX cable
- Two Phillips-head screws
- Two bracket-base thumbscrews
- Hex key
Before first light
Good to know.
Protect eyes and equipment
Never point StarSense AutoAlign V2 or the telescope towards the Sun. The system cannot perform a daytime alignment.
Allow for difficult sky conditions
The bright Moon or haze can stop plate solving near the affected part of the sky. Use a clear field away from the glare.
Bring the right cable
A USB Type-A to USB-C cable is not supplied. It is required for a direct PC connection, live view, logs, and firmware maintenance.
Connect only to AUX
Do not connect the supplied AUX cable to an ST-4 autoguider port. The specified operating range is -5°C to 40°C.
2year limited warranty
Manufacturer warranty
Support through the selling dealer.
Celestron's two-year limited warranty covers defects in materials and workmanship from the original retail purchase. It excludes modification, abuse or misuse, physical damage, unauthorised repair, and normal wear.
For an Australian product purchased from Bintel, contact Bintel with proof of purchase so we can help with the authorised dealer route. Your rights under Australian Consumer Law remain unaffected.
Technical reference
Specifications
Identity and optics
- Manufacturer part number
- 94034
- Lens design
- Air-spaced doublet
- Aperture
- 20 mm
- Focal length
- 40 mm
- Focal ratio
- f/2
- Optical elements
- 2
- Optical coatings
- Fully multi-coated
Sensor
- Sensor
- Sony IMX462LLR-C monochrome back-illuminated CMOS
- Effective pixels
- 2.13 million
- Pixel size
- 2.9 µm
- Sensor diagonal
- 6.46 mm
Onboard computer
- Main processor
- Two Cortex-A53 cores, up to 1.4 GHz
- Secondary processor
- Cortex-M7 at 600 MHz
- Memory
- 512 MB RAM; 4 GB ROM
- GPU
- GC7000UltraLite
Connections and physical

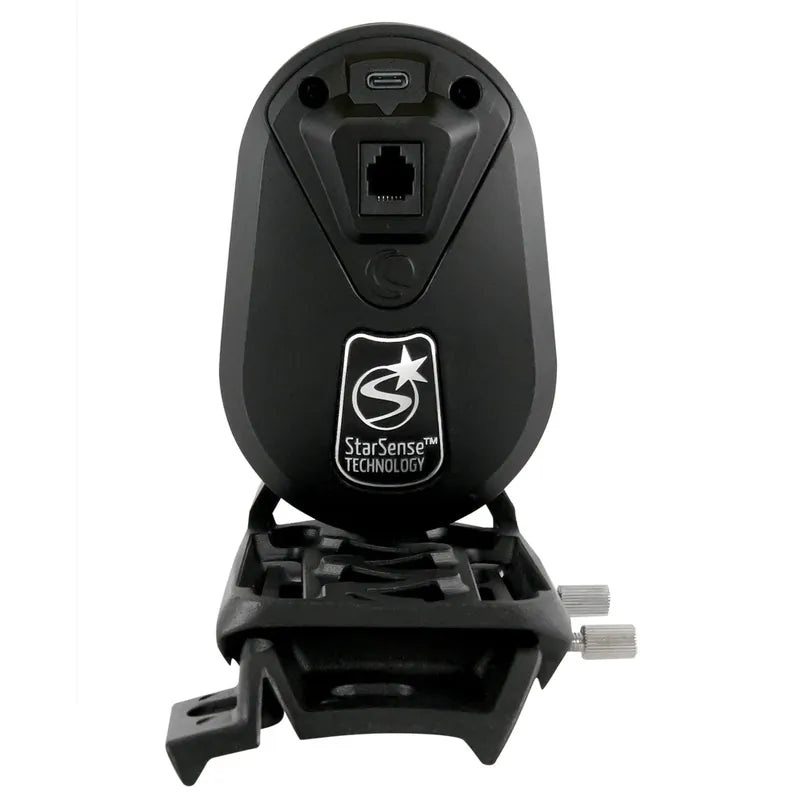

- Ports
- AUX and USB-C
- Housing
- Aluminium with plastic covers
- Net weight
- 453.6 g
- Dimensions
- 109.22 x 81.28 x 121.92 mm
- Operating temperature
- -5°C to 40°C
Mount compatibility
- Compatible
- Advanced VX; CGX-L; CPC and CPC DX; NexStar Evolution; NexStar 6SE and 8SE; CGEM II; CGX; CGEM and CGEM DX; CGE Pro
- Not compatible
- NexStar SLT; Astro Fi; SkyProdigy; LCM; NexStar 4SE and 5SE; Advanced CG-5 GT
