This Skywatcher M48 T-Ring is designed specifically for attaching Canon DSLR Camera into any of the Skywatcher 0.85x Focal Reducer/Correctors. These M48 T-Rings are different than the standard T-rings and are mainly utilized for larger image formatting.

BINTEL is proud to announce a new range of high quality, value for money telescope eyepieces optimised for planetary and close up viewing of deep sky objects.

What sets the Bintel Premium Long Eye Relief range apart from just every other mid-priced short to medium length eyepiece is their remarkably flat field design, edge-to-edge sharpness and superb mechanical construction.

You’ll notice the difference in crispness when exploring the details on the surface of the Moon, gazing at the rings of Saturn or peering into the heart of a globular like Omega Centauri. Views will be razor sharp all the way out to the edge of their 55 degree field of view thanks to a modern multi-element design.

The 3mm size will let you use high magnification for seeing fine details when conditions are ideal.

Over 20mm of eye relief - the distance you can observe back from the eyepiece and still take in the entire field of view - makes for comfortable viewing with or without eye glasses.

The Bintel Premium Long Eye Relief Eyepieces are the perfect first upgrade from the standard eyepieces that come with your telescope.

Skywatcher M48 T-Ring is designed specifically for attaching Nikon DSLR Camera into any of the Skywatcher 0.85x Focal Reducer/Correctors. These M48 T-Rings are different than the standard T-rings and are mainly utilized for larger image formatting.

The saxon Telescope Wi-Fi Adapter featuring:

• Alignment which include of Polar Alignment, Bright Star, One Star, Two Stars and Three Stars alignment.
• GoTo and tracking by selecting the desired object from the 42,000 object list.
• Point and Go function to simplify the process of hunting the desired object.
• 8 direction buttons to adjust your telescope to desired position.

This must have adapter is compatible with the below computerized mounts: Saxon and Sky-Watcher

• AstroSeeker/ Star Discovery
• AZ GT/ Star Explorer
• GoTo Dobsonian
• EQ3 GoTo
• EQ5 GoTo
• HEQ5 Pro
• AZ-EQ5 GT Pro
• NEQ6 Pro
• AZ-EQ6 GT Pro
• EQ8 Pro

Celestron has joined forces with master lunar cartographer Ralph Aeschliman on a two-sided Moon Map. This quality map provides you a great way to familiarize yourself with the Moon, our neighboring world. Whether you are looking for Lacus, Maria, Montes, or Valles, the Moon map will help you navigate the lunar landscape with confidence. You can observe features with your telescope and locate them on the map or vice versa. This map also features a directory of all the key lunar regions with coordinates to find them.

On the reverse side of the map, there are close-up photos and information about the most exciting lunar regions to explore. You’ll also find images of the North and South polar regions for reference​. Refer to the lunar observing tips for practical information about using your telescope or binoculars to explore the Moon.

The Observer's Map of the Moon is waterproof, tear-resistant, and can be folded into an 20cm x 10cm size, making it easy to take along on your next camping trip, star party, or evening in your backyard. When not in use, the Moon map will be a stylish decorative poster on your wall. It makes a great display for your classroom or astronomy club.

Whether you are just beginning or an advanced observer, you will find yourself viewing the Moon again and again; have the Observer's Map of the Moon be your guide.

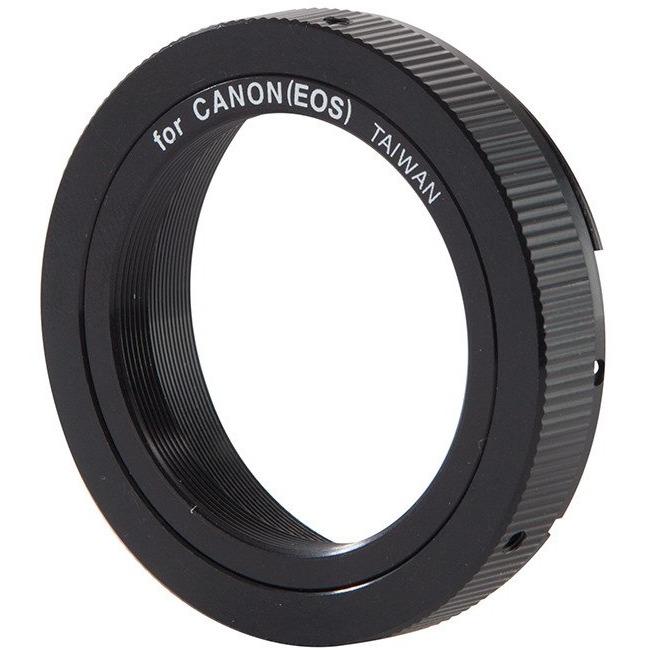

A T-Ring is one of the first accessories you will need if you want to take pictures through a telescope or spotting scope. If you have a Canon EOS camera body, the Celestron EOS T-Ring is the one for you.

To use the Canon EOS T-Ring, remove the lens from your camera, and attach the T-Ring in its place, just as you would if you were mounting a lens. The telescope side of the T-Ring has threads that will accept a variety of camera adapters, including the Celestron T-Adapter or Tele-Extender. The adapter you choose depends on the type of photography you wish to do.

You can take pictures of terrestrial and/or celestial scenes by using a simple T-Adapter to turn your telescope or spotting scope into a large telephoto lens. The #93633-A T-Adapter is the best choice if you own a Schmidt-Cassegrain telescope with standard rear cell threads. If you have a refractor or spotting scope, the Universal T-Adapter (#93625), with its 1.25” barrel insert, is probably the best choice. There are also special T-Adapters for the EdgeHD optical system: one for the 8-inch EdgeHD (#93644) and one for the 9.25, 11, and 14-inch EdgeHD (#93646).

Prime focus photography is popular for short exposure images of terrestrial objects as well as celestial objects like the Moon.

If you need extra magnification beyond that which your Schmidt-Cassegrain telescope provides, a Tele-Extender (#93643) will allow you to insert an eyepiece inside the barrel before attaching it to the telescope. A Tele-Extender is used most often for high power images of the Moon and the planets.

FW8S-Aluma is the 8-position filter wheel for Aluma CCD Series cameras. It is compatible with Canon EOS and Nikon lens adapters.

Features

The carousel holds eight 36mm filters and inserts are available for 1.25″ filters. The 36 mm filters provide unvignetted imaging for the largest Aluma sensors.

Aluma wheels include a positive centering mechanism that precisely centers each filter in the exact same position every time. This single-pixel accuracy completely eliminates ghost images of dust spots and other artifacts after flat-fielding.

The left-hand image below shows a dust spot on the filters. A flat-field calibration frame was taken, then the filter wheel was rotated several times before taking a second picture, which was flat-field calibrated, at right. No evidence of the dust spot is visible. This high precision results in the highest quality images and excellent photometric accuracy.

SBIG StarChaser SC-2 Off-Axis Guider Cameras

Diffraction Limited’s new SBIG StarChaser SC-2 is the world’s first, all-in-one independent Off-Axis Guiding Camera with Adaptive Optics support. The StarChaser operates independently of the main camera. It combines a pick-off mirror, guider camera, guide port, and Adaptive Optics control.

Stop wasting time with ruined exposures caused by flexure between the main camera and guider. Off-axis guiding eliminates this problem by using the same optical path for the main camera and the guider.

Most off-axis guider assemblies are awkward to use, consume too much back focus, and require you to focus by slipping a camera inside an eyepiece holder. SBIG pioneered simplified off-axis guiding, with guide sensors built into CCD cameras. Later, we created the self-guiding filter wheel, placing the guide sensor in the light path ahead of photon-robbing narrowband filters. The StarChaser is the next step in this progression – a fully independent guide camera with AO capability.

Note: When using with StarChaser with AO, you will need a StarChaser to AO-X/AO-8T Adapter Cable. The necessary adapter cable is included in our StarChaser SC-3 / AO-X Bundle and StarChaser SC-2 / AO-8A Bundle.

Three Versions Available

StarChaserSC-2 is designed to work with our compact SBIG cameras. It supports the AO-8A adaptive optics unit. See the table below for compatibility with various camera models.

Adapters are also available to attach StarChaser to legacy STL cameras. For STL cameras with smaller sensors and internal filter wheel, you can use the SC-2 with the appropriate adapter. Another adapter is available to attach the SC-3-SHORT, for STL cameras with larger sensors and the external filter wheel.

Next-Generation Off-Axis Guiding

The StarChaser represents our next generation of off-axis guide technology. It features a high-sensitivity 1.3 megapixel Global Shutter CMOS sensor with 4.8 micron pixels. Unlike competing autoguiders, the StarChaser has a mechanical shutter for easy dark frame correction. This feature, standard on all SBIG guiders, optimizes sensitivity and eliminates hot pixels that could degrade guiding accuracy.

The pick-off mirror position is adjustable by loosening a locking knob and sliding the mirror into or out of the housing. You can avoid vignetting the main sensor while optimizing the light path into the guide sensor. Once that is set, focus is adjusted simply by turning a second knob.

Adaptive Optics Control

Thanks to the SBIG StarChaser series, our renowned Adaptive Optics (AO) technology is now available for virtually our entire camera line! Our AO-8A (available separately) bolts onto the front of the StarChaser SC-2. The StarChaser is in turn attached to the front of an SBIG standard filter wheel and camera.

Adaptive Optics technology eliminates guiding errors caused by common mount problems such as stiction, periodic error, and wind loads. It can even reduce “slow seeing” effects resulting in higher resolution images.

Thin and Adaptable

The STarChaser StarChase ST-2 SC-2 is just 0.800″ (20.3 mm) thick. When attaching to a filter wheel the existing adapter plate (0.147″ / 3.7 mm thick) would normally be moved from the filter wheel onto the front of the SC-2. When attaching an AO-8A to the front of the SC-2, the adapter plate is not used.

StarChase Brochure

StarChase SC-2 Instruction Manual

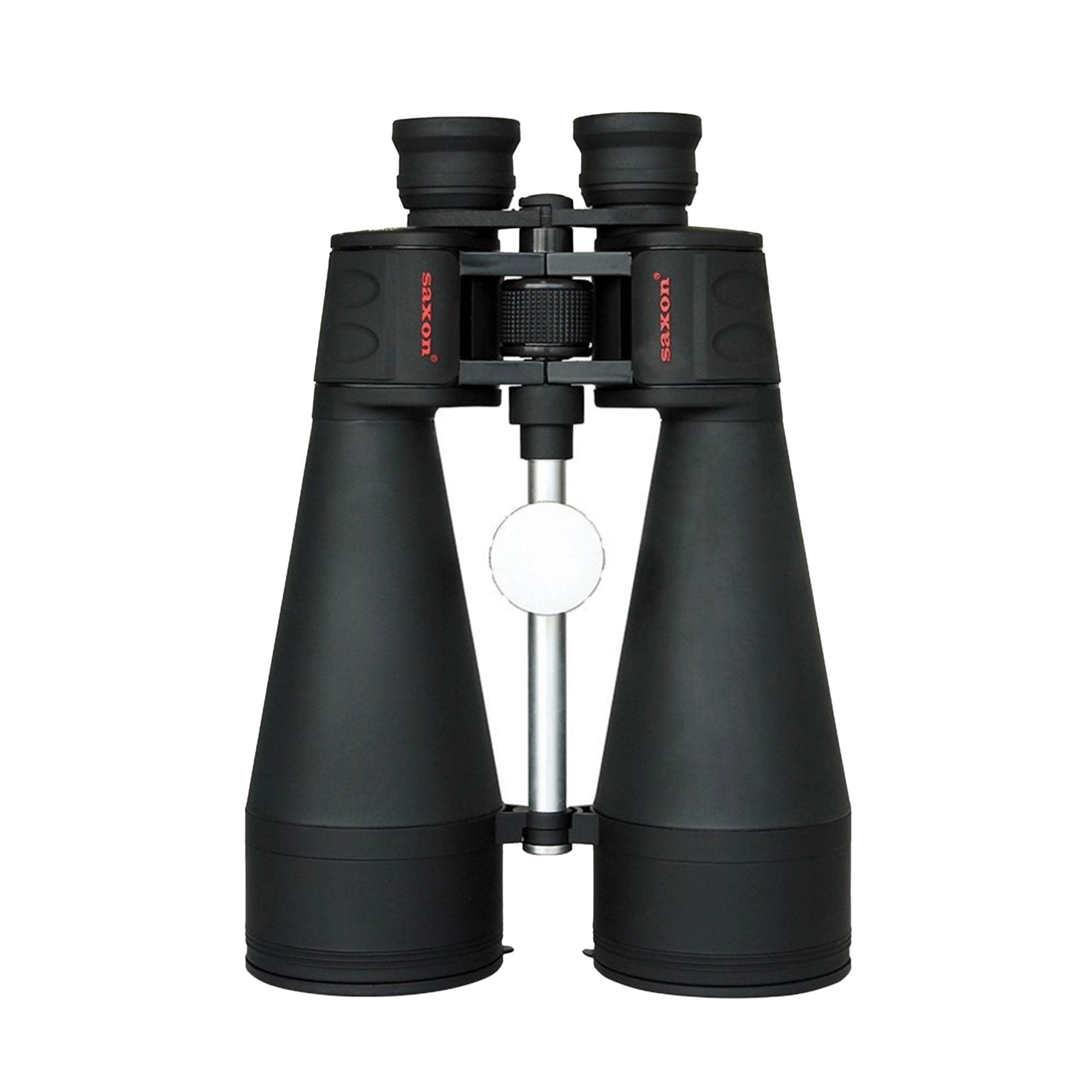

The saxon 30x80 Night Sky Waterproof Binoculars offer beautiful views of the night sky as well as expansive sights on land.

These floating waterproof binoculars are feature-packed:

• Metal body with rubber covering
• BAK-4 prisms
• Fully multi-coated lenses
• Long eye relief
• Central focusing
• Heavy duty tripod adapter incorporated
• Backpack carry case.

Our new high-performance SBIG Aluma CCD 814 camera offers capabilities and features not available in any other scientific-grade imaging camera. This lightweight (1kg) and compact (114mm x 114mm x 102mm with handles) camera includes two-stage cooling, USB 2.0 interface, ultra-reliable even-illumination shutter, and fast low-noise readout.

The SBIG Aluma CCD 814 supports a wide range of accessories, including the 8-position FW8S-Aluma filter wheel with micron-level filter positioning, StarChaser SC-2 off-axis guide camera, and AO-8A Adaptive Optics accessory.

The SBIG Aluma CCD 814 has a high-sensitivity, low-noise 9 megapixel CCD sensor with 3.69-micron pixels. It is ideal for taking high spatial resolution, long-duration exposures with minimal amp glow, dark current, and noise. It also includes the ability to perform high ratio analog binning, which is important for applications such as spectroscopy.

SBIG Aluma CCD 814 is a new generation of research cameras tuned for even better performance. Over two years of collaboration with university researchers helped us bring you an enhanced new Aluma CCD series that represent the best value in a high-performance mid-sized 16-bit CCD detector. We have carefully refined the camera electronics for improved performance, minimum amp glow, and low noise. Using SONY’s best-in-class CCDs, you’ll get the precision and ultra-clean images of a CCD with the sensitivity of CMOS technology.

Aluma CCD814 – Incredible Sensitivity

The ICX-814 CCD is one of the best optical sensors ever produced, with a peak quantum efficiency of over 75%, very broad spectral sensitivity, and extraordinary blue sensitivity. It also has very low read noise, a large dynamic range, and an extremely low dark current. This combination of high sensitivity and very low noise means you get cleaner, deeper images – faster.

Aluma CCD Features include:

• High-performance CCD imaging sensors currently manufactured by SONY and Teledyne E2V
• Lightweight, compact design
• Centered optical axis for optimum instrument balance
• Ultra-reliable even-illumination (photometric) mechanical shutter
• USB 2.0 interface
• Full frame image buffering eliminates readout artifacts
• 2-Stage TE cooling with typical -50C from ambient
• Twin variable speed fans with SmartCooling^TM technology
• High accuracy temperature regulation
• Built-in RBI Pre-flash (full frame front-illuminated sensors only)
• External TTL trigger inputs and output
• Included 110V / 220V power supply and optional 12VDC operation
• User-rechargeable desiccant plug
• Built-in 1/4-20 tripod mount
• Support for high precision 8-position filter wheels
• Works with StarChaser SC-2 off-axis guide camera and AO-8A adaptive optics
• Bulletproof firmware update capability – virtually impossible to “brick”

Advanced Software Included

All Aluma CCD models ship with MaxIm LT for Windows – a special version of MaxIm DL specific to our cameras. Aluma CCD also supports third-party applications through ASCOM and native drivers.

Compact and Lightweight Design

Aluma CCD cameras measure just 114mm x 114mm x 102mm with handles (89mm without handles) and weigh just 1 kg(2.2 lbs).

Mechanical Shutter

The SBIG Aluma CCD 814 has electronic shuttering, allowing a minimum exposure of just 0.001s. In addition, it has a high-reliability mechanical shutter, which facilitates accurate dark/bias calibration frames.

High-Performance ICX-814 Image Sensor

The SBIG Aluma CCD 814 uses the popular 9-megapixel SONY ICX-814ALG sensor. This sensor has 3388 x 2712 pixels at 3.69 microns square, for a 12.48 mm x 9.98 mm chip size.

This is a high-sensitivity interline CCD sensor with an extremely low dark current and very low read noise. Combining this high-performance sensor with Aluma CCD’s high cooling performance and low readout noise results in exceptionally clean images.

This sensor includes microlens technology that concentrates light on the sensitive area of each pixel. The CCD’s sensitivity peaks in the center of the visible spectrum at 550 nm, and maintains high sensitivity throughout the visible spectrum. The ICX-814 is particularly good in blue compared to other sensors on the market.

SmartCooling^TM

All Aluma CCD cameras include our powerful new SmartCooling technology. The two-stage cooler, powerful fans, and advanced heat sink designed using thermal flow simulation combine to produce a typical cooling delta from an ambient of -50C. This is quite a feat considering the Aluma CCD’s very compact and lightweight package.

SmartCooling automatically adjusts the fan speed to optimize cooler performance and power consumption. The camera’s firmware is constantly monitoring the sensor and heat sink temperatures and controlling the cooler power. When full cooling power is needed – when ramping down or running near full power – the fans ramp up to their maximum speed, resulting in the strongest possible cooling. When less cooling power is needed the fans automatically slow to reduce noise levels and power consumption. SmartCooling also prevents any possibility of overheating by backing off power if the heat sink gets too hot – so you don’t need to worry if your camera is baking in a hot observatory during the day.

Advanced Software Included

All SBIG cameras come with our MaxIm LT software – a $200 value! MaxIm LT is a special version of our venerable MaxIm DL software that provides complete control of your camera, filter wheel, and autoguider, plus advanced image processing capabilities. If you wish you can upgrade to MaxIm DL Pro to get complete observatory integration and even more processing and analysis capabilities.

Included Accessories

Each Aluma CCD camera package includes:

• MaxIm LT software – please use this form to request your license
• Deluxe carrying case
• Universal power supply (110V / 220V, 50-60 Hz)
• 2″ Nosepiece adapter
• USB flash drive containing software, drivers, and documentation
• 15 foot (4.5 m) USB cable

Optional Micron-Precision Filter Wheel

The optional FW8S-Aluma 8-position filter wheel includes a positive centering mechanism that precisely centers each filter in the exact same position every time. This single-pixel accuracy completely eliminates ghost images of dust spots and other artifacts after flat-fielding.

Positive detent mechanism provides single-pixel filter position accuracy

Precision flat-fielding with utlra-accurate indexing

The above left image shows a dust spot on the filters. A flat-field calibration frame was taken, then the filter wheel was rotated several times before taking a second picture, which was flat-field calibrated, above right. No evidence of the dust spot is visible. This high precision results in the highest quality images and excellent photometric accuracy.

The Aluma wheel holds standard 36 mm filters, and inserts are available for 1-1/4″ filters, which are suitable for smaller format CCD sensors.

The Aluma filter wheel replaces the camera’s front plate, resulting in the minimum possible back-focus, ensuring that the camera / filter wheel combination will reach focus on the widest possible variety of optical systems.

Optional StarChaser SC-2 Off-Axis Guide Camera

For astronomical imaging the Aluma CCD series works the StarChaser SC-2 Off-Axis Guide Camera. This provides reliable guiding with no impact from optical train flexure. It also supports the operation of the optional AO-8A Adaptive Optics accessory.

Optional AO-8A Adaptive Optics

All Aluma CCD models can operate with the AO-8A Adaptive Optics accessory. The AO-8A uses a tip-tilt window to quickly and precisely adjust the image position in response to autoguider feedback. With Adaptive Optics there is no backlash, stiction, or lag, and the movements are extremely precise and accurate. This allows the AO-8A to not only remove the effects of periodic error, drift, and wind gusts, but also reduce the effects of atmospheric seeing

Aluma CCD 814 Instruction Manual

Our new high performance Aluma CCD 694 camera offers capabilities and features not available in any other scientific-grade imaging camera. This lightweight (1kg) and compact (114mm x 114mm x 102mm with handles) camera includes two-stage cooling, USB 2.0 interface, ultra-reliable even-illumination shutter, and fast low-noise readout.

The Aluma CCD 694 supports a wide range of accessories, including the 8-position FW8S-Aluma filter wheel with micron-level filter positioning, StarChaser SC-2 off-axis guide camera, and AO-8A Adaptive Optics accessory.

The Aluma CCD 694 has a high-sensitivity, low-noise 6 megapixel CCD sensor with 4.54 micron pixels. It is ideal for taking high spatial resolution, long duration exposures with minimal amp glow, dark current, and noise. It also includes the ability to perform high ratio analog binning, which is important for applications such as spectroscopy.

Aluma CCD is a new generation of research cameras tuned for even better performance. Over two years of collaboration with university researchers helped us bring you an enhanced new Aluma CCD series that represent the best value in a high-performance mid-sized 16-bit CCD detector. We have carefully refined the camera electronics for improved performance, minimum amp glow, and low noise. Using SONY’s best-in-class CCDs, you’ll get the precision and ultra-clean images of a CCD with the sensitivity of CMOS technology.

Aluma CCD 694 – Incredible Sensitivity

The ICX-694 CCD is one of the best optical sensors ever produced, with peak quantum efficiency over 75%, very broad spectral sensitivity, and extraordinary blue sensitivity. It also has very low read noise, large dynamic range, and extremely low dark current. This combination of high sensitivity and very low noise means you get cleaner, deeper images – faster.

Aluma CCD Features include:

• High-performance CCD imaging sensors currently manufactured by SONY and Teledyne E2V
• Lightweight, compact design
• Centered optical axis for optimum instrument balance
• Ultra-reliable even-illumination (photometric) mechanical shutter
• USB 2.0 interface
• Full frame image buffering eliminates readout artifacts
• 2-Stage TE cooling with typical -50C from ambient
• Twin variable speed fans with SmartCooling^TM technology
• High accuracy temperature regulation
• Built-in RBI Pre-flash (full frame front-illuminated sensors only)
• External TTL trigger inputs and output
• Included 110V / 220V power supply and optional 12VDC operation
• User-rechargeable desiccant plug
• Built-in 1/4-20 tripod mount
• Support for high precision 8-position filter wheels
• Works with StarChaser SC-2 off-axis guide camera and AO-8A adaptive optics
• Bulletproof firmware update capability – virtually impossible to “brick”

Advanced Software Included

All Aluma CCD models ship with MaxIm LT for Windows – a special version of MaxIm DL specific to our cameras. Aluma CCD also supports third-party applications through ASCOM and native drivers.

Compact and Lightweight Design

Aluma CCD cameras measure just 114mm x 114mm x 102mm with handles (89mm without handles) and weigh just 1 kg(2.2 lbs).

Mechanical Shutter

The SBIG Aluma CCD 814 has electronic shuttering, allowing a minimum exposure of just 0.001s. In addition, it has a high-reliability mechanical shutter, which facilitates accurate dark/bias calibration frames.

High-Performance ICX-694 Image Sensor

The Aluma CCD 694 uses the popular 6-megapixel SONY ICX-694ALG sensor. This sensor has 2750 x 2200 pixels at 4.54 microns square, for a 14.6 mm x 12.8 mm chip size.

This is a high-sensitivity interline CCD sensor with an extremely low dark current and very low read noise. Combining this high-performance sensor with Aluma CCD’s high cooling performance and low readout noise results in exceptionally clean images.

This sensor includes microlens technology that concentrates light on the sensitive area of each pixel. The CCD’s sensitivity peaks in the center of the visible spectrum at 550 nm, and maintains high sensitivity throughout the visible spectrum. The ICX-694 is particularly good in the blue compared to other sensors on the market.

SmartCooling^TM

All Aluma CCD cameras include our powerful new SmartCooling technology. The two-stage cooler, powerful fans, and advanced heat sink designed using thermal flow simulation combine to produce a typical cooling delta from an ambient of -50C. This is quite a feat considering the Aluma CCD’s very compact and lightweight package.

SmartCooling automatically adjusts the fan speed to optimize cooler performance and power consumption. The camera’s firmware is constantly monitoring the sensor and heat sink temperatures and controlling the cooler power. When full cooling power is needed – when ramping down or running near full power – the fans ramp up to their maximum speed, resulting in the strongest possible cooling. When less cooling power is needed the fans automatically slow to reduce noise levels and power consumption. SmartCooling also prevents any possibility of overheating by backing off power if the heat sink gets too hot – so you don’t need to worry if your camera is baking in a hot observatory during the day.

Advanced Software Included

All SBIG cameras come with our MaxIm LT software – a US$200 value! MaxIm LT is a special version of our venerable MaxIm DL software that provides complete control of your camera, filter wheel, and autoguider, plus advanced image processing capabilities. If you wish you can upgrade to MaxIm DL Pro to get complete observatory integration and even more processing and analysis capabilities.

Included Accessories

Each Aluma CCD camera package includes:

• MaxIm LT software – please use this form to request your license
• Deluxe carrying case
• Universal power supply (110V / 220V, 50-60 Hz)
• 2″ Nosepiece adapter
• USB flash drive containing software, drivers, and documentation
• 15 foot (4.5 m) USB cable

Optional Micron-Precision Filter Wheel

The optional FW8S-Aluma 8-position filter wheel includes a positive centering mechanism that precisely centers each filter in the exact same position every time. This single-pixel accuracy completely eliminates ghost images of dust spots and other artifacts after flat fielding.

Positive detent mechanism provides single-pixel filter position accuracy

Precision flat-fielding with utlra-accurate indexing

The above left image shows a dust spot on the filters. A flat-field calibration frame was taken, then the filter wheel was rotated several times before taking a second picture, which was flat-field calibrated, above right. No evidence of the dust spot is visible. This high precision results in the highest quality images and excellent photometric accuracy.

The Aluma wheel holds standard 36 mm filters, and inserts are available for 1-1/4″ filters, which are suitable for smaller format CCD sensors.

The Aluma filter wheel replaces the camera’s front plate, resulting in the minimum possible back-focus, ensuring that the camera / filter wheel combination will reach focus on the widest possible variety of optical systems.

Optional StarChaser SC-2 Off-Axis Guide Camera

For astronomical imaging the Aluma CCD series works the StarChaser SC-2 Off-Axis Guide Camera. This provides reliable guiding with no impact from optical train flexure. It also supports the operation of the optional AO-8A Adaptive Optics accessory.

Optional AO-8A Adaptive Optics

All Aluma CCD models can operate with the AO-8A Adaptive Optics accessory. The AO-8A uses a tip-tilt window to quickly and precisely adjust the image position in response to autoguider feedback. With Adaptive Optics there is no backlash, stiction, or lag, and the movements are extremely precise and accurate. This allows the AO-8A to not only remove the effects of periodic error, drift, and wind gusts, but also reduce the effects of atmospheric seeing

SBIG Aluma CCD 694 Instruction Manual

Product Description

The DC Y Splitter cable is the enhanced DC cable that adopts pure copper as the wire core.

Usage: The dew heaters for telescopes

Material: Pure copper wire (internal)

Cable length: 150mm/150mm

Plug diameter: 4.5mm (outer)

Connector: 1x 5.5*2.1mm male, 2x RCA female

Lightweight and highly portable mount for your Sky-Watcher Star Adventurer mount.

The M48 sensor tilt plate is independently developed by ZWO and specially made to match telescope with M48 thread.

The thickness is 5mm. It has several screw holes on the surface so that you can easily connect it to the M68 OAG and APS-C & full frame camera like ASI2600/ASI6200/ASI2400.

MechanicalDrawing

SKU: ZWO-M48 Plate

Stable and Strong
High Parallelism

The Paramount MX Base to Pier Adaptor Plate is an optional accessory to the Paramount MX Robotic Telescope Mount that allows the Paramount MX to be mounted on an existing tripod or pier.

SKU: SB-10215

The ZWO ASIAIR Pro Dovetail is designed for ASIAIR PRO to connect a Vixen dovetail plate. It can help achieve more convenient and flexible installation methods compared to the original dovetail plate of ASIAIR PRO.

Connection tips:

1. Remove the original dovetail plate of ASIAIR PRO.

2. Fix the dovetail groove to ASIAIR PRO with the screws you just take off from the plate.

3. It’s recommended to put the bolt towards the box side as shown in the pictures above and not to block the USB ports and status indicators.

ZWO USB3.0 2M Cable

Cable Length: 2 meters

USB Connector Type: Type-B 3.0(male) to Type A(male)

Celestron has reinvented the manual telescope with StarSense Explorer DX 6 —the first telescope that uses your smartphone to analyze the night sky and calculate its position in real time. StarSense Explorer DX 6 is ideal for beginners thanks to the app’s user-friendly interface and detailed tutorials. It’s like having your own personal tour guide of the night sky.

Dock, Launch, Explore

Leave complicated star charts, imprecise planetarium apps, and computerized mounts behind. With StarSense Explorer, locating objects has never been easier, faster, or more accurate. Within minutes of setting up the telescope, you’ll be navigating the sky with confidence. Simply place your phone in the unique StarSense dock and launch the StarSense Explorer app. After aligning your phone to the telescope’s optics (a quick, 2-minute procedure), StarSense Explorer generates a list of celestial objects currently visible. Make your selection and arrows appear onscreen, guiding you as you to move the telescope. When the object is ready to view, the bullseye turns green.

Smartphone Compatibility

StarSense Explorer works with most modern smartphones, including iPhone 6 and up and most devices running Android 7.1.2 or later manufactured since 2016.

Patent-Pending StarSense Sky Recognition Technology

StarSense Explorer uses patent-pending technology and your smartphone to determine exactly where the telescope is pointed in the night sky. A Lost in Space Algorithm (LISA), like the ones satellites use in orbit to correctly reorient themselves, helps the app match star patterns it detects overhead to its internal database.

While other astronomy apps may claim that they can help you find objects, they rely exclusively on the phone’s gyros and accelerometers, which aren’t as accurate as LISA technology. No other app can accurately tell you when your target is visible in the eyepiece.

High Quality Altazimuth Mount with Slow Motion Control

An ultra-stable altazimuth mount provides a sturdy foundation for StarSense Explorer DX. Slip clutches and geared slow motion controls in both axes help you move the telescope smoothly and zero in your target. As celestial objects appear to drift across the night sky, you’ll be able to follow them with just a turn of the knobs. It’s all anchored by an adjustable, full-height tripod.

Dazzling Views with High Quality Optics

With a large 6” Schmidt-Cassegrain optical tube—Celestron’s tried-and-true optical design for over 50 years—this telescope has enough light gathering ability to bring out impressive detail in celestial objects while remaining compact and lightweight. You can expect sharp, bright views of Jupiter’s four Galilean moons, its cloud bands and Great Red Spot, the rings of Saturn, the trapezium in the Orion Nebula, and the beautiful Pleaides Open Star Cluster.

All air-to-glass surfaces are coated with our StarBright XLT optical coatings to visibly increase contrast and light transmission for brighter deep space views. With StarBright XLT, you’ll be able to discern subtle details while viewing the Moon and planets as well as faint galaxies and nebulae. For more information about our patented StarBright XLT coatings.

Perfect for the City or Dark Sky Sites

Even if you live in a light polluted city location, StarSense Explorer is advanced enough to be able to pick out Jupiter, Saturn, Venus, the Orion Nebula, double stars, and a few more of the most famous celestial objects.

But if you can take the telescope to an even slightly darker location, more objects will become visible. With this 6” Schmidt-Cassegrain and relatively dark skies, the Andromeda Galaxy, Hercules Open Star Cluster, and so many more are easily within your reach.

Dock, Launch, Explore

Leave complicated star charts, imprecise planetarium apps, and computerized mounts behind. With StarSense Explorer, locating objects has never been easier, faster, or more accurate. Within minutes of setting up the telescope, you’ll be navigating the sky with confidence. Simply place your phone in the unique StarSense dock and launch the StarSense Explorer app. After aligning your phone to the telescope’s optics (a quick, 2-minute procedure), StarSense Explorer generates a list of celestial objects currently visible. Make your selection and arrows appear onscreen, guiding you as you to move the telescope. When the object is ready to view, the bullseye turns green.

Smartphone Compatibility

StarSense Explorer DX 5 works with most modern smartphones, including iPhone 6 and up and most devices running Android 7.1.2 or later manufactured since 2016.

Patent-Pending StarSense Sky Recognition Technology

StarSense Explorer uses patent-pending technology and your smartphone to determine exactly where the telescope is pointed in the night sky. A Lost in Space Algorithm (LISA), like the ones satellites use in orbit to correctly reorient themselves, helps the app match star patterns it detects overhead to its internal database.

While other astronomy apps may claim that they can help you find objects, they rely exclusively on the phone’s gyros and accelerometers, which aren’t as accurate as LISA technology. No other app can accurately tell you when your target is visible in the eyepiece.

High Quality Altazimuth Mount with Slow Motion Control

An ultra-stable altazimuth mount provides a sturdy foundation for StarSense Explorer DX. Slip clutches and geared slow motion controls in both axes help you move the telescope smoothly and zero in your target. As celestial objects appear to drift across the night sky, you’ll be able to follow them with just a turn of the knobs. It’s all anchored by an adjustable, full-height tripod.

Dazzling Views with High Quality Optics

With a large 5” Schmidt-Cassegrain optical tube—Celestron’s tried-and-true optical design for over 50 years—this telescope has enough light gathering ability to bring out impressive detail in celestial objects while remaining compact and lightweight. You can expect sharp, bright views of Jupiter’s four Galilean moons, its cloud bands and Great Red Spot, the rings of Saturn, the trapezium in the Orion Nebula, and the beautiful Pleaides Open Star Cluster.

All air-to-glass surfaces are coated with our StarBright XLT optical coatings to visibly increase contrast and light transmission for brighter deep space views. With StarBright XLT, you’ll be able to discern subtle details while viewing the Moon and planets as well as faint galaxies and nebulae. For more information about our patented StarBright XLT coatings.

Perfect for the City or Dark Sky Sites

Even if you live in a light polluted city location, StarSense Explorer is advanced enough to be able to pick out Jupiter, Saturn, Venus, the Orion Nebula, double stars, and a few more of the most famous celestial objects.

But if you can take the telescope to an even slightly darker location, more objects will become visible. With this 5” Schmidt-Cassegrain and relatively dark skies, the Andromeda Galaxy, Hercules Open Star Cluster, and so many more are easily within your reach.

The Nikon TRA3 Binocular Tripod/Monopod Adapter is used to mount specific Nikon binoculars to a tripod or monopod with ¼” thread attachment. It enables more stable viewing, particularly useful when used with high-magnification binoculars.

Compatible with the following Nikon binoculars

EDG Binoculars
MONARCH 7 8x42/10x42
MONARCH series
Action series
Action zoom series
Action EX series
7x50CF WP/7x50CF WP Compass
7x50IF WP/7x50IF WP Compass
10x50CF WP

This handy accessory quickly and securely connects your binocular to a standard photographic tripod for steady views of marine life or outdoor scenery.

It will fit most roof prism binoculars including Nikon models such as:

• ACULON A211 series
• Action series
• Action zoom series
• Action EX series
• 7x50CF WP/7x50CF WP Compass/7x50CF WP GLOBAL COMPASS
• 7x50IF WP/7x50IF WP Compass
• 10x50CF WP

Reinforced aluminium construction

Foam: Base: Dice pre-cut

Lid: Profile-egg foam

Carry handle

Lockable (2x keys supplied)

Dimensions

Width - 400mm

Height - 90 mm

Depth - 250 mm

ZWO M54 Sensor Tilt Plate

Product: ZWO M54 sensor tilt plate adapter

Thickness: 5mm

Suitable for APS-C and full-frame cameras (ASI2600, ASI6200, and ASI2400)

You can connect it to M68 OAG and 2” EFW, and mount them on the M48-thread telescope side with an M54-M48 adapter.

*This adapter is packaged with the full-frame camera. So if you already have one ASI full camera then you don’t need to buy it separately.

SKU: ZWO-M54-Plate

Bintel Twist lock Mirror Star Diagonal 1.25"
