Highly compact and portable. The Manfrotto BeFree Travel Tripod with ball head easily fits into your luggage for your convenience, while providing you with highly precise and accurate support for your photography work. The unique folding mechanism is a stand-out feature of this tripod with head. By designing the legs to fold perfectly around the head and quick release plate, it reduces its size to just 40cm long. Now you can simply carry the Be Free Aluminium Travel Tripod wherever you need to go without any fuss or hassle. The tripod with head can handle a payload of 4Kg, providing you with more accurate shots on set. Even when using longer-zoom lenses, you're still going to have those sharper images.

The special design of this tripod with head ensures your camera stays firmly locked in position. With the ability to choose between two inclinations thanks to the patented leg angle selectors, you can make your work as precise as possible. Completed with a stylish Italian design, your Be Free Aluminium Travel Tripod will stand out from the crowd. Pack up, go traveling and find that perfect image.

Manfrotto BeFree Travel Tripod with Ball head Instruction Manual

ASI183MM Pro

Introducing the ASI183 camera series, the most sensitive cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

Using the Sony IMX183CLK-J Mono Sensor with high resolution 2.4 μm pixels, it includes a 256MB DDR3 memory buffer.

 ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%.

DDR Memory Buffer

The ASI183 Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.

Astrophotography Performance

The ASI183 cameras has a very large full well capacity（15000e） for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

Reliable Mechanics

ASI183 Pro has same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable.

Even when used in higher humidity environments, ASI183 Pro will still work fine without dew problems.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

10Bit ADC
5496×3672 19fps
3840×2160 41.04fps
1920×1080 80.10fps
1280×720 117.30fps
12bit ADC
5496×3672 19fps
3840×2160 36.12fps
1920×1080 70.48fps
1280×720 103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

Dark Current

The dark current of the ASI183 is extremely low, based on our test results.

USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 Pro to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode) at full resolution(20.18Mega).

Recommended cooler power supply: 12V @ 3-5A (or more) DC adapter (2.1×5.5mm, center pole positive). Also suitable: DC battery with 9-15V.

Using a battery with 9-15V is also suitable for the cooler power supply.

USB 2.0 HUB: can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI183 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.

Cooling System

The ASI183 Pro has a 2-stage TEC cooling system that enables deep cooling (40°C-45°C below ambient). The cooler requires an external power supply, which is not included with the camera.

Connecting Drawing

1. M43-T2 adapter

2. EOS-T2 adapter

3. 2”Filter (optional)

4. 1.25” T-Mount

5. 1.25” Filter (optional)

6. M42-1.25” Filter (optional)

7. T2 extender 11mm

8. M42-M48 extender 16.5mm

9. T2-T2 adapter

10. EFW mini

11. EOS adapter for EFW

Mechanical Drawing

What is in the box?

ASI183 Pro box includes all necessary cables, adapters, and manuals.

Camera Technical Details

Cooling & Power

Environmental Conditions

Max FPS at Full Resolution (10-bit ADC)

Max FPS at Full Resolution (12-bit ADC)

Celestron Dew-Shield C14 is designed to fit on the front end of the telescope to reduce the amount of dew that builds up on the corrector plate.

It also serves as a Len Shade by preventing stray light from falling on the corrector plate, which greatly improves contrast.

It is made from a thicker material called Foamex that wont crack under temperature extremes.

The quality is a step above all others as all material is sewn together (not glued) for a long life.

Stores flat after use.

Coping with Dew Fact Sheet

Farpoint Lift Carry Straps for GSO 12 Inch Dobs

These Lifting Straps make it easy to install or remove your OTA from the Base of your Bintel Dobsonian or most other Dobsonian telescopes with a 14″ diameter solid tube OTA. Sold as a pair, these two straps wrap around your OTA and secure with Velcro.

The built-in handle makes for a sure grip.

Placing the straps above and below the altitude bearings makes your OTA much easier to lift and maneuver.

Normally available for pickup or shipping approx. 2-3 business days from your order

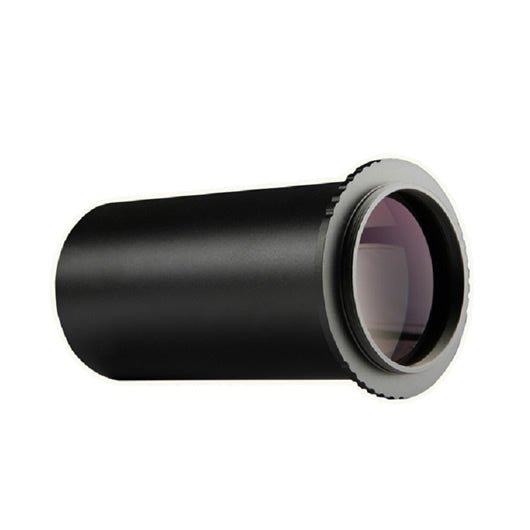

SkyWatcher f4 Aplanatic Coma Corrector

Only for use with F4 Newtonian.

The Sky-Watcher 2” F4 Coma Corrector is designed to overcome the vignette effect that occurs in Newtonian telescopes. This allows you to see pin point stars across the whole field of view. Magnification remains the same. It helps astro-imagers improve their photos of the sky.

Its optimised for use in all Sky-watcher fast ratio (f/4) Newtonian Reflectors with 2” focusers. You’ll need to purchase the appropriate adaptors for connecting to your camera.

Sky-Watcher 2” Coma Corrector Features

• Coma Corrector (2″) for Newtonian Reflectors
• Optimised for all Sky-Watcher fast-ratio f/4 Newtonian Reflectors with 2″ focuser
• Delivers stunning wide-field views with pinpoint stars to the edge of the field (up to full frame sensors)
• Magnification remains unaltered

The length of the corrector is 100mm and it features an M48 male thread on the telescope side. Correct spacing from the corrector to your sensor is required for optimum correction:

F=600mm, working distance = 51.66mm
F=800mm, working distance = 53.66mm
F=1000mm, working distance = 55.0mm
F=1200mm, working distance = 54.66mm
> 1500mm, working distance = 54.60mm

The SkyWatcher 80mm x 400mm Achromatic OTA is a two-element, air-spaced, fully multi-coated objective, achromatic refractor. It allows you to view detailed vistas of star fields, clusters, nebulae, planets and other celestial bodies.

The light-weight optical tubes 1.5kg, and the compressed lengths of about 480mm makes ideal as a guide scope on scopes with longer focal lengths.

Comes with Rings and a short adapter plate. It can be used for visual wide field observing.

For use as a guide scope we suggest the Losmandy DVR108 guide ring system, works a treat with the ZWO ASI 120 imager as the autoguider camera.

For visual use it requires a diagonal for imaging it requires a 35mm extension tube (1.25" Universal camera adapter can screw straight to rear of focuser then to T-Ring)

This Item is not able to be exported to New Zealand

ASI183MC Pro

Introducing the ASI183 camera series, the most sensitive cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

DDR Memory Buffer

The ASI183 Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

Astrophotography Performance

The ASI183 cameras has a very large full well capacity（15000e） for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

Reliable Mechanics

ASI183 Pro has same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable.

Even when used in higher humidity environments, ASI183 Pro will still work fine without dew problems.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

10Bit ADC
5496×3672 19fps
3840×2160 41.04fps
1920×1080 80.10fps
1280×720 117.30fps
12bit ADC
5496×3672 19fps
3840×2160 36.12fps
1920×1080 70.48fps
1280×720 103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

Dark Current

The dark current of the ASI183 is extremely low, based on our test results.

USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 Pro to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode) at full resolution(20.18Mega).

Recommended cooler power supply: 12V @ 3-5A (or more) DC adapter (2.1×5.5mm, center pole positive). Also suitable: DC battery with 9-15V.

Using a battery with 9-15V is also suitable for the cooler power supply.

USB 2.0 HUB: can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI183 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.

Cooling System

The ASI183 Pro has a 2-stage TEC cooling system that enables deep cooling (40°C-45°C below ambient). The cooler requires an external power supply, which is not included with the camera.

Connecting Drawing

1. M43-T2 adapter

2. EOS-T2 adapter

3. 2”Filter (optional)

4. 1.25” T-Mount

5. 1.25” Filter (optional)

6. M42-1.25” adapter (optional)

7. T2 extender 11mm

Mechanical Drawing

What is in the box?

ASI183 Pro box includes all necessary cables, adapters, and manuals.

Camera Specifications

Cooling & Power

Environmental Conditions

Max FPS at Full Resolution (10-bit ADC)

Max FPS at Full Resolution (12-bit ADC)

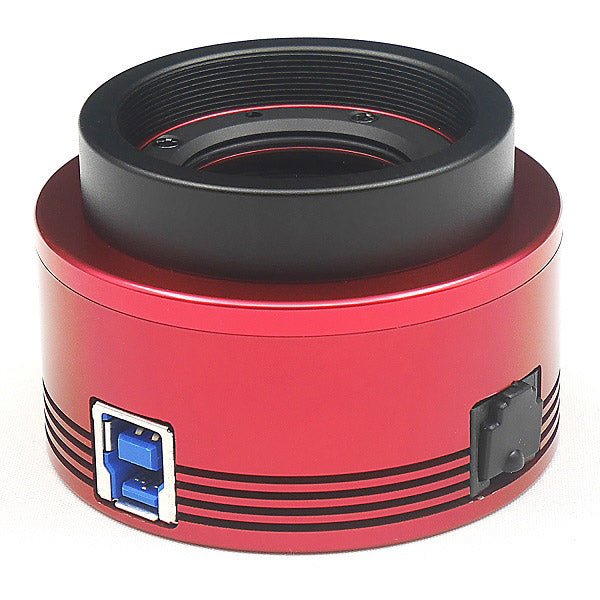

Introducing the ASI183MM, ZWO's most sensitive camera to date with a peak absolute Q.E. of 84% made possible by a back illuminated sensor.

Astrophotography Performance

The ASI183 cameras have a very large full well capacity（15000e） for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

10Bit ADC
5496×3672 19fps
3840×2160 41.04fps
1920×1080 80.10fps
1280×720 117.30fps
12bit ADC
5496×3672 19fps
3840×2160 36.12fps
1920×1080 70.48fps
1280×720 103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still a over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

USB 3.0 Port & ST4 Port

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode) at full resolution(20.18Mega).

ST4 Port: can be used connect with auto guide port of mount, for guiding.

Mechanical Drawing

What is in the box?

ASI183 box includes all necessary cables, adapters, and manuals.

Camera Technical Details

Environmental Conditions

Max FPS at Full Resolution (10-bit ADC)

Max FPS at Full Resolution (12-bit ADC)

The ASI183MC, ZWO's most sensitive camera to date with a peak absolute Q.E. of 84% in mono made possible by a back illuminated sensor.

Introducing the ASI183 camera series, the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

Astrophotography Performance

The ASI183 cameras has a very large full well capacity（15000e） for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

10Bit ADC
5496×3672 19fps
3840×2160 41.04fps
1920×1080 80.10fps
1280×720 117.30fps
12bit ADC
5496×3672 19fps
3840×2160 36.12fps
1920×1080 70.48fps
1280×720 103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

USB 3.0 Port & ST4 Port

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode) at full resolution(20.18Mega).

ST4 Port: Can be used connect with auto guide port of mount, for guiding.

ASI 183MC Instruction Manual

Mechanical Drawing

What is in the box?

ASI183 box includes all necessary cables, adapters, and manuals.

Camera Technical Details

Environmental Conditions

Max FPS at Full Resolution (10-bit ADC)

Max FPS at Full Resolution (12-bit ADC)

Specifications

9.25-inch Dovetail bar (CGE)

14-inch Dovetail bar (CGE)

Note: No hardware screws included

Precision Machined Aluminium. Anodised for long life

Clutch knob set (2)

R.A. and DEC. with (3) handles @ 30 degrees.

Suits GM 8, G-9 and G-11 mounts.

Makes clutch knobs easier to use, and gives greater clutching range.

The Celestron Cheshire Collimation Eyepiece is ideal for precise collimation of Newtonians and helpful for aligning Schmidt-Cassegrains. This special eyepiece fits into 1¼" focusers or diagonals.

Alignment is easy using the small opening on one end and thin cross hairs at the other end. The collimation eyepiece is more accurate than the simple Collimation Tool.

The Celestron Cheshire Collimation Eyepiece is ideal for precise collimation of Newtonians and helpful for aligning Schmidt-Cassegrains

• Attach a variety of accessories to your Advanced CG-5 or Advanced VX mount with this Universal Mounting Plate
• Several different mounting holes to choose from to mount rings, spotting scopes, cameras, etc
• Approximately 250mm long

Note: No Hardware screws included

Celestron Dovetail Bar (CGE) 11 Inch

11-inch Dovetail bar (CGE)

Note: No Hardware screws included

The Celestron CGE Universal Mounting Plate is a basic accessory that allows you to attach a wide range of telescope accessories to the mounting platform of a CGE, CGE Pro, CGEM or CGEM-DX mount. It will accept standard mounting rings, spotting scopes, and cameras. The mounting plate is drilled with several of the most common hole types and patterns, including 3/8”-16, 5/16”-18, and 1/4”-20.

Note: No Hardware screws are included.

Star Analyser 200

Since its launch in 2005, the Star Analyser 100 has introduced thousands of amateur astronomers worldwide to the fascinating field of spectroscopy. Over this period, the equipment used by amateurs has evolved with larger aperture telescopes, bigger camera sensors and close coupled filter wheels becoming more common. The Star Analyser 200 model has been developed with these users in mind.

Using the same Paton Hawksley high efficiency blazed diffraction grating technology as the SA100, but with double the line density. The SA200 is designed for applications where it is difficult to achieve the optimum spacing needed for the SA100. The SA200 gives the same length of spectrum at half the spacing compared with the SA100.

The Tele Vue EBX-2120 2" Eyepiece Barrel Extender increases backfocus distance and provides a mounting location for 2" (48mm) eyepiece filters. It can also help parfocalize eyepiece sets. Extender adds 1.2-inches to the 2" barrel.

Models with dual 2" / 1¼" barrels can use the extender.

The EBX-2120 makes the 12mm approximately parfocal with the 17mm and 22mm Nagler Type-4 eyepieces when used in a Tele Vue 2" diagonal.

Because the field stop is located near the bottom of the chrome eyepiece barrel, you will need to rack your focuser out further, relative to most other eyepieces. If you find that you cannot rack your focuser out enough to achieve focus, Tele Vue strongly recommend you purchase the EBX-2120. This will make Tele Vue's 55mm Plössl eyepiece approximately parfocal with the Tele Vue 27mm Panoptic eyepiece.

ASI174MM Mini camera integrates Sony IMX174LLJ / IMX174LQJ 1/1.2″ sensor (11.3 mm x 7.1 mm). It is the first model in the “mini”-series of cameras from ZWO. This camera has 1936 x 1216 pixels with a pixel size of 5.86 μm x 5.86 μm.  It camera provides 12-bit ADC and its QE peak is 77%.

Astrophotography Performance

ASI174MM mini camera offers you very good performance for planetary imaging as well as for guiding. Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that set it apart from the competition.

USB2.0Port & ST4 Port

USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn’t matter which way you connect it (unlike for example type-A or type-B)

#USB-C to USB-A cable is required.

ST4 Port: The camera can be connected directly to the auto-guider port of the mount.

High Sensitivity

Sensitivity is the first thing we considered. This is of course a crucial ability when looking for a star to guide on. So, from the beginning, we were set on using monochrome sensors to design our guide cameras. Because monochrome sensors have much higher sensitivity than their colour counterpart. Luckily the ASI120MM Mini, ASI290MM Mini and ASI174MM Mini all have very high QE peak value – about 80%, which can detect more stars in view and shorten the exposure time in guiding.

Each of the cameras have their own strength and depending on what you value in a guide camera, one might be better for you than the others.

Farpoint Laser Collimator 635nm (2-1.25 inch)

All Farpoint laser collimators have a LIFE TIME Alignment Guarantee. We will realign any Farpoint laser collimator for free! But Farpoint lasers keep their factory alignment. This is due to our robust laser body and (most importantly) our unique alignment screw design explained below.

Farpoint lasers have EIGHT alignment screws instead of six, four, or even three as in some other lasers. Instead of a staggered arrangement (top hole, bottom hole, top hole) that can allow the diode to move, BOTH ends of the laser diode are held in place by two sets of directly opposing screws for precise and lasting alignment. Again, only Farpoint lasers have this superior alignment screw arrangement with four DIRECTLY OPPOSING screws aligning the top of the laser diode and another four DIRECTLY OPPOSING screws aligning the bottom of the laser diode.

Farpoint laser bodies are precisely machined from a single piece of aluminum in a single machining step, resulting in perfect alignment.

Farpoint lasers have a small aperture (0.76mm or 30/1000 of an inch) for less speckling and more precise reading of the laser beam’s position on the telescope mirror. Farpoint has the smallest aperture of any laser in the amateur astronomy market.

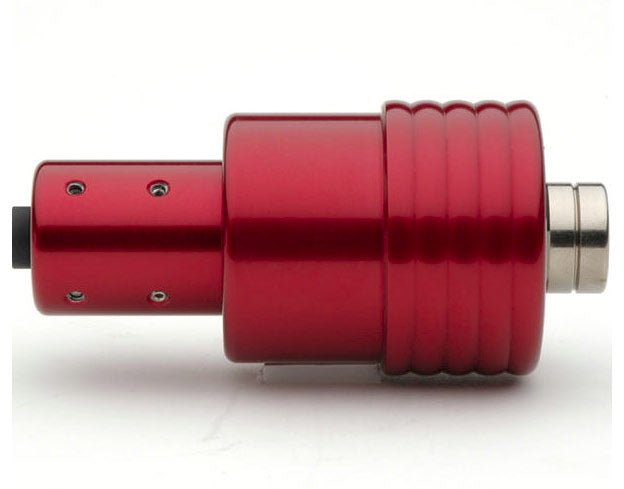

Farpoint Laser Collimator 650nm (1.25″ / 2″ )

All Farpoint laser collimators have a LIFE TIME Alignment Guarantee. We will realign any Farpoint laser collimator for free! But Farpoint lasers keep their factory alignment. This is due to our robust laser body and (most importantly) our unique alignment screw design explained below.

Farpoint lasers have EIGHT alignment screws instead of six, four, or even three as in some other lasers. Instead of a staggered arrangement (top hole, bottom hole, top hole) that can allow the diode to move, BOTH ends of the laser diode are held in place by two sets of directly opposing screws for precise and lasting alignment. Again, only Farpoint lasers have this superior alignment screw arrangement with four DIRECTLY OPPOSING screws aligning the top of the laser diode and another four DIRECTLY OPPOSING screws aligning the bottom of the laser diode.

Farpoint laser bodies are precisely machined from a single piece of aluminum in a single machining step, resulting in perfect alignment.

Farpoint lasers have a small aperture (0.76mm or 30/1000 of an inch) for less speckling and more precise reading of the laser beam’s position on the telescope mirror. Farpoint has the smallest aperture of any laser in the amateur astronomy market.

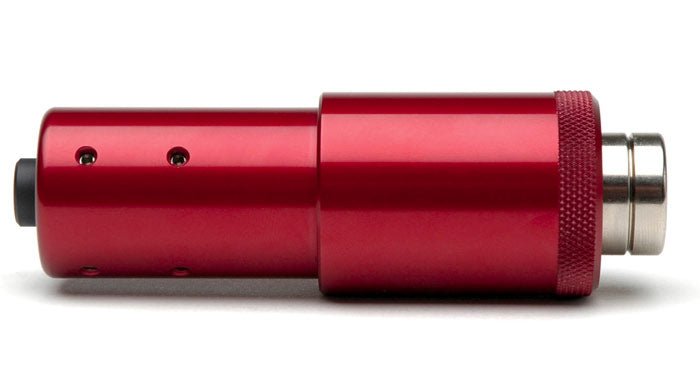

Farpoint Laser Collimator 650nm (1.25 inch )

All Farpoint laser collimators have a LIFE TIME Alignment Guarantee. We will realign any Farpoint laser collimator for free! But Farpoint lasers keep their factory alignment. This is due to our robust laser body and (most importantly) our unique alignment screw design explained below.

Farpoint lasers have EIGHT alignment screws instead of six, four, or even three as in some other lasers. Instead of a staggered arrangement (top hole, bottom hole, top hole) that can allow the diode to move, BOTH ends of the laser diode are held in place by two sets of directly opposing screws for precise and lasting alignment. Again, only Farpoint lasers have this superior alignment screw arrangement with four DIRECTLY OPPOSING screws aligning the top of the laser diode and another four DIRECTLY OPPOSING screws aligning the bottom of the laser diode.

Farpoint laser bodies are precisely machined from a single piece of aluminum in a single machining step, resulting in perfect alignment.

Farpoint lasers have a small aperture (0.76mm or 30/1000 of an inch) for less speckling and more precise reading of the laser beam’s position on the telescope mirror. Farpoint has the smallest aperture of any laser in the amateur astronomy market.

Celestron's HD Pro Wedge is designed to support our fork mounted Schmidt Cassegrain Telescopes up to 11". The HD Pro Wedge provides a heavy duty, stable platform that is perfect for astroimaging and guarantees minimal vibration. A low latitude range of 0-90 degrees makes this wedge functional for use at the equator. Built-in features include altitude/azimuth adjustment controls with oversized knobs attached for easy polar alignment, a hand control holder that provides the option of placing on the wedge or the fork arm, a tilt plate for easier mounting of the telescope by simply rotating the scope onto the wedge, and a large 14 mm diameter latitude adjustment screw to add strength and stability while supplying less vibration and easier rotation with a heavy telescope.

HD Pro Wedge - General Features

• 14 mm Diameter Latitude Adjustment Screw - Adds strength and stability. Does not flex or bend providing less vibration and making it easier to rotate a heavy telescope.
• 0-90 Degree Latitude Range - Low latitude range, perfect for use at the equator.
• Built-in Hand Control Holder - Allows user to place the hand control on the wedge or fork arm. Hand control won't fall off when fork arm is angled towards the ground.
• Tilt Plate - Recesses to fit base of telescope and base of scope drops into place just by rotating. Mounting telescope on wedge becomes easier.
• Heavy Duty Side Plates - More rigid with more material provides less vibration while imaging.

Instruction Manual

CELESTRON’S BEST OPTICS

What makes the view through a CPC Deluxe HD unforgettable? It all starts with the newest EdgeHD optical system. This unique design corrects for both coma and field curvature, providing aberration-free images and pinpoint stars across the largest imaging sensors and all the way to the edge of the widest eyepieces

Read more about how EdgeHD outperforms competing optical systems by downloading the EdgeHD whitepaper.

All EdgeHD systems include Celestron's StarBright XLT coatings on all optical surfaces for brighter images and increased light transmission. Plus, every EdgeHD optical tube is Fastar compatible. Simply remove the secondary mirror and attach a third party lens assembly and you’re ready to image the night sky at ultra-fast f/2.

ULTIMATE VERSATILITY

Customers and reviewers have hailed the CPC Deluxe an all-around top performer, equally well suited to a star party or a university astronomy course. The beefy dual fork arm mount anchors the telescope for ultra-precise tracking, but weighs just 29 kg and includes rugged carrying handles to make setup quick and easy.

As soon as you turn on your CPC Deluxe HD, you’ll be guided through a simple SkyAlign procedure. The telescope walks you through centering any three bright objects in the eyepiece. From there, it’s ready to locate and track more than 40,000 celestial objects.

To customize your experience under the stars, CPC Deluxe HD is compatible with all of Celestron’s latest accessories. Add StarSense AutoAlign and your CPC will align itself in under 3 minutes. Or add the SkyPortal WiFi Module and control your telescope using a smartphone or tablet.

With this much versatility, the CPC Deluxe HD is a telescope that will serve you well for years to come, no matter what you choose to do with the hobby—including astroimaging.

BUILT WITH IMAGING IN MIND

Most altazimuth telescopes are designed primarily for visual use, but not the CPC Deluxe HD. It offers all the same high-end features you’ll find Celestron's German equatorial mounts. Out of the box, your CPC Deluxe can track accurately for up to 30 seconds without adding a wedge, thanks to a re-engineered drive train with a 6-inch brass gear, stainless steel worm gear, and both steel and nylon ball bearings.

If you’ll be doing longer exposure astrophotography, adding the HD Pro Wedge turns this telescope into an astroimager’s dream setup. With a wedge, you can take advantage of the All Star Polar Alignment procedure, which has you polar aligned in just minutes. You can also train your mount to be even more accurate with Permanently Programmable Periodic Error Correction. Finally, your CPC tracks smoothly through the meridian without doing a meridian flip, enabling you to capture objects in the best part of the night sky.

https://www.youtube.com/watch?v=rbrEz8HNXs0

SPECIFICATIONS

Cigarette Socket to Eye Terminal

A handy lead allowing you to power your 12VDC cigarette lighter plug devices from a range of 12VDC sources. The cigarette lighter socket is attached to 40cm long red and black lead with 8mm eye terminals on each end. Can use Cigarette Lighter Double Adapter Plug.

A piggyback bracket is a simple astronomical accessory that can help you produce stunning photographs of the night sky. It allows you to attach a DSLR camera and lens to any Celestron SCT optical tube assembly and take advantage of the fact that your telescope has a dual-axis motor drive. When your telescope is running with the camera attached, you can take longer exposures without star trails, and capture details in objects that would have been impossible had your camera been attached to a photographic tripod or a telescope without a drive system.

Normally available for pickup or shipping approx. 2-3 business days from your order

ERGONOMIC DESIGN

CGEM II was designed to be ergonomically friendly with large Altitude and Azimuth adjustment knobs for quick and easy polar alignment adjustment. The internal RA and DEC motor wiring provides a clean look and an easy and trouble free set up.

INNOVATION

The CGEM II series features Celestron’s innovative All-Star Polar alignment procedure. All-Star allows you to accurately polar align the mount using any star, even ig the celestial pole cannot be seen. Another great feature of the CGEM II sure to please astroimagers, is the Permanent Periodic Error Correction (PEC) which will allow users to train out the worm gears periodic errors, while the mount retains the PEC recordings.

PERFORMANCE

For objects near the Meridian (imaginary line passing from North to South), the CGEM II will track well past the Meridian for uninterrupted imaging through the most ideal part of the sky. The CGEM II mount has a robust database with over 40,000 objects, 100 user defined programmable objects and enhanced information on over 200 objects. Celestron's CGEM II mount is the perfect fit between the Advanced VX Series and CGX Series.

SPECIFICATION

Click Here to download INSTRUCTION MANUAL

https://www.youtube.com/watch?v=diM2-oBYI3A
