What the numbers mean
Five heaters, manual or automatic.
5RCA channels
Control each heater independently.
Every channel supports 0-100% PWM duty-cycle control.
1included sensor
Let dew point drive the output.
The temperature and humidity sensor supports automatic heater adjustment and live dew-point display.
2.4 GHzWi-Fi
Control it in a browser or imaging software.
Use the local web dashboard, ASCOM Alpaca over Wi-Fi or ASCOM 7 through USB-C.
Good to know.

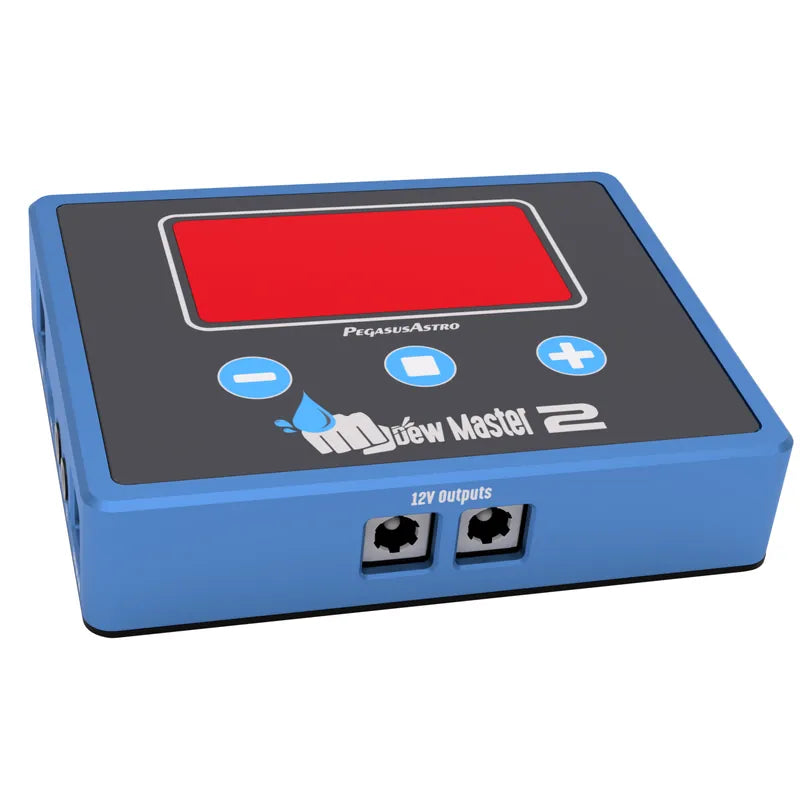

Two 12 V outputs pass power through.
They can feed additional equipment while the built-in meters report voltage and current.
Temperature probes are optional.
Two 3.5 mm probe sockets are provided, but the individual probes are not in the box.
The environmental sensor is included.
The box also contains the controller and a one-metre 2.1 mm to 2.1 mm cable.
Technical
Specifications.
Dew and power
Heater outputs
5 x RCA, 0-100% PWM
Supply
12-13.8 V DC, 2.1 mm centre-positive
Pass-through
2 x 12 V
Control and physical
Remote control
2.4 GHz browser, ASCOM Alpaca, ASCOM 7 over USB-C
Temperature probes
2 x 3.5 mm sockets; probes not included
Dimensions
109 x 74 x 25 mm
Net weight
250 g
