Fits G-11 (HD Tripod) adjustable tripod legs. 5" diameter for large surface contact. Dampens vibrations and glows for up to 15 hours. Set of 3.

Losmandy GM8 G

If you are looking for an equatorial mount for imaging for your 8" SCT , Refractor or up to an 8" Newtonian, with smooth operation, minimal PEC and looks like a million dollars without costing a million dollars then this is the mount for you.

Scott Losmandy has been manufacturing high quality, precision German Equatorial mounts for nearly 20 years now. His Losmandy mounts are highly regarded for their innovative mechanical designs.

Manufactured using computer controlled equipment operated by an experienced staff results in a degree of consistency and performance that is unrivaled in its price range.

The result for the user is a mount that tracks as it should with minimal Periodic Error - these mounts are a dream come true for astrophotographers.

Features

Fully locking, unique tangent arm design altitude adjustment, 6-68 degrees, large knob for easy alignment.

Laser engraved latitude scale in 2 degree increments.

Single knob azimuth control, bi-directional +/- 8.5 degree.

3.500” diameter laser engraved setting circles, 6 minute R.A. / 2 degrees DEC.

R.A. circle engraved for Northern and Southern Hemisphere.

Dovetail saddle-plate fits both "D" Losmandy Style Dovetail or Vixen Style Dovetail. Allows for the interchanging of any tube assembly-reduces need for DEC. weights.

2.812” diameter, 7075 aluminum worm gear, 180 tooth.

Dual supported, ball bearing housed ground High Precision Brass Worm.

*(image shown with worm cover plate removed)

Removable stainless steel 1-1/4 inch diameter weight shaft w/safety knob.

7 lb counterweight.1 lb and 21 lb extra counterweights available.

SPECIFICATION: R.A. / DEC. AXIS

• All machined aluminum and stainless steel, black anodized.
• All stainless steel hardware.
• One 2.100” diameter needle thrust bearing.
• One 2.000” diameter needle thrust bearing.
• Two 1.500” diameter needle bearings.
• 2.812” diameter, 7075 aluminum worm gear, 180 tooth.
• Dual supported, ball bearing housed ground High Precision Brass Worm.
• Variable slip clutch, both axes. One knob per axis design.
• Porter Slip Ring Design
• 1.250” diameter aluminum shafts.
• Through the axis polar scope mounting, works in Northern and Southern Hemisphere. Polar scope optional.
• Instrument Weight Capacity 30 LBS
• Equatorial head weight 21 lbs.

DRIVE ELECTRONIC OPTIONS - (S) DIGITAL OR (G) GEMINI GOTO

DUAL-AXIS DIGITAL ELECTRONICS (S)

• Diamond push button pattern.
• R.A. and DEC. reversing switches.
• 160 oz/in stepper motor, 1.0 arc sec. step.
• Three guiding rates; 30%, 50% and 2x sidereal rate.
• Three setting rates; 4x, 8x, 16x sidereal rate.
• Quartz tracking rates: sidereal, solar, lunar, king.
• Periodic Error Correction (PEC).
• Programmable DEC. Backlash Compensation (TVC).
• Control panel dimmer.
• Accepts auto-guider systems.
• Northern and Southern Hemisphere operation.
• 12 volt DC - 500ma power use.
• Tiltable control panel for easy access.
• Small hand control box for comfortable use.

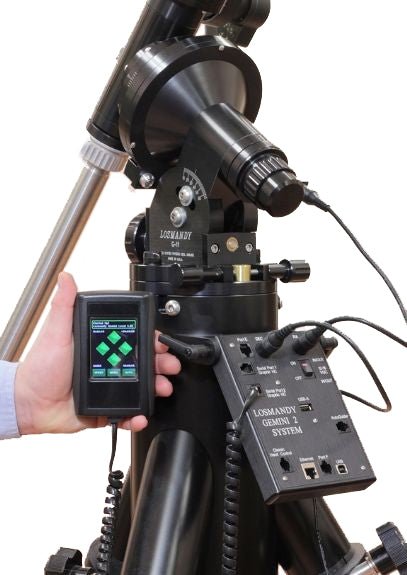

GEMINI 2 GOTO ELECTRONICS (G)

• Full Color Graphic Touch Screen clearly displays all functions.
• Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and tactile membrane on the rear.
• Periodic Error Correction (PEC).
• Programmable DEC. Backlash Compensation (TVC).
• Control panel dimmer, Day and Night Modes.
• Accepts auto-guider systems.
• Northern and Southern Hemisphere operation.
• Tiltable control panel for easy access.
• Stand Alone System. No PC required
• Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or Serial Port
• DC Servos for imporved accuracy with higher torque than steppers
• Non-Volatile Memory and Real-Time Clock
• English, German, French & Spanish displays
• Over 40,000 objects
• USB ports; Virtual COM to PC, ASCOM or planetarium program.
• Firmware upgrade via internet
• Auto Guide Port (TTL)

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 and HAE29EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

The HAE29EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• High precision encoder with realtime PEC (RPEC)
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Carrying case
• Two year warranty

Specifications

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

LEICA GEOVID R 15x56

With the new generation of Geovid R rangefinder binoculars, Leica once again sets new standards. Completely redesigned and technically updated, the new Geovid R models are impressive in every detail. Leica remains true to its brand promise and its focus on the essentials – and continues to evolve as a pioneer with 30 years’ experience in rangefinding.

You don’t want to choose between powerful binocular optics and a precise rangefinder? You don’t have to: Geovid R offers the best possible combination in one product, at an attractive price. The extremely compact, lightweight premium binoculars deliver a field of view that is outstanding in their class, as well as great image detail and fascinating color fidelity.

With an improved measurement range of up to 1,800 meters/2.000 yards, you are perfectly equipped for almost any hunt. The ballistics function EHR, which outputs the equivalent horizontal distance for angle shots at up to 1,100 meters/1.200 yards, additionally facilitates an ethical shot.

The newly developed Geovid R models focus fully on Leica’s core values: powerful premium optics, precise rangefinding, maximum optomechanical reliability, and easy, intuitive operation. Thanks to highly efficient manufacturing and a focus on the essentials, you no longer have to choose between conventional binoculars and a rangefinder.

The essentials:

• Best-in-class optical performance
• Absolutely precise laser rangefinding
• Improved measurement range: up to 2,000 yds (1,800 m)
• New, up-to-date, ergonomic design
• Particularly light, compact construction

IN THE BOX

• Leica Geovid R 15x56, Contoured neoprene carrying strap, front lens, cover, eyepiece caps, cordura case, battery

LEICA GEOVID R 8x56

With the new generation of Geovid R rangefinder binoculars, Leica once again sets new standards. Completely redesigned and technically updated, the new Geovid R models are impressive in every detail. Leica remains true to its brand promise and its focus on the essentials – and continues to evolve as a pioneer with 30 years’ experience in rangefinding.

You don’t want to choose between powerful binocular optics and a precise rangefinder? You don’t have to: Geovid R offers the best possible combination in one product, at an attractive price. The extremely compact, lightweight premium binoculars deliver a field of view that is outstanding in their class, as well as great image detail and fascinating color fidelity.

With an improved measurement range of up to 1,800 meters/2.000 yards, you are perfectly equipped for almost any hunt. The ballistics function EHR, which outputs the equivalent horizontal distance for angle shots at up to 1,100 meters/1.200 yards, additionally facilitates an ethical shot.

The newly developed Geovid R models focus fully on Leica’s core values: powerful premium optics, precise rangefinding, maximum optomechanical reliability, and easy, intuitive operation. Thanks to highly efficient manufacturing and a focus on the essentials, you no longer have to choose between conventional binoculars and a rangefinder.

The essentials:

• Best-in-class optical performance
• Absolutely precise laser rangefinding
• Improved measurement range: up to 2,000 yds (1,800 m)
• New, up-to-date, ergonomic design
• Particularly light, compact construction\

IN THE BOX

• Leica Geovid R 8x56, Contoured neoprene carrying strap, front lens, cover, eyepiece caps, cordura case, battery

LEICA GEOVID R 8x42

With the new generation of Geovid R rangefinder binoculars, Leica once again sets new standards. Completely redesigned and technically updated, the new Geovid R models are impressive in every detail. Leica remains true to its brand promise and its focus on the essentials – and continues to evolve as a pioneer with 30 years’ experience in rangefinding.

You don’t want to choose between powerful binocular optics and a precise rangefinder? You don’t have to: Geovid R offers the best possible combination in one product, at an attractive price. The extremely compact, lightweight premium binoculars deliver a field of view that is outstanding in their class, as well as great image detail and fascinating color fidelity.

With an improved measurement range of up to 1,800 meters/2.000 yards, you are perfectly equipped for almost any hunt. The ballistics function EHR, which outputs the equivalent horizontal distance for angle shots at up to 1,100 meters/1.200 yards, additionally facilitates an ethical shot.

The newly developed Geovid R models focus fully on Leica’s core values: powerful premium optics, precise rangefinding, maximum optomechanical reliability, and easy, intuitive operation. Thanks to highly efficient manufacturing and a focus on the essentials, you no longer have to choose between conventional binoculars and a rangefinder.

The essentials:

• Best-in-class optical performance
• Absolutely precise laser rangefinding
• Improved measurement range: up to 2,000 yds (1,800 m)
• New, up-to-date, ergonomic design
• Particularly light, compact construction

IN THE BOX

• Leica Geovid R 8x42, Contoured neoprene carrying strap, front lens, cover, eyepiece caps, cordura case, battery

LEICA TRINOVID BCA

The right companion for ambitious users

Best resolving power and small size fit for any kind of use

The Trinovid BCA models are the most versatile of all compact binoculars. Their high-quality optics provide great resolving power in a small size, making them the perfect companion for various occasions.

Built for outstanding colour fidelity and high-contrast viewing

Leica’s innovative High Durability Coating® (HDC®) is an abrasion-resistant and transmission enhancing multi-coating, guaranteeing superior light transmission and outstanding colour fidelity.

Brilliant performance in any situation

Inspired by the powerful Trinovid series, these compact binoculars are the perfect companion wherever you go. Their robust, water-resistant construction and low weight make them ideal for outdoor activities.

The HAZ 712 Alt-Az strain wave gear joins the iOptron SWG mount family!

This relatively compact heavier payload mount will deliver an astronomy experience like never before. The mount easily accommodates both a binocular and a telescope through its multiposition saddle that can be located on a "top" or a "side" configuration to best suited for the instrument selected. Set-up is so easy, just turn the mount on and it will calibrate itself and go to the first target utilizing our time-tested "Lever and Go" routine.

Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAZ 712 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, but it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake on both AZI and ALT allow the mount to safely stop.

The HAZ 712 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third-party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or an iOptron iMate Astronomy Control Box and other Pi device via INDI driver.

Features:

• Unique friction brake on both AZI and ALT to safely stop movement during a planned or unplanned power interruption
• Go2Nova® 8409 V2 hand controller with ~212,000 object database
• Built-in GPS
• Dual saddle (Vixen and Losmandy-D styles)
• Level & Go
• Large binocular mounting
• Satellite tracking ready (with third-party software)
• Built-in zero position search and locator
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Internal Li-ion rechargeable battery
• Carrying case

Technical Specifications

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 and HAE29EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Carrying case
• Two year warranty

Specifications

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 and HAE29EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Go2Nova® hand controller with ~212,000 object database
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Carrying case
• Two year warranty

Specifications

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE43 and HAE43EC! These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 13lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE43s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE43 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

The HAE43EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Features

• Advanced strain wave gear system technology
• Payload capacity of 20 kg (44 lbs) with the mount weight of 5.8 kg (12.8 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 270 second gear period
• Go2Nova® hand controller with ~212,000 object database
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Aluminum carrying case
• Two year warranty

Specifications

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE43 and HAE43EC! These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 13lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE43s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE43 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

Features

• Advanced strain wave gear system technology
• Payload capacity of 20 kg (44 lbs) with the mount weight of 5.8 kg (12.8 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 270 second gear period
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Aluminum carrying case
• Two year warranty

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE43 and HAE43EC! These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 13lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE43s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE43 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

The HAE43EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Features

• Advanced strain wave gear system technology
• Payload capacity of 20 kg (44 lbs) with the mount weight of 5.8 kg (12.8 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 270 second gear period
• High precision encoder with realtime PEC (RPEC)
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Aluminum carrying case
• Two year warranty

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

iOptron HEM44 Mount Head gives you Freedom from cumbersome counterweights and shaft!

Introducing the HEM44 Mount Head iOptron’s latest revolutionary hybrid strain wave drive mounts. These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 6.2kg with a payload capability 20kg, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HEM44 Mount Head brings this vision to reality.

Utilizing state of the art strain wave drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM44s deliver unparalleled weight to payload efficiency. It's black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

A HEM44 Mount Head can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

HEM44 mounts with low latitude range (0~22 degree) are available via special order.

More Information on iOptron HEM mounts

HEM44 Mount Head Features

• Advanced strain wave drive technology
• Payload capacity of 20 kg (44 lbs) with the mount weight of 6.2 kg (13.65 lbs)
• CNC machined
• Unique friction brake to safely stop movement during a planned or unplanned power interruption
• 270 second gear period
• Permanent periodic error correction (PPEC)
• Go2Nova® hand controller with ~212,000 object database
• Cable management system, no hanging exterior cables to moving parts
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Soft carrying case
• Two year warranty
• Tripod Not included

HEM44 Mount Head Technical Specifications

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

SKU: H442

You might also like these accessories ...

The iOptron® CEM40 mount is the next generation of center-balanced equatorial mounts. This mount is incredibly eye-pleasing, and its beauty is found in more than its appearance. The functionality of the mount is superb. Weighing in at only 17.4lbs., this mount can support a payload of up to 40lbs.! That's incredible!

Innovative iOptron Technology
Make way for an innovative mount! This mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.

This iOptron CEM40G mount has a dual saddle that accommodates Losmandy and Vixen-style dovetail plates. The CEM40 also uses iOptron's ultra-quiet, low-power consumption stepper motor drive system, aiding the mount in providing precise tracking.

Computerized Mount Features
The iOptron CEM40 mount uses the Go2Nova® 8407 hand controller to navigate the night sky. This incredible technology helps observers find celestial objects with the aid of the mount's 212,000+ object database! For those looking for a telescope that has the capability of tracking and finding beautiful night sky objects, this mount is a must have tool.

With the included tripod, 11lbs counterweight, and the mount's computerized technology, observers are just an OTA away from a spectacular viewing experience!

(This mount uses #8027 counterweight)

Features

• Unique design, Center-Balanced equatorial mount (CEM) for maximum payload and minimum mount weight
• Idea for both visual observation and astrophotography
• Maximum payload of 40 lbs (18 kg) with the mount weight of only 17.4 lbs (7.9 kg)
• All metal, CNC machined with red/black anodized
• Easy to use quick-lock gear clutches
• Integrated iPolar^TM electronic polar finder
• Low periodic error (< ± 7 arc seconds)
• Permanent periodic error correction (PPEC)
• Precision stepper motor for precise GOTO and accurate tracking
• Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built-in heater
• Integrated ST-4 autoguiding port
• 32-channel Global Positioning System (GPS)
• USB communication port
• Cable management system
• 6" Losmandy D & Vixen dual dovetail saddle
• Standard 1.5 inch heavy-duty stainless steel tripod (5kg)
• Optional WiFi for mount control via SmartPhone/Tablet/Computer

Supplied with an American power supply from factory

The iOptron® CEM40 with LiteRoc is the next generation of center-balanced equatorial mounts. This mount is incredibly eye-pleasing, and its beauty is found in more than its appearance. The functionality of the mount is superb. Weighing in at only 17.4lbs., this mount can support a payload of up to 40lbs.! That's incredible!

Innovative iOptron Technology
Make way for an innovative mount! This mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.

This iOptron CEM40 with LiteRoc has a dual saddle that accommodates Losmandy and Vixen-style dovetail plates. It also uses iOptron's ultra-quiet, low-power consumption stepper motor drive system, aiding the mount in providing precise tracking.

Computerized Mount Features
The iOptron CEM40 mount uses the Go2Nova® 8407 hand controller to navigate the night sky. This incredible technology helps observers find celestial objects with the aid of the mount's 212,000+ object database! For those looking for a telescope that has the capability of tracking and finding beautiful night sky objects, this mount is a must have tool.

With the included tripod, 11lbs. counterweight, and the mount's computerized technology, observers are just an OTA away from a spectacular viewing experience!

(CEM40 with Literoc uses #8027 counterweight)

Features

• Unique design, Center-Balanced equatorial mount (CEM) for maximum payload and minimum mount weight
• Idea for both visual observation and astrophotography
• Maximum payload of 40 lbs (18 kg) with the mount weight of only 17.4 lbs (7.9 kg)
• All metal, CNC machined with red/black anodized
• Easy to use quick-lock gear clutches
• Integrated iPolar^TM electronic polar finder
• Low periodic error (< ± 7 arc seconds)
• Permanent periodic error correction (PPEC)
• Precision stepper motor for precise GOTO and accurate tracking
• Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built-in heater
• Integrated ST-4 autoguiding port
• 32-channel Global Positioning System (GPS)
• USB communication port
• Cable management system
• 6" Losmandy D & Vixen dual dovetail saddle
• LiteRoc 1.75 inch heavy-duty stainless steel tripod (7kg)
• Optional WiFi for mount control via SmartPhone/Tablet/Computer

Supplied with an American power supply from factory

Introducing the HEM27 and the HEM27EC, iOptron’s revolutionary hybrid harmonic drive mounts. These light weight, high payload tiny titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 3.7KG (8.15lbs) with a payload capability 13Kilos (29.74lbs), without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

The HEM27EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

HEM27_Manual

Introducing the HEM27, iOptron’s revolutionary hybrid harmonic drive mounts. These light weight, high payload tiny titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 3.7kgs with a payload capability 13.5kgs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

Features

• Advanced harmonic drive technology
• Payload capacity of 13.5 kg with the mount weight of 3.7 kg
• CNC machined and cast metal body
• Unique friction brake to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Permanent periodic error correction (PPEC)
• Go2Nova® hand controller with ~212,000 object database
• Cable management system, no hanging exterior cables to moving parts
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Soft carrying case

Note: Does not include Tripod (available separately)

HEM27_Manual

Like their predecessors, the C262A3 is designed with portability in mind, weighing in at only 4.5kg it can support up to a 12kg payload an incredible 2.6 mount weight to payload ratio. The key to enable such ratios is the CEM design focuses the mount and payload weight directly on the center of the tripod rendering “natural stability”.

Building on the legacy of earlier CEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves), Built-in Wi-Fi enabling unparallel connectivity and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the C262A3 delivers precise pointing and accurate tracking. The CEM26 sets the new standard for compact equatorial mounts.

The center-balanced design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.

The C262A3 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 212,000+ objects. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

The CEM26A mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. It comes with a 1.5" heavy duty stainless steel tripod and an aluminum carrying case.

Features

• Unique design, center-balanced equatorial mount (CEM)for maximum payload and minimum mount weight
• Ideal for both visual observation and astrophotography
• Low periodic error (< ± 10 arc seconds)
• Payload of 12 kg (26 lbs) with the mount-only weight of 4.5 kg (10 lbs)
• CNC machined and cast metal body
• Spring loaded gear system
• Large easy to use quick-lock gear clutches
• 0º latitude operation with optional adapter
• Stepper motor with low power consumption
• Integrated iOptron iPolar^TM electronic polar scope
• Polar alignment routine for those who can’t see the Pole Star
• Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi
• USB port for firmware upgrade and computer control
• LiteRoc heavy-duty stainless steel tripod w/ vibration suppression pads (7.5kg)
• Die-cast metal tripod spreader with accessory tray
• Hard carrying case
• Optional 32-channel Global Positioning System (GPS)
• Optional iGuider^TM autoguiding system #3360

Supplied with an American power supply from factory

Iconic Design
The Leica TRINOVID 8x40 binoculars are a tribute to the iconic glass of the 1960s. Shapely, slim and elegant in classic binocular design featuring black leather, they are a statement and a tiemless accessory.

Modern Premium Optics
The precise, powerful premium optics give you an impressive overview, while intuitive operation ensure that you can comfortably observe even the smallest details. The latest glass types and coatings guarantee brilliant, natural colours and high-contrast and bright images from edge to edge.

Made for Generations
Protected by an ultra-light aluminum housing and state-of-the-art materials, theLeica TRINOVID 8x40 binoculars are rugged, weatherproof and splash-proof. They are up to any challenge, even under harsh conditions, making them the perfect companion for trips, on hiking tours, or at events.

The Essentials:

• Iconic design, sleek and elegant with classic black leather trim
• Modern premium optics for impressive viewing experiences with brilliant, natural colors and high-contrast, bright images
• High quality and durable aluminum housing
• Outstanding overview thanks to the largest field of view with high edge sharpness
• More details can be seen even at dusk
• Quiet, shake-free overview of the scenery

The essentials:

• Bright thanks to 50 mm lens diameter
• The generous exit pupil allows a quick and safe insight
• Ideal binoculars for night observation with compact dimensions and low weight

Iconic Design
The Leica TRINOVID 10x40 binoculars are a tribute to the iconic glass of the 1960s. Shapely, slim and elegant in classic binocular design featuring black leather, they are a statement and a timeless accessory.

Modern Premium Optics
The precise, powerful premium optics give you an impressive overview, while intuitive operation ensure that you can comfortably observe even the smallest details. The latest glass types and coatings guarantee brilliant, natural colours and high-contrast and bright images from edge to edge.

Made for Generations
Protected by an ultra-light aluminum housing and state-of-the-art materials, the Leica TRINOVID 10x40 binoculars are rugged, weatherproof and splash-proof. They are up to any challenge, even under harsh conditions, making them the perfect companion for trips, on hiking tours, or at events.

The Essentials:

• Iconic design, sleek and elegant with classic black leather trim
• Modern premium optics for impressive viewing experiences with brilliant, natural colors and high-contrast, bright images
• High quality and durable aluminum housing
• Outstanding overview thanks to the largest field of view with high edge sharpness
• More details can be seen even at dusk
• Quiet, shake-free overview of the scenery

The essentials:

• Balanced ratio of magnification and light intensity
• Good twilight performance
• Binoculars for extended observation: high detail recognition even in the most adverse lighting conditions, during the day and at late twilight

Iconic Design
The Leica TRINOVID 7x35 binoculars are a tribute to the iconic glass of the 1960s. Shapely, slim and elegant in classic binocular design featuring black leather, they are a statement and a timeless accessory.

Modern Premium Optics
The precise, powerful premium optics give you an impressive overview, while intuitive operation ensure that you can comfortably observe even the smallest details. The latest glass types and coatings guarantee brilliant, natural colours and high-contrast and bright images from edge to edge.

Made for Generations
Protected by an ultra-light aluminum housing and state-of-the-art materials, the TRINOVID 7x35 binoculars are rugged, weatherproof and splash-proof. They are up to any challenge, even under harsh conditions, making them the perfect companion for trips, on hiking tours, or at events.

The Essentials:

• Iconic design, sleek and elegant with classic black leather trim
• Modern premium optics for impressive viewing experiences with brilliant, natural colors and high-contrast, bright images
• High quality and durable aluminum housing
• Outstanding overview thanks to the largest field of view with high edge sharpness
• More details can be seen even at dusk
• Quiet, shake-free overview of the scenery

The essentials:

• Excellent for observations at long distances
• Safe detection and determination of details
• For the detailed, long observation, quieter picture impression when mounting on a monopod or normal tripod

Leica Camera AG, Wetzlar, presents a new generation of the Leica ULTRAVID 8x42 HD binoculars. The prisms of the new binoculars are made from specially formulated SCHOTT glasses with exceptional transmission characteristics. The significantly increased light transmission, particularly in the blue-violet band, ensures not only higher image brightness, but also better color transmission and considerably improved twilight vision.

The essentials:

• 12 precise glass lenses of SCHOTT HT™ (High Transmission) for amazingly natural color rendition and increased brightness
• Improved geometry of lens surfaces for never-before achieved edge to edge image sharpness.
• High-temperature plasma deposition lens coatings for perfectly balanced light transmission throughout the entire wavelength range of visible light
• New eyepiece design for longer eye-relief, nearer close focus, and wider field of view
• Light-weight, high strength magnesium body with patented hardness Class 8 surface coating for superior corrosion protection
• Superior sealing and nitrogen purged for the highest rated water/fog proof performance in any environment – submersible to 16 feet
• Rubber armoring for sure grip, added impact protection, and comfortable ergonomics
• High mechanical precision focusing system for properly metered focusing speed

The Leica NOCTIVID 8X42 glasses are compact in size, stylish, and elegant, but nevertheless unbelievably robust and resilient. Ideal for every walk of life, the Leica Noctivid binoculars set standards alone with their design. The optical and mechanical systems of the Leica Noctivid family of binoculars unite the best of the latest and most innovative technologies to create a pinnacle of excellence.

The optical engineers have integrated no less than 12 glass lens elements in the Leica Noctivid models to achieve viewing excellence that fulfills even the most stringent demands. Schott HT™ (High Transmission) glasses ensure amazingly natural color rendition. The Leica Noctivid binoculars take advantage of a high-temperature plasma deposition process for highest-quality lens coatings that guarantee perfectly balanced transmission characteristics throughout the entire wavelength range of visible light, which results in a breathtakingly bright and color-neutral viewing image.

The essentials:

• Best detail recognition thanks to 8x magnification
• Excellent stray light suppression and high contrasts allow the observation of the finest structures under the most difficult conditions
• Fatigue-free, relaxed observation thanks to its compact design and ideal weight distribution

Leica Ultravid HD-Plus 7x42

Leica Camera AG, Wetzlar, presents a new generation of the ULTRAVID 7X42 binoculars. The prisms of the new binoculars are made from specially formulated SCHOTT glasses with exceptional transmission characteristics. The significantly increased light transmission, particularly in the blue-violet band, ensures not only higher image brightness, but also better color transmission and considerably improved twilight vision.

The essentials:

• 12 precise glass lenses of SCHOTT HT™ (High Transmission) for amazingly natural color rendition and increased brightness
• Improved geometry of lens surfaces for never-before achieved edge to edge image sharpness.
• High-temperature plasma deposition lens coatings for perfectly balanced light transmission throughout the entire wavelength range of visible light
• New eyepiece design for longer eye-relief, nearer close focus, and wider field of view
• Light-weight, high strength magnesium body with patented hardness Class 8 surface coating for superior corrosion protection
• Superior sealing and nitrogen purged for the highest rated water/fog proof performance in any environment – submersible to 16 feet
• Rubber armoring for sure grip, added impact protection, and comfortable ergonomics
• High mechanical precision focusing system for properly metered focusing speed

Give your APC 60 stabilized extra protection and a personal touch with KITE Optics silicone jackets. These high-quality silicone covers provide effective protection against scratches, impacts, and wear, ensuring your APC 60 to remain in top condition even in rugged environments. The jackets feature added grip, providing a secure and comfortable hold during use.

With a range of available colours, you can personalize your binoculars to match your style or surroundings. Combine functionality with flair and make your APC 60 a unique and eye-catching tool.

Like their predecessors, the C261A3 is designed with portability in mind, weighing in at only 4.5kg it can support up to a 12kg payload an incredible 2.6 mount weight to payload ratio. The key to enable such ratios is the CEM design focuses the mount and payload weight directly on the center of the tripod rendering “natural stability”.

Building on the legacy of earlier CEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves), Built-in Wi-Fi enabling unparallel connectivity and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the C261A3 delivers precise pointing and accurate tracking. The CEM26 sets the new standard for compact equatorial mounts.

The center-balanced design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.

The C261A3 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 212,000+ objects. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

The CEM26A mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. It comes with a 1.5" heavy duty stainless steel tripod and an aluminum carrying case.

Shipping Box #1: C261A-CEM26 Head w/ iPolar/Tray (C261A)
Shipping Box #2: 8283-CEM26/GEM28 LiteRoc Tripod w/o Tray (C26/G28 LiteRoc)

Features

• Unique design, center-balanced equatorial mount (CEM) for maximum payload and minimum mount weight
• Ideal for both visual observation and astrophotography
• Low periodic error (< ± 10 arc seconds)
• Payload of 12 kg (26 lbs) with the mount-only weight of 4.5 kg (10 lbs)
• CNC machined and cast metal body
• Spring loaded gear system
• Large easy to use quick-lock gear clutches
• 0º latitude operation with optional adapter
• Stepper motor with low power consumption
• Integrated iOptron iPolar^TM electronic polar scope
• Polar alignment routine for those who can’t see the Pole Star
• Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi
• USB port for firmware upgrade and computer control

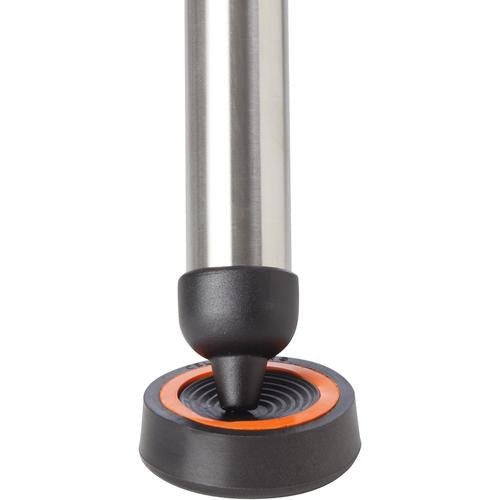

• LiteRoc heavy-duty stainless steel tripod w/ vibration suppression pads (7.5kg)
• Die-cast metal tripod spreader with accessory tray
• Optional 32-channel Global Positioning System (GPS)
• Optional hard carrying case
• Optional iGuider^TM autoguiding system #3360

Supplied with an American power supply from factory
