Hubble UL32 – 32" Lightweight Reflector Telescope

The Hubble UL32sg is a flagship 32-inch Dobsonian telescope designed for serious deep-sky observers, research-grade visual work, and advanced EAA applications. With a massive 32-inch primary mirror, the UL32sg delivers 16 times the light grasp of an 8-inch telescope and four times that of a 16-inch, revealing galaxies, nebulae, and fine structure at a level few instruments on Earth can match.

Despite its extraordinary aperture, the UL32sg is engineered to remain as compact and transportable as possible for its class. Fully assembled, the telescope weighs around 150 kg and features a modular, all-metal construction with sectional truss tubes and a folding altitude bearing structure. A real mirror box provides safe protection for the primary mirror during transport and storage.

Light, Strong, Compact and Still Portable

The UL32sg is built using precision-machined aluminium alloy components, extensively modelled with CAD and FEA to optimise structural rigidity while minimising weight. Eight rigid sectional truss tubes ensure excellent stiffness and collimation stability, even at extreme elevations.

While the UL32sg is not a casual backyard instrument, it remains one of the most compact and practical 32-inch class telescopes available, capable of being transported and assembled by a small team for dark-sky expeditions, observatories, and research installations.

Revolutionary Smart Go-To System

The UL32sg is supplied exclusively in a Smart Go-To configuration, built around the state-of-the-art OnStep control system. This advanced platform combines fully motorised Go-To, high-resolution encoders, and a revolutionary plate-solving smart finder for unmatched pointing accuracy.

Using the system is simple: select a target via the smart hand controller or third-party software such as SkySafari or Stellarium, then with a single button press the telescope captures an image, plate-solves its position, and automatically refines its pointing until the target is perfectly centred.

The system supports automated star alignment, automated “Star Shows” such as Messier Marathons, intelligent routing to reduce slewing time by 30–50%, and full EAA live stacking for electronically assisted observing.

Connectivity includes built-in WiFi and Bluetooth, INDI and ASCOM drivers, real-time clock, spiral search, park/unpark, and full sidereal, lunar, and solar tracking rates. Control is available via smart hand controller, desktop software, or mobile apps on Windows, macOS, Linux, iOS, and Android.

Exclusive Sandwich Mirror Technology

The UL32sg uses a lightweight sandwich primary mirror designed to reach thermal equilibrium far faster than traditional solid mirrors. Rapid cooling dramatically reduces mirror seeing and internal turbulence, allowing the telescope to achieve its full optical potential much sooner in real-world conditions.

Unlike thick solid mirrors that may never stabilise during changing temperatures, the sandwich design delivers sharp, stable images without the need for active cooling systems, avoiding vibration and mechanical complexity.

Enhanced Optical Coatings

Both primary and secondary mirrors receive 96% enhanced dielectric coatings with multiple precision-controlled layers. These coatings maximise reflectivity, reduce scatter, and provide excellent chemical and mechanical durability, delivering bright, high-contrast images even at extreme magnifications.

Real Mirror Cell in a Real Mirror Box

The UL32sg features a fully engineered 27-point flotation mirror cell with sling and 90-degree pivoting lateral supports. This system prevents mirror deformation and eliminates astigmatism commonly caused by simpler collimation designs.

The independent three-point rod-end collimation system allows precise adjustment without stressing the mirror edge, maintaining optical integrity under all observing orientations.

Dual-Speed 2" Linear Bearing Crayford Focuser

The UL32sg is fitted with a precision 2-inch dual-speed linear bearing Crayford focuser, capable of handling heavy modern eyepieces and imaging equipment. The fine focus control provides ten times finer adjustment for critical focusing at high power or during EAA use, with approximately 50 mm of travel.

Specifications (UL16)

A new modern large Maksutov telescope for superb viewing and imaging

• 200 mm Maksutov Cassegrain flat field optics Edge to edge sharpness and contrast
• 2000 mm focal length at F10 Large 44 mm image height support
• Optional 0.7x focal reducer compatibility
• Compact well balanced OTA design

Overview

Available May 2026!

Discover why "Maks" are renowned for their sharp imaging and visual observation with the new Sky-Watcher Skymax 200DX Maksutov Cassegrain Telescope

The Sky-Watcher Skymax 200DX Maksutov Cassegrain Telescope is a premium 200 mm optical system built for astronomers and astrophotographers who want exceptional sharpness, strong contrast, and consistent field flatness across a large image circle.

Designed around an optimised flat field Maksutov Cassegrain layout, the Skymax 200DX delivers clean, accurate performance for detailed visual observation and high resolution imaging.

With an effective aperture of 200 mm and a focal length of 2000 mm at F10, this telescope excels at revealing fine surface detail on the Moon and planets while also delivering strong results on compact deep sky targets. Its advanced optical design helps suppress off axis coma and other aberrations, producing consistent star images from the centre of the field right through to the edge.

For imaging applications, the Skymax 200DX includes a generous 44 mm image height, making it well suited for modern large sensor cameras and full frame astrophotography workflows. For users wanting wider fields and faster exposure times, an optional 0.7x focal reducer is available, expanding flexibility without taking away from the telescope’s refined optical purpose.

Despite its high performance optical profile, the Skymax 200DX remains compact and well balanced, making it a practical option for permanent observatory setups or portable imaging rigs when paired with a suitably rated equatorial mount.

Specifications

Pictured Telescope is a prototype. (binoviewer not included)

• The APO140FL F/9.6 features an air-spaced apochromatic-doublet objective with a Fluorite (CaF2) rear element that results in a lighter objective.
• The objective weighs about 2.5 lbs., compared to 5 lbs. for the APO140FL F/7 version, allowing it to come to temperature more quickly.
• Starting 2025, the objective includes anti-reflective and hydrophobic coatings for easier cleaning and maintenance.
• Housed in an aluminum cell, it provides excellent thermoregulation while remaining lightweight and strong.
• The optical assembly is inside a lightweight aluminum tube with sharp-edged baffles.
• No collimation is needed after the scope leaves TEC.
• Comes equipped with a Starlight Instruments FTF#2545 Feather Touch Focuser with coarse and fine 9:1 planetary reduction.
• The 2" locking metal collet is temperature-insensitive and holds loads with precision and concentricity.

In classic refractor fashion, the TEC APO140FL F/9.6 is a no-compromise, no-frills design that lets the wonders of nature speak for themselves.

Recommended Accessories;

• Precision adjustable Tube Rings
• 9” Dovetail Plate and Carry Handle facilitate easy transportation and fit seamlessly with most mounts.
• Focal Reducer Corrector converts the F/7 Ratio to F/6.2 with a 115mm back focus.
• TEC Transportation Case that eases transport between observation locations.
• TEC Compact Case for easy lifting and transportation.
• 7×50 Vixen Finderscope with a TEC Finder Bracket and Base for Telescope mounting.


Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and TEC then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. Rest assured that your telescope has been optimized to be as optically perfect as possible. If the objective does not reach TEC's expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferometrical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.

Specifications

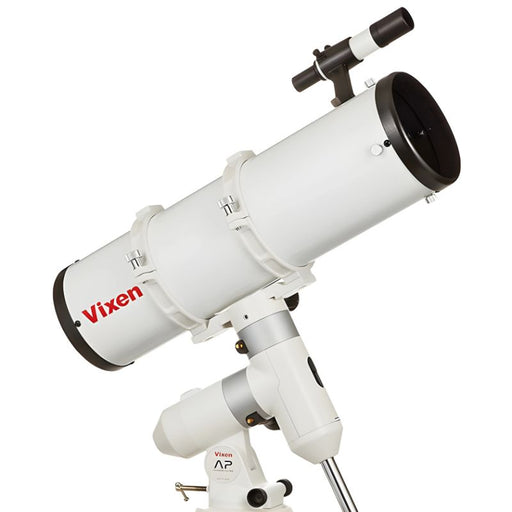

For observation of faint nebulae and star clusters in a wide and bright field of view

The 130mm aperture newtonian reflector with excellent light gathering power is ideal for observation of faint nebulae and star clutsters, particularly for beginners who wish to start astronomical life with a large aperture excellent in light gathering power.

• AP Equatorial mount

  The Advanced Polaris mount is ideally suited for beginners who want to become familiar with an equatorial mount, as well as for experienced observers looking for a simple, grab-and-go solution. The AP mount securely supports your telescope's optical tube, ensuring stable and comfortable observing. Thanks to its friction control system, the mount can be quickly and smoothly moved to your target object without the need for knobs or clamps. A wide range of optional accessories is available to customize the AP mount to meet your specific observing needs.

• Stylish design

  The new stylish and modern design breaks away from the traditionally bulky image of astronomical telescopes. Weighing just 3.6 kg (excluding the counterweight), the lightweight body makes it easy to handle even full-scale telescope setups. The power supply runs on four AA batteries, which are integrated inside the mount. Additionally, the use of internal electrical contacts eliminates the need for external wiring, offering a cleaner, more user-friendly setup compared to previous designs.

• Friction control system

  Simply aim at your target object by moving the optical tube by hand. The friction control system allows smooth, manual pointing of the telescope without the need for knobs or clamps.

• Simple polar alignment

  The optional Polar Meter can be attached to the equatorial mount for easy and quick polar alignment. Even beginners can align the polar axis with minimal effort. While a polar axis scope is typically used for more precise alignment, the Polar Meter can be more effective—especially in locations where Polaris is not visible.

• Polar alignment scope PF-L

  The PF-L polar alignment scope features a three-star alignment system and a built-in dark field illuminator, allowing you to perform polar alignment while looking directly through the scope. The illumination automatically turns off to prevent unnecessary power consumption.

  To support the PF-L scope, we offer a free app called "PFL Assist" for smartphones and tablets. This app helps users visualize the correct star positions within the constellation, making polar alignment easier and more intuitive.

• R130Sf Newton reflector

  The 130mm aperture newton reflector which is excellent in light gathering power is ideal for observation of faint nebulae and star clusters in a wide and bright field of view.

• APP-TL130 tripod

  The compact APP-TL130 tripod is adjustable between 60 cm and 130 cm, combining the portability of a photographic tripod with the strength of an astronomical telescope tripod. The tripod feet can be switched between rubber pads and metal spikes, allowing for stable use on various surfaces without damaging indoor flooring.

Optical tube

Drawtube

Tripod

Others

Best for serious astrophotographers who demand a perfect imaging platform with user-friendly functions that allow for comfortable operation.

The AXJ-A103S package comes with the quad element AX103S apochromatic system that features SD glass for uncompromising optical performance, the pinnacle of this aperture class. The mount comes with a sturdy but lightweight ASG-CB90 tripod made of carbon fiber.

•  AX103S optical tube assembly.

  The three-element objective lens, which includes a centre SD glass element, delivers crystal-clear, sharp, and high-contrast images with no noticeable false colour. Additionally, the built-in field corrector lens ensures that star images remain as small as 20 microns at the edge of the imaging field. Premium AS coatings are applied to every lens surface, enhancing visible light transmission to 99.5% (for wavelengths between 400nm and 700nm), ensuring exceptional light transmission across the entire visible spectrum.

• AXJ equatorial mount.

  The AXJ mount, equipped with the advanced Ultimate Periodic Error Correction (VPEC) system, provides highly accurate tracking with precision of +/- 4 arc seconds or better. The VPEC operates automatically during use, ensuring seamless performance. The mount's belt drive system significantly reduces backlash and minimizes motor noise, while delivering quick and stable motor response. Additionally, the AXJ mount supports a maximum payload of 22 kg.

• STAR BOOK TEN star chart go-to navigation controller.

  The STAR BOOK TEN features an intuitive "Star-Chart Go-To" system with a high-definition colour LCD display. It shows detailed information, including the telescope's position, the target, and other useful data. The night vision mode can be activated to illuminate the entire screen in red, reducing brightness to protect the observer's night vision.

• Durable and lightweight carbon tripod.

  The ASG CB90 is a compact and lightweight tripod which is constructed of durable carbon fibre legs. Also, the tripod head, leg extension part and leg brace have been reviewed completely to realize a highly stable tripod for the AXJ mount.

Optical Tube

Focuser

Tripod

Others

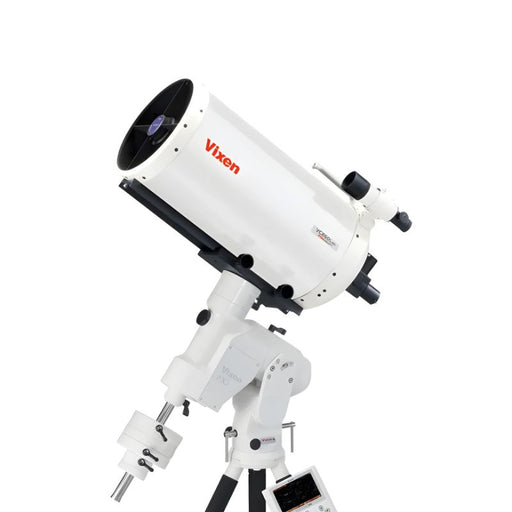

For both planetary and deep sky observing and photographic applications.

Vixen's original Catadioptric design, consisting of two high reflectivity dielectric mirrors and a unique double menisus lens unit in front of the seconday mirror, virtually eliminates both spherical aberration and field curvature excellently and delivers high quality of images. With the large 260mm aperture, the VMC260L is a true all purpose telescope in your observing sessions.

Optical Tube

Adapter

Others

Configuration

• AXD-VMC260L
• AXD-VMC260L-P

More light gathering power is great for viewing deep sky objects.

A combination of a 130mm Newtonian reflector and a simple and easy-to-use "Alt-Azimuth" mount that is comprised of parts of the AP equatorial mount.

Vixen Telescope APZ-R130Sf Description

At a glance

• Vixen's flagship model with outstanding performance and ease of use for visual observation and astrophotography.
• Features a five-group-five-element Astrography with a fast focal ratio.

At a glance

• Pinpoint star images with no coma or field curvature for exceptional clarity.
• Vixen’s unique VISAC system: aspherical primary mirror, convex secondary mirror, and triplet corrector lens.
• Perfectly corrected aberrations (coma, spherical, curvature) for sharp, high-definition results.
• Edge-to-edge performance: star images under 15 microns across the full 42mm image circle.
• Versatile use: ideal for both visual observation and astrophotography, with optional F6.4 reducer for deep sky imaging.

Exceptionally Sharp Star Images with No Coma or Field Curvature — Ideal for Astrophotography

The Vixen VC200L offers outstanding performance for astrophotography, delivering pinpoint star images free of coma, spherical aberration, and field curvature — even at the edges of the image.

At the heart of this telescope is Vixen's unique catadioptric optical system, known as VISAC (Vixen Sixth-order Aspheric Cassegrain). It features a high-precision sixth-order aspherical primary mirror, a convex secondary mirror, and a triplet corrector lens. This advanced design ensures sharp, high-definition star images across a wide 42mm image circle, making it ideal for both visual observing and deep-sky imaging.

Thanks to the superior optical correction, stars remain less than 15 microns in size from center to edge — producing images that are crisp and clean across the entire field.

For those looking to capture faint deep-sky objects, an optional focal reducer is available, converting the system to a fast f/6.4 focal ratio for even better imaging performance.

Specifications

In The Box

• Vixen Optics VC200L 200mm f/9 Catadioptric Telescope (Optical Tube Assembly Only)
• Vixen Optics 7x50 Finderscope
• Vixen Optics 50mm SX Finder Bracket - Short
• Vixen Optics Finder Bracket Shoe
• SX 60mm to 50.8mm Adapter
• Vixen Optics Flip Mirror System
• Dovetail Rail
• Carrying Handle
• Limited 5-Year Manufacturer Warranty

Fluorite lens

A fluorite lens with less chromatic aberration is used to create a sharp image with less color bleeding.

Vixen standard Arimizo, equipped with camera tripod screw

Equipped with slide bar M. It can be mounted as it is on a stand with Vixen standard Arimizo such as AP series and SX series. Equipped with 1/4 inch and 3/8 inch screws. It can be mounted on a commercially available camera tripod.

Compatible with finder (sold separately)

Equipped with screws compatible with the Arimizo finder pedestal (sold separately). Compatible with the separately sold finder (finder legs).

Features

Compact photo visual lens barrel

A very compact photo visual lens barrel equipped with a fluorite lens.

In combination with the high-resolution HR series eyepiece, it demonstrates high visual performance despite its small aperture and short focus. Especially when observing the moon and planets, you can get a higher-grade powerful image.

It can also be used as a high-performance astro camera by using a dedicated flattener lens and reducer lens (sold separately) together. It creates a sharp image over the entire field of a full-frame SLR camera.

Specifications

Lens barrel

Eyepiece

Other

Highly advanced "photo andvisual" optical design, the flagship of Vixen SD apochromatic refractors.

Vixen AX103 features a three element objective lens, incorporating an SD lens in its center, and the fourth lens inside of the focuser drawtube. This advanced optical design produces crystal-clear, sharp and high contrast images with no trace of falese color. In spot diagrams of the AX103S, the star images are extremely concentrated and are seen as small as 20 microns at the edge of ther file of view. The precision multicoatings applied to each surface to the lenses enhances visible light transmission to 99.5% on any single surface. An optional AX103 reducer which produces fast F5.6 forcal ratio is best for imaging of deep sky objects.

The 130mm aperture Newtonian reflector with excellent light gathering power is ideal for observation of faint nebulae and star clusters, particularly for beginners who wish to start their astronomical journey with a large aperture for light gathering power.

Specifications

In The Box

• Vixen Optics R130SF 130mm f/5 Reflector Telescope (OTA Only)
• 20mm Eyepiece
• 6.3mm Eyepiece
• 6x30 Finderscope
• Mounting Rings with Dovetail Plate

For both planetary and deep sky observing and photographic applications.

Vixen's original Catadioptric design, consisting of two high reflectivity dielectric mirrors and a unique double meniscus lens unit in front of the secondary mirror, virtually eliminates both spherical aberration and field curvature excellently and delivers high quality of images. With the large 260mm aperture, the VMC260L is a true all purpose telescope in your observing sessions.

The VMC features a combination of a miniscus lens unit in front of the secondary mirror and high-precision spherical mirrors that are shaped with extreme accuracy. Spherical aberration and curvature of field are corrected to a high level of optical performance for clear and sharp images. With its 260mm aperture dielectric coated mirror, the VMC260L collects enough light for serious visual and photographic applications and for both planetary and seep sky observing.

Equatorial mount for beginners through to experienced observers

The Advanced Polaris (AP) equatorial mount is ideally suited for beginners who want to become familiar with equatorial mount or experienced observers who want a simple grab and go mount. The AP mount securely supports your telescope optical tube for comfortable observing. With its friction control system, the mount can be quickly moved to your target object. A wide selection of optional accessories are available for the AP mount to meet your observation needs.

Clever Design

With just a 3.6kg lightweight body (without counterweight), it will be easy to handle the mount and telescope of your choice. The four AA batteries for power supply is integrated inside the body.

The motor module operates with 4 pieces of the AA batteries which are commercially available anywhere easily, not only corresponding to the alkaline battery but also economical rechargeable batteries (Ni-MH, Ni-Cd). For long term use, a commercially available USB external power supply such as USB mobile battery or USB AC adapter can be used connecting to the provided USB Micro-B terminal.

Friction Control System

Simply point the target objects by moving the optical tube by hands. The friction control system allows you to manually point the telescope at the object without using knobs and clamps.

Designed in Japan, Made in Taiwan

Sharp Optical System & Performance

• Superb ED class for remarkable image clarity. Crystal clear, superb sharp, almost zero aberration and distortion.
• 2 ED Glasses S-FPL 53 & S-FPL 51 & Lanthanum - Fully Separated Triplet (FST)
  Fully Multi-coated optics ensures maximum light transmission
• Impressive user experience, designed for both visual observation and astrophotography

Precision focusing & mechanical design throughout

• Finely CNC machining aluminium body and patented rack and pinion focuser for heavy loading 360 degree rotatable for photography
• Deluxe high-glossy anodizing finish
• Retractable sunshade
• PATENTED：US 8,693,092 B2 / Taiwan 1417570


Design

At the heart of the Founder Optics FOT86 is premium performance 3-element ED APO triplet refractor, designed by a famous optical designer in based in Japan. The optical performance is impressive as a two ED glass elements are employed.

Unlike most ED triplet telescopes which use only 1 ED glass element, Founder Optics adopted 2 ED glass of S-FPL 53 and S-FPL 51 to bring a remarkable image that you'll immediately spot with even a casual viewing. With two fluoro-crown ED glass elements and fully multi-coated optics, these Founder Optics refractors provide a crystal clear, superb sharp, zero aberration and distortion image to your eyes or camera sensor.

In addition, each element is fully separated or air spaced which is not common even among APO triplet telescopes. This offers further improvements to the already impressive optical quality.

Quality

In order to complete this unique design, it requires a very high level machining and assembly capability. Founder Optics partner with an experienced factory located in Taiwan with over 50 years experience in precision manufacturing, especially for Japanese companies.

Besides manufacturing know-how, the high standard of quality control is also crucial to producing FOT86 and FOT106 telescopes. This is recorded in a Quality Certification Card.

Every unit is thoroughly tested, and these unique records help customers understand the quality of their telescope. Founder Optics take their quality checking very seriously as they aim to offer the best triplet APO telescopes to BINTEL customers.

Focuser - 2'' Rack & Pinion

Perfect Hybrid Drive system with 8 Ball bearings- More Smoothly!

2sets of 4pcs ball bearing at 2 sides between the drawtube and the focuser handle linear travel of the focuser. Once the locked the knob, there is no gap among the drawtube, 8pcs ball bearings, and the focuser cover. It does not only keep the focuser always paralleled the optic axis, but also keep it moved very smoothly.

Dual Speed Focuser- 1:11 – Extremely Accurate!

Smooth focus motion and fine focus wheel allow precision adjustment from critical focusing of eyepiece or camera.

Unique Lock Function–  Heavy Loading Capability!

Special lock grabs the rack& pinion & drawtube in two directions. The design makes the focuser always paralleled the optics axis. Instead of pushing against the drawtube to eliminate focus shift while it’s focused. And it can handle up to 8kg as well for complex imaging trains.

Longer Traveling Distance– Suitable for a range of Photographing Accessories!

Unlike other focusers, the long travel 95mm provides more room for adjust for fine and accurate focus.

It is compatibly for a wide range of photographic accessories, along with easy to use controls.

Solid, lockable Dew Shield

Built in sliding dew shield.  Three screws hold dew shield stable while imaging or observing while keeping it place during transport.

Specifications:

Optical System: 2 ED APO Triplet (Fully Separated Elements)

Clear Aperture: 86mm

Focal Length: 560mm

Image Circle (with Field Flattener): Ø44mm

Focuser: 2’’ Rack & Pinion Patented Focuser (Twist Lock)

Weight: OTA: 3.5kg/ with Tube Ring: 4.6kg

Diameter of Main Tube: 90mm

Tube Length: Fully Retracted: 456mm/ Fully Extended: 545mm

What's in the Box:

1)  High Quality Aluminium Case with Key
2)  FOT106/ FOT86 with Patent Rack & Pinion Focuser
3)  1.25’’/ 2’’ Twist Lock Adapter
4)  Crank Handle with 1pc 1/4"-20 Hexagon Screw
5)  Tube Rings with 4pcs Dovetail Screws
6)  Star Finder Shoe
7)  Field Flattener (M42) with Exchangeable M48 Adapter
8)  7’’ Vixen Type Mount Dovetail
9)  Quality Certification Card with Serial Number
10) Cleaning Cloth
11) Dust Caps (for Objective Lens)

Instruction FOT86 Manual

Download here

EX-Display Model, 6 Month Warranty

Bintel Ganymede 80mm Semi - APO

An extension of the highly popular APO140FL, the APO160FL F/7 allows the observer to delve deeper into the beauty of space.

• The TEC APO160FL F/7 features an oil-spaced apochromatic-triplet objective with a Fluorite (CaF₂) middle element, resulting in color correction that is optimized for visual use and imaging. This oil-spaced triplet design in combination with multi-layer coatings on all surfaces of the objective ensure maximal light transmission.
• The objective is housed in an aluminum cell, providing for excellent thermoregulation properties while remaining lightweight and strong.
• The optical assembly sits in a lightweight aluminum tube that utilizes anti-reflective coating and sharp-edged baffles throughout the interior and forget about collimation – after the scope leaves TEC, no adjustment is required.
• Further, the crisp all white assembly projects the elegant, handcrafted quality that TEC is known for. Expect deep contrast and rich, natural color out of this compact and timeless design.
• Each APO160FL F/7 comes equipped with a Starlight Instruments FTF#3545 Feather Touch Focuser that was designed in collaboration with TEC. This is Starlight Instruments’ largest rotating focuser with coarse and fine focusing 9:1 Planetary Reduction Assembly.
  • The APO160FL F/7 can be fitted with to other focuser models by request. Please contact TEC to confirm whether the desired focuser will fit with the desired TEC model.
• The 2” locking metal collet is insensitive to temperature fluctuations and holds loads with high precision and concentricity.
• It also comes equipped with a Focuser wheel for easy mount installation and direction.
• Available for purchase as a Binocular Telescope. This requires the purchase of 2 APO160FL F/7.
• Able to accommodate a wide variety of eyepieces and mounts.

In classic refractor fashion, the TEC APO160FL F/7 is a no compromise, no frills design that lets the wonders of nature speak for themselves.

Please know that ALL PRICES AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE

Recommended Accessories;

• Precision adjustable Tube Rings
• 12” Dovetail Plate and Carry Handle facilitate easy transportation and fit seamlessly with most mounts. The larger size fits effortlessly with our larger models.
• Focal Reducer Corrector converts the F/7 Ratio to F/6.2 with a 115mm back focus.
• 160mm Field Flattener with an 85mm back focus.
• 7×50 Vixen Finderscope with a TEC Finder Bracket and Base for Telescope mounting.


Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and TEC then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. Rest assured that your telescope has been optimized to be as optically perfect as possible. If the objective does not reach TEC's expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferometrical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.

Our largest portable refractor, the APO180FL F/7 allows the observer to delve deep into the beauty of space.

• The APO180FL F/7 features an oil-spaced apochromatic-triplet objective with a Fluorite (CaF₂) middle element, resulting in color correction that is optimized for visual use and imaging. This oil-spaced triplet design in combination with multi-layer coatings on all surfaces of the objective ensure maximal light transmission.
• The objective is housed in an aluminum cell, providing for excellent thermoregulation properties while remaining lightweight and strong.
• The optical assembly sits in a lightweight aluminum tube that utilizes anti-reflective coating and sharp-edged baffles throughout the interior and forget about collimation – after the scope leaves TEC, no adjustment is required.
• Further, the crisp all white assembly projects the elegant, handcrafted quality that TEC is known for. Expect deep contrast and rich, natural color out of this compact and timeless design.
• Each APO180FL F/7 comes equipped with a Starlight Instruments FTF#3545 Feather Touch Focuser that was designed in collaboration with TEC. This is Starlight Instruments’ largest rotating focuser with coarse and fine focusing 9:1 Planetary Reduction Assembly.
  • The APO180FL F/7 can be fitted with to other focuser models by request. Please contact TEC to confirm whether the desired focuser will fit with the desired TEC model
• The 2” locking metal collet is insensitive to temperature fluctuations and holds loads with high precision and concentricity.
• It also comes equipped with a Focuser wheel for easy mount installation and direction.
• Available for purchase as a Binocular Telescope. This requires the purchase of 2 APO180FL F/7.
• Able to accommodate a wide variety of eyepieces and mounts.

In classic refractor fashion, the TEC APO180FL F/7 is a no compromise, no frills design that lets the wonders of nature speak for themselves. Please know that ALL PRICES AND AVAILABILITY ARE SUBJECT TO CHANGE.

Recommended Accessories;

• 12” Dovetail Plate and Carry Handle facilitate easy transportation and fit seamlessly with most mounts. The larger size fits effortlessly with our larger models.
• Precision adjustable Tube Rings.
• Focal Reducer Corrector converts the F/7 Ratio to F/6.2 with a 115mm back focus.
• 180mm Field Flattener prevents vignetting and ensures high quality imaging.
• 10×60 Baader Vario Finderscope with a TEC Finder Bracket and Base for Telescope mounting.
• 7×50 Vixen Finderscope with a TEC Finder Bracket and Base for Telescope mounting.
• Gutekunst Compact Atmospheric Dispersion Corrector (ADC).

Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and we then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. Rest assured that your telescope has been optimized to be as optically perfect as possible. If the objective does not reach Yuri’s expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferometrical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.

Owing homage to one of TEC’s earliest designs, the APO140ED, the APO140FL F/7debuted in 2017 and has quickly become TEC’s most popular model.

• The APO140FL F/7 features an oil-spaced apochromatic-triplet objective with a Fluorite (CaF₂) middle element, resulting in color correction that is optimized for visual use and imaging. This oil-spaced triplet design in combination with multi-layer coatings on all surfaces of the objective ensure maximal light transmission.
• The objective is housed in an aluminum cell, providing for excellent thermoregulation properties while remaining lightweight and strong.
• The optical assembly sits in a lightweight aluminum tube that utilizes anti-reflective coating and sharp-edged baffles throughout the interior and forget about collimation – after the scope leaves TEC, no adjustment is required.
• Further, the crisp all white assembly projects the elegant, handcrafted quality that TEC is known for. Expect deep contrast and rich, natural color out of this compact and timeless design.
• Each APO140FL F/7 comes equipped with a Starlight Instruments FTF#3545 Feather Touch Focuser that was designed in collaboration with TEC. This is Starlight Instruments’ largest rotating focuser with coarse and fine focusing 9:1 Planetary Reduction Assembly.
  • The APO140FL F/7 can be fitted with to other focuser models by request. Please contact TEC to confirm whether the desired focuser will fit with the desired TEC model.
• The 2” locking metal collet is insensitive to temperature fluctuations and holds loads with high precision and concentricity.
• Able to accommodate a wide variety of eyepieces and mounts.

In classic refractor fashion, the TEC APO140FL F/7 is a no compromise, no frills design that lets the wonders of nature speak for themselves. ALL PRICES AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE

Recommended Accessories;

• Precision adjustable Tube Rings
• 9” Dovetail Plate and Carry Handle facilitate easy transportation and fit seamlessly with most mounts.
• Focal Reducer Corrector converts the F/7 Ratio to F/6.2 with a 115mm back focus.
• TEC Transportation Case that eases transport between observation locations.
• TEC Compact Case for easy lifting and transportation.
• 7×50 Vixen Finderscope with a TEC Finder Bracket and Base for Telescope mounting.


Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and TEC then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. Rest assured that your telescope has been optimized to be as optically perfect as possible. If the objective does not reach TEC's expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferometrical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.

Capturing the most stunning astrophotographs possible is something our team is passionate about. From design to manufacture, our goal with the Corrected Dall-Kirkham (CDK) 20″ telescope was centered around performance and ease of use. The Planewave CDK20 f/7.7 OTA is an incredible breakthrough in telescope technology and produces no off-axis coma and no off-axis astigmatism. Additionally, the CDK20 provides a perfectly flat field so your astrophotographs will have stunning clarity from corner to corner of the image without field curvature degrading the photos. Offering the simplicity of single-mirror collimation, the stray light control of advanced baffles, structural performance created through finite element analysis (FEA), and decades of telescope design experience, the CDK20 is an exceptional diffraction-limited telescope. CDK20 users can experience pinpoint stars edge-to-edge and a 45 x 45 arcminute field of view when using large 16803 size camera sensors. When equipment fades into the background and simply performs, the astrophotography experience becomes even more fun and rewarding!

Our largest refractor, the APO250VT F/8.8 allows the observer to immerse themselves in the beauty of space. This observatory class instrument provides the best visual experience that TEC has to offer.

• The APO250VT F/8.8 features an air-spaced apochromatic-triplet objective with a Fluorite (CaF₂) middle element, resulting in color correction that is optimized for visual use and imaging. This air-spaced triplet design in combination with multi-layer coatings on all surfaces of the objective ensure maximal light transmission.
• The objective is housed in an titanium cell, providing for excellent thermoregulation properties while remaining lightweight and strong.
• The optical assembly sits in a lightweight aluminum tube that utilizes anti-reflective coating and sharp-edged baffles throughout the interior and forget about collimation – after the scope leaves TEC, no adjustment is required.
• Further, the crisp all white assembly projects the elegant, handcrafted quality that TEC is known for. Expect deep contrast and rich, natural color out of this compact and timeless design.
• Each APO250VT F/8.8 comes equipped with a Starlight Instruments FTF#3545 Feather Touch Focuser that was designed in collaboration with TEC. This is Starlight Instruments’ largest rotating focuser with coarse and fine focusing 9:1 Planetary Reduction Assembly.
• The 2” locking metal collet is insensitive to temperature fluctuations and holds loads with high precision and concentricity.
• Includes precision adjustable Tube Rings.
• Able to accommodate a wide variety of eyepieces.
• Recommended to be paired with a high capacity load mount and a stationary observation station.

In classic refractor fashion, the TEC APO250VT F/8.8 is a no compromise, no frills design that lets the wonders of nature speak for themselves. Please know that ALL PRICES AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE

Recommended Accessories

• Adjustable Dovetail Plate and Semirings.
• 10×60 Baader Vario Finderscope with a TEC Finder Bracket and Base for Telescope mounting.
• 7×50 Vixen Finderscope with a TEC Finder Bracket and Base for Telescope mounting.
• Gutekunst Compact Atmospheric Dispersion Corrector (ADC)

Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and we then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. Rest assured that your telescope has been optimized to be as optically perfect as possible. If the objective does not reach Yuri’s expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferomerical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.

New Sky-Watcher 80EDX APO Telescope - redesigned body with famous Esprit optics

**Have a chat with us about availability**

Highlights:

• Air Spaced 80mm Apochromatic Triplet (APO)
• FPL-53 extra low dispersion glass
• Zero detectable colour fringing even on bright objects
• Diffraction limited optics
• Fully multi coated lenses
• 3″ CNC machined 11:1 dual speed linear power focuser – rotatable
• Indexed focuser tube
• Knife-edge baffled system to enhance contrast

The Sky-Watcher 80mm Esprit 80EDX Triplet APO Refractor is a highly portable instrument, while still having the imaging capabilities to deliver deep-sky astro photos of stunning quality. It's especially suited for those seeking wide field images and visual observations.

The air spaced apochromatic triplet lenses use the remarkable Ohara FPL-53 ED (extra low dispersion) glass, with exceptional colour correction over the entire visible spectrum there is no chromatic aberration even on bright objects! Knife edge baffles reduce internal reflections and increase contrast, helping to bring out faint structure in deep sky objects.

A 2-element field flattener is available separately to iron out the natural off-axis astigmatism and field curvature of the objective lens, leaving a fully corrected 42mm field of view.

In The Box:

• 80/400 Apochromatic Refractor
• Rotatable focuser adapter
• Collapsible Dew Shield
• 2″ Dielectric Star Diagonal
• 9×50 Right Angled Erect Image Diagonal
• D Style dovetail Bar
• 2″ to 1.25″ Eyepiece Adaptor
• Aluminium Foam-Lined Case

SPECIFICATIONS

New Sky-Watcher 100EDX APO Telescope - redesigned body with famous Esprit optics

Highlights:

• Air Spaced 100mm Apochromatic Triplet (APO)
• FPL-53 extra low dispersion glass
• Zero detectable colour fringing even on bright objects
• Diffraction limited optics
• Fully multi coated lenses
• 3″ CNC machined 11:1 dual speed linear power focuser – rotatable
• Indexed focuser tube
• Knife-edge baffled system to enhance contrast

The Sky-Watcher 100mm Esprit 1000EDX Triplet APO Refractor is a high-end instrument for astro-photographers seeking quality images, yet also need a telescope that can be easily transported.

The air spaced apochromatic triplet lenses use the remarkable Ohara FPL-53 ED (extra low dispersion) glass, with exceptional colour correction over the entire visible spectrum there is no chromatic aberration even on bright objects! Knife edge baffles reduce internal reflections and increase contrast, helping to bring out faint structure in deep sky objects.

A 2-element field flattener is available separately to iron out the natural off-axis astigmatism and field curvature of the objective lens, leaving a fully corrected 42mm field of view.

In The Box:

• 100/550 Apochromatic Refractor
• Fixed Dew Shield
• 2″ Dielectric Star Diagonal
• 9×50 Right Angled Erect Image Diagonal
• D Style dovetail Bar
• 2″ to 1.25″ Eyepiece Adaptor
• Aluminium Foam-Lined Case

SPECIFICATIONS

New Sky-Watcher 120DX APO Telescope - redesigned body with famous Esprit optics

**Due in late July/August**

Highlights:

• Air Spaced 120mm Apochromatic Triplet
• FPL-53 extra low dispersion glass
• Zero detectable colour fringing even on bright objects
• Diffraction limited optics
• Fully multi coated lenses
• 3″ CNC machined 11:1 dual speed linear power focuser – rotatable
• Indexed focuser tube
• Knife-edge baffled system to enhance contrast

The Sky-Watcher 120mm Esprit 120ED Triplet APO Refractor is a high-end yet portable instrument for astro-photographers seeking quality images that only a telescope of this size and optical design can produce. It's also ideal for extended visual observations of deep-space objects due to its remarkable contrast and light gathering ability.

The air spaced apochromatic triplet lenses use the remarkable Ohara FPL-53 ED (extra low dispersion) glass, with exceptional colour correction over the entire visible spectrum there is no chromatic aberration even on bright objects! Knife edge baffles reduce internal reflections and increase contrast, helping to bring out faint structure in deep sky objects.

Designed with photography in mind, it sits on two tracks above and below the barrel to prevent flexure with a heavy camera attached, and is fully rotatable to perfectly frame a target on the sensor.

In The Box:

• 120/840 Apochromatic Refractor
• Fixed Dew Shield
• 2″ Dielectric Star Diagonal
• 9×50 Right Angled Erect Image Diagonal
• D Style dovetail Bar
• 2″ to 1.25″ Eyepiece Adaptor
• Aluminium Foam-Lined Case

SPECIFICATIONS

The venerable Dobsonian reflector design has recently undergone some important upgrades and improvements: Skywatcher is pleased to introduce the all-new Collapsible Dobsonian complete with Crayford focuser – the ultimate in large aperture portability and performance.

This elegant truss tube design was carefully engineered to combine ease of use, extreme portability and consistent performance in an affordable package. Unlike other truss tube designs, the Skywatcher Collapsible Dobsonian does not need to be disassembled between uses. It transports as two compact pieces that can be assembled and ready to use in just seconds! It is easy to collimate once set up, and it holds its collimation throughout the evening!

The bearing system has been redesigned as well. The new Skywatcher Collapsible Dobsonians feature buttery smooth azimuth bearings. Even the twelve-inch model can be rotated with just the push of a finger. Like our traditional Dobsonians, the new Collapsible Dobsonians feature Skywatcher’s patented tension adjustment control on the altitude bearings. This eliminates the need and added cost of clumsy counterweight systems to balance the telescope.

To top it off, all of the new Collapsible Dobsonians are shipping with ultra smooth Crayford focusers.

Skywatcher 16 Inch Collapsible Dobsonian Key Specifications
