Best for serious astrophotographers who demand a perfect imaging platform with user-friendly functions that allow for comfortable operation.

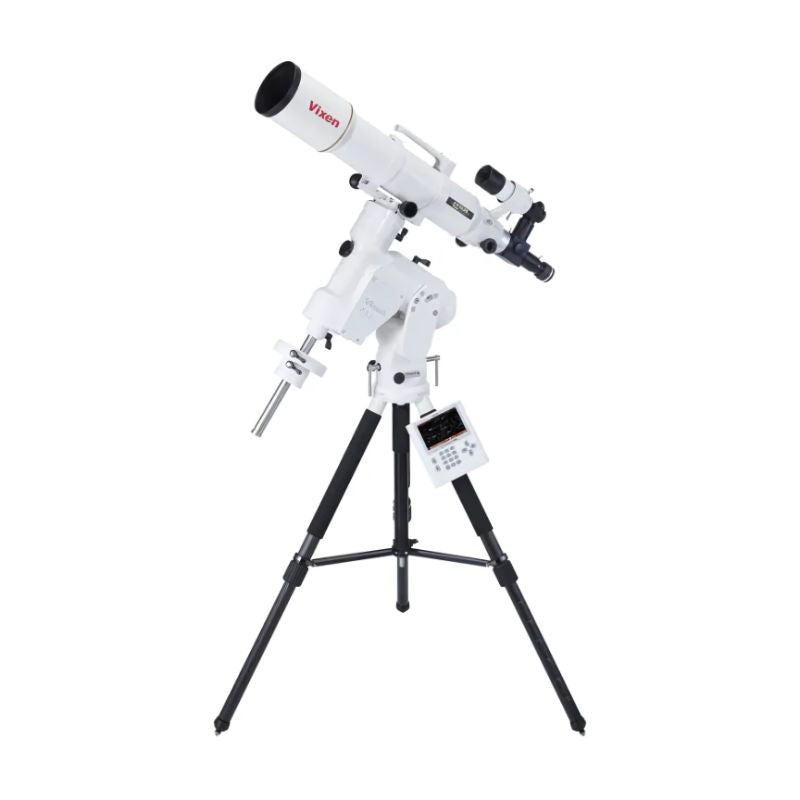

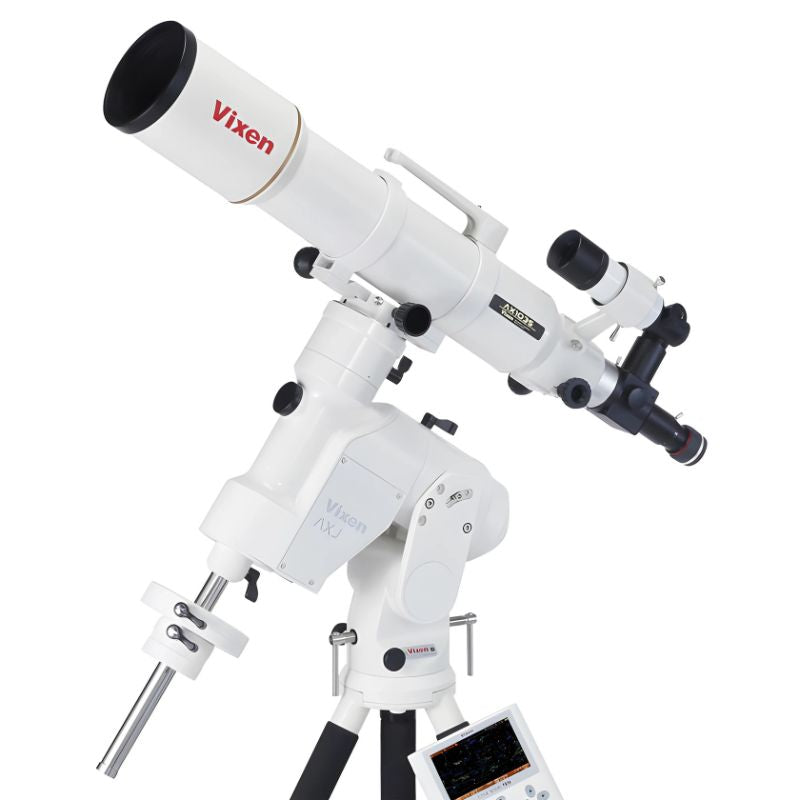

The AXJ-A103S package comes with the quad element AX103S apochromatic system that features SD glass for uncompromising optical performance, the pinnacle of this aperture class. The mount comes with a sturdy but lightweight ASG-CB90 tripod made of carbon fiber.
-
AX103S optical tube assembly.
The three-element objective lens, which includes a centre SD glass element, delivers crystal-clear, sharp, and high-contrast images with no noticeable false colour. Additionally, the built-in field corrector lens ensures that star images remain as small as 20 microns at the edge of the imaging field. Premium AS coatings are applied to every lens surface, enhancing visible light transmission to 99.5% (for wavelengths between 400nm and 700nm), ensuring exceptional light transmission across the entire visible spectrum.
-
AXJ equatorial mount.
The AXJ mount, equipped with the advanced Ultimate Periodic Error Correction (VPEC) system, provides highly accurate tracking with precision of +/- 4 arc seconds or better. The VPEC operates automatically during use, ensuring seamless performance. The mount's belt drive system significantly reduces backlash and minimizes motor noise, while delivering quick and stable motor response. Additionally, the AXJ mount supports a maximum payload of 22 kg.
-
STAR BOOK TEN star chart go-to navigation controller.
The STAR BOOK TEN features an intuitive "Star-Chart Go-To" system with a high-definition colour LCD display. It shows detailed information, including the telescope's position, the target, and other useful data. The night vision mode can be activated to illuminate the entire screen in red, reducing brightness to protect the observer's night vision.
-
Durable and lightweight carbon tripod.
The ASG CB90 is a compact and lightweight tripod which is constructed of durable carbon fibre legs. Also, the tripod head, leg extension part and leg brace have been reviewed completely to realize a highly stable tripod for the AXJ mount.
Optical Tube
| Specification | Details |
|---|---|
| Objective Lens / Effective Aperture | 103mm, triplet SD apochromatic, multi-coated |
| Focal Length (Focal Ratio) | 825mm (F8.0) |
| Resolving Power / Limiting Magnitude | 1.13 arc seconds / 11.8 |
| Light Gathering Power | 217x (unaided eye) |
| Size / Weight | 115mm dia x 762mm long (Retractable to 670mm) / 6.4 kg (Net 4.6 kg) |
| Finder Scope | 7x50mm with illuminated reticle, 7° real field of view |
Focuser
| Specification | Details |
|---|---|
| Adapter Threads / Visual Back | 60mm, 42mm for T-ring / 50.8mm and 31.7mm push fit (with Flip mirror) |
| Eyepiece | SLV20mm (41X, 73' field of view), SLV5mm (165X, 18' field of view) |
Tripod
| Specification | Details |
|---|---|
| Leg Type / Material | Two-section carbon fibre legs, extendable and opens easily with a one-touch mechanism |
| Size / Weight | Adjustable from 545mm to 900mm in length, 510mm to 815mm in height, setup space from 340mm to 520mm in radius / 3.4kg |
Others
| Specification | Details |
|---|---|
| Photography | Usable with Prime focus, Eyepiece projection, and Afocal imaging |
| Solar Observation | Available with Sun projection screen set B |
| Total Weight | 55.3kg |
