Fluorite lens
A fluorite lens with less chromatic aberration is used to create a sharp image with less color bleeding.

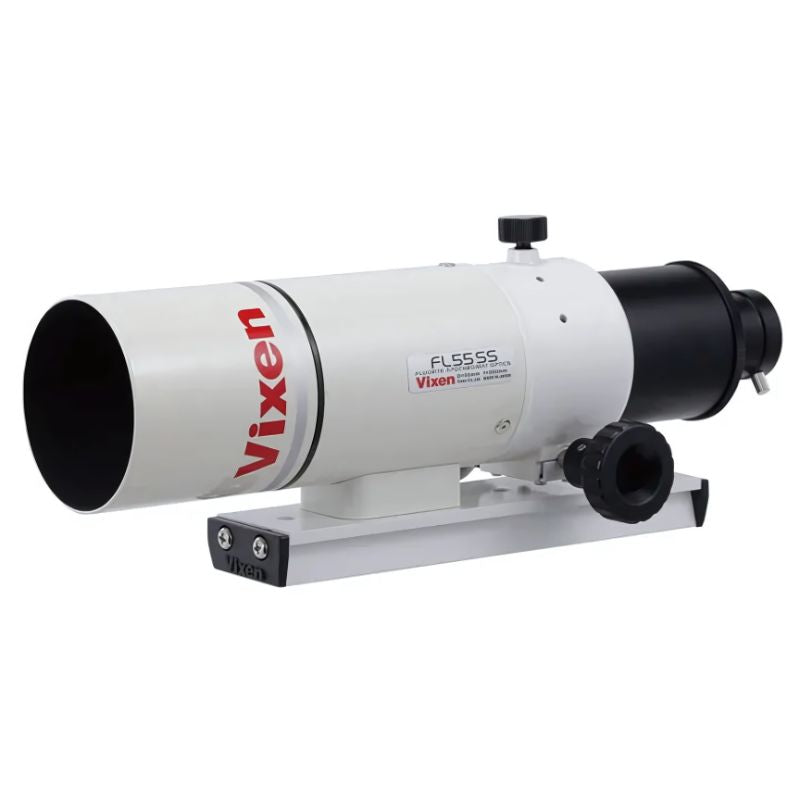

Vixen standard Arimizo, equipped with camera tripod screw
Equipped with slide bar M. It can be mounted as it is on a stand with Vixen standard Arimizo such as AP series and SX series. Equipped with 1/4 inch and 3/8 inch screws. It can be mounted on a commercially available camera tripod.
Compatible with finder (sold separately)
Equipped with screws compatible with the Arimizo finder pedestal (sold separately). Compatible with the separately sold finder (finder legs).
Features

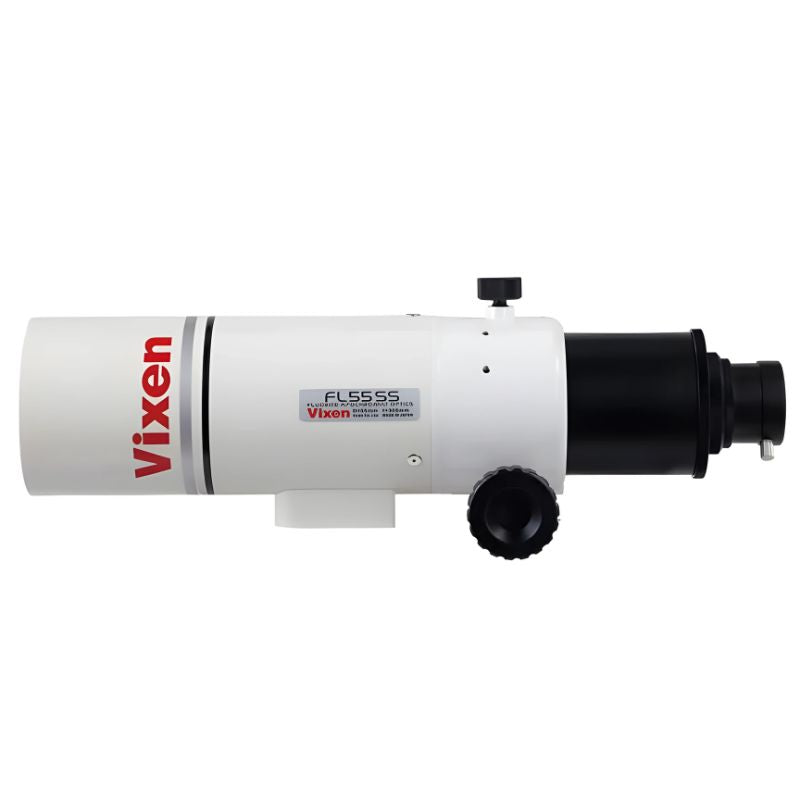

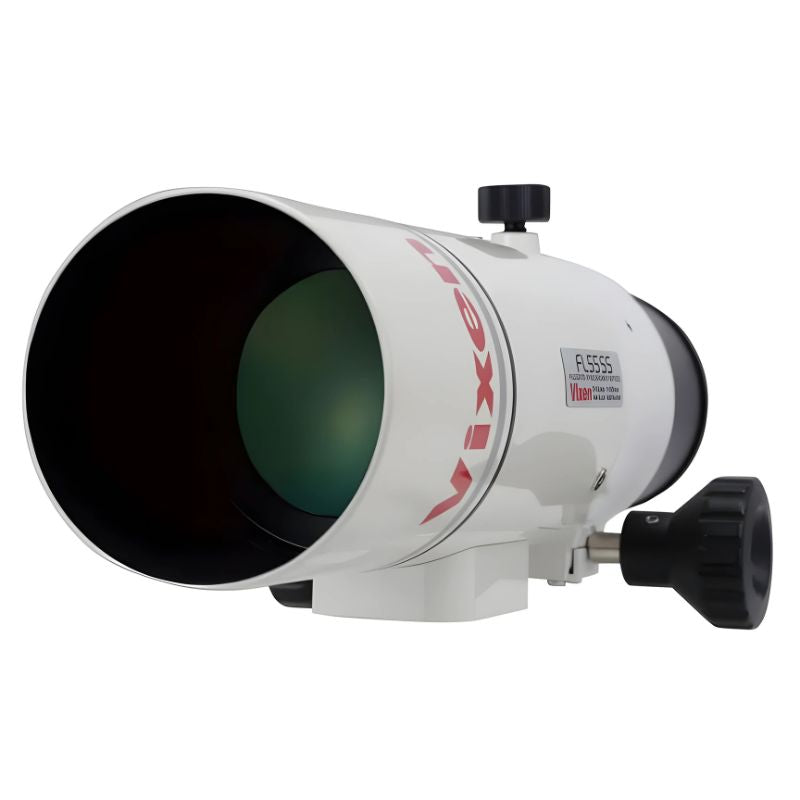

Compact photo visual lens barrel
A very compact photo visual lens barrel equipped with a fluorite lens.
In combination with the high-resolution HR series eyepiece, it demonstrates high visual performance despite its small aperture and short focus. Especially when observing the moon and planets, you can get a higher-grade powerful image.
It can also be used as a high-performance astro camera by using a dedicated flattener lens and reducer lens (sold separately) together. It creates a sharp image over the entire field of a full-frame SLR camera.
Specifications
Lens barrel
| Effective diameter of objective lens | 55mm / Fluorite Apochromat / Multi-coating |
| Focal length (aperture ratio F) | 300mm (F5.5) |
| Resolution / limit grade | 2.11 seconds, 10.5, etc. |
| Condensing power | 62 times the naked eye |
| Size / weight | Length 282mm (without extension tube) Outer diameter 80mm 1.5kg |
| Finder | Arimizo type pedestal (sold separately) can be installed |
Eyepiece
| Parts mounting size | Screwed in / 60mm, 43mm, 36.4mm inserted / 31.7mm |
| Eyepiece (31.7mm diameter) | 31.7mm diameter eyepiece (sold separately) can be used |
Other
| Plates, bands, etc. | Slide bar M |
| photography | Enlargement, direct focus, compact digital camera (colimate) shooting possible * A separate camera adapter etc. is required |
| Sun observation | Can be used in combination with the solar projection plate A set (sold separately) (fits, but the weight balance cannot be perfectly adjusted.) |
| Gross weight | 1.5kg (by eyepiece) |
