Overview

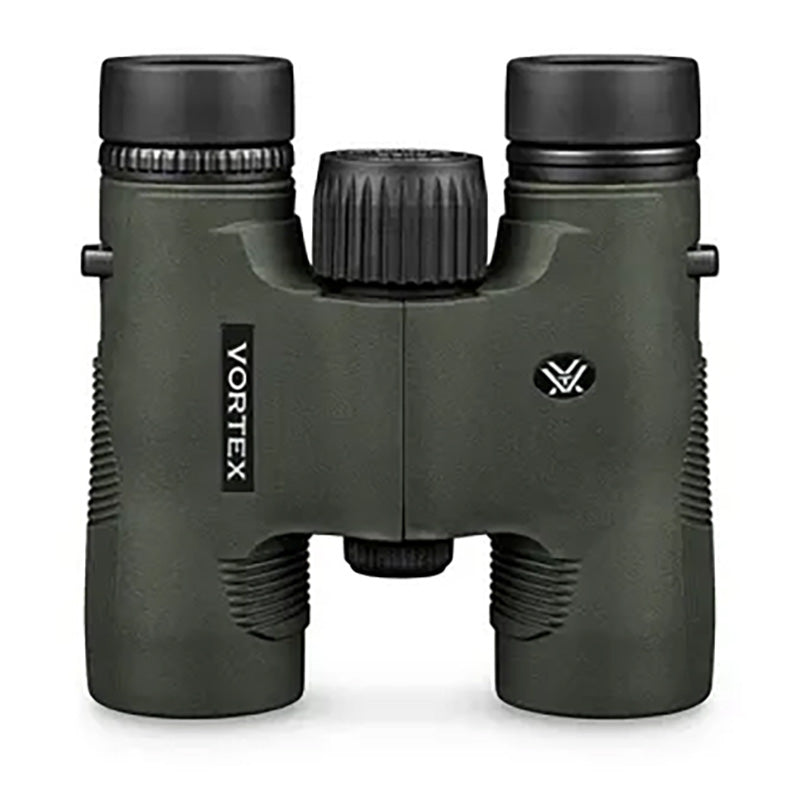

Made for hunters who demand hard-working, reliable optics, the Diamondback® HD delivers sharp resolution, enhanced contrast, and rugged durability. Lightweight yet tough enough to go the distance, it’s a strong lineup designed to handle any kind of hunt. A true workhorse, Diamondback® HD gives you the clarity, utility, and trust you need to consistently punch more tags.
Specifications:
| Magnification |
8x |
| Objective Lens Diameter |
28 mm |
| Eye Relief |
18.0mm |
| Angular Field of View |
6.2º |
| Close Focus |
6.0' |
| Interpupillary Distance |
55mm - 72mm |
| Linear Field of View |
332' @ 1000 yds |
| Height |
4.6" |
| Width |
4.5" |
| Weight |
13.7 oz. |
Features
| HD Optical System |
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
| Fully Multi-Coated Lenses |
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Dielectric Prism Coatings |
Multi-layer prism coatings provide bright, clear, color-accurate images. |
| Phase Correction |
Coating on roof prism enhances resolution and contrast. |
| ArmorTek® |
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Rubber Armor |
Provides a secure, non-slip grip, and durable external protection. |
| Argon Gas Purged |
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions. |
| Waterproof |
O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Fogproof |
Designed to withstand a wide range of temperatures. |
| Shockproof |
Rugged construction withstands recoil and impact. |
| Tripod Adaptable |
Allowing use on a tripod or car window mount. Tripod adapter may be required. |
|
Included in the Box
- Soft side carry case
- Soft side carry case strap
- Comfort neck strap
- Tethered objective lens covers
- Rainguard Eyepiece Cover
- Lens Cloth
