Farpoint Collimation Kit 2 Inch

Farpoint 2 Inch Collimation Kit

Farpoint Collimation Kit 2 Inch includes a 1.25″ and 2″ stepped barrel 650nm laser collimator plus 2″ cheshire. These tools help align the optical axes of the mirrors on a Newtonian Reflector.

Farpoint 650nm Laser Collimator is precisely machined from a single piece of aluminum in a single machining step, resulting in perfect alignment. Offering the smallest aperture of any other laser in the amateur astronomy market, Farpoint lasers feature an aperture (0.76mm or 30/1000 of an inch) producing less speckling and more precise reading of the laser beam’s position on the telescope mirror.

Features a 1.25″ and 2″ stepped barrel, an extra bright 650nm red laser, and superior EIGHT screw alignment arrangement ensuring that BOTH ends of the laser diode are held in place by two sets of directly opposing screws for precise and lasting alignment.

Farpoint 2″ Cheshire Collimator is a precision-machined, red anodized alignment tool for 2″ apertures, is practically indestructible, and requires no batteries.

A Cheshire eyepiece or Cheshire collimator consists of a peephole that is inserted into the telescope focuser in place of the eyepiece. Ambient light falls on the brightly painted oblique back of the peephole. Images of this bright surface are reflected by the mirrors or lenses of the telescope and can thus be seen by a person peering through the hole. A Cheshire eyepiece contains no lenses or other polished optical surfaces. For Newtonian Reflectors only.

Kit also includes a mirror spotting template and triangle center spots to help simplify the process of center spotting a primary mirror.

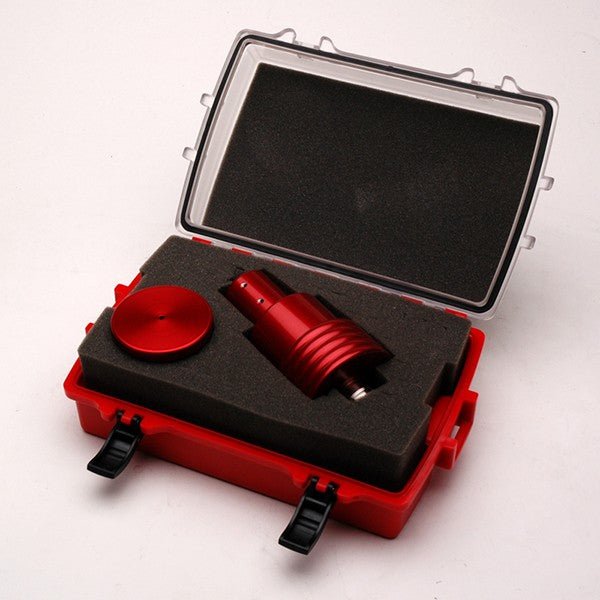

This Farpoint Collimation Kit 2 Inch # FP216 contains the following two items in a single, more economical package:

• Farpoint Laser Collimator, 650nm Red Laser with 1.25" & 2" Stepped Barrel # FP210
• Farpoint 2" Reflective Cheshire Collimator # FP261
