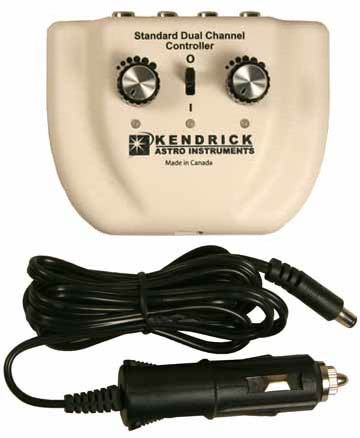

The Kendrick Standard Dual Channel Controller is the most popular of Kendrick's dew controllers. It is suitable for most situations. Simple dial adjustments allow you to set the controller to the correct level to keep dew away.
Kendrick Standard Dual Channel Controller (SDCC) Specifications:
| Zero to 100% heater control |
| Fused onboard. Auto Reset (no other dew controller on the market has this) |
| On board protection from over current, over temperature, over voltage |
| LED overcurrent indication at both outputs |
| 10 amp capacity (5 amps per channel)* |
| 1.8m detachable fused Power cord. Cord is fused at 7 amps |
| Reverse polarity protected |
| On/off switch (no other dew controller on the market has this) |
| RFI (radio frequency interference) free. A critical feature for astro imagers! |
| Pulse Width Modulation duty cycle control |
| 4 outputs, 2 for each control knob |
| LED Power on indicator for both outputs |
| Low voltage cut-off control with LED indication (a Kendrick standard!) |
| Mosfet transistors built on board and on EACH output (no voltage drops!). Get the best possible performance out of your heaters! |
| Velcro attachment. Parts included. |
| 12 VDC operation |
| Dimensions: 100mm x 75mm x 35mm (45mm with knobs) |
| 1 Year warranty |
The power cord has been fused at 7 amps even though the controller is capable of amperages of 5 amps per channel (10 amps total). We do not recommend replacing the power cord fuse with a larger fuse as the power input socket is not rated for higher amperage.
The Standard Dual Channel has many new features but remains really simple to use. As well, it can handle more power and use that power more efficiently! This newest addition to Kendrick's Dew Remover Systems is sure to be a hit!
If you do not need to run more than 2 heater strips and are using smaller heater strips please consider the Kendrick Micro Controller. For ultimate control of dew, we recommend the DigiFire 8 and 12 controllers that feature digital control and also temperature sensing on the DigiFire 12.
