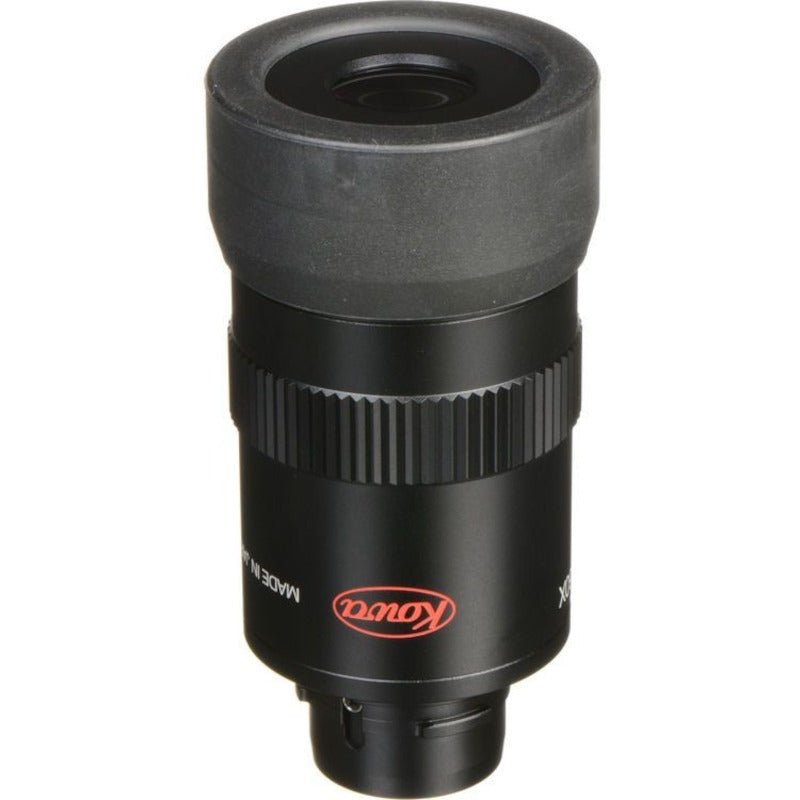

Product Information TE-9Z 20-60X ZOOM EYEPIECE

Kowa's TE-9Z 20-60x Zoom Spotting Scope Eyepiece is compatible with TSN-82SV, TSN-660, and TSN-600 series spotting scopes to provide a wide magnification range that will satisfy most of your observational needs. Using a simple bayonet mount, it installs easily, and the knurled dial makes changing the zoom quick and sure. The TE-9Z features a wide apparent field of view – 42-126° with 60mm and 66mm scopes and 40-126° with the 82mm scope – and a 16/16.5mm eye relief value for comfortable glassing, even with eyewear.

Field of view at 1000m: 33-17m
Magnification: 20-60x (TSN 600/660) 20-63x (TSN 82SV)
Field of view @ 1000m 33.2-17.5M (TSN 600/660) 31-17M (TSN 82SV)
Field of view degrees 1.9-1.0 degrees (TSN 600/660) 1.8-0.95 degrees (TSN 82SV
Exit Pupil Diameter: 3.0-1.0mm (TSN 600) 3.3-1.1mm (TSN 660) 3.9-1.3mm (TSN-82SV)
Relative Brightness: 10.9-1.2
Twilight Factor: 36.3-62.9
Eye Relief: 16.5-16.0mm
