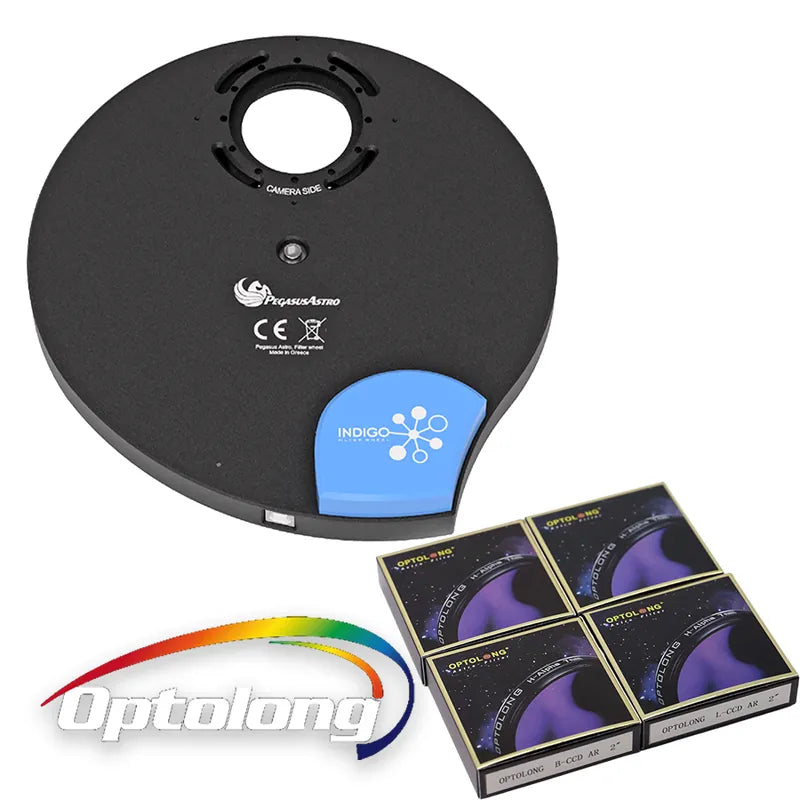

Pegasus Astro Indigo Filter Wheel

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

Pegasus Astro Indigo Filter Wheel

$976.00

Choose option

Same day shipping

If you order before 2pm we will ship your items same day.

Expert aftersales support

We fully support our products!

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Aussie Owned & Stocked

Our store is Australian owned and stocked.

What the numbers mean

Seven positions in a 19 mm wheel.

7filter positions

Load a complete imaging filter sequence.

The carousel accepts 2-inch mounted or 50 mm unmounted filters.

USB 2power and data

One Type-B cable runs the wheel.

USB control supplies 5 V power and data without a separate power supply.

19 mmbody thickness

Designed to limit back-focus use.

Thickness is 19.0 mm, or 19.6 mm with adapters fitted on both sides.

Choose a package

The wheel is the same. The included filters change.

Package

Wheel only

Optolong LRGB bundle

Indigo Filter Wheel

Included

Optolong 2-inch LRGB set

Not included

Included

The exact Optolong filter-set revision is not published, so generation-specific filter specifications are not stated here.

Good to know.

Check unmounted filter diameter.

The carousel accepts unmounted filters up to 50.8 mm diameter.

Filter changes use the shortest route.

A direct-drive stepper motor, optical encoder and bidirectional movement handle positioning.

M54 interfaces sit on both sides.

The wheel supports the supplied M54 female, M54 male and M42 male adapters.

Keep the electronics dry.

The wheel is not waterproof and should be kept clean and dry.

Technical

Specifications.

Wheel

Positions

Filter formats

2-inch mounted or 50 mm unmounted

Maximum unmounted diameter

50.8 mm

Thickness

19.0 mm; 19.6 mm with adapters both sides

Weight

900 g

Control and interface

USB

USB 2 Type-B, 5 V, 300 mA while moving

Drive

Direct-drive stepper, optical encoder, shortest path

Threads

M54 openings both sides; M54F, M54M and M42M adapters

Care

Not waterproof; keep clean and dry
