Pegasus Astro
Pegasus Astro Orbit Rotating Diagonal
$310.49
What the numbers mean
The optical path, translated.
3editions
One rotating diagonal, three telescope connections.
Basic, SCT 2-inch and SCT Edge editions share the Orbit body. The difference is the telescope-side hardware and the backfocus path it creates.
2rotation points
Set each side independently.
Separate thumb screws control rotation at the telescope side and the SmartEye side, so the connected equipment can be oriented without turning the whole optical train.
λ/10at 633 nm
A specified first-surface mirror.
Pegasus specifies BK7 glass, an enhanced aluminium protective coating and average reflectivity of at least 92% from 450 to 650 nm at 45° angle of incidence.
1.25 infilter thread
Use a standard 1.25-inch filter.
The integrated filter thread keeps a standard 1.25-inch filter within the Orbit assembly.
Choose an edition
Match the telescope side. The Orbit body stays the same.
Specification
Basic
SCT 2-inch
SCT Edge
Telescope interface

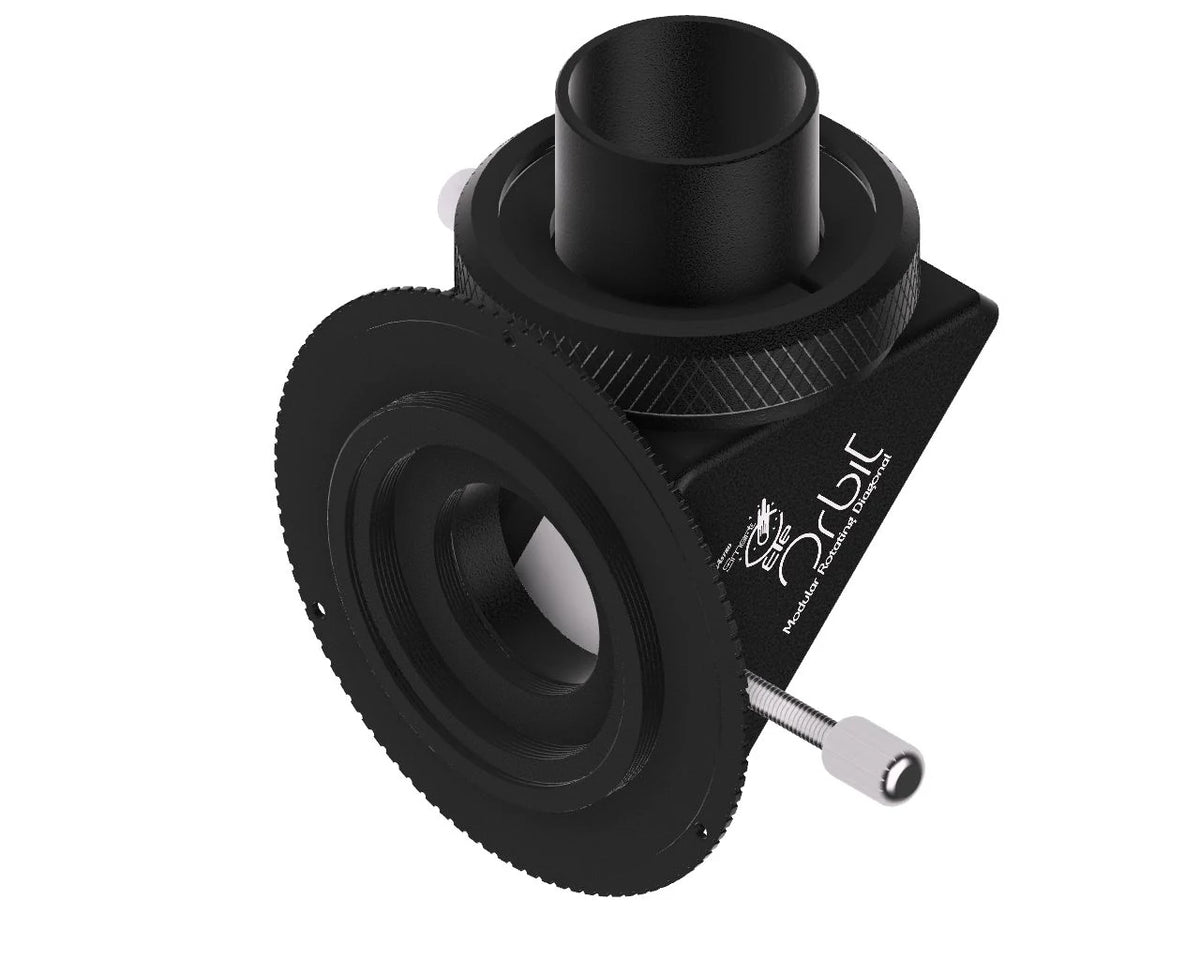

1.25-inch nosepiece
Standard 2-inch SCT threaded visual back
3.25-inch threaded visual back
Backfocus path
58 mm
105 mm target
146 mm target
Adjustment
Fixed edition hardware
Fixed SCT neck
Lockable variable neck with 20 mm travel
The three editions
Check the connection before choosing.
What each edition connects to.

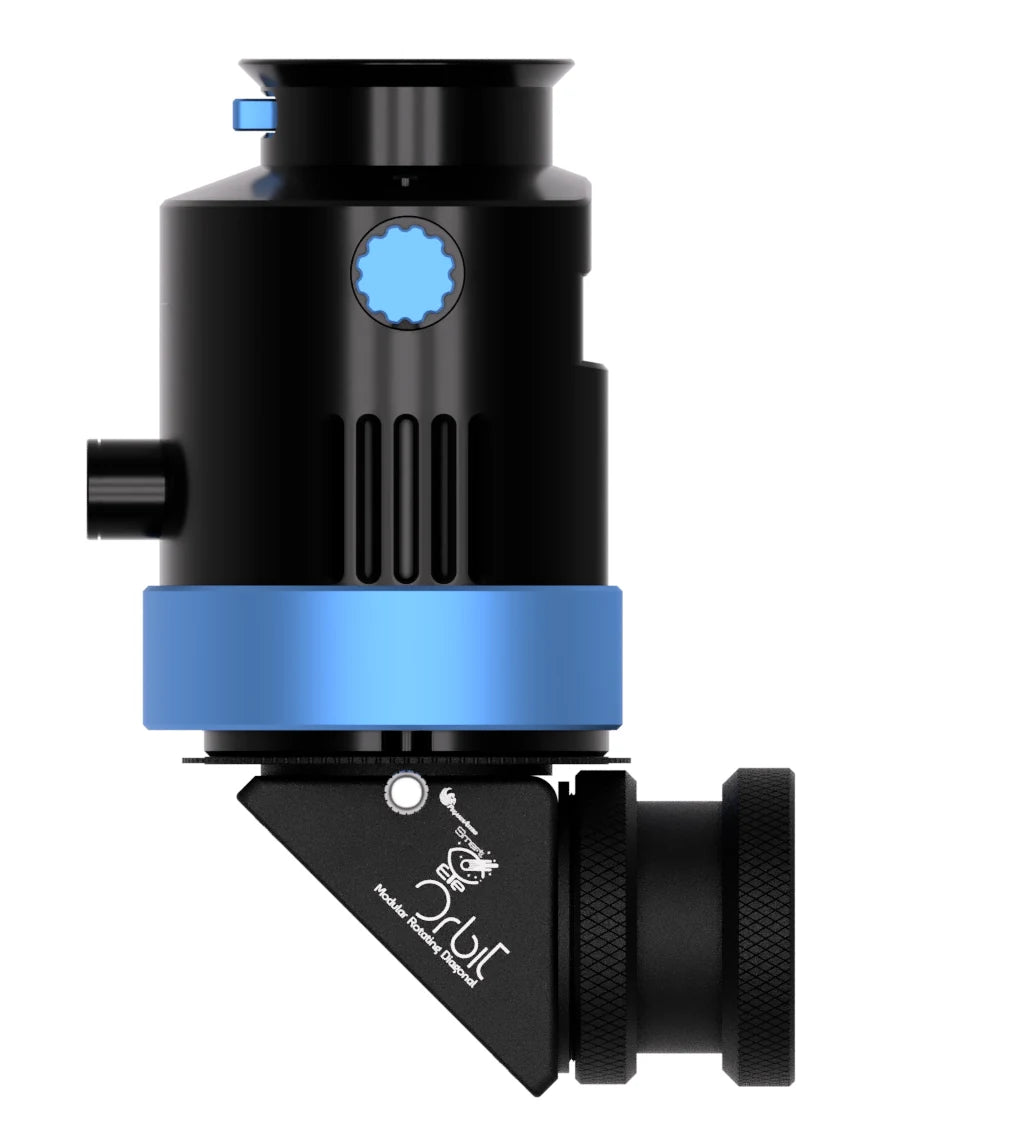

SCT 2-inch
Standard 2-inch SCT threaded visual back. Choose this edition for its documented 105 mm backfocus path.

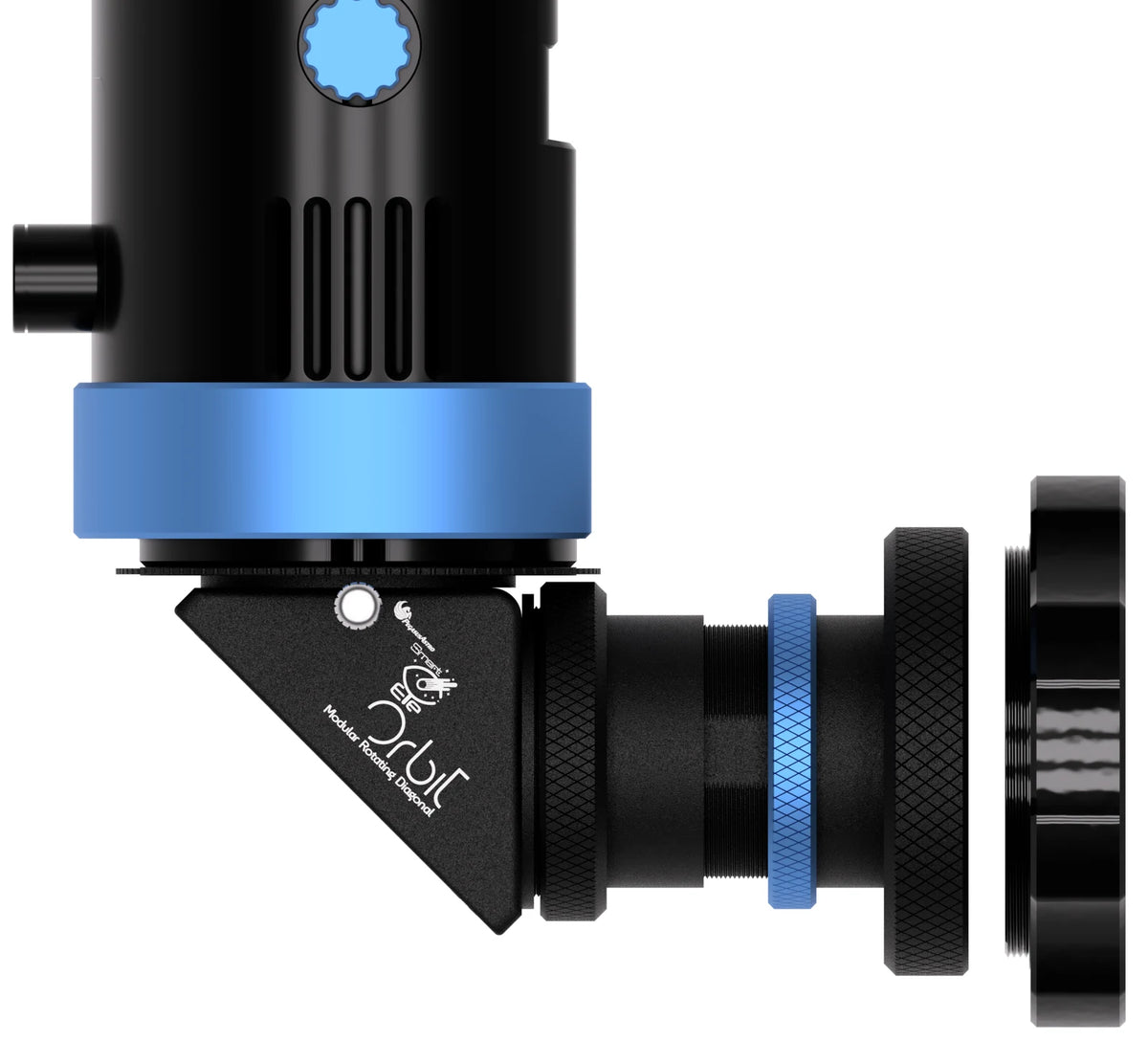

SCT Edge
3.25-inch threaded visual back. The supplied variable adapter and neck are intended for the 146 mm path.
Body threads
M48 male and M42 female on both sides. The shared Orbit body also carries the 1.25-inch filter thread.
Included by edition
What is in each box.
Basic: Orbit diagonal, 1.25-inch nosepiece, two silicone caps, M54M-to-M48F adapter4 types
SCT 2-inch: Orbit diagonal, compression ring, SCT 2-inch neck and lock, two silicone caps, M54M-to-M48F adapter5 types
SCT Edge: Orbit diagonal, compression ring, SCT Edge variable adapter, 3.25-inch-to-M68M adapter, two silicone caps, M54M-to-M48F adapter6 types
Good to know.
Leave the mirror alone unless cleaning is necessary.
Pegasus recommends avoiding unnecessary contact with the first-surface mirror.
Never spray cleaner onto the mirror.
Follow the cleaning procedure in the Orbit manual.
Manufacturer warranty
Two years through Pegasus Astro.
Covered issues are repaired during the documented warranty period, subject to the manufacturer's exclusions.
What is coveredFree repair for an issue covered by the manufacturer warranty during the two-year period.
Important exclusionsAbuse, misuse, accidental falls and other post-purchase incidents are excluded.
How to claim in AustraliaContact the original dealer or follow the Pegasus service process.
Technical
Specifications.
Optics
Mirror
BK7 first-surface glass
Surface accuracy
λ/10 at 633 nm
Coating
Enhanced aluminium with protective overcoat
Average reflectivity
≥92%, 450-650 nm at 45° AOI
Connections
Body threads
M48 male and M42 female, both sides
Filter thread
1.25 inch
Edition paths
Basic
58 mm backfocus
SCT 2-inch
105 mm target backfocus
SCT Edge
146 mm target; 20 mm neck travel
