To optimize the performance of the PF-65ED/EDA 65mm ED Spotting Scopes, PENTAX has developed three compact, high-performance XF-series eyepieces, all featuring a bright, high-contrast image, 1.25" diameter barrel and focal lengths ideal for outdoor viewing and bird watching.

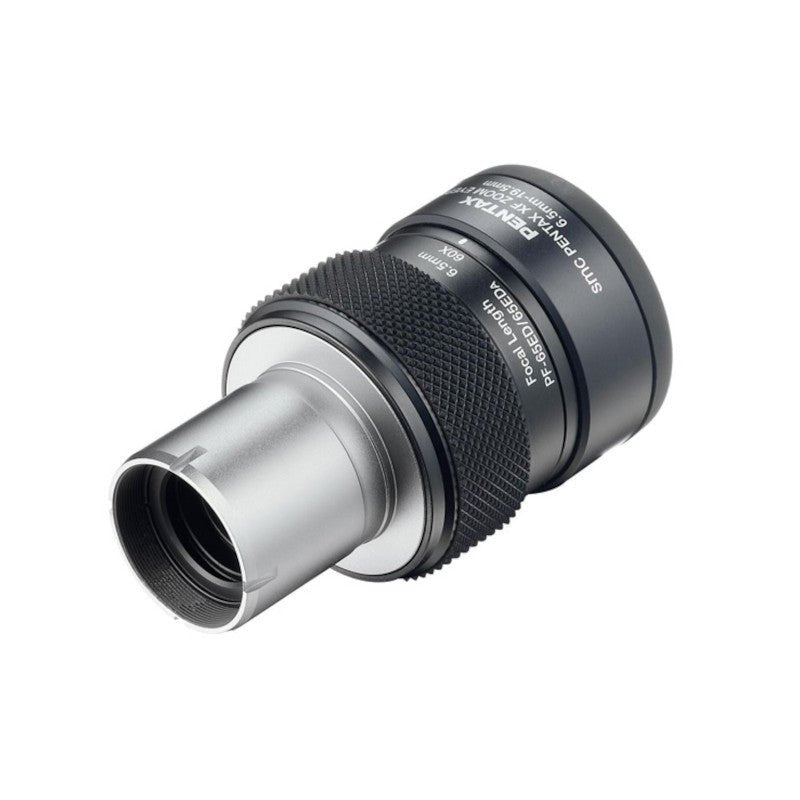

The SMC PENTAX XF Zoom Eyepiece 6.5mm-19.5mm features a focal-length range of 6.5mm to 19.5mm for a magnification of 20 to 60 times, with an apparent field of view of 42 to 60 degrees and an eye relief of 11mm to 15mm. It also offers a user-friendly rubber eyepiece ring to minimize the risk of scratching the observer's eyeglasses.
Please note this eyepiece will fit all telescopes that take 1.25" eyepieces.
| MAGNIFICATION | 20-60x (with the PF-65ED) |
| ANGLE OF VIEW | 2.1-1.0° (with the PF-65ED) |
| FIELD-OF-VIEW (@ 1000 YDS) | 39-17 m at 1000m (with the PF-65ED) |
| EXIT PUPIL DIAMETER | 3.2-1.1mm (with the PF-65ED) |
| EYE RELIEF | 11.0-15.0mm |
| RELATIVE BRIGHTNESS | 20x: 10.6, 60x: 1.2 (with the PF-65ED) |
| TWILIGHT FACTOR | 20x: 36.1, 60x: 62.4 (with the PF-65ED) |
| WEATHERPROOFING | Water resistant |
| DIMENSIONS | 50mm x 88mm |
| WEIGHT | 240g |
