The Binocular and Telescope Shop
Pixfra Thermal Adapter for Mobile Phone USB Type-C IOS & Android
$499.00

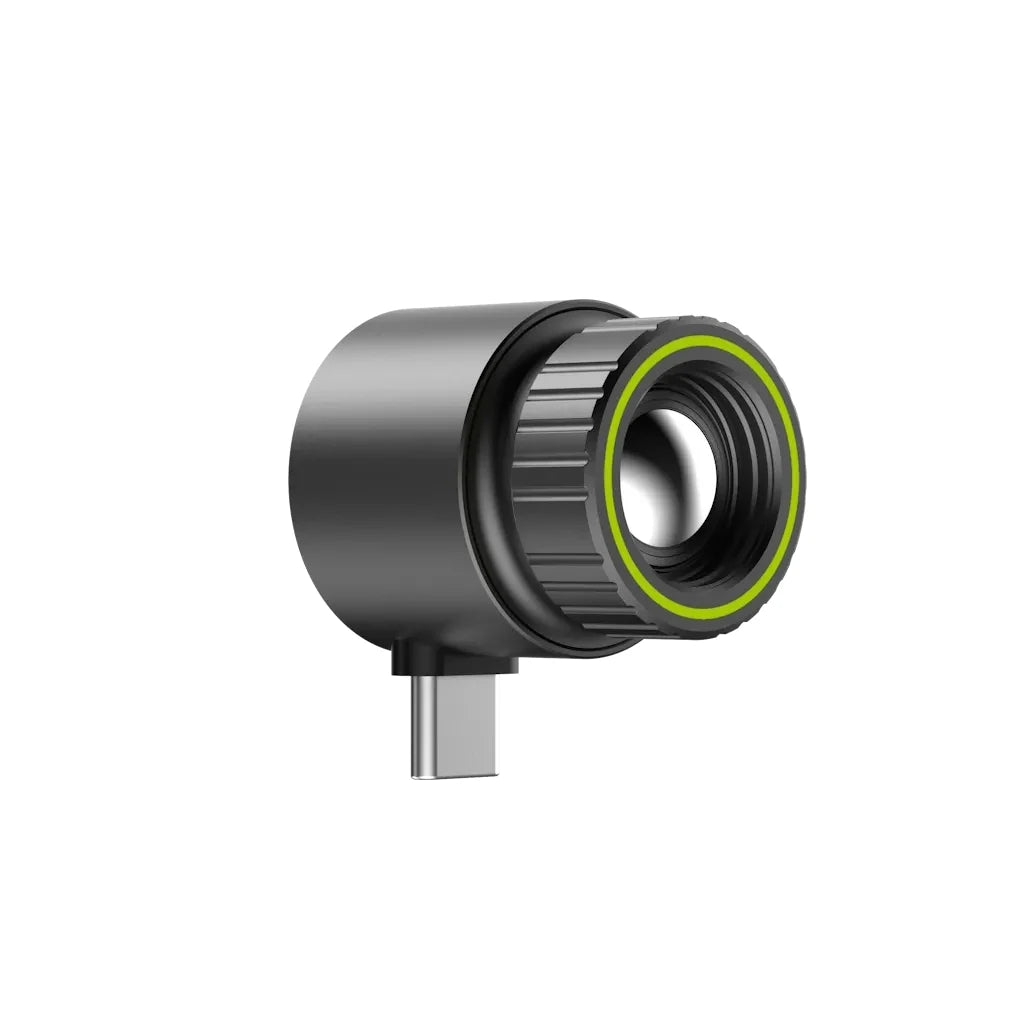

Pixfra PX210 · USB-C thermal camera
Add a thermal view to your phone.
The Pixfra PX210 is a compact thermal camera for compatible iOS and Android smartphones. Its USB Type-C connection brings thermal observation to a phone you already carry, for a different view of your surroundings.
A small camera.
Focus you control.
The PX210 weighs no more than 29 g. Turn the focus ring on its 10 mm F0.9 lens to sharpen the view at your subject’s distance.
With a closest focus of 5 m, it suits observation from a little further back. It is not designed for close-up views of small components on a workbench.
- FocusingManual lens ring
- ConnectionUSB Type-C
What shapes the thermal image.
256 × 192native detector pixels
Thermal detail starts at the sensor.
The detector captures a 256 × 192 thermal image. Pixfra’s ISR processing enhances the output to 512 × 384. That larger output is image processing, rather than a higher-resolution detector.
50 fpsvideo frame rate
Keep movement smooth.
A 50-frame-per-second image helps you follow movement and maintain a fluid view as you pan across a scene.
≤20 mKNETD at f/1.0
Separate small heat differences.
Thermal sensitivity describes how small a temperature difference the detector can distinguish. This helps separate similar temperatures in a scene; it is not a specification for absolute temperature-measurement accuracy.
Phone compatibility.
iOS & Android
For compatible smartphones. Choose this USB Type-C model for a compatible phone with the matching connection. Platform support does not mean every handset is supported.
Lightning phones
No direct connection. The PX210 has a USB-C connector, which does not plug directly into a Lightning port.
Your exact model
Confirm the phone and software combination before ordering. Include your handset model and operating-system version in a product enquiry.
Choose the view.
Record what you find.
More ways to inspect.
Picture-in-picture supports visible-light and thermal views. Use 1×–8× digital zoom to enlarge a part of the image; digital enlargement does not add detector pixels.
Stills and video.
Capture JPEG snapshots or record H.264 video. Video output is 256 × 192 in general mode, or 512 × 384 with ISR processing.
Specifications.
PX210 technical datasheet (PDF)
Identity
Model
PX210 (PFI-PX210)
Phone platforms
Compatible iOS and Android smartphones; USB Type-C connection
Thermal imaging
Native detector resolution
256 × 192 pixels
ISR output
512 × 384 pixels (processed image)
Frame rate
50 fps
Sensitivity (NETD)
≤20 mK at f/1.0
Detector type
Vanadium oxide, uncooled focal plane
Pixel pitch
12 µm
Spectral range
8–14 µm
Optics
Lens
10 mm, F0.9
Focus
Manual
Closest focus
5 m
Field of view
17.5° horizontal × 13.1° vertical
Field at 100 m
31.5 m horizontal × 23.3 m vertical
Digital zoom
1×–8×
Viewing and recording
Colour palettes
White Hot, Black Hot, Iron Red, Alarm, Amber
Image modes
5 selectable modes
Picture-in-picture
Visible-light and thermal imaging
Video recording
H.264; 256 × 192 general / 512 × 384 ISR
Snapshots
JPEG
Hot-spot tracking
Yes
FFC calibration
Auto, manual and semi-auto
Power and environment
Power supply
5 VDC
USB interface
USB Type-C
Power consumption
0.36 W; 0.56 W with ISR
Operating temperature
−20°C to +50°C
Operating humidity
≤93%
Physical
Net weight
≤29 g
Body dimensions
Ø26 × 29.6 mm
Packaging dimensions
115 × 122 × 67 mm
Gross weight
≤200 g
