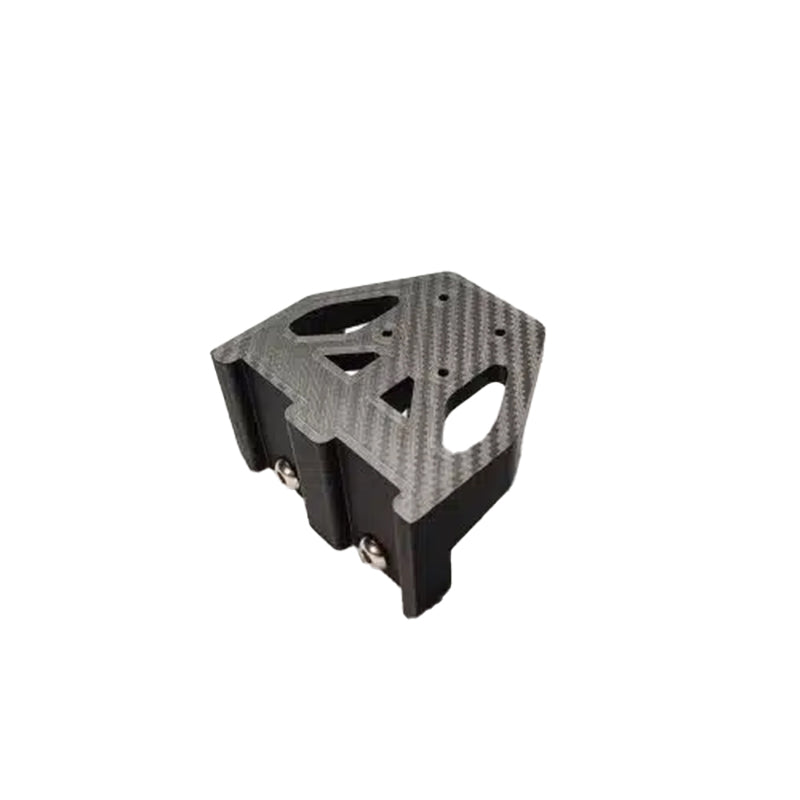

Planewave CDK Universal Mounting Bracket

A universal mounting bracket that will allow you to attach any of the Rouz Astro brackets to a Planewave CDK Telescope. Bolts on to the backplate of CDK (up to 4x positions) using the included stainless steel hardware.

Features

• light weight – Only 55 grams (2 oz.)
• Cable Management –  Allows for tidy wiring with short cables that won’t snag
• Mounting positions  – Devices can be rotated to any 90 degree orientation

Brackets Available

• Mele Quieter Mini PC’s
• Pegasus Ultimate Power Box (UBPV2)
• Pegasus Ultimate Power Box (UBPV3)
• Pegasus Ultimate Power Box (UBPV3) – Top bracket – TO Mele PC
• Pegasus Powerbox Micro
• Pegasus USB Control Hub
• Pocket Powerbox Advance 2 (PPBADV2)
• Intel NUC
• BeeLink Mini PC
• Optec Controller (Gemini, Leo, Sagitta)
• Standard Finder Shoe (Orion/Synta)
• All-Sky Camera Mount (1.25″ Camera Holder)

Mechanical

• CAD designed and FDM printed for a combination of exceptional strength and low weight thanks to the tough carbon fiber composite material that offers excellent mechanical properties.
• Engineering grade material used is a composite of polymers and carbon fiber which are fused at high temperatures over 500 deg F (no glue or epoxy is used)

Specifications

• Weight: 55 grams (2 oz.)
• Material: Carbon Fiber composite – FDM Print
• 2x stainless Steel Bolts for the CDK backplate
• High UV, water, and temperature resistance up to 60 deg C (140F)
