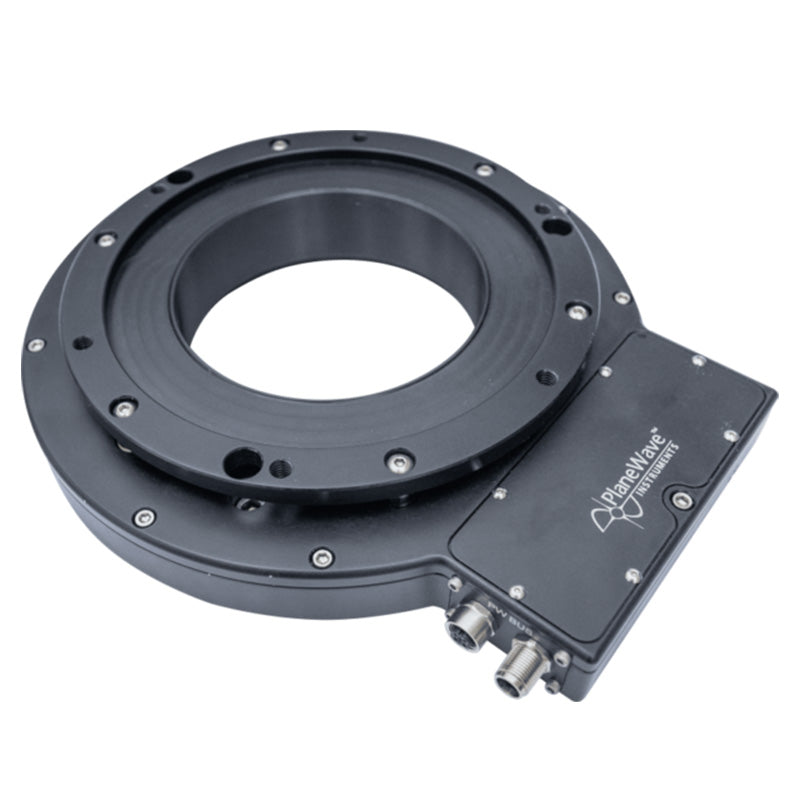

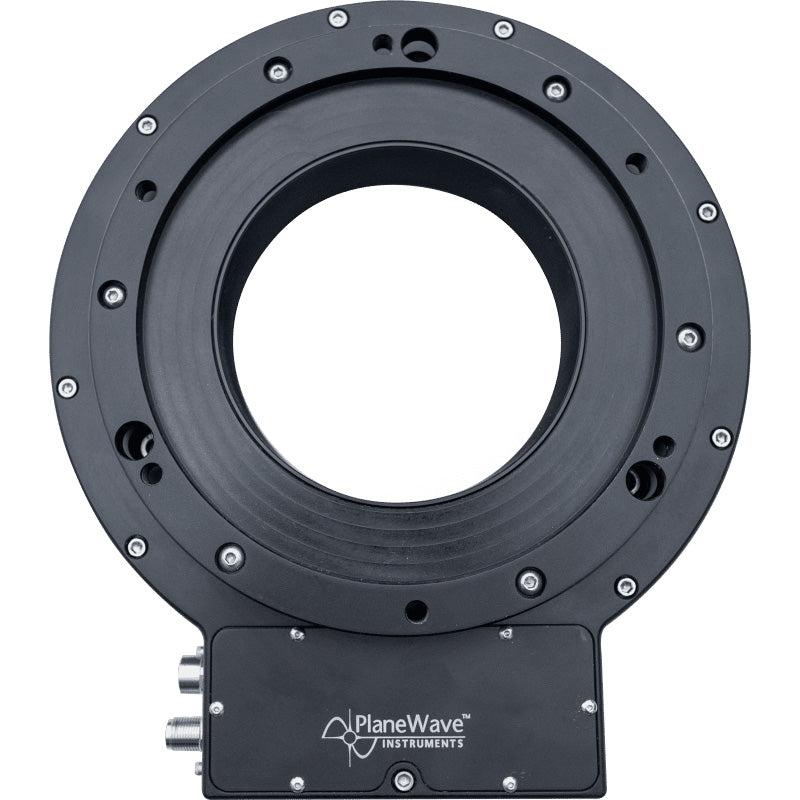

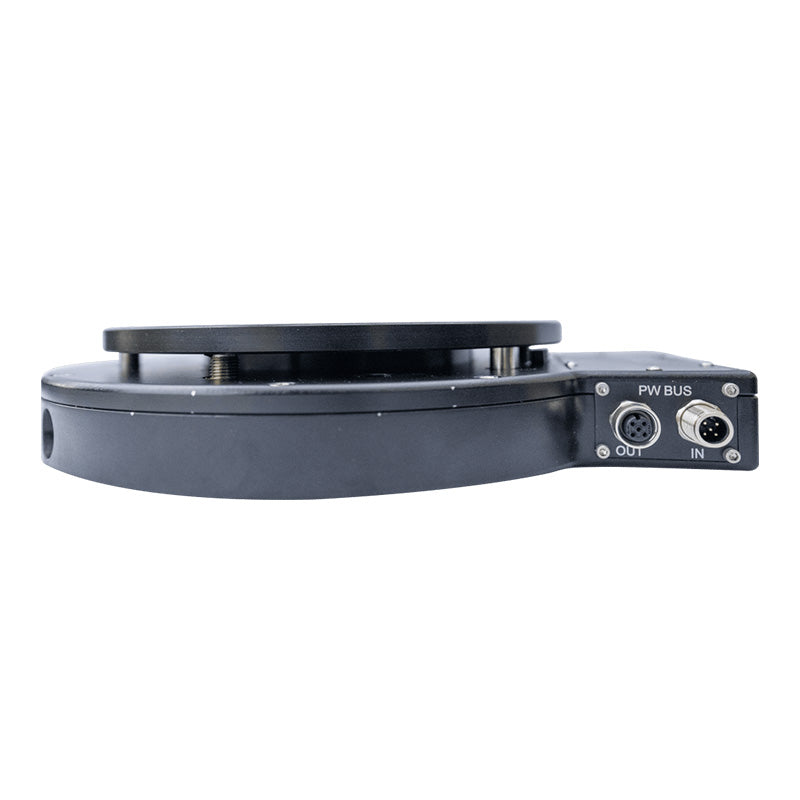

Planewave Series-5 Focuser (Stackable with Series-5 Rotator)

Planewave Series-5 Focuser (Stackable with Series-5 Rotator)

SKU 6011001

*All PlaneWave prices include crating and shipping to Bintel. Call us for the latest pricing and availability.*

Available to order
Contact us for ETA
Sold out
$6,999.00 - $6,999.00
$6,999.00
$6,999.00 - $6,999.00
$6,999.00
Same day shipping

If you order before 2pm we will ship your items same day.

Expert aftersales support

We fully support our products!

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Aussie Owned & Stocked

Our store is Australian owned and stocked.

  • The Series-5 focuser is a large capacity focuser for use with Alt/Az, or equatorially mounted systems.
  • The focuser is capable of lifting 40 lbs (18 kg) with a travel range of  0.6-inches (15,200 microns).
  • The Series-5 focuser can be stacked with the Series-5 rotator for a complete focusing rotator solution (combined 2.78″ of occupied backfocus).
  • Occupies only 1.675” of backfocus.
  • 464.4283 encoder counts per micron
  • Controlled via PWI4 software for autofocusing and optional field de-rotation (if using an Alt/Az mounted system).
  • Requires the Series-5 Controller.
  • Compatible with the DeltaRho 350 and RC700 telescopes.
