Planewave Series-5 Rotator (Stackable with Series-5 Focuser)

$6,999.00

$6,999.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.
Image alt

Expert aftersales support

We fully support our products!
Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties
Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

Ask GeminiAsk ChatGPTAsk Claude

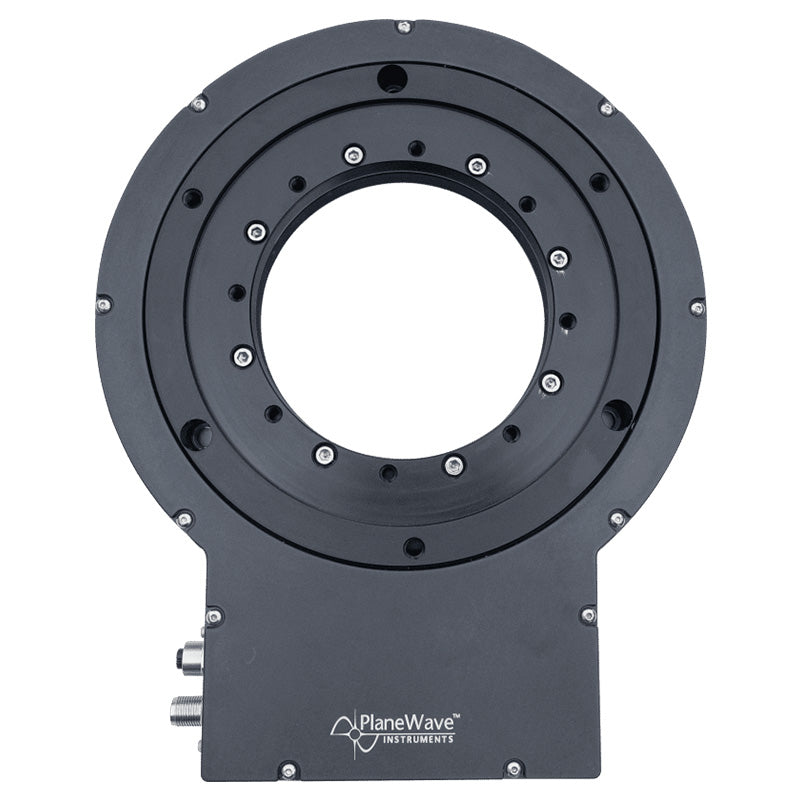

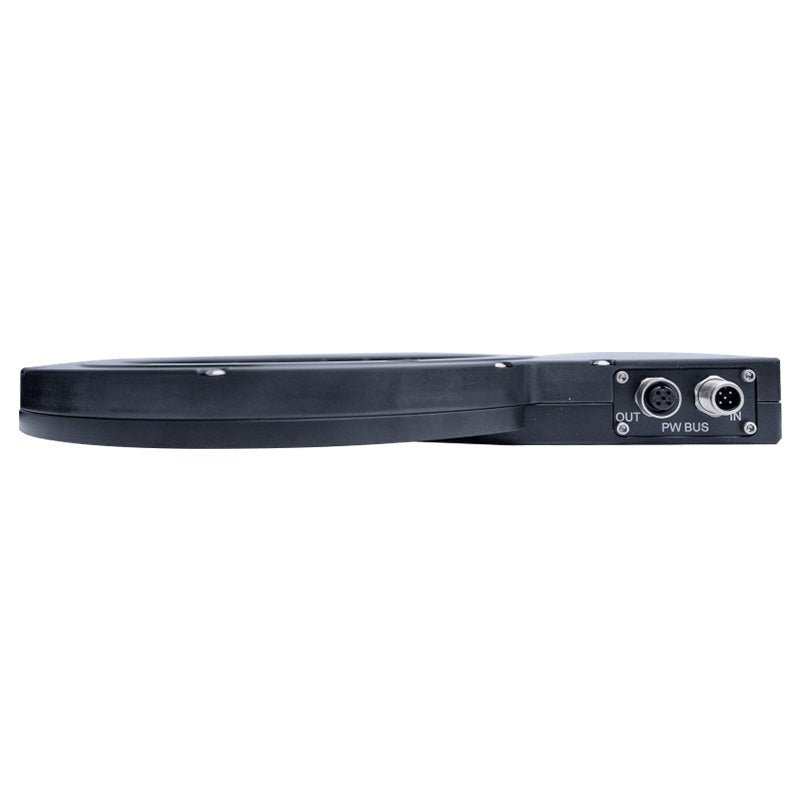

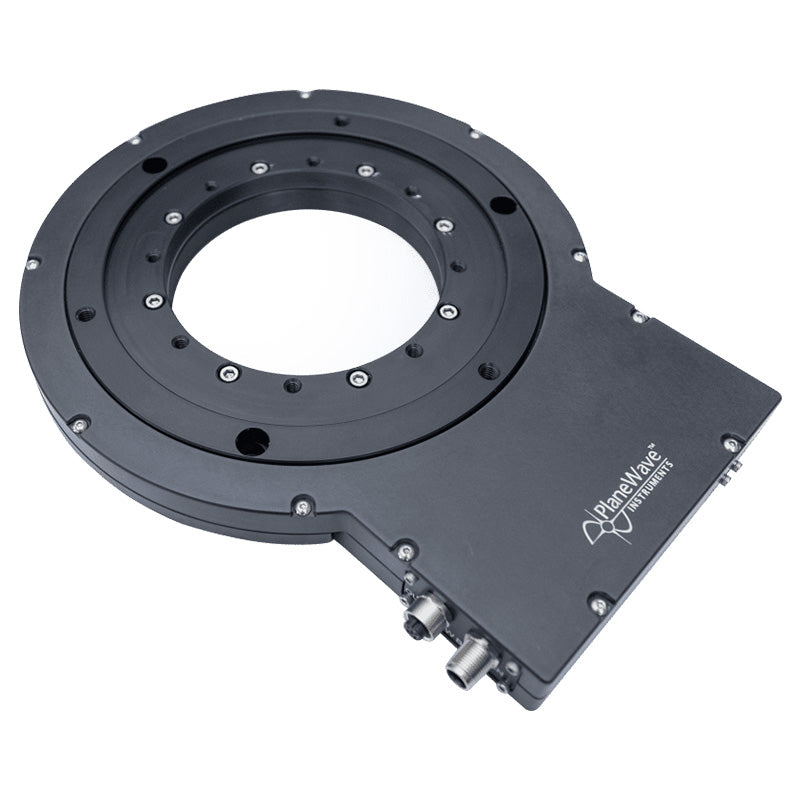

  • The Series-5 rotator is a large-capacity rotator for use with Alt/Az, or equatorially mounted systems.
  • The rotator is capable of lifting 40 lbs (18 kg) with a travel range of 680 degrees between mechanical hardstops.
  • The Series-5 rotator can be stacked with the Series-5 focuser for a complete focusing rotator solution (combined 2.78″ of occupied back focus).
  • Occupies only 1.105” of back focus.
  • Controlled via PWI4 software for autofocusing and optional field de-rotation (if using an Alt/Az mounted system).
  • Requires the Series-5 Controller.
  • Compatible with DeltaRho and RC700 telescopes.
  • 3,637,531 encoder counts per rotation (10104.25 counts per degree, 2.806 counts per arcsecond).

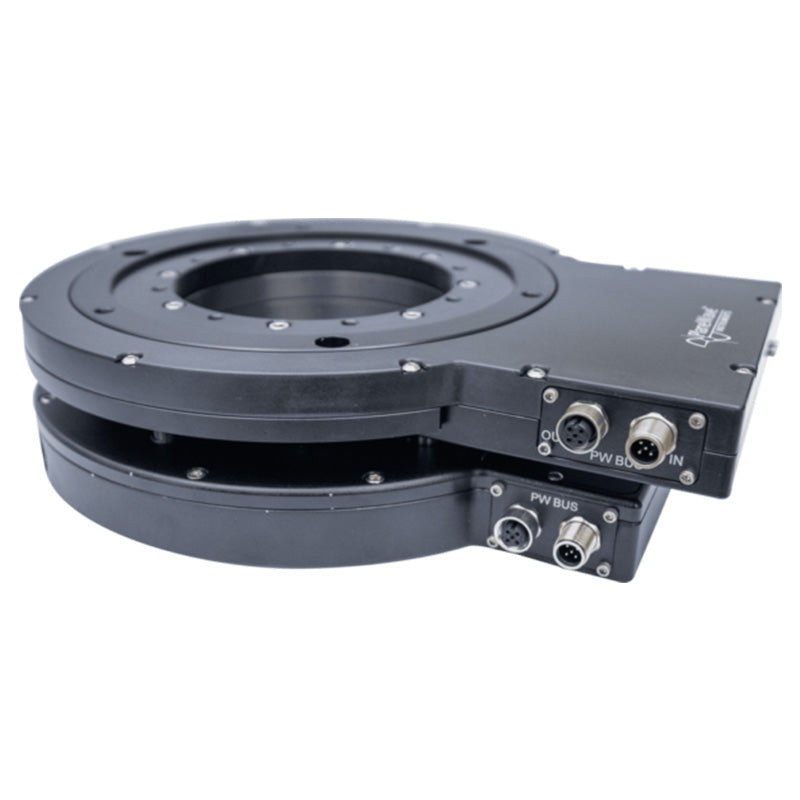

  • *Series-5 rotator shown stacked with the focuser is sold separately.
