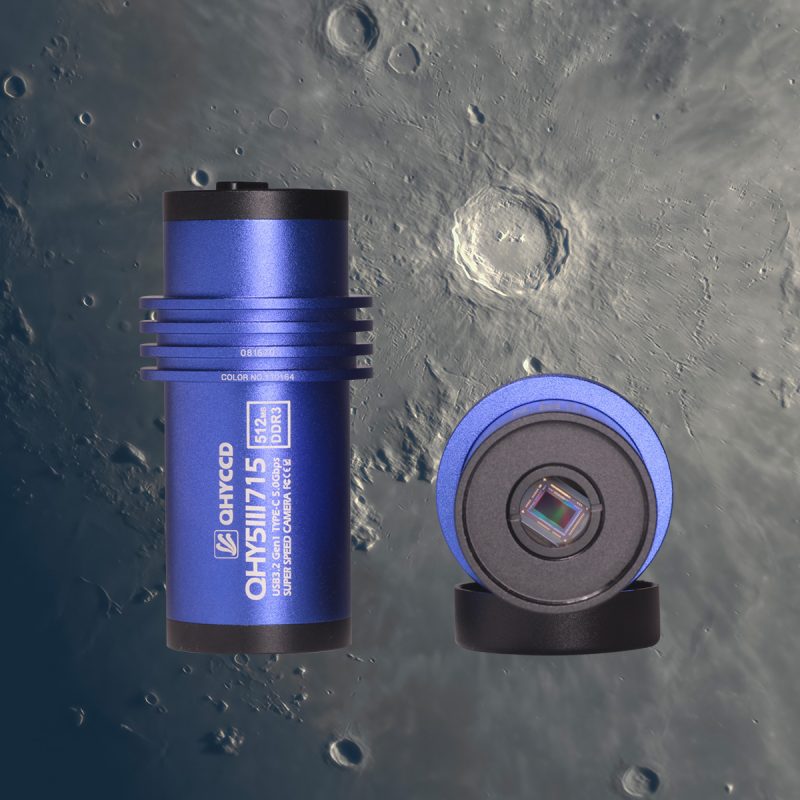

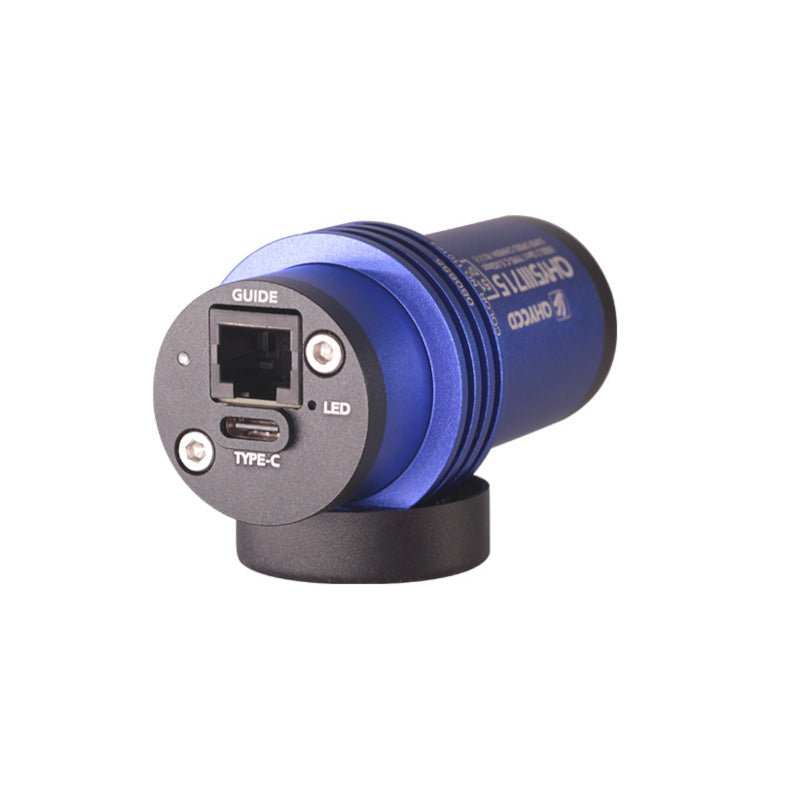

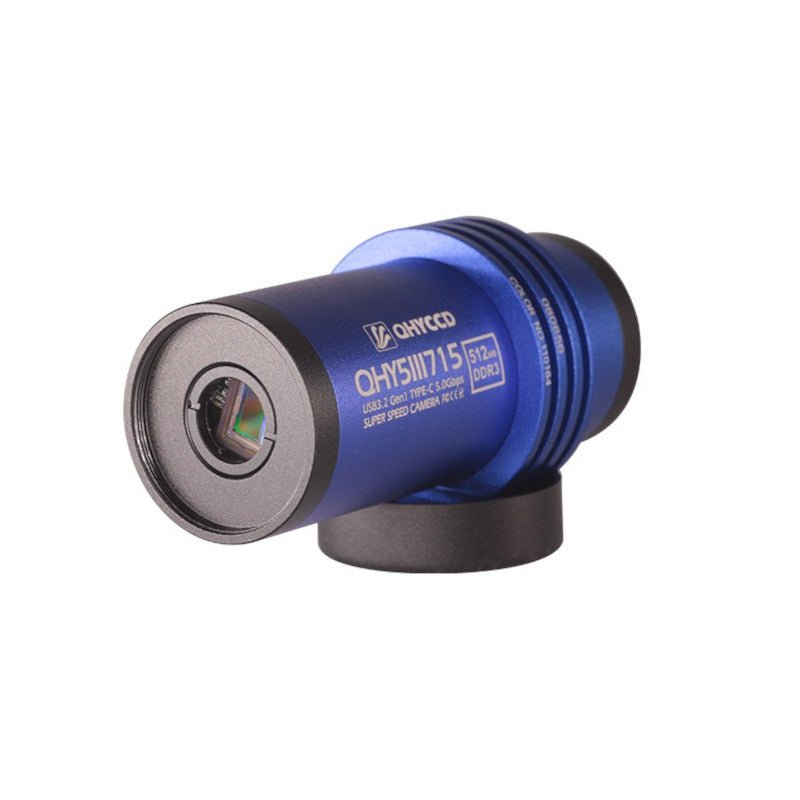

QHY5III-715C 4K Planetary/Guide Camera

SKU 110164
Available to order
Contact us for ETA
Original price $359.00 - Original price $359.00
Original price
$359.00
$359.00 - $359.00
Current price $359.00
Return Policy

Please see our return policy here.

Same day shipping

If you order before 2pm we will ship your items same day.

Expert aftersales support

We fully support our products!

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Aussie Owned & Stocked

Our store is Australian owned and stocked.

Overview

The QHY5III715C is an ultra-high resolution back-illuminated color camera with extremely low read noise. The sensor has a 1/2.8-inch optical format, similar to the QHY5III462C. However, the QHY5III715C has 4X as many pixels as the QHY5III462C for 4K resolution with 1.45um pixels.

This makes the new QHY5III715C ideal for smaller short focal length refractors. The exceptionally small pixels subtend a FOV of less than 1 arcsecond at focal lengths of 12 inches (300mm) or longer. The QHY5III715C inherits all of the updates and improvements of the QHY5III Series Ver. 2 line of cameras (See below).

Sample Images

"New Moon"

  • Telescope: Celestron C8HD
    Camera: QHY5III715C
    2000frames
    6ms exposure per frame
    37% stacked

515MB DDR3 Memory

https://www.youtube.com/watch?v=WYb5d5-5aWw

The QHY5III (Ver. 2) series planetary and guiding cameras are all equipped with a 512MB DDR3 image buffer which can effectively reduce the pressure on computer transmission, a great help for planetary photography which often requires writing a large amount of data in a short period of time.

Some deep-sky astrophotography cameras on the market today only have 256MB, for example.

In comparison, the 512MB DDR3 memory of the new 5III (Ver. 2) series cameras represents a significant upgrade.

Specifications

Model QHY5III715C
CMOS Sensor Sony IMX715
Pixel Size 1.45um*1.45um
Effective Pixel Area 3840*2192
Effective Pixels 8.4 Mega Pixel
Fullwell 5.7ke-
Readout Noise 0.87-2.17e-
AD Sample Depth 12-bit (output as 16-bit and 8-bit)
Built-in Image Buffer 512MB DDR3 Memory
ROI Frame Rate Full Resolution 42FPS @8BIT 23FPS @16BIT
1920Lines 83FPS @8BIT 47FPS @16BIT640Lines 99FPS @8BIT 99FPS @16BIT
Exposure Time Range 11us-900sec
Shutter Type Electric Rolling Shutter
Computer Interface USB3.2 Gen1 Type-C
Guide Port ST4
Telescope Interface 1.25-inch, compatible with CS-port and C-port lenses by replacing the front-end connector
Front end Standard replaceable IR anti-reflection glass
Back Focal Length 17mm (with adapter);8±0.5mm(without adapter)
Chip package size 5.6mm x 3.2mm
Debayer GRGB
Weight 90g

Extended Near Infrared Sensitivity

In this latest generation of sensors, the photodiode portion of the pixel well is physically deeper than in previous sensors, allowing photons of longer wavelengths to penetrate deeper into the substrate. This dramatically increases the sensor’s sensitivity to red and near-infrared (NIR) light. The sensor displays almost equal peak sensitivity to NIR light as it does to light in the visible spectrum.

Curves
