3tracking rates
Track stars, the Sun or the Moon.
Select sidereal, solar or lunar tracking to match the target after the equatorial mount has been set up and aligned.
Skeleton text
Skeleton text
Skeleton text
Skeleton text
Skeleton text
Skeleton text
Skeleton text
Store locator
WANT TO KNOW MORE ABOUT THIS PRODUCT?
Let Gemini, ChatGPT or Claude help you. Click a button and ask away.
What the numbers mean
A GoTo mount sized for serious observing and a considered step into guided imaging.
13.7kg payload
Capacity for a capable optical tube and its working accessories.
This is the supplier-rated maximum payload. Count the telescope, rings, dovetail, finder, diagonal or camera train when planning the load, and keep imaging expectations tied to the complete setup and balance.
42,900+objects
The included SynScan controller handles finding and tracking.
Its database includes the complete Messier, NGC and IC catalogues, with one-, two- and three-star alignment options to prepare the GoTo system for a session.
10kg mount head
A substantial equatorial head that remains separable for transport.
The 5.6 kg steel tripod and two 5.1 kg counterweights pack as separate components, making the individual lifts clear before you choose a setup location.
13.7kg
supplier-rated payload
42,900+
SynScan objects
3rates
sidereal, solar and lunar
2 × 5.1kg
counterweights included
The payload figure is the supplier-rated maximum, not a separate astrophotography rating.
SynScan drive and control
Four control tools behind the HEQ5 Pro's observing and imaging workflow.
The hand controller, stepper drive and guider interface work together, from an aligned GoTo session through to guided tracking.
3tracking rates
Track stars, the Sun or the Moon.
Select sidereal, solar or lunar tracking to match the target after the equatorial mount has been set up and aligned.
4guide rates
Match guider corrections to the session.
The autoguider interface supports 0.25x, 0.50x, 0.75x and 1x guide rates. A guide camera and related imaging equipment are separate.
1arcminute
GoTo positioning has a stated upper accuracy.
Saxon specifies positioning accuracy up to one arcminute, assisted by software compensation for mount mechanical error. Alignment quality remains part of that result.
0.144arcsecond
Fine commanded motor resolution.
The 1.8° stepper motors use 64 microsteps, with a stated motor resolution of 0.144 arcsecond. Periodic error correction is also supported.
Ways to use it
Three sessions, compared on the same practical requirements.
SynScan GoTo observing
Align with one, two or three stars, select a target from the hand controller and let the mount slew and track.
- NeedsOptical tube and 11-15 V DC power
- ControlIncluded SynScan hand controller
- TrackingSidereal, solar or lunar
Polar-aligned visual observing
Use the illuminated polar scope in either hemisphere, balance the telescope and track with the selected celestial rate.
- NeedsOptical tube and 11-15 V DC power
- ControlSynScan directional and GoTo control
- TrackingSelected celestial rate
Guided astrophotography
Connect a compatible autoguider, choose the guide rate and use periodic error correction as part of a carefully balanced imaging setup.
- NeedsCamera, guider and suitable power
- ControlAutoguider interface and SynScan
- TrackingSidereal with guide corrections
What connects to the HEQ5 Pro.
Telescope mounting
V- and D-style dovetail plates. The supplied dual saddle accepts both formats; match the plate and complete equipment weight to the mount.
Autoguiding
Compatible external guider through the autoguider interface. Guide camera and cabling are not listed as included.
Computer control
Compatible planetarium software through the SynScan hand controller. The manufacturer specifies an RS-232 connection; the required computer cable is not listed as included.
Power
11-15 V DC, 2 A, centre-positive. A car power lead is included. A compatible mains power supply is separate.
Included
In the box.
HEQ5 Pro mount head with dual saddle1
SynScan hand controller1
1.75-inch stainless-steel tripod1
Large accessory tray1
5.1 kg counterweight2
Retractable counterweight shaft1
Built-in illuminated polar scope1
Car power lead1
Good to know.
This is the HEQ5 Pro, not the HEQ5-R Pro.
The HEQ5-R Pro is a separate model. Use the specifications on this page when comparing capacity, drive, power and connections.
A mains power supply is not included.
The included car lead suits the mount's 11-15 V DC, 2 A, centre-positive input. For mains operation, use a separately supplied compatible power source.
Plan for separate lifts and two shipping cartons.
The mount head is 10 kg, the tripod is 5.6 kg and the two counterweights are 5.1 kg each. Official shipping data lists 18 kg and 12 kg cartons.
Equatorial setup comes before GoTo accuracy.
Level, polar align and balance the mount before completing the SynScan star alignment. The official HEQ5/EQ6 mount guide covers the physical setup.
Questions, answered
What to confirm before this mount becomes part of your setup.
Is a telescope included?
No. This package supplies the mount, tripod, control and balancing hardware. An optical tube, camera and autoguider are not listed as included.
Can the polar scope be used in Australia?
Yes. The built-in illuminated polar scope supports both Southern and Northern Hemisphere alignment.
Can I plug it straight into a wall outlet?
Not with the supplied lead alone. The mount needs 11-15 V DC at 2 A with centre-positive polarity. A car lead is included; a mains power supply is separate.
Can a computer control the mount?
Yes. The manufacturer supports compatible planetarium software through the SynScan hand controller's RS-232 connection. The required computer cable is not listed as included.
Warranty in Australia
Saxon 3-Year Limited Warranty.
Saxon lists three years of limited warranty coverage for this telescope accessory, alongside your rights under Australian Consumer Law.
What is coveredDefects in materials and workmanship during normal use and service.
Important exclusionsAbuse, misuse, improper handling, physical damage, unauthorised repairs or modifications, and normal wear are excluded.
How to claim in AustraliaNotify Saxon during the warranty period and keep proof of purchase. Read the full Saxon warranty information.
Technical
Specifications.
Mount
Type
German equatorial GoTo mount
Payload capacity
13.7 kg

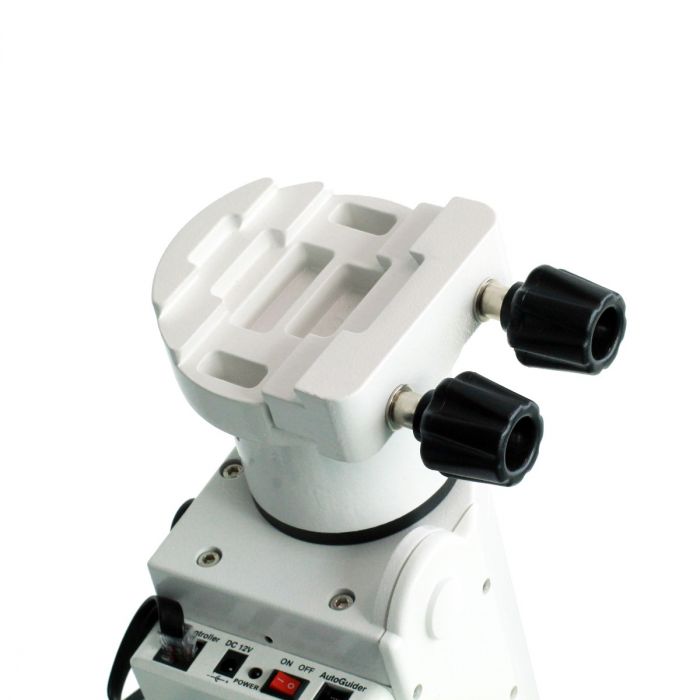

Saddle
Dual saddle for V- and D-style dovetail plates
Polar scope
Built-in, illuminated; Northern and Southern Hemisphere
Periodic error correction
Supported
Control and drive
GoTo controller
SynScan hand controller
Object database
42,900+ objects; Messier, NGC and IC catalogues
Alignment
One-star, two-star and three-star
Tracking rates
Sidereal, solar and lunar
Autoguider interface
Included
Guide rates
0.25x, 0.50x, 0.75x and 1x
Maximum slew speed
3.4°/s (800x)
Positioning accuracy
Up to 1 arcminute, with software compensation
Motor drive
1.8° stepper motors with 64 microsteps
Motor resolution
0.144 arcsecond; 9,024,000 steps/revolution
Gear ratio
705:1
Physical
Tripod
1.75-inch stainless steel
Tripod height
97-121 cm
Tripod weight
5.6 kg
Mount-head weight
10 kg, excluding counterweights
Counterweights
2 x 5.1 kg
Counterweight shaft
Stainless steel; 21.5 cm long x 1.8 cm diameter
Accessory tray
Large wall-to-wall tray
Power and shipping
Power requirement
11-15 V DC, 2 A, centre-positive
Supplied power connection
Car power lead; mains power supply not included
Packed weight
Two cartons: 18 kg + 12 kg
Carton dimensions
127 x 24 x 25 cm; 44 x 44 x 19 cm
Warranty
Australian warranty
3-year limited warranty
