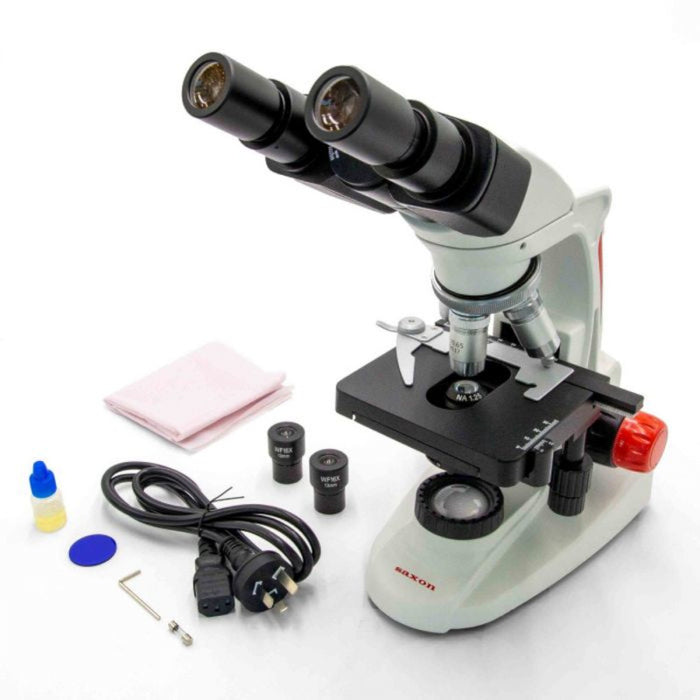

saxon SmartOne Biological Microscope 40x-1600x
The SmartOne Biological Microscope is a reliable and versatile equipment for educational, home schooling, and hobby applications. With its impressive magnification range and precision engineering, this microscope offers exceptional clarity and functionality for various biological studies.
Key Features:
- Magnification: 40x, 64x, 100x, 160x, 400x, 640x, 1000x,1600x
- Binocular Viewing Head: Provides a comfortable, ergonomic experience during prolonged use.
- Eyepieces: Includes 10x and 16x wide-field eyepieces for enhanced viewing flexibility.
- Quadruple Nosepiece: Smoothly rotating nosepiece to easily switch between objectives.
- Achromatic Objectives: 4x, 10x, 40x, and 100x oil immersion for sharp, high-contrast images.
- Stage: Precision mechanical stage measuring 110x125mm for smooth sample positioning.
- Condenser: NA 1.25 Abbe condenser with an iris diaphragm for optimal light control.
- Coarse & Fine Focusing: Ensures detailed observation.
- Illumination: Bright and even LED illumination for detailed observation.
Applications:
- Education: Ideal for home schooling, schools, and universities for teaching cellular biology and microbiology.
- Research: Suitable for biological, medical, and environmental studies requiring high precision.
The saxon SmartOne Biological Microscope combines quality optics, a robust design, and ease of use, making it an excellent choice for both professionals and enthusiasts.
| Warranty Information | 3-Years Limited Warranty |
|---|---|
| Eyepiece | WF 10x/18mm, WF 16x |
| Magnification Range | 40x, 64x, 100x, 160x, 400x, 640x, 1000x, 1600x |
| Objectives | 4x, 10x, 40xR, 100xR |
| Field of View | 18mm |
| Working Distance | 4x @ 37.5mm, 10x @ 6.5mm, 40x @ 0.63mm, 100x @ 0.195mm |
| Illumination | LED |
| Head Type | Binoculars |
| Focus | Coarse and Fine, Coaxial |
| Condenser | 1.25 Abbe |
| Stage Type | Fixed with Attached Mechanical Slide Holder (115 x 125mm) |
| Stand | Arm |
| Power Supply | 250v 10A Power cord |
| Weight | 4kgs |
| Shipping Dimensions | 41 x 34 x 26 cm3 |
| Shipping Weight | 5.2kgs |
